Matplotlib Installation Guide



Hi
This guide will help to install matplotlib those who are all newbie to python and sour...
Install it by the following way .
untar the source

$ cd matplotlib-0.99.1.2 # i used to setup matplotlib
$ python setup.p...
plt.draw()


time.sleep(3)
plt.clf()


plt.ioff()    #interactive off
plt.close()


#End of code
The above ...
X, Y, Z = axes3d.get_test_data(0.05)
cset = ax.contour(X, Y, Z)
ax.clabel(cset, fontsize=9, inline=1)
ax.view_init(0, 30)
...
Initial levels in 3D contour : [ fill ]
code :
ax.contourf(X, Y, Z,cset.levels)
Changes in contour levels :
Contour in Line Drawing :
code :
ax.contour(X, Y, Z,cset.levels)
Changes in Line contour levels :
Contour in Top View :
code :
ax.view_init(90, 0)
Contour level changes in top view :
Contour in side view :
code :
ax.view_init(0, 30)
Contour changes in side view :




By this way , we can interact with contour 3D plot using matplotlb .


By ,


Arulalan.T
matplotlib-installatin-interactive-contour-example-guide
Upcoming SlideShare
Loading in …5
×

matplotlib-installatin-interactive-contour-example-guide

5,022 views
4,942 views

Published on

Published in: Education, Technology
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total views
5,022
On SlideShare
0
From Embeds
0
Number of Embeds
2,763
Actions
Shares
0
Downloads
18
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

matplotlib-installatin-interactive-contour-example-guide

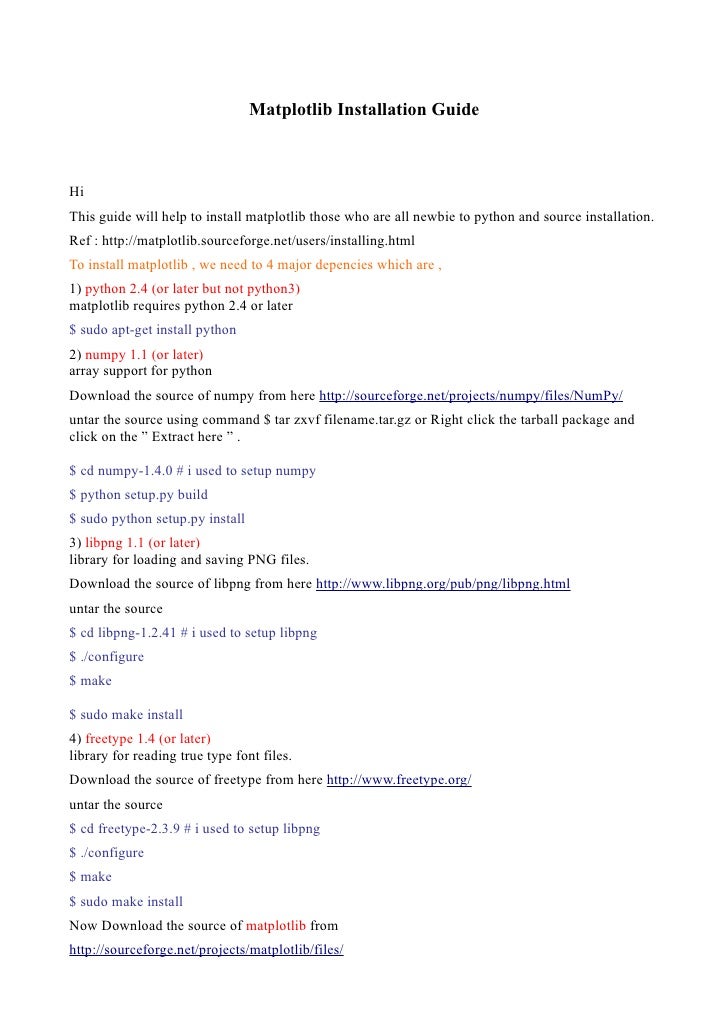

  1. 1. Matplotlib Installation Guide Hi This guide will help to install matplotlib those who are all newbie to python and source installation. Ref : http://matplotlib.sourceforge.net/users/installing.html To install matplotlib , we need to 4 major depencies which are , 1) python 2.4 (or later but not python3) matplotlib requires python 2.4 or later $ sudo apt-get install python 2) numpy 1.1 (or later) array support for python Download the source of numpy from here http://sourceforge.net/projects/numpy/files/NumPy/ untar the source using command $ tar zxvf filename.tar.gz or Right click the tarball package and click on the ” Extract here ” . $ cd numpy-1.4.0 # i used to setup numpy $ python setup.py build $ sudo python setup.py install 3) libpng 1.1 (or later) library for loading and saving PNG files. Download the source of libpng from here http://www.libpng.org/pub/png/libpng.html untar the source $ cd libpng-1.2.41 # i used to setup libpng $ ./configure $ make $ sudo make install 4) freetype 1.4 (or later) library for reading true type font files. Download the source of freetype from here http://www.freetype.org/ untar the source $ cd freetype-2.3.9 # i used to setup libpng $ ./configure $ make $ sudo make install Now Download the source of matplotlib from http://sourceforge.net/projects/matplotlib/files/
