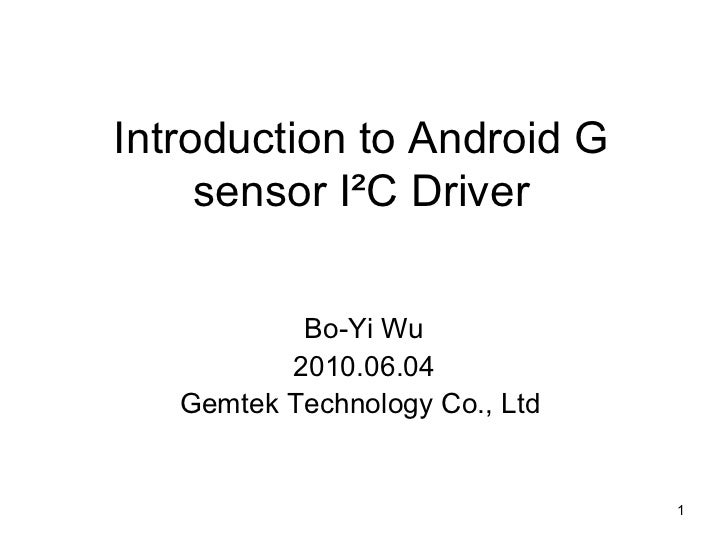

  • 1. Introduction to Android G sensor I²C Driver on Android Bo-Yi Wu 2010.06.04 Gemtek Technology Co., Ltd
  • 2. Outline
    • What’s G sensor ?
    • I²C Driver
    • Kernel Patch
    • Issue
    • Reference
  • 3. What’s G sensor & Application
    • As accelerometers are more and more present in mobile devices, new features are developed. Portrait & Landscape is one of them. It allows devices to display the information in the right orientation depending on how it is held.
  • 4. Orientation estimation
  • 5. Orientation estimation
  • 6. Stability check
    • STABLE_THRES
    • STABLE_COUNT_MIN
      • calling rate? bigger or smaller?
  • 7. Code Review
  • 8. I²C : detection capability set i2c address value detect call back function detect address fill the structure i2c_board_info
  • 9. New-style drivers vs Legacy drivers
    • Legacy drivers duplicate a lot of code .
    • The code needed in each driver to implement a detect callback is way smaller than the code needed to implement a legacy driver.
  • 10. New-style drivers: initial function
    • module_init ( BMA150_init );
      • return i2c_add_driver (&bma150_driver);
    • module_exit ( BMA150_exit );
      • i2c_del_driver (&bma150_driver);
    • __exit && __init (Kernel built in or module)
  • 11. G Sensor: bma150_driver structure
    • New-style driver
    Legacy driver probe: Callback for device binding (new-style drivers) remove: Callback for device unbinding (new-style drivers) class : What kind of i2c device we instantiate (for detect) (1<<0) for sensor address_data: The I2C addresses to probe, ignore or force (for detect) id_table: List of I2C devices supported by this driver
  • 12. Legacy driver: address_data
  • 13. New-style drivers: address_data /* Internal numbers to terminate lists */ I2C_CLIENT_END : 0xfffeU I2C_CLIENT_INSMOD_1 ~ I2C_CLIENT_INSMOD_8 I2C_CLIENT_INSMOD_COMMON : define structure address_data normal_i2c, probe, ignore value
  • 14. I2c Driver: i2c_register_driver 1. new style driver methods can't mix with legacy ones /* check bma150_driver is news style driver or not */ is_newstyle_driver (driver) 2. /* check bma150_driver is Legacy style driver or not */ driver->attach_adapter || driver->detach_adapter || driver->detach_client 4. /* add bma150 driver to list for i2c only */ INIT_LIST_HEAD (&driver->clients) 5. /* Walk the adapters that are already present */ class_for_each_device struct i2c_adapter *adapter = to_i2c_adapter(dev); struct i2c_driver *driver = data; 3. /* register driver with bus, and use bus_add_driver () to add bus driver */ driver_register (&driver->driver);
  • 15. I2c Driver: __attach_adapter
    • Call __attach_adapter function
      • New style driver:
        • i2c_detect (adapter, driver);
      • Legacy driver:
        • driver-> attach_adapter (adapter);
    /* Because Legacy driver don’t have detect function */ if (!driver-> detect || !address_data) return 0;
  • 16. I2c Driver: i2c_detect
    • /* initial i2c client structure */
    • struct i2c_client *temp_client; temp_client->adapter = adapter;
    • /* get address from i2c_client_address_data*/
      • address_data = driver ->address_data;
    • /* check if Legacy driver */
      • if (! driver ->detect || ! address_data )
    • /* check normal_i2c ignore probe address */
    • for(i = 0; address_data ->normal_i2c[i] != I2C_CLIENT_END ; i += 1)
  • 17. I2c Driver: i2c_detect_address
    • /* Make sure the address is valid */
    • ( addr < 0x03 || addr > 0x77 )
    • /* Make sure there is something at this address */
    • i2c_smbus_xfer (adapter, addr, 0, 0, 0, I2C_SMBUS_QUICK , NULL)
    • /* Finally call the custom detection function */
    • memset(&info, 0, sizeof(struct i2c_board_info));
    • driver-> detect (temp_client, kind, &info);
    • use info.type[0] == '‘ to check driver->detect function
    • /* Detection succeeded, instantiate the device */
    • client = i2c_new_device (adapter, &info);
    • list_add_tail (&client->detected, &driver->clients);
  • 18. I2c Driver: i2c_new_device
    • Set i2c_client info from i2c_board_info structure
    • strlcpy (client->name, info->type, sizeof(client->name));
    • client->addr = info->addr;
    • client->irq = info->irq;
    • ……… ..
  • 19. I2c Driver: i2c_device_match
    • I2c_bus_type is used on new-style driver
    • i2c_device_match
      • match client i2c_device_id  table && i2c_client table id
    • i2c_device_probe
      • Call bma150_probe function if you defined driver’s probe.
  • 20. I2c Driver:bma150_probe
    • /* bma150 device create ok if return 0*/
    • misc_register (&bma_device);
    • /* initial data */
    • data->smb380. bus_write = bma150_i2c_write;
    • data->smb380. bus_read = bma150_i2c_read;
    • data->smb380. delay_msec = bma150_i2c_delay;
    • data->smb380. dev_addr = client->addr;
    • smb380_init(&(data->smb380));
  • 21. I2c Driver: file_operations
  • 22. Build Linux Kernel
    • Edit Kconfig & Makefile
    • Patch all files(bma150_drivers.c…)
    • Make menuconfig
    • Make uImage
  • 23. Issue: can’t create device
    • /* Make sure there is something at this address */
    • i2c_smbus_xfer (adapter, addr, 0, 0, 0, I2C_SMBUS_QUICK , NULL)
    • Please edit i2c_smbus_xfer_emulated function and
    • Change message data length: 0 -> 1
  • 24. Demo To Do: jni module
  • 25. Reference
    • Linux Device Drivers, Third Edition
  • 26.
    • Thank You.

×
