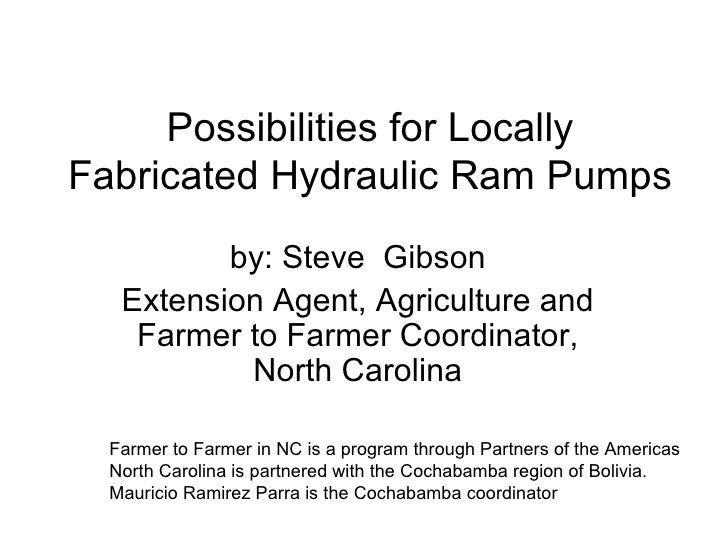

Possibilities for Locally Fabricated Hydraulic Ram Pumps by: Steve  Gibson Extension Agent, Agriculture and Farmer to Farm...
Hydraulic ram pumps use the inertia created by a flow of water in a pipe that suddenly stops to pump a portion of this sam...
High performance rams such as this one are very expensive.  These pumps are able to use high drive heads and deliver water...
Pumps can be of different sizes such as the one on the left which I call “the monster ram.”  It uses a 4 inch drive pipe a...
The monster ram in action and its output uphill of 17 gallons per minute. I estimated that it uses over 65 gallons per min...
The basic parts of a ram pump system are: <ul><li>A water source and supply pipe  </li></ul><ul><li>Body of water which ma...
This diagram shows the source of water being used as the body of water to supply the drive pipe.  Systems like this are po...
This diagram shows a system using a drive tank which is supplied by a supply pipe.  To reduce friction loss of water flow,...
This diagram shows a ram pump system using a standpipe.  This is easier to install than a drive tank.  Since the body of w...
A spring which has been dammed in order to collect water for ram pump systems.  The supply line will go to a drive tank sh...
A drive tank.  The supply pipe is to the left.  Coming from the tank is a galvanized pipe which supplies a small ram pump....
A standpipe which operates a ram pump (drive pipe has been buried in the sand). Note the valve to cut off the  supply of w...
A dam in a creek.  These can be difficult to maintain during heavy rains. This water supply directly supplies one small ra...
The Basic Parts of the Pump Are: <ul><li>The impulse valve </li></ul><ul><li>The delivery valve </li></ul><ul><li>The air ...
There are several possibilities on how these parts are arranged.  Also an air package similar to the bellows in a well pum...
This pump is the same size as the previous one but the impulse valve is on the upstream side.  It is designed so that the ...
Understanding How Rams Work To successfully fabricate ram pumps it is essential to understand how they work.  The followin...
Lets start with the impulse valve open and water flowing out of it.  We are starting at the beginning of what is commonly ...
The velocity of the water has increased and the movable portion of the  impulse valve is starting to close.  The exact tim...
This diagram shows the delivery phase.  The force of the accelerating water has overcome the weight of the movable part of...
After the water suddenly stops there is a rebound effect.  People notice this same thing when water is suddenly cut of in ...
The Drive Pipe, Very Important! The drive pipe is very important, ideally it is composed of non flexible  material such as...
Galvanized pipe is very expensive.  Thinner walled galvanized fencing material can be put together and secured adequately ...
Maintenance of a Ram Pump <ul><li>The following sequence can give an idea of how locally fabricated pumps can be made and ...
This is a low performance plastic PVC ram pump, a modified 3 inch version of a 4 inch pump designed at Warwick University ...
These are views of the impulse valve.  It is made from 3 inch Schedule 40 PVC and several layers of smaller pipe (pressure...
Over time and especially after periods of very heavy rain sediment can accumulate in the ram pump.  During floods if the w...
Views of the delivery valve after cleaning.  This valve uses an aluminum disc which is about 1/4 th  inch thick.  The dril...
Gasket sealing material is useful to obtain watertight seals.  For this ram pump the removable portions are  held together...
This ram pump is driven by a 1 inch galvanized pipe.  Drive head is 15 feet.  I measured one gallon and a pint delivery of...
To adjust or “tune” this pump all you need to do is change the angle  of the impulse valve.  In the upright position the m...
This is the ram shown in the previous photo taken apart for cleaning of the delivery valve.  This valve because it is smal...
The Snifter Valve or Hole This photo and diagram shows a snifter valve.  It is made of a rubber washer held in the pump ju...
Instead of a valve a very small hole can be used.  These photos show the drilling of the snifter hole in the pipe just bel...
Tips on Making a 3 Inch Ram The following series of photos will demonstrate some important steps and procedures to use whe...
Perhaps the most time consuming part of fabricating a pump like this one is making the delivery valve. First the valve dis...
Next very carefully use a punch, then a pilot bit to make the pilot holes.  I use a screw to attach the disc to a piece of...
After all of the machine work the  disc must be cleaned up with a file.  Also the holes on the side of  the disc away from...
Next the flapper material is marked with a compass or by using a fitting as a guide and carefully cut out. I am trying a n...
For making square cuts for the pipe part  of the delivery valve a miter saw is very useful.  To mark a straight line use a...
For the movable part of the impulse  valve, sections of smaller pipe are  cemented together.  You can use the external par...
The movable part of the impulse valve is then trimmed on a table saw to the  60 mm. width.  This is dangerous!  Be  carefu...
Note that the movable part of the impulse valve pivots on a ¼ inch bolt and can drop approximately half an inch.  Also not...
The parts are held together either by PVC cement or by a clamp system made of high quality wood boards with holes made wit...
Hole for pivot bolt Hole for  guide Plan for external part of impulse valve.  It is made from 3 inch schedule 40 PVC.  It ...
Hole for impulse valve weight Plan for movable part of impulse valve.  The pivot hole and hole for the guide are drilled w...
I hope this information will prove usefull.  There is much information on line. Some of the sites I found most usefull are...
