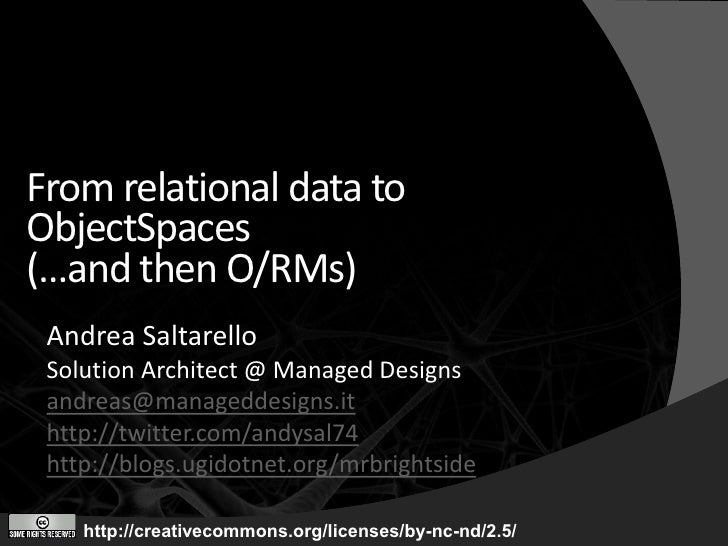

From relational data to
ObjectSpaces
(…and then O/RMs)
 Andrea Saltarello
 Solution Architect @ Managed Designs
 andreas@m...
Agenda
   Scenario
   Model vs. Model
   Object-relational mapping
   Object/Relational Mappers
The Scenario
   Face it: most software does access databases
   As of today, most of the time dabatase==RDBMS
   During...
OO Recap
   Object: an identifiable, encapsulated entity that
    is interacted with by sending messages. Objects
    hav...
Relational Model Recap
   Relation: a truth predicate. It defines what attributes
    are involved in the predicate and w...
Relational Model Recap
 Relation Value: the composition of a relation (the
  heading) and a set of tuples (the body). All...
Impedance mismatch
   Tuples have neither identity nor encapsulation
   Tuple attribute values are pure values, so they
...
Object-Relational mapping
In 1997 Mark Fussels wrote a document whose aim
   was to integrate objects into the relational ...
Object-Relational mapping
ObjectShadow: the informations needed to see that
an object exists without any true representati...
Here comes the O/RM
ObjectSpace: a closed, self-contained collection of
  objects based on a single (possibly very large)
...
Demo
O/RM overview
The ObjectSpace is the Database
To make an ObjectSpace look as a ‘’DBMS’’, an
  O/RM should at least:
 Make it queryable,...
Query Object [P of EAA, 316]
A Query Object is an interpreter
  [Gang of Four], that is, a
  structure of objects that can...
Query Object @ .NET
   Every O/RM ships its own query object (es:
    NHibernate’s Criteria API)
   Starting from v 3.5,...
Demo
Query (Object): NH & LINQ
Repository [P of EAA, 322]
Mediates between the domain and data mapping layers
using a collection-like interface for acces...
Demo
Repository: NSK
Partitioning
Do you remember those old days when we run
  queries like:
  SELECT FirstName, LastName AS FamilyName
  FROM ...
Demo
Partitioning: NHibernate’s Projections & «LINQ
feat. Anonymous Types»
Unit of Work [P of EAA, 184]

            When you're pulling data in and
            out of a database, it's important to...
Demo
ISession
Identity Map [P of EAA, 195]
Ensures that each object gets loaded only once by
keeping every loaded object in a map. Looks...
Demo
Identity Map
O/RM «Magic»: Object Tracking
object tracking allows an O/RM to know which
  quota of a graph has been modified so to
  dy...
Demo
Persistence
Books & Publications
[FORM] Foundations of Object-Relational
   Mapping, Mark L. Fussell
[P of EAA] Pattern of Enterprise ...
Upcoming SlideShare
Loading in...5
×

From relational data to object spaces

1,681

Published on

Published in: Technology
0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
1,681
On Slideshare
0
From Embeds
0
Number of Embeds
1
Actions
Shares
0
Downloads
56
Comments
0
Likes
1
Embeds 0
No embeds

No notes for slide

From relational data to object spaces

  1. 1. From relational data to ObjectSpaces (…and then O/RMs) Andrea Saltarello Solution Architect @ Managed Designs andreas@manageddesigns.it http://twitter.com/andysal74 http://blogs.ugidotnet.org/mrbrightside http://creativecommons.org/licenses/by-nc-nd/2.5/
  2. 2. Agenda  Scenario  Model vs. Model  Object-relational mapping  Object/Relational Mappers
  3. 3. The Scenario  Face it: most software does access databases  As of today, most of the time dabatase==RDBMS  During the ’90s object based|oriented gained momentum  Gentlemen prefer Blondes, and Developers prefer Objects
  4. 4. OO Recap  Object: an identifiable, encapsulated entity that is interacted with by sending messages. Objects have behavior, state and identity  Type: specifies the public behavior and conceptual grouping for objects that are members of the type  Identity: the ability to tell an object apart from another object independently of whether their type and state is equal
  5. 5. Relational Model Recap  Relation: a truth predicate. It defines what attributes are involved in the predicate and what the meaning of the predicate is.  Person: {SSN#, Name, City} There exists a person with social security number SSN#, who has the name Name and lives in a city named City  Attribute: identifies a name that participates in the relation and specifies the domain (type) from which values of the attribute must come  Person: {SSN#: SSN, Name: string, City: string}  Tuple: a truth statement in the context of a relation. Tuples are values and two tuples are identical if their relation and atribute values are equal.  Person SSN#=‘123-456-78’ Name=‘Mario Rossi’ City=‘Milan’
  6. 6. Relational Model Recap  Relation Value: the composition of a relation (the heading) and a set of tuples (the body). All the tuples must have the same relation as the heading. The body is unordered and does not contain duplicates  Relation Variable: holds onto a single Relation Value at any point in time, but can change value at any point in time. Relvars are typed to a particular relation, so they will always hold relation values that have a heading with that relation.  Database: a collection of relvars. It can change state by changing relvars and can answer questions about its particular state
  7. 7. Impedance mismatch  Tuples have neither identity nor encapsulation  Tuple attribute values are pure values, so they have no identity  Relational modeling seems to have no way of representing any of the object modeling properties nicely (inheritance, composition, M:N associations, …)
  8. 8. Object-Relational mapping In 1997 Mark Fussels wrote a document whose aim was to integrate objects into the relational model by means of a ‘’mapping’’ process: object-relational mapping is the process of transforming between object and relational modeling approaches and between the systems that support these approaches [FORM, 5]
  9. 9. Object-Relational mapping ObjectShadow: the informations needed to see that an object exists without any true representation of the real object [FORM, 21]  ObjectShadows are composed by:  IdentityKeys: the value that represents the object’s identity  Distinguishers: a value that represents the type of the object  Objects are built from tuples by means of ObjectShadows
  10. 10. Here comes the O/RM ObjectSpace: a closed, self-contained collection of objects based on a single (possibly very large) schema Fussels own work inspired the inception of O/RM toolkits which:  Allow to define an O/R mapping  Allow to query an ObjectSpace  Allow an ObjectSpace to be persisted onto a database
  11. 11. Demo O/RM overview
  12. 12. The ObjectSpace is the Database To make an ObjectSpace look as a ‘’DBMS’’, an O/RM should at least:  Make it queryable, with support for partitioning of fetched data  Support transactions
  13. 13. Query Object [P of EAA, 316] A Query Object is an interpreter [Gang of Four], that is, a structure of objects that can form itself into a SQL query. You can create this query by referring to classes and fields rather than tables and columns. In this way those who write the queries can do so independently of the database schema and changes to the schema can be localized in a single place.
  14. 14. Query Object @ .NET  Every O/RM ships its own query object (es: NHibernate’s Criteria API)  Starting from v 3.5, .NET provides an idiomatic query object: LINQ
  15. 15. Demo Query (Object): NH & LINQ
  16. 16. Repository [P of EAA, 322] Mediates between the domain and data mapping layers using a collection-like interface for accessing domain objects.
  17. 17. Demo Repository: NSK
  18. 18. Partitioning Do you remember those old days when we run queries like: SELECT FirstName, LastName AS FamilyName FROM Persons In order to fetch only the data we’re going to use?
  19. 19. Demo Partitioning: NHibernate’s Projections & «LINQ feat. Anonymous Types»
  20. 20. Unit of Work [P of EAA, 184] When you're pulling data in and out of a database, it's important to keep track of what you've changed. Similarly you have to insert new objects you create and remove any objects you delete. A Unit of Work keeps track of everything you do during a business transaction that can affect the database.
  21. 21. Demo ISession
  22. 22. Identity Map [P of EAA, 195] Ensures that each object gets loaded only once by keeping every loaded object in a map. Looks up objects using the map when referring to them
  23. 23. Demo Identity Map
  24. 24. O/RM «Magic»: Object Tracking object tracking allows an O/RM to know which quota of a graph has been modified so to dynamically generate optimized SQL code
  25. 25. Demo Persistence
  26. 26. Books & Publications [FORM] Foundations of Object-Relational Mapping, Mark L. Fussell [P of EAA] Pattern of Enterprise Application Architecture, Martin Fowler, Addison-Wesley [NSK] NSK, http://nsk.codeplex.com
