  • Who am I.Introduce myVBO.About this presentation.What I’ll talk about.
  • Neil – plugins to consumeNot much code.Overview.All the slides will be online right after lunch.
  • Raise your hand up if you use CakePHP to handle some kind of data.Now put your hand down if you don’t have an API.If you have info why not be a platform?It doesn’t matter if the platform is very simple. A blog is a platform. It has an API for posting new articles and it has an RSS feed for syndicating them.Now that I simplified it.That’s my take.
  • Even if you are developing a closed API…I hope everyone considers open APIs.All this roles up into one concept. “The platform play.” So if you need something to go back to your boss or your investors with… that’s the thing. You’re making a platform play.
  • If this was five years ago...But the strategy works pretty well. TwitterFacebookBit.lyAmazonandSalesforceNow it is almost a necessity to have an API of some sort.
  • There are multiple patterns for APIs. There are a couple more lesser used ones but the two big ones are REST and RPC.Within those patterns you can use one or more formats to transfer your data.
  • Rest stands for Representational State Transfer incase you missed it in Neal’s presentation. As mentioned yesterday, the largest example of REST in the wild is HTTP.Luckily for us, CakePHP is usually layered on-top of HTTP so it inherits all the RESTful mechanisms.REST has a concept called resources (a specific user or comment are two examples).They are also called nouns which are acted on by verbs.There are five verbs in HTTP. We will focus on three.Finally, one last important thing… CakePHP makes REST easy.
  • The app that I will be using as an example today is the simplest app that I could think of.It is a URL shortening services that allows you to authenticate and thus be able to delete and edit URLs that you yourself shortened, and also basic CRUD.
  • There are two models. The user model, which is pretty standard for a CakePHP project, and the urls model which I have on the screen.A full URL shortened can, of course, get much more complicated than that. But for today I’m keeping it basic.
  • Once you’ve baked your model and what not you can open up your router and map the resource. This will register all the routes you need for REST in one call.You can still do it manually if you want but you don’t have to.These are the six routes registered when you map a resource.
  • One rule to live by is to never write or delete data on anything that is not a POST, PUT, or DELETE request.The main purpose of this rule is to protect against Cross Site Request Forgeries or CSRF attacks which are every difficult to defend against otherwise.Say that the add method accepted GET requests. Someone could then simply embed an image on a page with the add URL as a source and execute a add() as any user who visits the site.
  • Before we begin developing views we’ll haveto tell PHP to recognize file extensions and switch the views and layouts accordingly.We do this by turning on parseExtensions in the routes.php file and including the RequestHandler component in the app_controller.The RequestHandler component is what actually switches the views. It also includes helpers automatically in the view if a helper has the same name as the extension (like XML) and parses incoming POSTed XML and assigns it to the data property of the controller.
  • We now need to create a couple views.The Json view is the first and the one that I like the most. Because it is simple and easy to understand.It is fast thanks to native PHP support, and also very wide-spread.What you see here is the entire view for the view action in the urls controller.Notice the path to the view. The RequestHandler will tell Cake to look in the json folder for the appropriate view.
  • We can also easily support JsonP or Json with padding.JsonP specifies a Javascript callback function to execute with the results of a request.It allows for cross domain requests because you can trigger it via a simple script-include and function calls works across domains so the callback will work just fine.One important note is that it is only for GET requests. So, as I said earlier, it shouldn’t be able to write or delete data.JsonP can be handle generically in the layout. Notice the layout path.A JsonP request always takes the callback via a query parameter. So your app controller can read in the callback then set it for use in the view. The layout then reads it sand wraps the output in it is necessary.
  • Now for the XML view. And I can hear the boos now.XML does have some benefits. It is strongly typed, human readable, and has lots of existing tools available.Like Json, the view is pretty self-explanatory. Note the xml sub-directory in the view path.
  • One of the best parts about using parseExtensions and RequestHandler is you can literally have as many views as you want into the data.I listed just some of them here.
  • Erik’s talk.
  • If you did the ACL stuff Erik was talking about…Little difficult. Default behavior is redirectController, model, and object
  • Maintenance mode
  • Transcript

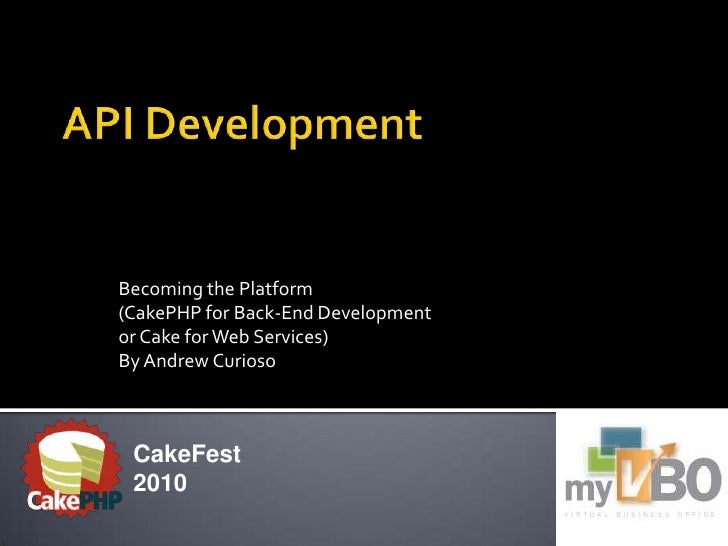

    • 1. API Development
      Becoming the Platform
      (CakePHP for Back-End Development
      or Cake for Web Services)
      By Andrew Curioso
      CakeFest
      2010
    • 2. Introduction
      Yesterday:
      Designing CakePHPplug-ins for consuming APIs
      Today:
      Create your own API
      Basic setup
      Extras
    • 3. Become a platform
      Be “a” platform
      A blog is a platform
    • 4. Become a platform
      Internal only (closed)
      Multi-platform (consumers)
      Scalable
      External (open)
      Everything +
      Growth
      Mash-ups!
      Innovation
      Evangelists
      “The Platform Play”
    • 5. Who’s already a platform
      Google
      Facebook
      Digg
      Twitter
      Yahoo BOSS / Flickr / Delicious / etc.
      Salesforce
      Ebay
      Amazon
      Gowalla
      FourSquare
      Bit.ly
      Paypal
      Authorize.net
      Etc…
    • 6. Types of APIs
      Patterns
      Representation State Transfer (REST)
      Remote Procedure Calls (RPC)
      Protocols / Formats
      XML
      JSON
      YAML
      AMF
      Etc...
    • 7. RESTful
      Representational State Transfer
      Resource based (nouns)
      5 verbs
      GET
      PUT
      POST
      DELETE
      HEAD
      Easy in CakePHP
    • 8. Today’s App
      URL shortening website
      User authentication (simple)
      Create, read, update, and delete (CRUD)
    • 9. Models
      id
      user_id
      url
      created
      modified
      users
      urls
    • 10. Making it RESTful
      APP/config/routes.php
      Router::mapResource(‘users’)
      Source: http://book.cakephp.org/view/1239/The-Simple-Setup
    • 11. Security Pitfall
      • Only you can prevent CSRF
      Only POST and PUT should write data
      Only POST and DELETE should delete data
    • 12. Mapping Extensions
      Router::parseExtensions()
      RequestHandler component
      Switches layouts / views
      Includes helpers
      Parses incoming XML on POST
      Router::connect(
      "/:controller/:id”,
      array ("action" => "edit", "[method]" => "PUT"), array("id" => "[0-9]+”)
      );
      Source: http://book.cakephp.org/view/1240/Custom-REST-Routing
    • 13. Json View
      Simple
      Fast
      Wide-spread
      <?php
      echo json_encode( $url );
      ?>
      APP/views/urls/json/view.ctp
    • 14. JsonP
      P w/ padding
      Uses callback
      Cross domain
      <?php
      if ( $callbackFunc !== false )
      echo $callbackFunc.'(';
      echo $content_for_layout;
      if ( $callbackFunc)
      echo $callbackFunc.')';
      ?>
      function beforeFilter()
      {
      if ( array_key_exists('callback’, $this->params[‘url’]) )
      $this->set(‘callbackFunc’, $this->params[‘url’][‘callback’]);
      else
      $this->set(‘callbackFunc’, false);
      }
      APP/views/layouts/json/default.ctp
      APP/app_controller.php
    • 15. XML View
      Strongly Typed
      Human readable
      Lots of existing tools
      <?
      echo ‘<url>’;
      echo $xml->serialize( $url );
      echo ‘<url>’;
      ?>
      APP/views/urls/xml/view.ctp
    • 16. Other Views
      Human Readable
      XML
      Json / JsonP
      HTML
      YAML
      CSV
      Serialized PHP
      Etc…
      Binary
      AMF
      Microsoft Excel
      PDF
      JPEG / PNG
      Etc…
    • 17. Testing It Out Using cURL
      Create
      curl –d “url=www.example.com” http://tinyr.me/urls.json
      Read
      curl http://tinyr.me/urls/123.json
      Update
      curl –d “url=www.example.com/foo” http://tinyr.me/urls/123.json
      Delete
      curl –X DELETE http://tinyr.me/urls/123.json
    • 18. Done?
      We have
      MVC files
      RESTful Views
      XML
      Json / JsonP
      We’re missing
      Error handling
      Pagination
      Authentication
      Authorization
      Documentation
    • 19. Status Codes
      Success
      200 OK *
      201 Created *
      303 See Other *
      Error
      401 Unauthorized *
      402 Payment Required
      403 Forbidden *
      404 Not Found *
      Error (continued)
      405 Method Not Allowed *
      409 Conflict
      410 Gone
      500 Internal Server Error
      501 Not Implemented
      503 Service Unavailable
    • 20. Add Method
      If not a POST or PUT request
      405 Method Not Allowed
      Already existed
      303 See Other
      Save success
      201 Created
      Failure
      200 OK with explanation
    • 21. Edit Method
      If not a POST request
      405 Method Not Allowed
      Invalid ID
      404 File Not Found
      Success
      200 OK
      Failure
      200 OK with explanation
    • 22. Delete Method
      If not a POST request
      405 Method Not Allowed
      Invalid ID
      404 File Not Found
      Success
      200 OK
      Failure
      200 OK with explanation
    • 23. Global
      User is not allowed to access resource
      403 Forbidden
      User is not logged in
      401 Unauthorized
    • 24. Throwing Errors
      Same format
      Descriptive
      Human
      Computer
      Comprehensive
    • 25. Implementation
      functionyour_action() {

      $this->_userError(404);

      }
      APP/controllers/your_controller.php
      function _userError( $code, $options=array() ) {
      $codes = array(
      402 => 'Payment Required',

      );
      $this->header("HTTP/1.1 {$type} {$codes[$type]}");
      $this->cakeError('error'.$type, array( array( 'options' => $options ) ) );
      }
      APP/app_controller.php
    • 26. Implementation
      {"Error": {
      "code" : 404,
      "description" : "File Not Found"
      }}
      APP/views/errors/error404.ctp
    • 27. HTTP Headers
      Return meta-information
      Rate limiting
      Pagination
      Etc.
    • 28. Pagination
      Uses HTTP headers
      App defined start with “X-”
      function paginate($object=NULL, $scope=array(), $whitelist=array() ) {
      $data = parent::paginate($object,$scope,$whitelist);
      // … messy code to get the object …
      $this->header('X-Current-Page: '.((int)$this->params['paging'][$object->alias]['page']));
      $this->header('X-Page-Limit: '.((int)$this->params['paging'][$object->alias]['options']['limit']));
      $this->header('X-Page-Total: '.((int)$this->params['paging'][$object->alias]['count']));
      return $data;
      }
      APP/app_controller.php
    • 29. Multi-Platform Dev
      Use a UI that makes sense
      Bring something to the table
    • 30. Platform Support
      Web Browsers
      Do not support:
      DELETE
      PUT
      Fortunately Cake…
      Let’s you do this:
      _method=DELETE
    • 31. Platform Support
      DELETE /urls/123.json HTTP1.1
      Host: www.example.com
      POST /urls/123.json HTTP1.1
      Host: www.example.com
      _method=DELETE
    • 32. Authentication
    • 33. Authorization
      There is no magic
      One or more:
      user_id
      Administrator
      Moderator
    • 34. Documentation
      Vocabularies / Schemas
      DTD or schema files
      Examples
      Code
      I/O
      Community
      Feedback
    • 35. What about SOAP and AMF?
      CakePHP rocks with REST
      SOAP is heavy
      AMF is light but requires Flash
      But, if you still want to, you can
    • 36. Flow for SOAP and AMF
    • 37. Example Flow
      Router
      UrlsController
      AmfController
      User
      POST
      ::gateway()
      ::view()
      Return data
      Format envelope
    • 38. Some final words…
    • 39. Don’t Choose
      Views are easy
    • 40. API Developers Checklist
      Documentation
      Example code
      Definition files (if applicable)
      Unit tests
    • 41. Finding the code
      MIT License
      http://tinyr.me
    • 42. Happy Aniversary
      Happy anniversary, Laura.
      1 year: Sept. 5, 2010
    • 43. Andrew Curioso
      Contact:
      www.AndrewCurioso.com/contact
      @AndrewCurioso on Twitter
