HOW TO SAML Password Management (Note)

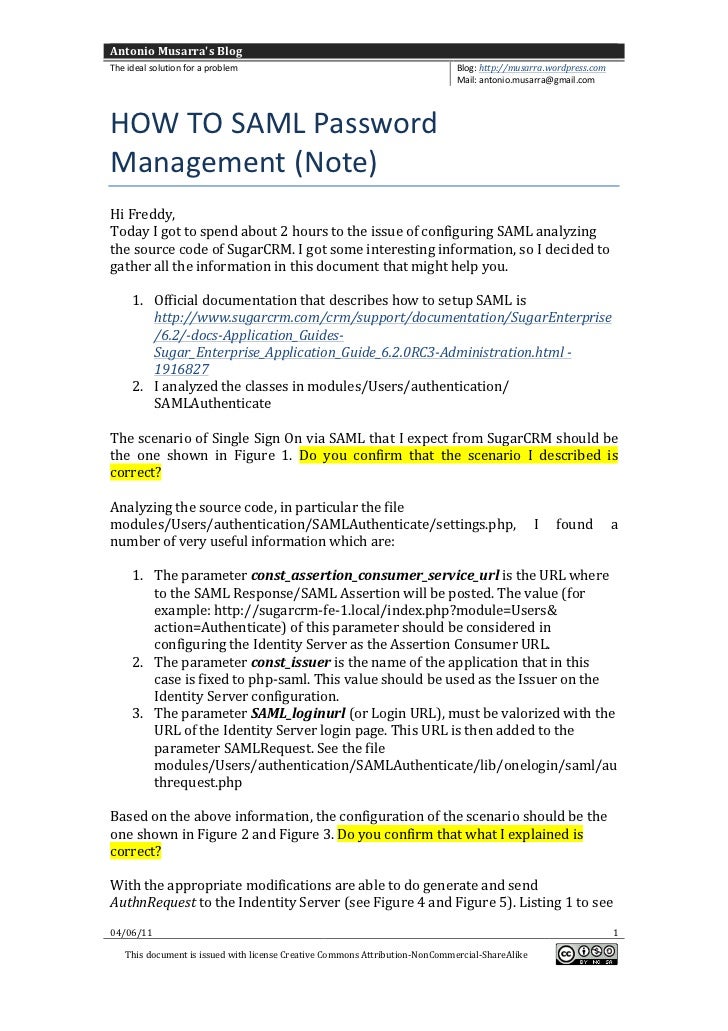

Antonio Musarras Blog The ideal solution for a problem Blog: http://musarra.wordpress.com Mail: antonio.musarra@gmail.com HOW TO SAML Password Management (Note) Hi Freddy, Today I got to spend about 2 hours to the issue of configuring SAML analyzing the source code of SugarCRM. I got some interesting information, so I decided to gather all the information in this document that might help you. 1. Official documentation that describes how to setup SAML is http://www.sugarcrm.com/crm/support/documentation/SugarEnterprise /6.2/-‐docs-‐Application_Guides-‐ Sugar_Enterprise_Application_Guide_6.2.0RC3-‐Administration.html -‐ 1916827 2. I analyzed the classes in modules/Users/authentication/ SAMLAuthenticate The scenario of Single Sign On via SAML that I expect from SugarCRM should be the one shown in Figure 1. Do you confirm that the scenario I described is correct? Analyzing the source code, in particular the file modules/Users/authentication/SAMLAuthenticate/settings.php, I found a number of very useful information which are: 1. The parameter const_assertion_consumer_service_url is the URL where to the SAML Response/SAML Assertion will be posted. The value (for example: http://sugarcrm-‐fe-‐1.local/index.php?module=Users& action=Authenticate) of this parameter should be considered in configuring the Identity Server as the Assertion Consumer URL. 2. The parameter const_issuer is the name of the application that in this case is fixed to php-‐saml. This value should be used as the Issuer on the Identity Server configuration. 3. The parameter SAML_loginurl (or Login URL), must be valorized with the URL of the Identity Server login page. This URL is then added to the parameter SAMLRequest. See the file modules/Users/authentication/SAMLAuthenticate/lib/onelogin/saml/au threquest.php Based on the above information, the configuration of the scenario should be the one shown in Figure 2 and Figure 3. Do you confirm that what I explained is correct? With the appropriate modifications are able to do generate and send AuthnRequest to the Indentity Server (see Figure 4 and Figure 5). Listing 1 to see 04/06/11 1 This document is issued with license Creative Commons Attribution-‐NonCommercial-‐ShareAlike

Antonio Musarras Blog The ideal solution for a problem Blog: http://musarra.wordpress.com Mail: antonio.musarra@gmail.com the SAML authentication request generated by SugarCRM, while Listing 2 to see the response generated by Identity Server, which then should be consuming then the URL /index.php?module=Users& action=Authenticate. Figure 1 Scenario of Single Sign On via SAML. 04/06/11 2 This document is issued with license Creative Commons Attribution-‐NonCommercial-‐ShareAlike

Antonio Musarras Blog The ideal solution for a problem Blog: http://musarra.wordpress.com Mail: antonio.musarra@gmail.com Figure 2 Scenario of Single Sign On via SAML with the configuration. 04/06/11 3 This document is issued with license Creative Commons Attribution-‐NonCommercial-‐ShareAlike

Antonio Musarras Blog The ideal solution for a problem Blog: http://musarra.wordpress.com Mail: antonio.musarra@gmail.com Figure 3 SugarCRM Password Management. Figure 4 Generate and Send SAML AuthnRequest. Figure 5 SSO Login Page. <samlp:AuthnRequest xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol" ID="1dbf6488fc6fb23507902682575bb8b2cc78767c83" Version="2.0" IssueInstant="2011-05-20T06:11:41Z" ProtocolBinding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" AssertionConsumerServiceURL="http://192.168.56.101/crm-6.2/index.php?module=Users&action=Authenticate"> <saml:Issuer xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion">php-saml</saml:Issuer> <samlp:NameIDPolicy xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol" Format="urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress" AllowCreate="true"/> <samlp:RequestedAuthnContext xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol" Comparison="exact"> <saml:AuthnContextClassRef xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion">urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport</saml:AuthnContextClassRef> </samlp:RequestedAuthnContext></samlp:AuthnRequest>Listing 1 SAML AuthnRequest 04/06/11 4 This document is issued with license Creative Commons Attribution-‐NonCommercial-‐ShareAlike

Antonio Musarras Blog The ideal solution for a problem Blog: http://musarra.wordpress.com Mail: antonio.musarra@gmail.com <?xml version="1.0" encoding="UTF-8"?><samlp:Response ID="iammmcpickpgaikkhiljjnoampnamjmgedaeipdp" IssueInstant="2011-05-20T06:28:55.454Z" Version="2.0" xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol"> <ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#"> <ds:SignedInfo> <ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/> <ds:SignatureMethod Algorithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1"/> <ds:Reference URI="#iammmcpickpgaikkhiljjnoampnamjmgedaeipdp"> <ds:Transforms> <ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/> <ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"> <ec:InclusiveNamespaces PrefixList="ds saml samlp" xmlns:ec="http://www.w3.org/2001/10/xml-exc-c14n#"/> </ds:Transform> </ds:Transforms> <ds:DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1"/> <ds:DigestValue>PqDv6H4ZecuvNtF1yxeA3sbZ3t8=</ds:DigestValue> </ds:Reference> </ds:SignedInfo><ds:SignatureValue>MVjhWw/DqqZCs9iRvzoQe6BdNGlu2EvzGGe0P+IfzBIzg0QEQbt1bLRgB6h/ktXD2rCxkgdqGIB9W82DLA1hv4Y/o54K9ieKmm77eOnJcDRs6721r+M145z6nQV7i+PLNB4p/m2Yh/0sm+fWJF+7zxYT6oZBJ8zz+9gZX7bEkgQ=</ds:SignatureValue> <ds:KeyInfo> <ds:X509Data><ds:X509Certificate>VFu818MpOLZIr8LMnTzWllJvvaA5RAAdpbECb+48FjbBe0hseUdN5HpwvnH/DW8ZccGvk53I6Orq7hLCv1ZHtuOCokghzWq8uHSCo=</ds:X509Certificate> </ds:X509Data> </ds:KeyInfo> </ds:Signature> <samlp:Status> <samlp:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success"/> </samlp:Status> <saml:Assertion ID="gcammlbkanbkdjkhgpelnbambibloablmekdjemp" IssueInstant="2011-05-20T06:28:55.456Z" Version="2.0" xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion"> <saml:Issuer Format="urn:oasis:names:tc:SAML:2.0:nameid-format:entity" >https://sso-wso2-idm-fe-1.local:9443/samlsso</saml:Issuer> <saml:Subject> <saml:NameID Format="urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress" >amusarra</saml:NameID> <saml:SubjectConfirmation Method="urn:oasis:names:tc:SAML:2.0:cm:bearer"> <saml:SubjectConfirmationData InResponseTo="9dc25969bb9a705b06128124c3db325367b1781890" NotOnOrAfter="2011-05-20T06:33:55.454Z" Recipient="http://192.168.56.101/crm-6.2/index.php?module=Users&action=Authenticate" /> </saml:SubjectConfirmation> </saml:Subject> <saml:Conditions NotBefore="2011-05-20T06:28:55.456Z" NotOnOrAfter="2011-05-20T06:33:55.454Z"> <saml:AudienceRestriction> <saml:Audience>php-saml</saml:Audience> </saml:AudienceRestriction> </saml:Conditions> <saml:AuthnStatement AuthnInstant="2011-05-20T06:28:55.460Z"> <saml:AuthnContext><saml:AuthnContextClassRef>urn:oasis:names:tc:SAML:2.0:ac:classes:Password</saml:AuthnContextClassRef> </saml:AuthnContext> </saml:AuthnStatement> </saml:Assertion></samlp:Response> Listing 2 SAML Auth Response. 04/06/11 5 This document is issued with license Creative Commons Attribution-‐NonCommercial-‐ShareAlike
