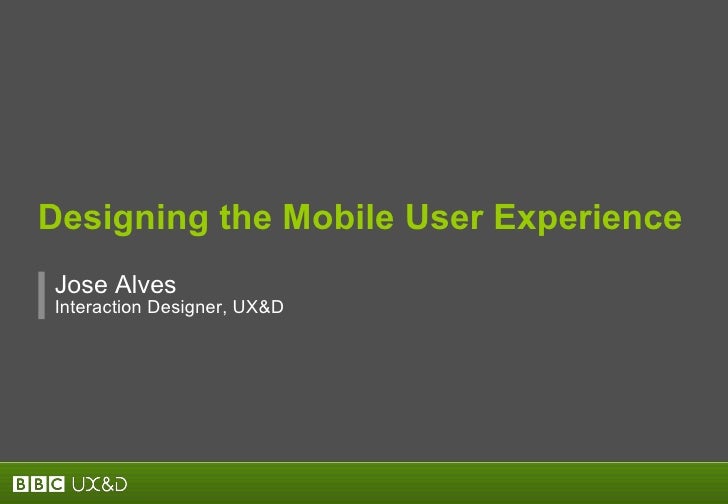

Designing the Mobile User Experience Jos e  Alves Interaction Designer, UX&D
“ Understanding and patience of the mobile ecosystem is one of the most crucial skills of the mobile designer.” Brian Fling
Legacy
1894   -  Gugliemo Marconi invents  the radio. 1971   -  James Fergursson discovers the “twisted-nematic” LCD. 1980  - Mot...
1980   - Nintendo Game & Watch  console. 2000   - Sharp releases the first  camera phone -  J-SH04. 2000   - Samsung devel...
2003  - The first mobile phone with  a cursor - NEC FOMA N2051. 2007   - Apple introduce’s the iphone.
•  1996   - GSM (Global system for mobile communications) phones in 103 countries.   •  2000   - 10 million i-mode users (...
•  More mobile phones than humans. •  Every second 4 babies are born on Earth and 32 mobile phones are sold.
Fragmentation
“ Designers face a proliferation of capabilities that make the early (mobile) web look like a playground.” Joe Shepter,  “...
•  About 2500 phone models. •  About 500 different operators.  •  More than 25 browsers. •  About 14 different screen size...
•  Different markup languages.  (WML, XHTML, ...) •  Different operative systems.  (Symbian OS, Windows Mobile, Mac OS, .....
Too much to handle by yourself! •  There is no write once, run everywhere.  •  We need some help from handset detection. (...
Mobile vs Desktop
•  Limited display. •  Users attention may be distracted.  •  Increase need for clarity. (Screen is smaller, but things ha...
Direct Manipulation vs Indirect Manipulation
•  One item on the screen has focus. •  You use soft keys as an intermediate device to move the focus to the item you want...
•  You just tap/click anything directly. Direct Manipulation
Methodology
•  Do Nothing.  (SSR - Small screen rendering) •  Programmatically reformat.  (strip images and styling) •  Handheld style...
Complex Simple Slower Faster Mobile Specific Site Stylesheets No Styling SSR Value Method Comparison Implementation Browse...
Mobilise It, Don’t Miniaturise It
“ ... treats the mobile environment and technology as a subset of the desktop environment.” Barbara Ballard •  It’s a repu...
“ ... precisely targets mobile user needs, making (the) best possible use of technology.” Barbara Ballard •  Content and c...
Context is King
•  What is contextually relevant. •  Mobilise content not only the layout.
“ If the mobile site design only replicates an existing high web site the result will range from suboptimal to completely ...
Fundamentals
http://sender11.typepad.com/sender11/2008/04/mobile-screen-s.html http://sender11.typepad.com/sender11/2008/04/more-on-mob...
Font Families
•  Different OS use different fonts.  (e.g a 240x320 screen Series 40 phone uses font heights of 16, 20 and 24 pixels, thi...
•  One handed interaction (most of the phones) •  Two handed interaction (e.g Sony psp)  Physical Interaction
•  Clickable scroll wheel. •  Mini joysticks. •  Click Wheel. •  Stylus. •  Voice Input. •  Soft Keys. •  Key Pad. •  Touc...
•  Most devices sold today are WAP 2.0. (XHTML, not WML) Browser
What does that mean? Instead of
•  However, XHTML/CSS support is inconsistent.
•  Test on as many devices as you can. •  Don’t use emulators. Usability Testing
•  Context is important. (As realistic the experience as possible) •  Are standard usability techniques still valid for mo...
"Most usability testing regimes assume the context of a person facing a computer, the luxury of the person ’ s  full ...
Best Practices
•  W3C proposed recommendations.  (http://www.w3c.org/TR/mobile-bp/) •  W3C mobile web initiative.  (http://www.w3c.org/Mo...
Where Are We Heading
•  Touch is the new click. •  Gestural Interfaces. (http://www.unwiredview.com/2008/01/08/first-glimpse-inside-nokia-s60-t...
"When it comes to design for mobile devices, it ’  tempting to take an ostrich-like approach: Hide your head in the s...
Thank You.
Resources
•  http://sender11.typepad.com/ •  http://www.smallsurfaces.com/ •  http://www.janchipchase.com/ •  http://www.m-trends.or...
•  Matt Jones and Gary Marsden,  "Mobile Interaction Design” •  Cameron Moll,  "Mobile Web Design" •  Barba...
•  http://www.flickr.com/photos/trenchcoatjedi/ 2896368951/ •  http://www.flickr.com/photos/o-ren/3028013048/ •  http://ww...
