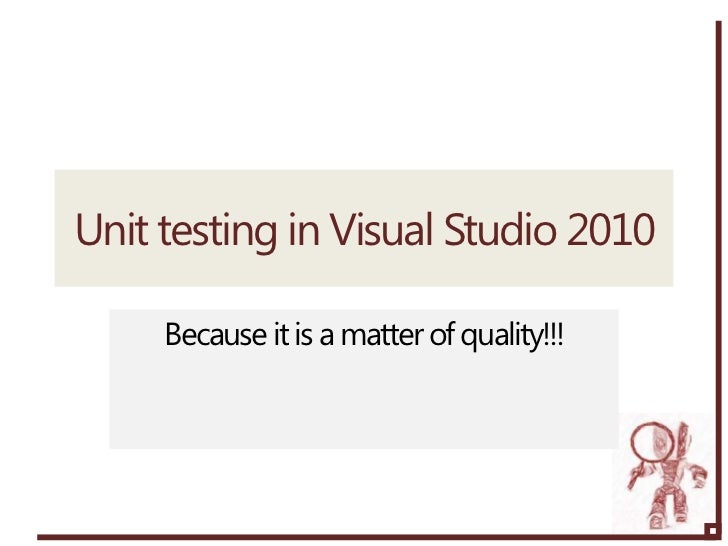

  • 1. Unit testing in Visual Studio 2010 Because it is a matter of quality!!!
  • 2. Different Type of Tests Automated tests aimed to verify the functionality of a little piece of code, run very often by developers and from automated build.Unit Tests Test Suites managed with Microsoft Test Manager, manually executed from testers and associated with User Stories. Can be automated with Action RecordingManual Tests Web Request record and replay to simulate the interaction with web sites. Can be used to do load or stress test to verify the behavior of software under heavy usageWeb Tests Record and replay user interaction with UI, plugin-based recorder to maximize reproducibility, generation of UiMap that contains all the data used to reproduce the automation.Coded UI Tests
  • 3. Test and Lifecycle - Waterfall Requirements Design Develop Test DeployIn waterfall processes testing has a well-defined phase, located betweenDevelop and Deploy. With such a process developers tend to do manual testto verify that requirements are satisfiedModern waterfall approaches tend to distribute testing in all the phases ofthe process.
  • 4. Test and Lifecycle - Waterfall Requirement are software artifacts that can be tested following basic principle of testing The purpose of testing a program is to find problems in it The purpose of finding problem is to get them fixedRequirements Test (Testing Computer Software – Cem Kaner et Al.) Requirements should be verified with stakeholders and users to verify that we are going to create the right software A mismatch between the program and its specification is an error in the program if and only if the specification exists and is correct A program that follows a terrible specification is terrible not perfect (Testing Computer Software – Cem Kaner et Al.)
  • 5. Test and Lifecycle - Waterfall Even with Emerging Architecture you need to validate the design of the software. The design phase should produce a «proof of concept» for each «typical» part of the software Early testing on POC should be used to validate the infrastructure Design Test Technique used: Unit Test, Performance TestTesting of the Design phase should take place when: No existing architecture, start from scratch First project with new technology Strict performance requirements External service Verify testability of the architecture
  • 6. Test and Lifecycle - Waterfall During developement all form of testing are used Unit test: used by developers to validate new code Manual test: Used by test team to validate code for «done» requirements Coded UI test: Used by developers and test team to automate testing through the interface Develop TestThe main purpose of testing during development is guarantee quality ofthe codebase.When code is out of the developing phase, it should be ready to be“beta tested” to find bug that are not caught during development.
  • 7. Test and Lifecycle - Waterfall Testing phase is where you find bug during real- usage of the software The software is usually in «beta» stage, meaning thatReal-usage Formal bugfix it can be used by real user. This is the moment where you mainly use Acceptance test with Microsoft Test Manager DevelopQualityAll defect found during this phase should be filled up in issue/bug trackerto be investigated by the teamNo developer should be allowed to «pick a bug» to fix it without a formalreview.The aim of this phase is to fix all most important bugs of the software, aswell as gather user impression of the overall product, to make littlemodification before the real shipping.All steps should be reported.
  • 8. Test and Lifecycle - Agile Requirements Design Develop Test DeployEach agile process has its own development cycle, but quite all of themhave an interactive cycleEach interaction value is added to the software and this value should beimmediately available to StakeholdersAcceptance and Unit Testing are the skeleton of this lifecycle, withouttests it is difficult to be really Agile. Testing permits to  Establish Definition Of Done (Acceptance)  Refactor and do incremental development (Unit testing)  Clarify User Stories (Acceptance)  Assure internal quality of the codebase (Unit testing in CI)
  • 9. Unit TestingxUnit test pattern and typical techniques of unit testing in VS2010
  • 10. Unit test principle Automated: Test can be executed without user interaction Integrated: Written in the same language of the code to test, available in the same environmentDevelop Standard: Many frameworks availableDevelop Agile: Support for refactoring and agile lifecycleDevelop Pattern support: www.xunitpattern.org estabilish a ground language and series of pattern for unit testing in all language/environments
  • 11. xUnit framework pattern Setup: Initial conditions are set to maximize reproducibility of the testSetup Exercise: Code to be tested is executed, usually is a call to a single function or a series of calls.Exercise Verify: An expectation is checked, if the expectation fails, the whole test is considered to be failedVerify Teardown: If the test modify the system/environment everything is restored to a good / clean stateTeardown
  • 12. Quality of good tests Automated: Test can be executed without user interaction Indipendent: The test does not depend on any other testDevelop Focused: The test should verify a single conditionDevelop Repetable: Test depends only on precondition contained in the setup phase and it should give the same result at each executionDevelop Fast: Slow tests are not executed frequently
  • 13. Test is First-Class code Part of the project: testing code has the same importance of tested codePart of the project Refactored: Time is spent refactoring and adapting test code to the modifications of tested code.Refactored Time: writing good tests takes time  but having good Unit Test suite dramatically raise quality Hard to write Long run ROI: Sadly enough, Unit Testing usually does not pay in the short time, so it is difficult to take the path to unit testingPlan for the future
  • 14. DEMOBasic of 4-phase test in Visual Studio 2010
  • 15. Test smells Symptom: too much time to maintain tests Impact: test are not executed and removed from suite Cause: Code duplication, low quality test codeHigh maintenance Symptom: test fails but the code under test is correct Impact: time wasted to look for inexistent bugs Cause: Test is too complexBuggy tests Symptom: test has conditional logic inside Impact: it is not clear what it is testing Cause: Dependence from environment, wrong logicConditional test logic Symptom: it is difficult to understand what is tested Impact: it is difficult to understand why it failed Cause: Eager test, mystery guest, irrelevantObscure test information, hard coded test data
  • 16. Avoid test smells Users does not execute the test often Continuous integration automatically executes testsDevelop Test are slow, they needs several minutes to be executedDevelop Categorized test permits execution of only a little part of a test, continuous test tools (Mighty Moose, Test Impact) can automate thisDevelop Manual intervention before test runDevelop Write unit test first, write test that is testable
  • 17. FixtureThe most difficult part to create Unit Tests without smells is fixture management
  • 18. The fixture Everything is needed to create preconditions for the execution of test, it can be data in database, setting global variables, cleaning up file on disks, etc.Setup Exercise This is the most complex part of the whole Unit- Testing stuff, because it is the source of many smellVerify TeardownFresh Fixture – transient: The fixture is recreated at each test, at the end ofthe test the system is restored to the original stateFresh Fixture – persistent: Same as transient, but the system is not restoredat the end of the testShared Fixture: The fixture is shared for many test, it is created, then a seriesof test is executed
  • 19. Fresh transient Fixture is created during the setup phase, take track of everySetup modification that is done to the system. It is useful to create a mechanism that permits to schedule automatic cleanup at the end of the test.ExerciseVerify Fixture is removed during the teardown phase, everything isTeardown restored. Garbage collector should not be used because it is not- deterministic. If multiple restore operations should be executed, use try- catch clause to be sure to cleanup the most of them
  • 20. Fresh persistent Fixture is created during the setup phase, no need to trackSetup operations Next test will create another fixure, but everyExercise Setup modification done by the previous test is still there This can augment the risk of interacting-testVerify Exercise smell. This technique is useful only if we are sure thatTeardown Verify the fresh persistent fixture will not impact other tests. It is useful mainly if the restore operation is Teardown slow and you do not want to lose time.
  • 21. Shared fixture Fixture is created during the setup phase, modification areSetup tracked First test is executed, the test is composed only by ExerciseExercise and Verify steps Subsequent tests execution will use the sameVerify Exercise Setup fixture Verify Exercise Setup Verify Exercise SetupAfter the latest verification the fixture isremoved. Teardown Verify Teardown
  • 22. Shared fixtureFixture Setup Setup Setup Setup Exercise Exercise Exercise Verify Verify Verify Teardown Teardown Teardown TeardownA shared fixture is created before the execution of each testEach test can create another specific fixture and remove it inSetup/TeardownAfter the latest test of the suite is executed the final Teardown is run toremove the shared fixture.
  • 23. AssertionHow to write good verification codethat maximize the advantage of unit testing
  • 24. Assertion Single assertion: A test should verify only one fact of the code under test Clear assertion: Reading verification code should immediately clarify what fact we are testingDevelop Test named assertion: Name of the test should clarify the purpose and what is verified by the test.
  • 25. Writing good assertions Too many assertions in the test Expected Object, create an object that reflect the status you want to check, name that object in clear way.Develop Complex assertion code, that is not readable.Develop Use FluentInterface based assertion frameworks (SharpTestEx)Develop Magic values to verify return values or object propertiesDevelop Use good names for variables and expected values
  • 26. Test doubles Creates fake component to be sure toexercise only a single part of the system
  • 27. Depend On Component The System Under Test dialogates with externalSetup component and the verification phase has not access to it.ExerciseVerify SUT DOCTeardown If the test fails, we are not sure if the reason is in bug in the SUT or for a bug or different behavior of the DOC. It leads to erratic test and frequent debugging test smell.
  • 28. Test Double Setup Test Double Exercise Verify SUT TeardownWe need to design the SUT to loose coupling with the DOC, with thistechnique you can create a double of the DOC in the test.The Test Double simulates the real component, but it has a welldefined and reproducible behavior that is defined in the Setup phase
  • 29. Verifiable Test Double Setup Test Double Exercise Verify SUT TeardownWith a verifiable Test Double the Verify step can ask to Test Double toverify how the SUT interacted with him during Exercise phase.As an example, if you create a Test Double of an E-Mail sendercomponent, you can verify that during Exercise the SUT asked tosend an E-Mail.
  • 30. Types of TestDoubles Stub: its only purpose is to answer to the requests of the SUT with well defined and known answers, or with a default oneStub Dummy: It does nothing, simply avoid the SUT to crash for missing components.Dummy Mock and Spy: Behave like a Stub, but also permits to make assertion on how the SUT interacted with them.Mock Object and Test Spy Fake Object: It implements a DOC with minimal functionality.Fake Object
  • 31. Database TestingTesting a database is complex and needs specific techniques
  • 32. Database Testing Basic Sandbox: Each tester/environment should have a dedicated database to execute testing. Minimize dependency, maximize execution time avoid conflictsDatabase Sandbox Database Fixture: Shared fixture to minimize setup time, use of Back Door Manipulation and backup/restore attach/detach method. Heavy use ofFixture Setup Shared Fixture. Smart teardown: Use preload at each test and make every test transactional so you can rollback after each verification phaseTeardown Database Projects: Specific project type introduced with VS2008 that contains a dedicated section to unit testing.Database Project
  • 33. ……
