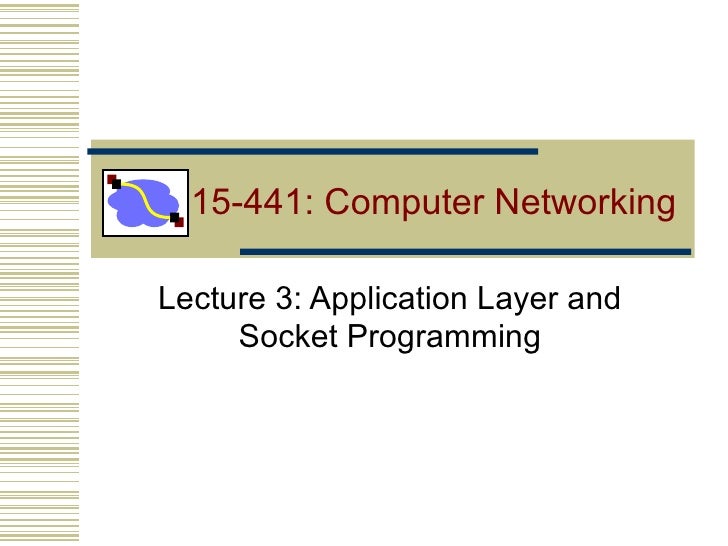

15-441: Computer Networking Lecture 3: Application Layer and Socket Programming
Lecture Overview <ul><li>Application layer </li></ul><ul><ul><li>Client-server </li></ul></ul><ul><ul><li>Application requ...
Applications and Application-Layer Protocols <ul><li>Application: communicating, distributed processes </li></ul><ul><ul><...
Client-Server Paradigm <ul><li>Typical network app has two pieces:  client  and  server </li></ul><ul><li>Client: </li></u...
Ftp: The File Transfer Protocol <ul><li>Transfer file to/from remote host </li></ul><ul><li>Client/server model </li></ul>...
Ftp: Separate Control, Data Connections <ul><li>Ftp client contacts ftp server at port 21, specifying TCP as transport pro...
Ftp Commands, Responses <ul><li>Sample Commands: </li></ul><ul><li>sent as ASCII text over control channel </li></ul><ul><...
What Transport Service Does an Application Need? <ul><li>Data loss </li></ul><ul><li>Some apps (e.g., audio) can tolerate ...
Transport Service Requirements of Common Apps no loss no loss no loss loss-tolerant loss-tolerant loss-tolerant no loss el...
Lecture Overview <ul><li>Application layer </li></ul><ul><ul><li>Client-server </li></ul></ul><ul><ul><li>Application requ...
Server and Client TCP/UDP IP Ethernet Adapter Server TCP/UDP IP Ethernet Adapter Clients Server and Client exchange messag...
User Datagram Protocol(UDP):  An Analogy <ul><li>Postal Mail </li></ul><ul><li>Single mailbox to receive messages </li></u...
Transmission Control Protocol (TCP): An Analogy  <ul><li>TCP </li></ul><ul><li>Reliable – guarantee delivery </li></ul><ul...
Network Addressing Analogy 412-268-8000 ext.123 Central Number Applications/Servers Web Port 80 Mail Port 25 Exchange Area...
Concept of Port Numbers <ul><ul><li>Port numbers are used to identify “entities” on a host </li></ul></ul><ul><ul><li>Port...
Names and Addresses <ul><li>Each attachment point on Internet is given unique address </li></ul><ul><ul><li>Based on locat...
Internet Addressing Data Structure <ul><li>sin_family = AF_INET selects Internet address family </li></ul>#include < netin...
Byte Ordering <ul><li>Big Endian </li></ul><ul><ul><li>Sun Solaris, PowerPC, ... </li></ul></ul><ul><li>Little Endian </li...
Byte Ordering Functions <ul><li>Converts between  host byte order  and  network byte order </li></ul><ul><ul><li>‘ h’ = ho...
Lecture Overview <ul><li>Application layer </li></ul><ul><ul><li>Client-server </li></ul></ul><ul><ul><li>Application requ...
<ul><li>A socket is a file descriptor that lets an application read/write data from/to the network </li></ul><ul><li>socke...
<ul><li>For example: web server </li></ul><ul><li>What does a  web server  need to do so that a  web client  can connect t...
<ul><li>Since web traffic uses TCP, the web server must create a socket of type SOCK_STREAM </li></ul>int fd; /* socket de...
<ul><li>A  socket  can be bound to a  port </li></ul>int fd; /* socket descriptor */ struct sockaddr_in  srv; /* used by b...
Socket I/O: listen() <ul><li>listen  indicates that the server will accept a connection </li></ul>int fd;   /* socket desc...
Socket I/O: accept() <ul><li>accept  blocks waiting for a connection </li></ul>int fd; /* socket descriptor */ struct sock...
Socket I/O: accept() continued... struct sockaddr_in cli; /* used by accept() */ int newfd; /* returned by accept() */ int...
Socket I/O: read() <ul><li>read  can be used with a socket </li></ul><ul><li>read   blocks  waiting for data from the clie...
TCP Client <ul><li>For example: web client </li></ul><ul><li>How does a  web client  connect to a  web server ?  </li></ul...
Dealing with IP Addresses <ul><li>IP Addresses are commonly written as strings (“128.2.35.50”), but programs deal with IP ...
Translating Names to Addresses <ul><li>Gethostbyname provides interface to DNS </li></ul><ul><li>Additional useful calls <...
Socket I/O: connect() <ul><li>connect  allows a client to connect to a server... </li></ul>int fd; /* socket descriptor */...
Socket I/O: write() <ul><li>write  can be used with a socket </li></ul>int fd; /* socket descriptor */ struct sockaddr_in ...
Review: TCP Client-Server Interaction socket() bind() listen() accept() write() read() read() TCP Server close() socket() ...
UDP Server Example <ul><li>For example: NTP daemon </li></ul><ul><li>What does a  UDP server  need to do so that a  UDP cl...
Socket I/O: socket() <ul><li>The UDP server must create a  datagram  socket… </li></ul>int fd; /* socket descriptor */ if(...
Socket I/O: bind() <ul><li>A  socket  can be bound to a  port </li></ul>int fd; /* socket descriptor */ struct sockaddr_in...
Socket I/O: recvfrom() <ul><li>read  does not provide the client’s address to the UDP server </li></ul>int fd; /* socket d...
Socket I/O: recvfrom() continued... nbytes =  recvfrom (fd, buf, sizeof(buf), 0 /* flags */,   (struct sockaddr*) cli, &cl...
UDP Client Example <ul><li>How does a  UDP client  communicate with a  UDP server ? </li></ul>TCP IP Ethernet Adapter 2 UD...
Socket I/O: sendto() <ul><li>write  is not allowed </li></ul><ul><li>Notice that the UDP client does not  bind  a port num...
Review: UDP Client-Server Interaction socket() bind() recvfrom() sendto() UDP Server socket() UDP Client sendto() recvfrom...
The UDP Server <ul><li>How can the  UDP server  service multiple ports simultaneously? </li></ul>UDP IP Ethernet Adapter U...
UDP Server: Servicing Two Ports  <ul><li>What problems does this code have? </li></ul>int s1; /* socket descriptor 1 */ in...
Socket I/O: select() <ul><li>maxfds : number of descriptors to be tested </li></ul><ul><ul><li>descriptors (0, 1, ... maxf...
Socket I/O: select() <ul><li>timeout </li></ul><ul><ul><li>if NULL, wait forever and return only when one of the descripto...
Socket I/O: select() int s1, s2;  /* socket descriptors */ fd_set readfds; /* used by select() */ /* create and bind s1 an...
TCP IP Ethernet Adapter Web Server Port 80 How can a a  web server  manage multiple connections simultaneously? Port 8001 ...
Socket I/O: select() <ul><li>Now the web server can support multiple connections... </li></ul>int fd, next=0; /* original ...
A Few Programming Notes: Representing Packets 0  1  2  3 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 +...
A Few Programming Notes: Building a Packet in a Buffer struct packet { u_int32_t type; u_int16_t length; u_int16_t checksu...
Socket Programming References <ul><li>Man page </li></ul><ul><ul><li>usage: man <function name> </li></ul></ul><ul><li>Tex...
