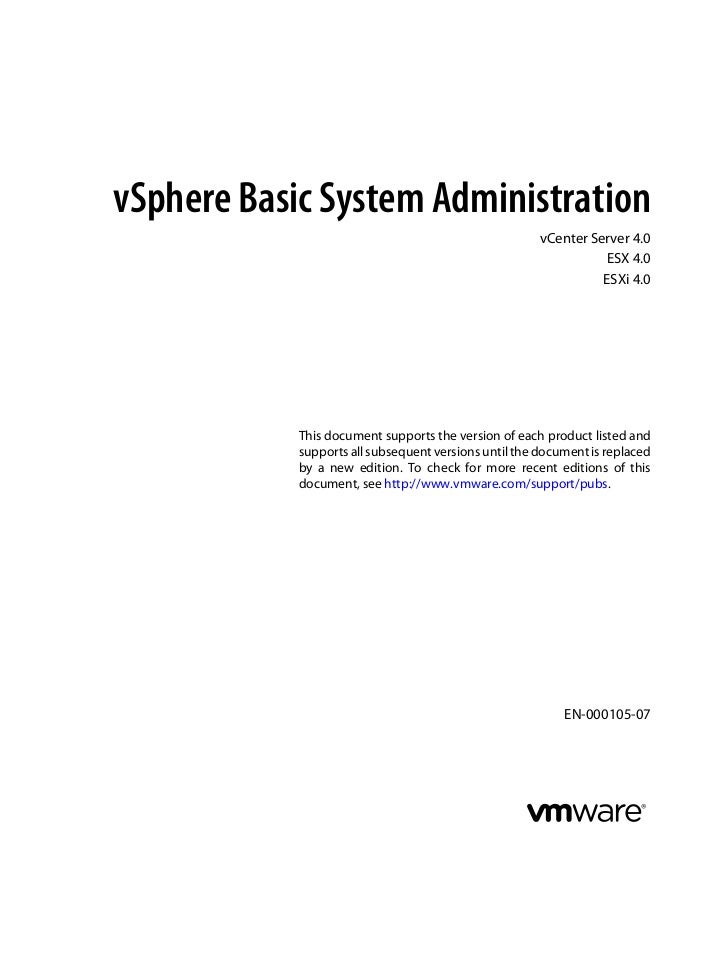

vSphere Basic System Administration                                                       vCenter Server 4.0              ...
vSphere Basic System AdministrationYou can find the most up-to-date technical documentation on the VMware Web site at:http...
Contents          Updated Information 9          About This Book 11Getting Started     1 vSphere Components 15            ...
vSphere Basic System Administration               View Virtual Machine Console 41               Searching the vSphere Inve...
Contents     9 Deploying OVF Templates 101               About OVF 101               Deploy an OVF Template     101       ...
vSphere Basic System Administration               Edit a Template 171               Change Template Name 172              ...
Contents               Working with Storage Maps   231   20 Using vCenter Maps 233               vCenter VMotion Maps 234 ...
vSphere Basic System Administration               Scheduled Task 312               Sessions 312               Tasks 313   ...
Updated Information          This Basic System Administration is updated with each release of the product or when necessar...
vSphere Basic System Administration          Revision          Description          EN-000105-02      n   The following se...
About This Book                                                                                                   ®       ...
vSphere Basic System Administration          Table 1. Abbreviations (Continued)          Abbreviation                     ...
Getting StartedVMware, Inc.                     13
vSphere Basic System Administration14                                    VMware, Inc.
vSphere Components                                                                                               1        ...
vSphere Basic System Administration                                      Each ESX/ESXi host has a vSphere Client available...
Chapter 1 vSphere Components          Host agent                     On each managed host, software that collects, communi...
vSphere Basic System Administration          VMs and Templates             Provides a view of all virtual machines and tem...
Chapter 1 vSphere Components   Solutions and Applications          You use the Solutions and Applications panel to access ...
vSphere Basic System Administration                                      To have a single namespace (that is, a single dat...
Chapter 1 vSphere Components          Templates                     A master copy of a virtual machine that can be used to...
vSphere Basic System Administration          vShield Zones                   vShield Zones is an application-aware firewal...
Chapter 1 vSphere Components                                 When you enable the cluster for HA, you specify the number of...
vSphere Basic System Administration24                                    VMware, Inc.
Starting and Stopping the vSphereComponents                                                                               ...
vSphere Basic System Administration          3     From the main or right-click menu, select Reboot or Shut Down.         ...
Chapter 2 Starting and Stopping the vSphere Components          Procedure          1    Go to the Services console for you...
vSphere Basic System AdministrationStop the vSphere Client and Log Out          When you no longer need to view or alter t...
Chapter 2 Starting and Stopping the vSphere ComponentsVMware Service Console          In previous versions of ESX, the ser...
vSphere Basic System Administration          View the man Page for a Service Console Command          man pages provide in...
Using vCenter Server in Linked Mode                                                                             3         ...
vSphere Basic System Administration          The following requirements apply to each vCenter Server system that is a memb...
Chapter 3 Using vCenter Server in Linked Mode          6    If the vCenter Server installer detects a role conflict, selec...
vSphere Basic System AdministrationIsolate a vCenter Server Instance from a Linked Mode Group          You can isolate a v...
Chapter 3 Using vCenter Server in Linked Mode          5    For the Virtualcenter.VimApiUrl key, change the value to point...
vSphere Basic System Administration          n     If you cannot join a vCenter Server instance, you can resolve the probl...
