Torque Control of a DC motor <ul><li>Author:  University of Hertfordshire </li></ul><ul><li>Date created: </li></ul><ul><l...
<ul><li>Contents </li></ul><ul><li>Section 1. Introduction 3 </li></ul><ul><li>Section 2. Module Format 4 </li></ul><ul><l...
Introduction <ul><li>During this mini project  the design of a torque control for a DC motor is to be considered.  </li></...
<ul><li>Series of three short projects </li></ul><ul><li>Three key areas of your chosen field of study </li></ul>
<ul><li>What is it? </li></ul><ul><ul><li>Given a task </li></ul></ul><ul><ul><li>Work out how to solve it yourself – just...
<ul><li>In week 1:  </li></ul><ul><ul><ul><li>A two-hour introductory lecture </li></ul></ul></ul><ul><ul><ul><li>A 3-hour...



First order Systems Screen shots taken from Matlab® Simulink  ® ,  The MathWorks, Inc.
Second Order Systems Screen shots taken from Matlab® Simulink  ® ,  The MathWorks, Inc.
Simulink Screen shots taken from Matlab® Simulink  ® ,  The MathWorks, Inc.  .
PI controller PI Controller   The PI Controller consists of An amplifier (proportional part), and  an integrator.
SISO tool Screen shots taken from Matlab® Simulink  ® ,  The MathWorks, Inc.
Summary <ul><li>Introduction to first order and second order systems.  </li></ul><ul><li>Most of real life systems can be ...
To Do list for today  You will need to be familiar with the topics above for future session of the mini project.  Make sur...
<ul><li>Lab-based  </li></ul><ul><li>Staff assess progress throughout session </li></ul><ul><li>Submission of work at the ...
<ul><li>Mark availability: </li></ul><ul><ul><li>Formal report (30%)  </li></ul></ul><ul><ul><li>Three Completed reflectio...
<ul><li>Turn up  to everything – there is no referral for the practicals, only repeat! </li></ul><ul><li>Plan   - break do...
This resource was created by the University of Hertfordshire and released as an open educational resource through the Open...
Upcoming SlideShare
Loading in...5
×

Mini Project- Torque Control of a DC Motor

7,330

Published on

The following resources come from the 2009/10 BEng in Electrical Engineering (course number 2ELE0066) from the University of Hertfordshire. All the mini projects are designed as level two modules of the undergraduate programmes.

The objectives of this module are to demonstrate within an industrial environment:
• To use Matlab® (Simulink®)
• To implement an appropriate analogue computer for modelling dynamic systems.

A DC motor model, in specific prototyping stages, is more appropriate to use than the actual DC motor. This project aimed to design and implement a DC motor model by using a simulation package (CAD) such as Matlab and implement the equivalent electronic hardware platform.

Published in: Education, Technology, Business
2 Comments
3 Likes
Statistics
Notes
  • EXCELLENT ONE
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • <br /><object type="application/x-shockwave-flash" data="http://www.youtube.com/v/9uMIQycxygQ?fs=1&amp;hl=en_US&amp;color1=0xe1600f&amp;color2=0xfebd01" width="350" height="288"><param name="movie" value="http://www.youtube.com/v/9uMIQycxygQ?fs=1&amp;hl=en_US&amp;color1=0xe1600f&amp;color2=0xfebd01"></param><embed src="http://www.youtube.com/v/9uMIQycxygQ?fs=1&amp;hl=en_US&amp;color1=0xe1600f&amp;color2=0xfebd01" width="350" height="288" type="application/x-shockwave-flash"></embed></object>
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
No Downloads
Views
Total Views
7,330
On Slideshare
0
From Embeds
0
Number of Embeds
1
Actions
Shares
0
Downloads
306
Comments
2
Likes
3
Embeds 0
No embeds

No notes for slide

Transcript of "Mini Project- Torque Control of a DC Motor"

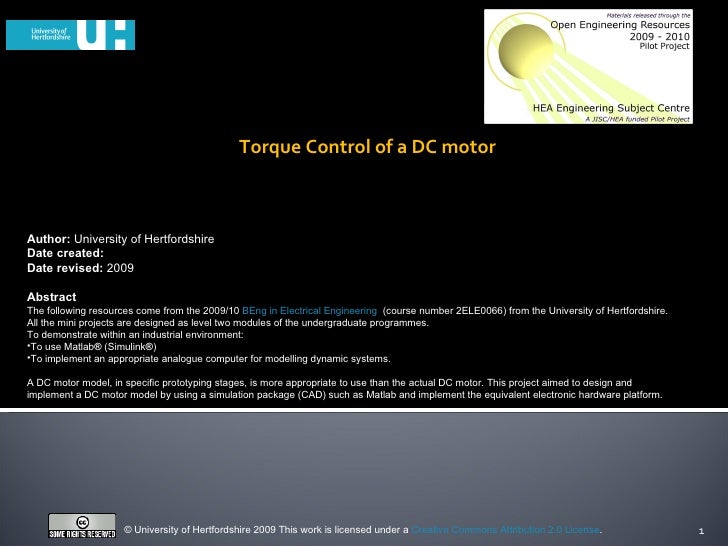

  1. 1. Torque Control of a DC motor <ul><li>Author: University of Hertfordshire </li></ul><ul><li>Date created: </li></ul><ul><li>Date revised: 2009 </li></ul><ul><li>Abstract </li></ul><ul><li>The following resources come from the 2009/10 BEng in Electrical Engineering (course number 2ELE0066) from the University of Hertfordshire. All the mini projects are designed as level two modules of the undergraduate programmes. </li></ul><ul><li>To demonstrate within an industrial environment: </li></ul><ul><li>To use Matlab ® (Simulink ® ) </li></ul><ul><li>To implement an appropriate analogue computer for modelling dynamic systems. </li></ul><ul><li>A DC motor model, in specific prototyping stages, is more appropriate to use than the actual DC motor. This project aimed to design and implement a DC motor model by using a simulation package (CAD) such as Matlab and implement the equivalent electronic hardware platform. </li></ul>© University of Hertfordshire 2009 This work is licensed under a Creative Commons Attribution 2.0 License .
