MINI-PROJECT Dual Processor Computation


Author: University of Hertfordshire
Date created:
Date revised: 2009


Abstract
...
Mini Project Dual Processor Computation




Section 1. Product Introduction.
Learning Outcomes assessed (as taken from the...
Mini Project Dual Processor Computation




Day 1
Expected Outcomes for the day:
The student will
   • Design a system tha...
Mini Project Dual Processor Computation




Teaching Resources:
Briefing packs for the preparatory session and both practi...
Mini Project Dual Processor Computation




Section 2. Project Day 1
Write functions to perform each of the tasks listed b...
Mini Project Dual Processor Computation




Section 3. Project Day 2
Perform each of the tasks listed below. You should de...
Mini Project Dual Processor Computation




Credits
This resource was created by the University of Hertfordshire and relea...
Upcoming SlideShare
Loading in …5
×

Mini Project- Dual Processor Computation

1,447 views

Published on

The following resources come from the 2009/10 BEng in Digital Systems and Computer Engineering (course number 2ELE0065) from the University of Hertfordshire. All the mini projects are designed as level two modules of the undergraduate programmes.

The objectives of this module are to demonstrate, within an embedded development environment:
Processor – to – processor communication
Multiple processors to perform one computation task using parallel processing

This project requires the establishment of a communication protocol between two 68000-based microcomputer systems. Using ‘C’, students will write software to control all aspects of complex data transfer system, demonstrating knowledge of handshaking, transmission protocols, transmission overhead, bandwidth, memory addressing. Students will then demonstrate and analyse parallel processing of a mathematical problem using two processors. This project requires two students working as a team.

Published in: Education, Technology, Business
0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total views
1,447
On SlideShare
0
From Embeds
0
Number of Embeds
7
Actions
Shares
0
Downloads
29
Comments
0
Likes
1
Embeds 0
No embeds

No notes for slide

Mini Project- Dual Processor Computation

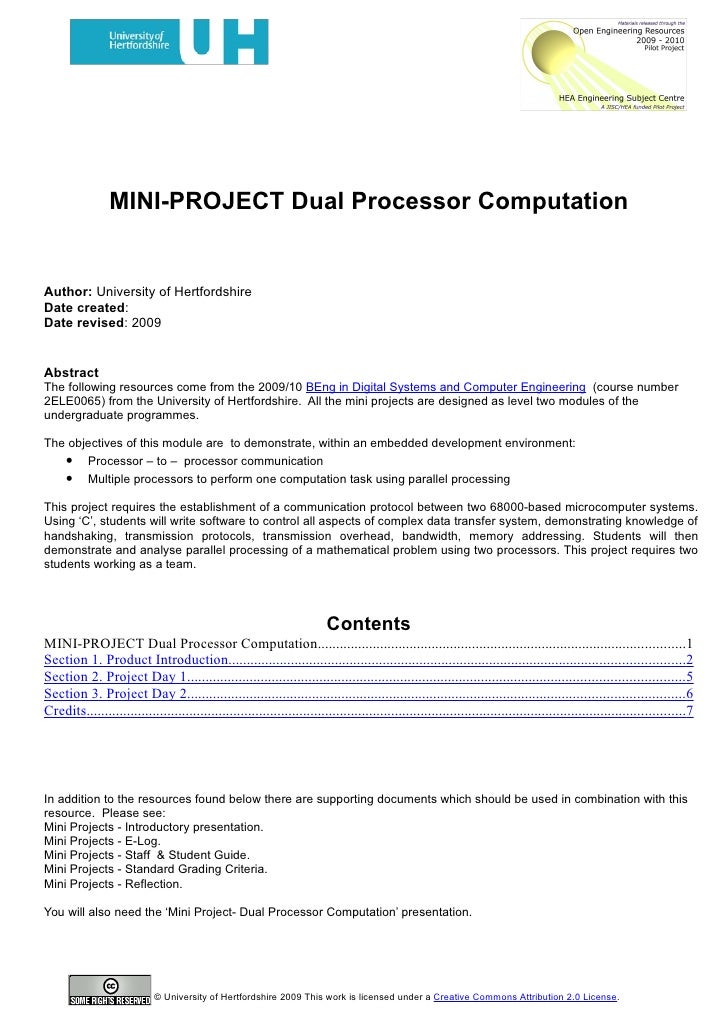

  1. 1. MINI-PROJECT Dual Processor Computation Author: University of Hertfordshire Date created: Date revised: 2009 Abstract The following resources come from the 2009/10 BEng in Digital Systems and Computer Engineering (course number 2ELE0065) from the University of Hertfordshire. All the mini projects are designed as level two modules of the undergraduate programmes. The objectives of this module are to demonstrate, within an embedded development environment: • Processor – to – processor communication • Multiple processors to perform one computation task using parallel processing This project requires the establishment of a communication protocol between two 68000-based microcomputer systems. Using ‘C’, students will write software to control all aspects of complex data transfer system, demonstrating knowledge of handshaking, transmission protocols, transmission overhead, bandwidth, memory addressing. Students will then demonstrate and analyse parallel processing of a mathematical problem using two processors. This project requires two students working as a team. Contents MINI-PROJECT Dual Processor Computation....................................................................................................1 Section 1. Product Introduction............................................................................................................................2 Section 2. Project Day 1.......................................................................................................................................5 Section 3. Project Day 2.......................................................................................................................................6 Credits...................................................................................................................................................................7 In addition to the resources found below there are supporting documents which should be used in combination with this resource. Please see: Mini Projects - Introductory presentation. Mini Projects - E-Log. Mini Projects - Staff & Student Guide. Mini Projects - Standard Grading Criteria. Mini Projects - Reflection. You will also need the ‘Mini Project- Dual Processor Computation’ presentation. © University of Hertfordshire 2009 This work is licensed under a Creative Commons Attribution 2.0 License.
