Mini Project- Audio Enhancement

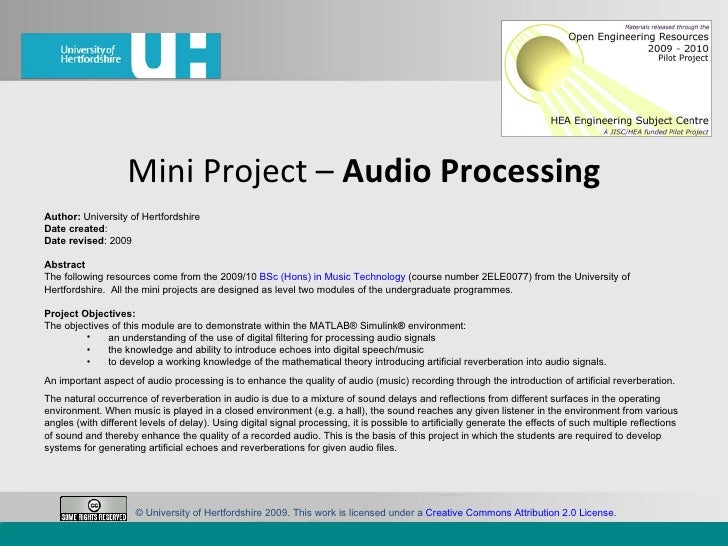

  1. 1. Mini Project – Audio Processing <ul><li>Author: University of Hertfordshire </li></ul><ul><li>Date created : </li></ul><ul><li>Date revised : 2009 </li></ul><ul><li>Abstract </li></ul><ul><li>The following resources come from the 2009/10 BSc ( Hons ) in Music Technology (course number 2ELE0077) from the University of Hertfordshire. All the mini projects are designed as level two modules of the undergraduate programmes. </li></ul><ul><li>Project Objectives: </li></ul><ul><li>The objectives of this module are to demonstrate within the MATLAB® Simulink ® environment: </li></ul><ul><ul><li>an understanding of the use of digital filtering for processing audio signals </li></ul></ul><ul><ul><li>the knowledge and ability to introduce echoes into digital speech/music </li></ul></ul><ul><ul><li>to develop a working knowledge of the mathematical theory introducing artificial reverberation into audio signals. </li></ul></ul><ul><li>An important aspect of audio processing is to enhance the quality of audio (music) recording through the introduction of artificial reverberation. </li></ul><ul><li>The natural occurrence of reverberation in audio is due to a mixture of sound delays and reflections from different surfaces in the operating environment. When music is played in a closed environment (e.g. a hall), the sound reaches any given listener in the environment from various angles (with different levels of delay). Using digital signal processing, it is possible to artificially generate the effects of such multiple reflections of sound and thereby enhance the quality of a recorded audio. This is the basis of this project in which the students are required to develop systems for generating artificial echoes and reverberations for given audio files. </li></ul>© University of Hertfordshire 2009. This work is licensed under a Creative Commons Attribution 2.0 License .
  2. 2. <ul><li>Contents </li></ul><ul><li>Principles of the relevant aspects of Digital Signal Processing 3 </li></ul><ul><li>Introduction to digital simulation of audio reverberation 4 </li></ul><ul><li>Acoustic Echo Simulator 5 </li></ul><ul><li>A Delay Line ... The fundamental building block 6 </li></ul><ul><li>Audio Discrete Time 7 </li></ul><ul><li>The Digital Delay Line Length 8 </li></ul><ul><li>Reverberation is the sum of ... 9 </li></ul><ul><li>MATLAB® Overview 10 </li></ul><ul><li>Questions please … 21 </li></ul><ul><li>Day 1 Task 22 </li></ul><ul><li>Day 2 Task 23 </li></ul><ul><li>Credits 24 </li></ul>In addition to the resources found below there are supporting documents which should be used in combination with this resource. Please see: Mini Projects - Introductory presentation. Mini Projects - E-Log. Mini Projects - Staff & Student Guide. Mini Projects - Standard Grading Criteria. Mini Projects - Reflection. You will also need the ‘Mini Projects – Audio Enhancement’ Word document. Mini Project- Audio Enhancement
  3. 3. Principles of the relevant aspects of Digital Signal Processing (DSP) <ul><li>DSP elements </li></ul><ul><li>Basic principles of discrete-time signals </li></ul><ul><li>Introduction to digital filtering </li></ul>Mini Project- Audio Enhancement
  4. 4. Introduction to digital simulation of audio reverberation <ul><li>The physics of reverberation in closed space environments (refresher) </li></ul><ul><li>Introduction to DSP tools for generating artificial reverberation </li></ul>Mini Project- Audio Enhancement
  5. 5. Acoustic Echo Simulator <ul><li>Echoes occur when a sound arrives via more than one path </li></ul><ul><li>We may hear a discrete echo if we clap our hands standing in front of a large flat wall outdoors. To be perceived as an echo the reflection must arrive well after the direct signal </li></ul><ul><li>A mathematical model for an echo. </li></ul>Mini Project- Audio Enhancement Input Delay Output Delay Mix
  6. 6. A Delay Line ... The fundamental building block <ul><li>A delay takes an audio signal, and plays it back after the delay time . The delay time can range from several milliseconds to several seconds </li></ul><ul><li>This produces a single, delayed copy of the input, and thus is often referred to as an echo device. </li></ul>Mini Project- Audio Enhancement
  7. 7. Audio Discrete Time <ul><li>Stereo CD quality is defined at 44,100 samples per second in each channel </li></ul><ul><li>There is therefore up to 22,050 kilohertz is available in each stereo channel </li></ul><ul><li>Each acoustic amplitude sample is taken at 1/44,100 seconds or 0.02267 milliseconds. </li></ul><ul><li>This is referred to as T, the sampling interval </li></ul>Mini Project- Audio Enhancement
  8. 8. The Digital Delay Line Length <ul><li>The delay-line is like the fixed ``air'' which propagates sound samples at a fixed speed </li></ul><ul><li>c = 344 meters per second at 22 0 C and 1 atmosphere) </li></ul><ul><li>If the listening point is d meters away from the source and the sampling period is T, then the delay line length needs to be: </li></ul><ul><ul><ul><li>M = d / c T samples </li></ul></ul></ul><ul><ul><li>For example if a source is 10 meters away then M needs to be 1282 samples long assuming a CD quality recording. </li></ul></ul>Mini Project- Audio Enhancement
  9. 9. Reverberation is the sum of ... <ul><li>Direct sound </li></ul><ul><ul><ul><li>From source to ear with no reflections (anechoic) </li></ul></ul></ul><ul><li>Early reflections </li></ul><ul><ul><ul><li>From a model of the room walls and wall coverings </li></ul></ul></ul><ul><li>Late reverberation </li></ul><ul><ul><ul><li>From complex interactions decaying over time </li></ul></ul></ul><ul><ul><ul><li>Sufficient reflections density to avoid flutter echoes </li></ul></ul></ul>Mini Project- Audio Enhancement
  10. 10. MATLAB ® Overview <ul><li>What is MATLAB ® ? </li></ul><ul><li>History of MATLAB ® </li></ul><ul><ul><li>Who developed MATLAB ® </li></ul></ul><ul><ul><li>Why MATLAB ® was developed </li></ul></ul><ul><ul><li>Who currently maintains MATLAB ® </li></ul></ul><ul><li>Strengths of MATLAB ® </li></ul><ul><li>Weaknesses of MATLAB ® </li></ul>Mini Project- Audio Enhancement
  11. 11. What is MATLAB ® ? <ul><li>MATLAB ® </li></ul><ul><ul><li>MATrix LABoratory </li></ul></ul><ul><ul><li>Interactive system </li></ul></ul><ul><ul><ul><li>Will be covered during week 2 </li></ul></ul></ul><ul><ul><li>Programming language </li></ul></ul><ul><ul><ul><li>Will be covered during week 3 </li></ul></ul></ul>Mini Project- Audio Enhancement
  12. 12. What is MATLAB ® con’t: 2 <ul><li>Considering MATLAB ® at home </li></ul><ul><ul><li>Standard edition </li></ul></ul><ul><ul><ul><li>Available for roughly 2 thousand dollars </li></ul></ul></ul><ul><ul><li>Student edition </li></ul></ul><ul><ul><ul><li>Available for roughly 1 hundred dollars. </li></ul></ul></ul><ul><ul><ul><li>Some limitations, such as the allowable size of a matrix </li></ul></ul></ul>Mini Project- Audio Enhancement
  13. 13. History of MATLAB ® <ul><li>Ancestral software to MATLAB ® Fortran subroutines for solving linear (LINPACK) and eigenvalue (EISPACK) problems </li></ul><ul><ul><li>Developed primarily by Cleve Moler in the 1970’s </li></ul></ul>Mini Project- Audio Enhancement
  14. 14. Digital Signal Processing for Music <ul><li>Research in music, as well as music production and composition increasingly relies on sophisticated digital signal processing techniques. This course will review fundamental elements of digital audio signal processing, such as sinusoids, spectra, digital filters, and Fourier analysis and their application to the fundamental music analysis problems of modelling and synthesis. The course will focus particularly on the algorithmic implementation sound transformation and synthesis techniques through intensive programming assignments in Matlab.  </li></ul>Mini Project- Audio Enhancement
  15. 15. History of MATLAB ® , con’t: 2 <ul><li>Later, when teaching courses in mathematics, Moler wanted his students to be able to use LINPACK and EISPACK without requiring knowledge of Fortran </li></ul><ul><li>MATLAB ® developed as an interactive system to access LINPACK and EISPACK </li></ul>Mini Project- Audio Enhancement
  16. 16. Signal Processing Techniques for Digital Audio Effects <ul><li>Digital signal processing methods for audio effects used in mixing and mastering will be covered. Topics include techniques for dynamic range compression, reverberation and room impulse response measurement, equalization and filtering, and panning and spatialization, with attention given to digital emulation of analog processors and implementation of time varying effects. Among the effects studied will be single-band and multiband compressors, limiters, noise gates, de-essers, feedback delay network and convolutional reverberators, flangers and phasors, parametric and linear-phase equalizers, wah-wah and envelope-following filters, and the Leslie. </li></ul><ul><li>The course material will be presented in daily lecture sessions with laboratory exercises interspersed. The lecture sessions will concentrate on theoretical issues in the design of digital audio effects, and are complemented by laboratory work in which students will develop effects algorithms of their own design. </li></ul><ul><li>The course is geared for musicians and recording engineers with an engineering background, and for engineers and computer scientists with an interest in music technology. An exposure to digital signal processing, including familiarity with digital filtering and the Fourier Transform is helpful. Some knowledge of Matlab® . </li></ul>Mini Project- Audio Enhancement
  17. 17. History of MATLAB ® , con’t: 3 <ul><li>MATLAB ® gained popularity primarily through word of mouth because it was not officially distributed </li></ul><ul><li>In the 1980’s, MATLAB ® was rewritten in C with more functionality (such as plotting routines) </li></ul>Mini Project- Audio Enhancement
  18. 18. History of MATLAB ®, con’t: 4 <ul><li>The Mathworks, Inc. was created in 1984 </li></ul><ul><li>The Mathworks is now responsible for development, sale, and support for MATLAB ® The Mathworks is located in Natick, MA </li></ul><ul><li>The Mathworks is an employer that hires co-ops through our co-op program </li></ul>Mini Project- Audio Enhancement
  19. 19. Strengths of MATLAB ® <ul><li>MATLAB ® is relatively easy to learn </li></ul><ul><li>MATLAB ® code is optimized to be relatively quick when performing matrix operations </li></ul><ul><li>MATLAB ® may behave like a calculator or as a programming language </li></ul><ul><li>MATLAB ® is interpreted, errors are easier to fix </li></ul><ul><li>Although primarily procedural, MATLAB does have some object-oriented elements </li></ul>Mini Project- Audio Enhancement
  20. 20. Weaknesses of MATLAB <ul><li>MATLAB ® is NOT a general purpose programming language </li></ul><ul><li>MATLAB ® is an interpreted language (making it for the most part slower than a compiled language such as C++) </li></ul><ul><li>MATLAB ® is designed for scientific computation and is not suitable for some things (such as parsing text) </li></ul>Mini Project- Audio Enhancement
  21. 21. Questions please … Mini Project- Audio Enhancement
  22. 22. Day 1 Task <ul><li>To record a sound (in .wav format) supplied by yourself and design an Infinite Impulse Response (IIR) network to make it sound like it was played in a large cavern with strong echoes. </li></ul>Mini Project- Audio Enhancement
  23. 23. Day 2 Task <ul><li>To build and demonstrate a complete set of digital filters connected to process a studio recorded version of the 4th movement of Beethoven Symphony number 9 „Coral“. </li></ul><ul><li>The output result should sound like a full concert hall performance. </li></ul>Mini Project- Audio Enhancement
