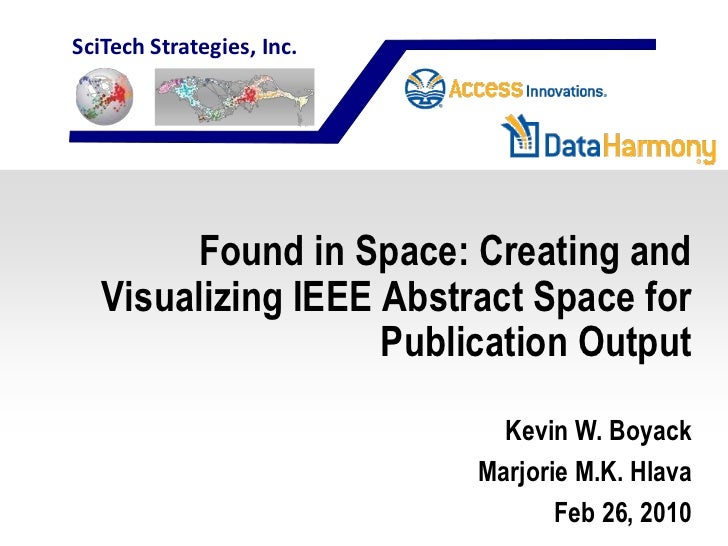

SciTech Strategies, Inc.        Found in Space: Creating and   Visualizing IEEE Abstract Space for                    Publ...
Agenda          Work in progress presentation          Introduction           »   Science mapping background           »...
Science mapping          30-40 year tradition of science mapping           »   Well-established methodologies           »...
SciTech Strategies   Better Maps   Better Decisions   Well Formed Data • Semantic Enrichment • Access Innovations • Data H...
SciTech Strategies   Better Maps   Better Decisions   Well Formed Data • Semantic Enrichment • Access Innovations • Data H...
Questions with visual answers          From a society / publisher perspective           »   Which topical areas form our ...
Preparing the data          Index 1.2 Million eXplore records           »   Using the IEEE Thesaurus           »   Using ...
Mapping IEEE thesaurus space          Simple map – process           »       Obtain IEEE thesaurus           »       Inde...
Mapping IEEE thesaurus space          We are more interested in an expanded map that           includes adjacencies to th...
Defining expanded term space                                              0. Desired result                               ...
Defining expanded term space                                   1. Limit IEEE thesaurusSciTech Strategies   Better Maps   B...
Defining expanded term space                                          2. Select related corpus’                     475k p...
Defining expanded term space                                   3. Identify related terms                                  ...
Defining expanded term space                                   3. Identify related terms                                  ...
Defining expanded term space                                   4. Resulting term set                                   2k ...
Clustering of terms (loose clustering)SciTech Strategies   Better Maps   Better Decisions   Well Formed Data • Semantic En...
Clustering of terms (tight clustering)SciTech Strategies   Better Maps   Better Decisions   Well Formed Data • Semantic En...
Remove non-linked MeSHSciTech Strategies   Better Maps   Better Decisions   Well Formed Data • Semantic Enrichment • Acces...
Cluster the term clustersSciTech Strategies   Better Maps   Better Decisions   Well Formed Data • Semantic Enrichment • Ac...
Linearize the term cluster orderSciTech Strategies    Better Maps   Better Decisions   Well Formed Data • Semantic Enrichm...
IEEE corpus distribution over topicsSciTech Strategies   Better Maps   Better Decisions   Well Formed Data • Semantic Enri...
USPTO corpus distribution over topicsSciTech Strategies   Better Maps   Better Decisions   Well Formed Data • Semantic Enr...
PubMed corpus distribution over topicsSciTech Strategies   Better Maps   Better Decisions   Well Formed Data • Semantic En...
SciTech Strategies   Better Maps   Better Decisions   Well Formed Data • Semantic Enrichment • Access Innovations • Data H...
Summary          Term space can be mapped effectively          The mapped space can be used to show distributions       ...
Radial thesaurus structureSciTech Strategies, Inc.   Ordered by division
IEEE T Magnetics                                                                                       Purple – Magnetics ...
Division   I               Division   II               Division   III               Division   IV               Division  ...
SciTech Strategies   Better Maps   Better Decisions   Well Formed Data • Semantic Enrichment • Access Innovations • Data H...
SciTech Strategies   Better Maps   Better Decisions   Well Formed Data • Semantic Enrichment • Access Innovations • Data H...
Division   I                                                                                                     Division ...
Division   I                                                                                                     Division ...
Division   I                                                                                                     Division ...
Division   I                                                                                                     Division ...
Division   I                                                                                                     Division ...
SciTech Strategies   Better Maps   Better Decisions   Well Formed Data • Semantic Enrichment • Access Innovations • Data H...
