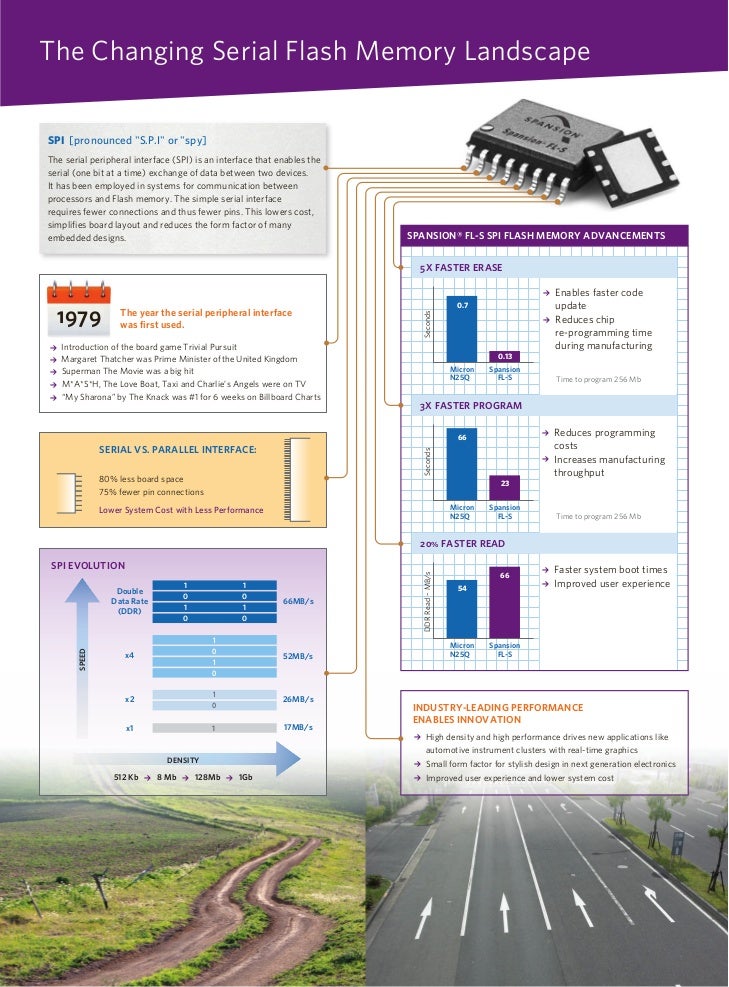

The Changing Serial Flash Memory LandscapeSPI [pronounced "S.P.I" or "spy]The serial peripheral interface (SPI) is an interface that enables theserial (one bit at a time) exchange of data between two devices.It has been employed in systems for communication betweenprocessors and Flash memory. The simple serial interfacerequires fewer connections and thus fewer pins. This lowers cost,simplifies board layout and reduces the form factor of manyembedded designs. SPANSION® FL-S SPI FLASH MEMORY ADVANCEMENTS 5X FASTER ERASE 1979 > Enables faster code 0.7 update 1979 The year the serial peripheral interface Seconds was first used. > Reduces chip re-programming time> Introduction of the board game Trivial Pursuit during manufacturing> Margaret Thatcher was Prime Minister of the United Kingdom 0.13> Superman The Movie was a big hit Micron Spansion N25Q FL-S Time to program 256 Mb Time to program 256 Mb> M*A*S*H, The Love Boat, Taxi and Charlie’s Angels were on TV> “My Sharona” by The Knack was #1 for 6 weeks on Billboard Charts 3X FASTER PROGRAM 66 > Reduces programming SERIAL VS. PARALLEL INTERFACE: costs Seconds > Increases manufacturing throughput 80% less board space 23 75% fewer pin connections Lower System Cost with Less Performance Micron Spansion N25Q FL-S Time to program 256 Mb 20% FASTER READSPI EVOLUTION > Faster system boot times 66 DDR Read – MB/s 1 1 54 > Improved user experience Double 0 0 Data Rate 66MB/s 1 1 (DDR) 0 0 1 Micron Spansion 0 SPEED x4 52MB/s N25Q FL-S 1 0 1 x2 26MB/s 0 INDUSTRY-LEADING PERFORMANCE ENABLES INNOVATION x1 1 17MB/s > High density and high performance drives new applications like automotive instrument clusters with real-time graphics DENSITY > Small form factor for stylish design in next generation electronics 512 Kb > 8 Mb > 128Mb > 1Gb > Improved user experience and lower system cost
