  • Etc:Number of featuresNetwork topologyMeta data….
  • Can have schema reader AND reader in workspaceStoakes:Schema(any format) is very useful. You can compare the schema of submitted data with the schema ‘standard’ and if there is a mismatch you can reject the data. If the data matches the data model standard then you can proceed with the data load.

Transcript

  • 1. CONNECT. TRANSFORM. AUTOMATE. Validation and Quality Control with FME and FME Server
  • 2. CONNECT. TRANSFORM. AUTOMATE. Validation and Quality Control with FME and FME Server
  • 3. CONNECT. TRANSFORM. AUTOMATE. Validation and Quality Control with FME and FME Server

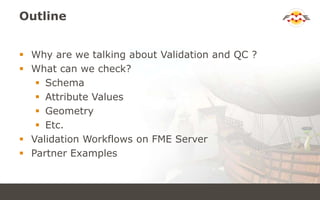

  • 4. Outline  Why are we talking about Validation and QC ?  What can we check?  Schema  Attribute Values  Geometry  Etc.  Validation Workflows on FME Server  Partner Examples
  • 5. Why are we talking about this?  Bad data costs time, money and even lives.

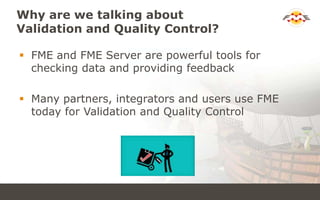

  • 6. Why are we talking about Validation and Quality Control?  FME and FME Server are powerful tools for checking data and providing feedback  Many partners, integrators and users use FME today for Validation and Quality Control

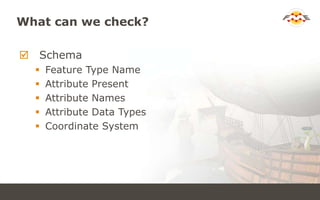

  • 7. What can we check?  Schema  Feature Type Name  Attribute Present  Attribute Names  Attribute Data Types  Coordinate System
  • 8. What can we check? Schema Checking – Key Tools  Schema (Any Format) Reader  FeatureTypeFilter  StatisticsCalculator  AttributeClassifier transformer  XMLValidator Transformer  JSONValidator Transformer

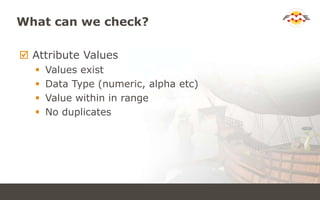

  • 9. What can we check?  Attribute Values  Values exist  Data Type (numeric, alpha etc)  Value within in range  No duplicates

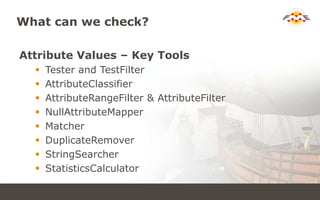

  • 10. What can we check? Attribute Values – Key Tools  Tester and TestFilter  AttributeClassifier  AttributeRangeFilter & AttributeFilter  NullAttributeMapper  Matcher  DuplicateRemover  StringSearcher  StatisticsCalculator

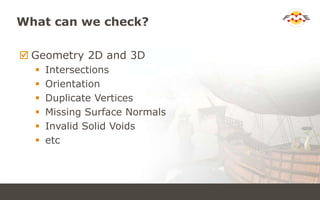

  • 11. What can we check?  Geometry 2D and 3D  Intersections  Orientation  Duplicate Vertices  Missing Surface Normals  Invalid Solid Voids  etc

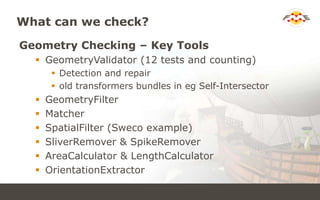

  • 12. What can we check? Geometry Checking – Key Tools  GeometryValidator (12 tests and counting)  Detection and repair  old transformers bundles in eg Self-Intersector  GeometryFilter  Matcher  SpatialFilter (Sweco example)  SliverRemover & SpikeRemover  AreaCalculator & LengthCalculator  OrientationExtractor

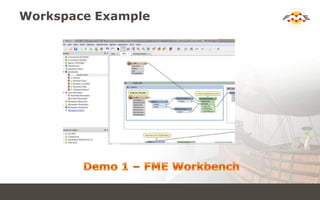

  • 13. Workspace Example

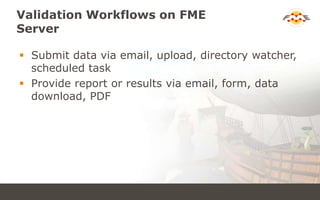

  • 14. Validation Workflows on FME Server  Submit data via email, upload, directory watcher, scheduled task  Provide report or results via email, form, data download, PDF

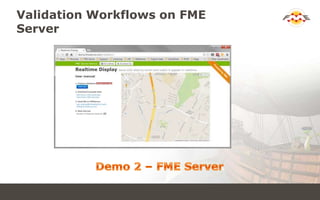

  • 15. Validation Workflows on FME Server

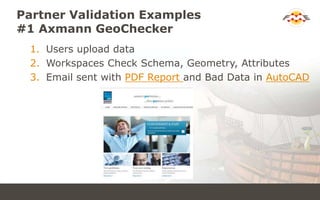

  • 16. Partner Validation Examples #1 Axmann GeoChecker 1. Users upload data 2. Workspaces Check Schema, Geometry, Attributes 3. Email sent with PDF Report and Bad Data in AutoCAD
  • 17. Partner Validation Examples #1 Axmann GeoChecker Detailed Reports & AutoCAD File of Errors

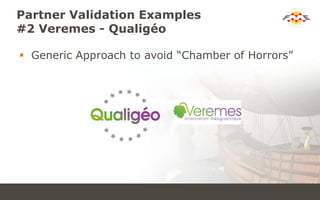

  • 18. Partner Validation Examples #2 Veremes - Qualigéo  Generic Approach to avoid “Chamber of Horrors”

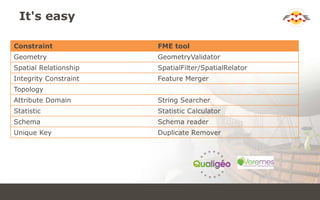

  • 19. It's easy Constraint FME tool Geometry GeometryValidator Spatial Relationship SpatialFilter/SpatialRelator Integrity Constraint Feature Merger Topology Attribute Domain String Searcher Statistic Statistic Calculator Schema Schema reader Unique Key Duplicate Remover

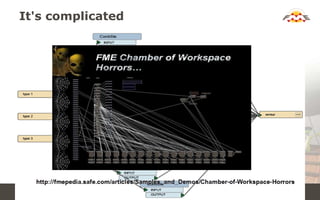

  • 20. It's complicated

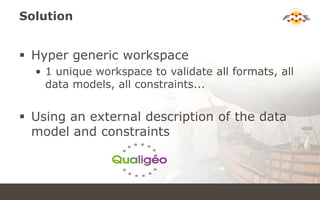

  • 21.  Hyper generic workspace • 1 unique workspace to validate all formats, all data models, all constraints...  Using an external description of the data model and constraints Solution

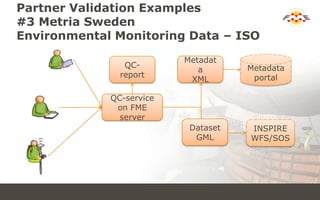

  • 22. Partner Validation Examples #3 Metria Sweden Environmental Monitoring Data – ISO QC-service on FME server Metadat a XML INSPIRE WFS/SOS QC- report Metadata portal Dataset GML

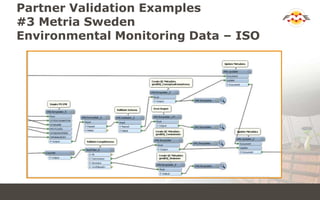

  • 23. Partner Validation Examples #3 Metria Sweden Environmental Monitoring Data – ISO

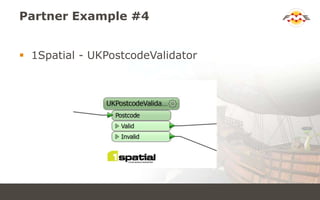

  • 24. Partner Example #4  1Spatial - UKPostcodeValidator

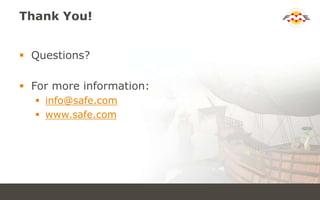

  • 25. Thank You!  Questions?  For more information:  info@safe.com  www.safe.com
