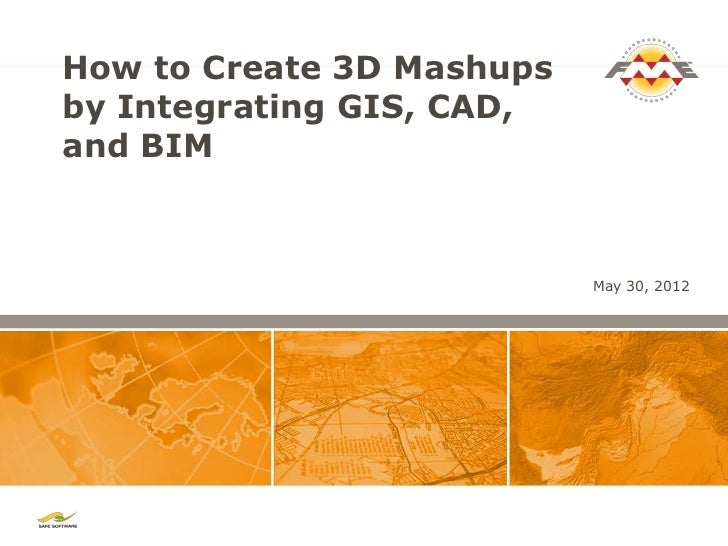

How to Create 3D Mashups by Integrating GIS, CAD, and BIM

How to Create 3D Mashupsby Integrating GIS, CAD,and BIM May 30, 2012

How to Create 3D Mashupsby Integrating GIS, CAD,and BIM #fmewebinar May 30, 2012

Who Are We? Dale Lutz Co-Founder and Vice President of Development Safe Software Kevin Wiebe Chief Scientist Safe Software

Today’s Special Guest Ulf Månsson Project Manager, SWECO

Questions are Encouraged! This Morning’s Q&A Support:  Mark Stoakes Manager Professional Services (and FME Rockstar) Safe Software  Dave Campanas FME Product Specialist (and 3D Guru) Safe Software

Questions are Encouraged! This Morning’s Q&A Support (continued):  Dmitri Bagh FME Scenario Creation Specialist (and 3D Transformation Master) Safe Software

Powering The Flow of Spatial Data

Poll: Have You Used FME?

FME CapabilitiesTransform Data to Use and Share  Convert spatial data between hundreds of formats  Transform spatial data into the precise data model you need  Integrate multiple different data types into a single data model  Share spatial data with people where, when and how they need it

FME Workbench:Graphical Data Flow Authoring

FME 3D Formats

Poll: What Data Types WouldYou Combine into a 3D Mashup

Turn This…

…Into This

…Starting HERE…

Or Turn This…

…Into Something Useful…

Original Sketchup Design

Outer Shell Extracted For GIS

Industry Foundation Classes (IFC)

All Data Available To GIS

FME 2012: Best CityGML ReadingOn the Planet!

Real World 3D Mashups

3D City BuildingWith Street Photos http://fme.ly/highlevel

Ingredients

Data Integration to 3D PDF http://fme.ly/shell3d

ShellData Integration to 3D PDF

Shadow DancingNiels la Cour, Alexander Stepanov,Senior Physical Planner GIS ArchitectUniversity of Massachusetts University of Massachusetts

Generate realistic shadows forComplex footprints2D: Possible, but difficult3D: ???

WE USED TO THINK IN 2D - NOTANYMORE.FME 3D TRANSFORMS ALLOW ONE TOACT AND THINK IN 3D DIRECTLY.

Result of 3D Transform:2D Buildings were put in 3D, thenWE TILT THEM (IN DIRECTION OF SUN RAYS).

ONLY SHADOWS + WIREFRAMES (2D),ONE OF WAYS TO GET 3D (WebGL) LOOK

ONLY SHADOWS (2D),But THEY DO HAVE 3D FLAVOR!

shadow shadowshadow shadow Complex Shadows (Generated in a minute)

Facilities Management http://fme.ly/umassNiels la Cour, Alexander Stepanov,Senior Physical Planner GIS ArchitectUniversity of Massachusetts University of Massachusetts

Connecting The Dots Geo-design Intellectual maps Computational Geography Analytical Tools Bringing Analytics to Facilities Management SAS ( Bridge for GIS as a Decision Support System for FM ESRI) Analytical Tools Design/Scenario Planning Interface Network X ( LANL) Visualization R-project (py) NumPy Visualization SciPy FM specific analytical functions CGAL (py) Analysis Boost Graph (py) ArcGIS Server Platform Data Interoperability Extension (FME Subset)Format A Format B Format N

Registering CAD DrawingsImage Registrations: area of active research ( medicine, remotesensing, image recognition …)More than 1000 research papers published in 1993-2003Variety of techniquesNeed to find rotation, offset parameters ( scale is known )Match for buildings is known ( building id in CAD document, and id ofGIS feature )

Registering CAD Drawings Minimize total sq. distance from observation points to “nearest” control points by modifying two parameters: rotation & offset (dx,dy)

Stacked CAD Floorplans

The Campus in ArcScene

Room Use Theming

Complete GIS AttributionAttributes Fetched from Room Database via CAD Room Number Floor 10

Today’s Special Guest “When you have an FME Hammer, every data transformation problem is a nail…”

Ulf Månsson ulf.mansson@sweco.se ►ulf.mansson@sweco.se 51

Credits Barsebäck nuclear power plant •Lars-Olof Jönsson •Lars Karlsson •Lars Håkansson and SWECO co workers ulf.mansson@sweco.se

Sustainable engineering and design - the continuation of a longstanding tradition within Sweco 7 600 employees Established in 12 countries Flood protection in Poland A modern flood protection system for the area around the Nysa Klodzka River in Poland will protect from future flooding catastrophes.Ignalina nuclear power A new hydroelectricstation power station inSweco has prepared Bulgariadesign works for several Sweco’s assignmentdisassembly and comprises geologicaldecontamination projects surveys, design,at the Ignalina nuclear production of drawingspower station in Lithuania. and other technical services. ulf.mansson@sweco.se 53 53

1969 – Order of Unit 11975 – Delivers Electricity1980 – Referendum1999 – Unit 1 closed2005 – Unit 2 closed 54

Geospatial IT Decommissioning planning demands a radiological survey - What and how much is contaminated? A 3D model could help with: • Planning, acquisition and visualization of sampling data • Quality assurance • Logistics ulf.mansson@sweco.se

Geospatial IT – current documentation ulf.mansson@sweco.se ►

Concept: 2D to 3D Transformation Walls / Floors Overview Information Visualize results ulf.mansson@sweco.se 57

3D PDF, DWG etc. DEM 2D-BUILDING .dwg 2D GeoPDF, shp, png etc. LANDUSE .shp •Read different formats •Georeference – to one coordinatesystem •Generate 3D •Connect tabular data •Maintain a data model •Produce 3D and 2D output MAPDATA TABULAR DATA .xls, Oracle, etc.59

3D PDF – Locate Rooms by ID (Room Number)60

3D PDF – ”Cut Outs” with Parts of buildings61

3D PDF – ”Cut Outs” with Parts of buildings62

3D PDF – ”Cut Outs” with Parts of buildings (from below)

Indoor sampling64

Intelligent papersPlugin for QR detection: QRDetector 65

ulf.mansson@sweco.se

Outdoor sampling67

Use cases:- Planning and preliminary results ulf.mansson@sweco.se

Intelligent papers – indoor positioning QRDetector Georeferencing in 3D ulf.mansson@sweco.se

Intelligent papers – indoor positioning ulf.mansson@sweco.se

Results are fed into the 3D model ulf.mansson@sweco.se

Intelligent papers – other uses ulf.mansson@sweco.se

Ulf Månsson ulf.mansson@sweco.se ►ulf.mansson@sweco.se 79

FME & 3D Mashups: Summary 3D is the “Format of Human Beings” Visualizing data in 3D improves decision making 3D datasets can painlessly be synthesized by transforming non-3D data with FME

The limitations to think in 2D (even if all data are 2D) are artificial. With FME 3D transformations we really can think in 3D, being format agnostic, and solve difficult problems faster and in a more elegant way. Nothing prevents us from constructing 3D objects fromspatial and non-spatial data sources. The knowledge of subject domain is important, but the technology is here!Niels la Cour, Alexander Stepanov,Senior Physical Planner GIS ArchitectUniversity of Massachusetts University of Massachusetts

Poll: What New 3D FunctionalityShould be Added To FME??

Learn More About FME Get Acquainted:  FME Desktop Intro Webinar  http://fme.ly/intro  FME Free Evaluation  http://www.safe.com  FMEpedia 3D Section  http://www.fmepedia.com Upcoming webinars http://fme.ly/webinars  How to Process Real-Time Data with FME - June 7  How to Improve Data Exchange with Intergraph Products - June 21
