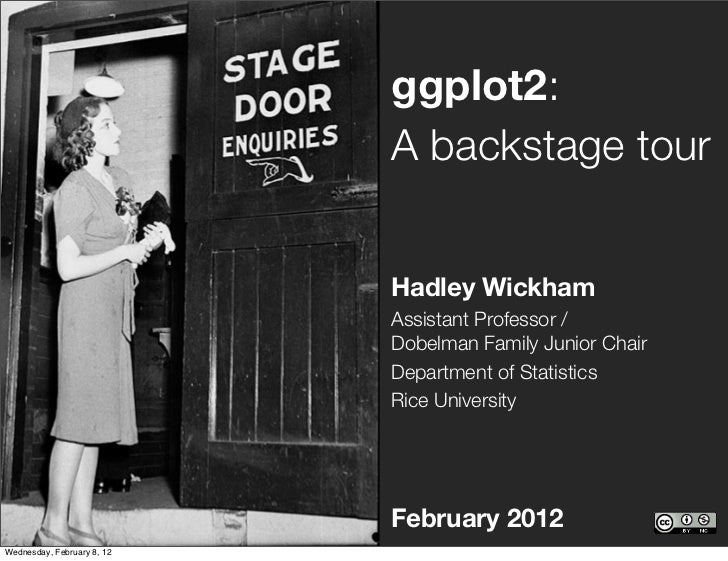

ggplot2:                            A backstage tour                            Hadley Wickham                            ...
1. Why ggplot2?                2. Sneak peek and new features                3. Best practices                4. Questions...
Poll: What graphics                          system are you                         currently using?Wednesday, February 8,...
Why ggplot2?Wednesday, February 8, 12
2004                                          WHC                                                  ●                      ...
Wednesday, February 8, 12
“Nothing is as practical as a good theory”              —Kurt Lewin              “[A good model] will bring together in a ...
A plot is made up of multiple layers.     A layer consists of data, a set of     mappings between variables and     aesthe...
Interesting ggplot example                            Layered grammar + ggplot2                                           ...
Charlotte Wickham, http://cwick.co.nz/Wednesday, February 8, 12
David B Sparks, http://bit.ly/hn54NWWednesday, February 8, 12
Claudia Beleites, http://bit.ly/yNqlpzWednesday, February 8, 12
Poll: What resources are                most helpful to you when                improving your R skills?Wednesday, Februar...
Learning ggplot2                    ggplot2 mailing list                    http://groups.google.com/group/ggplot2        ...
Sneak                             peekWednesday, February 8, 12
Poll: Why do you use                     visualisation?Wednesday, February 8, 12
# Getting started     # To get the CRAN version     install.packages("ggplot2")     # To get the development version     i...
Development version                       CRAN versionWednesday, February 8, 12
New geoms to deal with overplotting       45                               ●                                       ●      ...
New geoms to deal with overplotting       45                               ●                                       ●      ...
45                                                                                                                     ●  ...
45       40       35       30 hwy       25       20       15                  2seater   compact   midsize   minivan   pick...
45                              ●                                       ●                                                 ...
45                            ●                           ●                                                        ●      ...
1.0            Better legends                             ●                                                               ...
1.0            Better legends                             ●                                                               ...
1.0                                                                                                                       ...
1.0                                                                                                                       ...
qplot(x, y, data = df, colour = colour, alpha = I(1/4))Wednesday, February 8, 12
qplot(x, y, data = df, colour = colour, alpha = I(1/4)) +  guides(colour = guide_legend(    override.aes = list(alpha = 1,...
# Better layout     df <- data.frame(x = 1:10, y = 10:1, colour = 1:2)     qplot(x, y, data = df) + coord_fixed()     qplo...
# Speed improvements     system.time(       print(qplot(carat, price, data = diamonds))     )     # Includes new tools for...
30s with geom_tile, 8s with annotation_rasterWednesday, February 8, 12
library(ggplot2)     library(reshape2)     library(RgoogleMaps)     library(ggmap)     theft <- subset(crime, offense == "...
ggplot2 0.9 scheduled for                              release on March 1Wednesday, February 8, 12
Poll: How big                            is your data?Wednesday, February 8, 12
# Future work: big visualisation     # (Sponsored by Revolution Analytics)     # How can you make a plot of 100 million   ...
Wednesday, February 8, 12
Wednesday, February 8, 12
Wednesday, February 8, 12
Wednesday, February 8, 12
Wednesday, February 8, 12
~100,000 points                            0.06 s to bin                            0.20 s to convert                     ...
~1.2 million                            ~100,000 points                            10 s toto bin                          ...
Best                            practicesWednesday, February 8, 12
Poll: How do you learn                      about new packages?Wednesday, February 8, 12
Package best                              practices                    • Namespace                    • Documentation     ...
Wednesday, February 8, 12
# Namespaces     library(ggplot2)     ddply     # Note that plyr, reshape etc arent automatically     # loaded. This is go...
export("%+%")     export(aes_all)     export(aes_auto)     export(aes_string)     export(aes)     export(annotate)     exp...
# Unit tests     # Look in tests/ or inst/tests/     library(testthat)     test_package("ggplot2")Wednesday, February 8, 12
# Documentation     # Function level in man/     ?geom_point     ?facet_wrap     package?ggplot2     # Vignettes in inst/d...
QuestionsWednesday, February 8, 12
Learning ggplot2                    ggplot2 mailing list                    http://groups.google.com/group/ggplot2        ...
