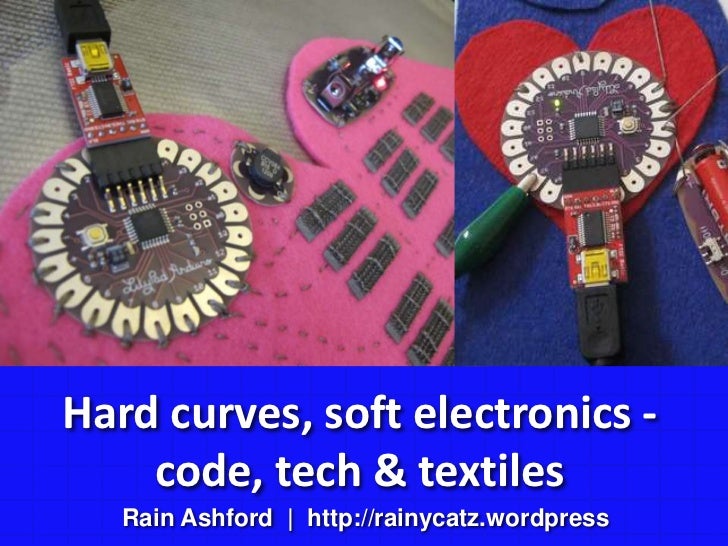

Hard curves, soft electronics - code, tech & textiles<br />Rain Ashford  |  http://rainycatz.wordpress<br />
Hello!dorkbot, fUnix, Genderchangers, University of Openness, XCOM, NOTcom… <br />Mashed, BBC Backstage, barcamps, hackday...
My first Arduino & project!..was this ‘Digital’ Arduino, a gift in April 2008 and I was rather amused, a bit bemused, but ...
..it did kick-off my interest in tinkering so I was very excited to attend Makers & Hackers, in February 2009, a one-day h...
I went from my first Arduino to having some fun with mbed…<br />
..but it’s wearable technology and e-textiles that really floats my boat!<br />
..and I came across LilyPad Arduino which sounded fantastic!<br />
LilyPad Arduino was what I was looking for – with it I could intersect many things I enjoy – art, coding, technology, gadg...
What is it? The LilyPad Arduino is a microcontroller & suite of modules designed for wearables & e-textiles that can be se...
The LilyPad!Pin 1 - TX/D1Pins 2,3,4 - D2, D3, D4Pin 5 - GND or "-" (ground)Pin 6 - VCC or "+" (power)Pins 7,8,9,10,11,12,1...
The Arduino IDE comes with access to tons of sketch libraries which are all open source and easily downloadable into your ...
For a glimpse of what you can do with LilyPad Arduino & e-textiles I’d like to show you  some examples of wearable, intera...
Twinkle Tartiflette: words, image and sound into an interactive experience, brought to life by touching the words with a s...
Twinkle Tartiflette: a bit of a bonkers first foray into the world of wearable tech!<br />
<ul><li>I <3 0X0: an interactive artwork, game, musical fancy and experiment in conductive Velcro</li></li></ul><li>This i...
‘Yr In Mah Face’: temperature /mood / hassle sensing t-shirt<br />
Uses Celsius temperature data from a sensor, averages it, then visualise the results via LEDs. <br />I'm very interested i...
LilyPad Arduino<br />Fabulousness<br />Could be improved!<br /><ul><li>It’s open source – you can find the Eagle files online
Good no of digital & analogue I/O
Great vector for encouraging girls / craftspeople to experience electronics
