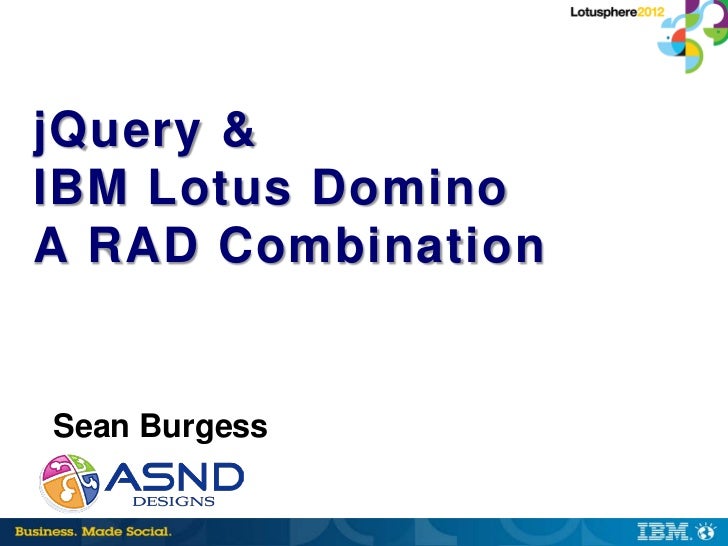

jQuery &IBM Lotus DominoA RAD CombinationSean Burgess

LegalIBM’s statements regarding its plans, directions, and intent are subject to change orwithdrawal without notice at IBM’s sole discretion.Information regarding potential future products is intended to outline our general productdirection and it should not be relied on in making a purchasing decision.The information mentioned regarding potential future products is not a commitment,promise, or legal obligation to deliver any material, code or functionality. Information aboutpotential future products may not be incorporated into any contract. The development,release, and timing of any future features or functionality described for our productsremains at our sole discretion.

Who Am I?• Owner/Head Designer at ASND Designs of Laurel, MD• Certified Developer/Administrator that has been working with Lotus Notes/Domino since v3 in 1994• IBM Business Partner and member of OpenNTF Board of Directors• One time blogger and member of 1352 Report podcast crew• Avid cook and foodie• A Very Lazy Developer!

What We’ll Cover …• Getting Started with jQuery• Using jQuery UI• There’s a Plugin for That!• Domino Make Over Tips• Questions

What is jQuery?“jQuery is a fast and conciseJavaScript Library that simplifiesHTML document traversing, eventhandling, animating, and Ajaxinteractions for rapid webdevelopment. jQuery is designed tochange the way that you writeJavaScript.”

Why Should You Use jQuery?• Works on all supported versions of Domino!• Very small, customizable JavaScript library – 31 KB for version 1.7.1• Cross Browser Compliant – Really!• Widely Used, Open Source Framework Available on Google’s CDN• Access page elements and functions with very little code• Makes having a polished website almost too easy to develop• Doesn’t require learning Java or XML or SSJS!!!• Works on xPages• Skills transfer to any other web platform

Working with jQuery• The Ever Popular $ Function• Launching Code at the Right Time• Using This to Function Correctly• Accessing Elements using Selectors• Adding and Removing Classes• Capturing Events on the Page• Using Special Effects• Callback Functions• Chaining Done Right

The Ever Popular $ Function• $ function is an alias to the jQuery object and is used to create a new jQuery object• The new jQuery object contains all the elements in the DOM that match the selector listed in the parenthesis o $(‘p’) – returns all <P> objects on the page o $(‘p.green’) - returns all <P> objects on the page that have the class ‘green’• The .each() function can be used to loop through all the elements in the jQuery object

Launching the Code at the Right Time• Use $(document).ready() to bind a function that will be called the instant the DOM is ready to be read and manipulated, which is when 99.99% of all JavaScript code needs to run• Replaces the window.onLoad() event• This is probably the most important function included in the event module, as it can greatly improve the response times of your web applications.• Doesn’t wait for the page to be completely loaded before running, so large images won’t hold up the code• Multiple $(document).ready events is supported – think subforms!

Using This to Function Correctly• Similar to the way it can be used within LotusScript and Java• this is a DOM element when you are inside of a callback function (in the context of jQuery) o $(a.newTarget).each(function() { if (this.host != window.location.host) { $(this).attr(target, _new); } });• this is a jQuery object when you are inside your own jQuery functions o jQuery.fn.newTarget = function() { return this.each(function() { if (this.host != window.location.host) { $(this).attr(target, _new); } }); }; Source - http://remysharp.com/2007/04/12/jquerys-this-demystified/

Accessing Elements Using Selectors• Selectors work very similar to CSS• $(‘div ol li’) – returns all the <li> objects inside an <ol> which is also inside a <div>• $(‘#_MyForm :input) – returns all the input objects inside the Domino form called MyForm• $(‘img[title]’) – returns all <img> objects that have a title attribute• $(‘a[rel$=nofollow]’) – returns all <a> objects that have the rel attribute that exactly matches ‘nofollow’• $(‘tr.ugly:even’) – returns the even numbered <tr> objects that have the class ‘ugly’

Adding and Removing Classes• .addClass – Adds the specified class(es) to each of the set of matched elements. o $(‘body’).addClass(‘P90X’)• .removeClass – Remove a single class, multiple classes, or all classes from each element in the set of matched elements. o $(‘table.alcohol’).removeClass(‘carKeys’)• .toggleClass - Add or remove one or more classes from each element in the set of matched elements, depending on either the classs presence or the value of the switch argument. o $(‘div.drunk’).toggle(‘goToBathroom’)

Capturing Events on the Page• The methods are used to register behaviors to take effect when the user interacts with the browser, and to further manipulate those registered behaviors• jQuery can make anything do anything o .bind() – Attach a handler to an event for the elements o .click() – Bind an event handler to the "click" JavaScript event, or trigger that event on an element, same as .bind(‘click’) o .toggle() – Bind two or more handlers to the matched elements, to be executed on alternate clicks, defaults to show and hide• All JS event code can now be move out of events in field and form design elements

Using Special Effects• The jQuery library provides several techniques for adding animation to a web page. These include simple, standard animations that are frequently used, and the ability to craft sophisticated custom effects. o .show() o .hide() o .fadeIn() & .fadeOut() o .slideUp() & .slideDown() o .delay() - Set a timer to delay execution of subsequent items in the queue• More effects included in jQuery UI library

Callback Functions• A callback is a function that is passed as an argument to another function and is executed after its parent function has completed. The special thing about a callback is that functions that appear after the "parent" can execute before the callback executes. $.get(myhtmlpage.html, function(data) { if (data != ‘Error’) { $(‘#mysection’).html(data); } }); the function is run after the code is finished retrieving myhtmlpage.html from the server

Chaining Done Right• Chaining allows you to put multiple functions in a single JS line and execute them against all the elements in the jQuery object o $(‘.noclass’).hide().removeClass(‘noclass’).addClass(‘serf’).sho w() o $(‘#dialogdiv’).load(‘comments?OpenForm’).dialog() o $(#mypanel‘) .find(TABLE .firstCol‘) .removeClass(.firstCol‘) .css(background : red‘) .append(<span>This cell is now red</span>);• Not all functions are chainable, so check the documentation

Some of My Favorite jQuery Functions• .each() • .trim()• .addClass() • .val()• .removeClass() • .attr()• .hasClass() • .removeAttr()• .toggleClass() • .append() &• .ajax() .prepend()• .get(), .getJSON(), & • .after() & .before() .getScript()• .post()• .load()

Using jQuery UI “jQuery UI is a widget and interaction library built on top of the jQuery JavaScript Library, that you can use to build highly interactive web applications.”

jQuery UI Widgets• Accordion• Autocomplete• Button• Datepicker• Dialog• Progressbar• Slider• Tabs

jQuery UI Effects• Use the .effect() function to easily add animation effects listed below, many of which simply extend existing jQuery methods.• Blind • Puff• Bounce • Pulsate• Clip • Scale• Drop • Shake• Explode • Size• Fold • Slide• Highlight • Transfer

jQuery UI Effects – cont’d• Visibility Transitions – extends the standard .show(), .hide(), and toggle() functions• Color Transitions – extends the .animate() function to animate colors as well• Class Transitions – extends the .addClass(), .removeClass(), .toggleClass(), and .switchClass() to be able to animate between classes• Advanced Easing – animates easing of elements based on jQuery.easing plugin

jQuery Interaction and Utilities• Draggable – make any DOM element able to be dragged around• Droppable – make any DOM element to be droppable, a target for Draggable elements• Resizable – make any DOM element resizable, duh!• Selectable – make any DOM element or group of elements selectable, including multiple selections• Sortable – make a group of DOM elements sortable, can connect multiple lists• Position – allows you to absolutely position any widget on a page

jQuery UI Themes• All jQuery UI plugins are designed to allow a developer to seamlessly integrate UI widgets into the look and feel of their site or application. Each plugin is styled with CSS and contains two layers of style information: standard jQuery UI CSS Framework styles and plugin-specific styles.• jQuery UI Themeroller allows you to download any of the 24 themes in the gallery or create your own.• The jQuery UI Downloader allows you to build a custom download with only the pieces of jQuery and jQuery UI that your page requires.

There’s a Plug-in for That• A Plugin is a method for bundling methods and functionality that enhance and extend the jQuery Core• There is a Plugin directory on the jQuery site• Most Plugins are Open Source and free to use• Plugins can be extremely simple or complex• Many Plugins have very good documentation• Anyone can write a plugin – it’s easier than you think o Name your file jquery.[insert name of plugin].js, eg. jquery.debug.js o All new methods are attached to the jQuery.fn object, all functions to the jQuery object. o inside methods, this is a reference to the current jQuery object.

What can you do with a Plugin?• Create menus and tabs from simple unordered lists• Add drag & drop functionality to any element• Create slide shows and light boxes for displaying images• Add animation and visual effects to any page• Handle complex AJAX calls• Add visually appealing tool tips to any element on a page• Handle form validation prior to submission• Make views easier to navigate• Handle browser navigation issues that AJAX can create• Add Autocomplete to any text field

Domino Beauty Make-over Ritual1. Build on a Good Foundation2. Make It Easy on the Eyes3. Don’t Make the Them Think4. Check the Mirror Before Heading Out5. Flaunt It Once You Got It

Step 1 – Apply A Good Foundation• Use a CSS Framework for page layout o Suggest Looking at BluePrint  3 CSS Files to download and reference  Provides Grid for page layout• Fix Domino Form Idiosyncrasies o Assign IDs for Form and all Fields $(form,input,textarea,select).each(function(index) { $(this).attr("id",$(this).attr("name")); });• Select a jQuery UI Theme o Use a standard one or create your own o Smoothness is good for corporate applications

Step 2 – Make It Easy on the Eyes• Make the Buttons Look Good o Use .button() from jQuery UI• Modernize the Form o Use jqTransform(), jNice(), or NiceForms• Don’t Pop-Up When You Can Overlay o Use .dialog() from jQuery UI or .overlay() from jQuery Tools• Load and Submit via AJAX o Use .load(), .get(), and .post() from jQuery Core or .ajaxform() from jQuery Form• Say No to Scrollbars on TextArea Fields o Use Elastic plugin to dynamically grow text areas and CKEditor for rich text capabilities (comes with 8.5.2)

Step 3 – Don’t Make Them Think• Give user’s help before they need it o Add ToolTips to all fields with .tooltip() from jQuery Tools• Dynamically show pieces of the form when needed o Use .show(), .hide(), and .toggle()• Show Calendars for Date Fields o .datepick() in jQuery UI is one of many choices• Use AutoComplete on Fields when Appropriate o Lots of plugins offer this, but it is also in jQuery UI 1.8 o Can use a static list or get data from call to server for JSON data

Step 4 – Check the Mirror Before Heading Out• Give visual feedback to users in real time o Highlight fields on events to let user’s know if they are filling out everything correctly• Validate the form prior to sending it to the server o Use .validationEngine() or .validation() to perform validation without any modification to the field markup o Validation functions can include passing the form values to the server for backend validation• Consider adding a password strength validator o Let user’s know if their passwords are strong enough

Step 5 – Flaunt It Once You Got It• Make Your Views Clean and Efficient o Use DataTables plug-in for displaying tabular data and views• Say Good-bye to Ugly Calendar Views o Use FullCalendar to display full-sized, drag & drop enabled calendars• Add Charts and Graphs to WOW the Executives o Use the HighCharts plugin for jQuery for JS/CSS Charts• Give user’s the ability to provide ratings as well as comments on your site o Add Star Ratings Widget to the content pages of your site o Tie ratings to user logins to control rating accuracy

Resources• jQuery Project – http://jquery.com• jQuery UI Project – http://jqueryui.com• BluePrint CSS Framework – http://www.blueprintcss.org• jQuery Tools – http://flowplayer.org/tools/index.html• DataTables – http://www.datatables.net/• HighCharts for jQuery – http://www.highcharts.com/• Star Rating Widget – http://orkans- tmp.22web.net/star_rating/

Follow Up How to contact me: Sean Burgess sean@asnddesigns.com
