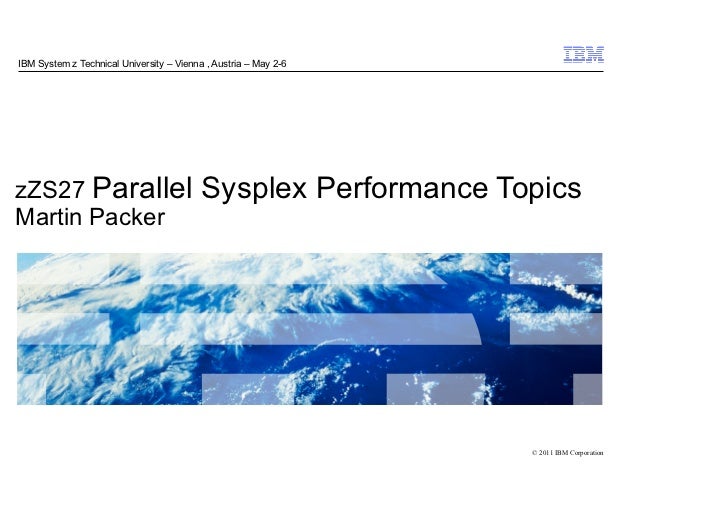

  • 1. IBM System z Technical University – Vienna , Austria – May 2-6zZS27 Parallel Sysplex Performance TopicsMartin Packer © 2011 IBM Corporation
  • 2. Abstract A while back RMFs reporting of Coupling Facility CPU was enhanced, mainly to give more granularity. Also RMF was enhanced to report on XCF better. This presentation outlines the authors experience with this important new instrumentation, both from the perspective of Capacity Planning and from the perspective of how parallel sysplexes perform under increasing load. It also covers other areas of Parallel Sysplex performance. IN CASE YOU WERE IN ANY DOUBT: “other areas” does not mean “ALL other areas”. :-)2 © 2011 IBM Corporation
  • 3. Topics  Structure-Level CPU – Structure CPU Experiment  CPU / LPAR Match Up Between 70-1 and 74-4  Structure Duplexing Performance  Conclusings and Musions3 © 2011 IBM Corporation
  • 4. Structure-Level CPU © 2011 IBM Corporation 4
  • 5. Structure-Level CPU Consumption  CFLEVEL 15 and z/OS R.9 – Almost all customers are now this far advanced  New SMF 74-4 Field: R744SETM – “Structure Execution Time”  Always 100% Capture Ratio – Adds up to R744PBSY  Multiple uses: – Capacity planning for changing request rates – Examine which structures are large consumers – Compute CPU cost of a request • And compare to service time • Interesting number is “non-CPU” element of service time - as we shall see – Understand whether CPU per request has degraded – Estimating Structure Duplexing cost  NOTE: – Need to collect 74-4 data from all z/OS systems sharing to get total request rate • Otherwise “CPU per request” calculation will overestimate5 © 2011 IBM Corporation
  • 6. Structure CPU Experiment6 © 2011 IBM Corporation
  • 7. Structure CPU Experiment  Based on – R744SETM Structure Execution Time – Sync Request Rate • Virtually no Async – Sync Service Time  One minute RMF intervals – Sorted by request rate increasing  Run was 1-way DB2 Datasharing – Only really active structures ISGLOCK and LOCK1  Red lines are CPU time per request – Blue lines are Service time per request  ISGLOCK “low volume” – Shows amortization of some fixed cost effect • Wondering also if some “practice effect” affects service times – CF used IC links  LOCK1 “high volume” – More reliable for capacity planning – CF used a mixture of ISC and ICB links7 © 2011 IBM Corporation
  • 8. ISGLOCK Requests 16 14 12Microseconds 10 8 6 3us? 4 2 0 0 10 20 30 40 50 60 70 Requests / Second CPU Time Service Time 8 © 2011 IBM Corporation
  • 9. LOCK1 Requests 12 10 8Microseconds 6 4 3.5us? 2 0 750 800 850 900 Requests / Second CPU Time Service Time 9 © 2011 IBM Corporation
  • 10. And From My Travels...  Next chart isnt from the experiment just described – A real customer system  A Group Buffer Pool  ISC-Connected – Necessary for the customers estate  Clearly something goes wrong at about 1100 requests / second – Especially in response time terms but also CPU • (Coupling Facility not CPU constrained)  Options include – Managing the request rate to below 1100 / sec – Working on the request mix – Infrastructure reconfiguration10 © 2011 IBM Corporation
  • 11. 25us?11 © 2011 IBM Corporation
  • 12. CPU / LPAR Match Up Between 70-1 and 74-412 © 2011 IBM Corporation
  • 13. Internal Coupling Facility - Basics ● Managed out of Pool 5 in modern processor families ● Pool numbers given in SMF 70 as index into table of labels ● Recommendation: Manage in reporting as a separate pool ● Follow special CF sizing guidelines ● Especially for takeover situations ● Always runs at full speed ● So good technology match for coupled z/OS images on same footprint ● Another good reason to use ICFs is IC links ● Shared ICFs strongly discouraged for Production ● Especially if the CF image has Dynamic Dispatch turned on ● Should not run ANY coupling facility above 50% busy ● Especially if we need to be able to recover structures onto it13 © 2011 IBM Corporation
  • 14. ICF CPU Instrumentation SMF 74-4 view different from SMF 70-1 LPAR view of processor busy •R744PBSY is CPU time processing requests •R744PWAI is CPU time while CFCC is not processing requests but it is still using CF cycles •For Dynamic Dispatch PWAI is time when not processing CF requests but Logical CP not yet taken back by PR/SM •For dedicated or non-Dynamic Dispatch cases sum is constant •For Dynamic Dispatch sum can vary. Number of defined processors is number of CF Processor Data sections in 74-4 •Refined for CFLEVEL 15 by new fields for dedicated (R744FPDN) and shared (R744FPSN) processors •Also whether individual engine is dedicated (R744PTYP) and its weight (R744PWGT) PBSY and PWAI Can be examined down to Coupling Facility engine level SMF 74-4 has much more besides CF CPU instrumentation14 © 2011 IBM Corporation
  • 15. CF LPAR Identification In SMF 70-1 Is Complex  Need to match LPARs in SMF 70-1 with coupling facilities in SMF 74-4 to get proper CPU picture  Since z/OS Release 8 74-4 has machine serial number – Allows correlation in most cases – But LPAR names and CF Names often dont match – Often multiple CFs in same footprint with similar configuration – Sometimes there are multiple CFs with the same name – My code – in extremis – uses the presence of IC links to determine “colocality” – Im slowly learning :-) not all CF LPARs are in Pool 515 © 2011 IBM Corporation
  • 16. Additional Instrumentation - OA21140  Almost all customers have this support  Introduced to support zHPF – Has other SMF and reporting improvements • HiperDispatch Vertical Polarisation indicators at ENGINE level – Type 70 • Normalisation factor for zIIP – Type 70  Adds CF LPAR Partition Number – Allows matching with SMF 70-1  RMF Level (SMFxxSRL) changed to X5516 © 2011 IBM Corporation
  • 17. Structure Duplexing Performance  Additional Traffic – For lock structures duplexing generates double the traffic – Otherwise only the writes are duplicated – Additional CPU cost  Additional Physical Resources – A second coupling facility • Documented in 74-4 – Additional memory – but “white space” rules say “not really” – Additional links – to second coupling facility and between it and the primary • Documented in SMF 74-417 © 2011 IBM Corporation
  • 18. Structure Duplexing Performance - Response Times  For System-Managed Duplexed structures both requests must complete – Response time is that of the slowest • So all requests are essentially with “remote” response times • High likelihood of requests becoming asynchronous • For low contention rates applications might experience longer lock acquisition times  For User-Managed Duplexed structures both requests must complete – But only for writes – So writes performed with “remote” response times – With high a read-to-write ratio request response times might not be significantly extended – Main example: DB2 Group Buffer Pools  Response time elongation measured by RMF PR WT and PR CMP times – Former suggests better link infrastructure – Latter suggests a more capable peer coupling facility18 © 2011 IBM Corporation
  • 19. 19 © 2011 IBM Corporation
  • 20. 20 © 2011 IBM Corporation
  • 21. 21 © 2011 IBM Corporation
