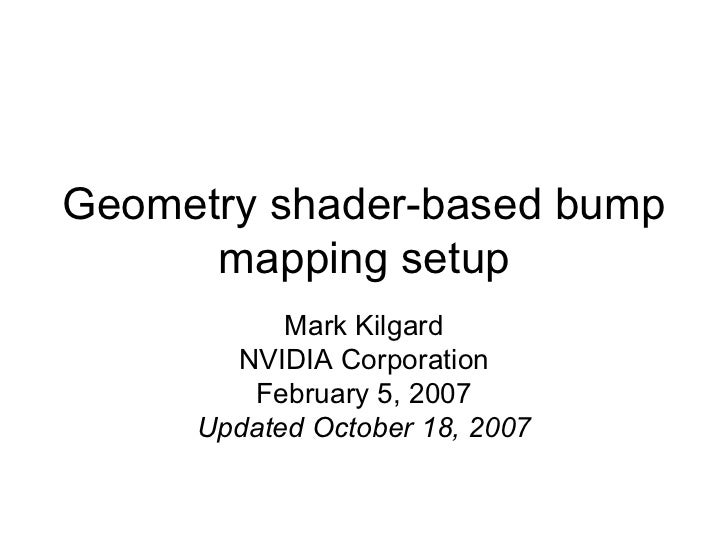

  • 1. Geometry shader-based bump mapping setup Mark Kilgard NVIDIA Corporation February 5, 2007 Updated October 18, 2007

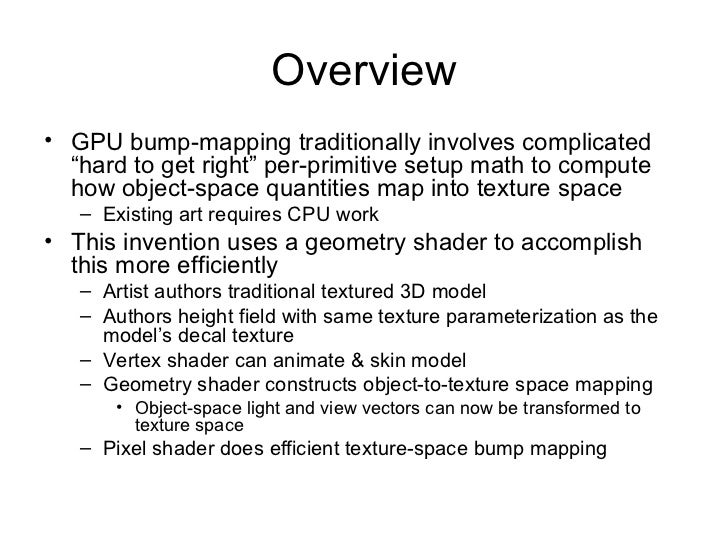

  • 2. Overview <ul><li>GPU bump-mapping traditionally involves complicated “hard to get right” per-primitive setup math to compute how object-space quantities map into texture space </li></ul><ul><ul><li>Existing art requires CPU work </li></ul></ul><ul><li>This invention uses a geometry shader to accomplish this more efficiently </li></ul><ul><ul><li>Artist authors traditional textured 3D model </li></ul></ul><ul><ul><li>Authors height field with same texture parameterization as the model’s decal texture </li></ul></ul><ul><ul><li>Vertex shader can animate &amp; skin model </li></ul></ul><ul><ul><li>Geometry shader constructs object-to-texture space mapping </li></ul></ul><ul><ul><ul><li>Object-space light and view vectors can now be transformed to texture space </li></ul></ul></ul><ul><ul><li>Pixel shader does efficient texture-space bump mapping </li></ul></ul>

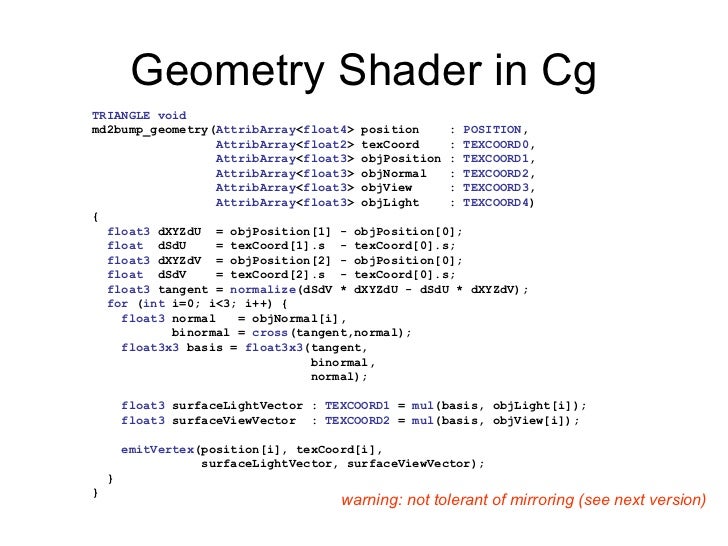

  • 3. Geometry Shader in Cg TRIANGLE void md2bump_geometry( AttribArray &lt; float4 &gt; position : POSITION , AttribArray &lt; float2 &gt; texCoord : TEXCOORD0 , AttribArray &lt; float3 &gt; objPosition : TEXCOORD1 , AttribArray &lt; float3 &gt; objNormal : TEXCOORD2 , AttribArray &lt; float3 &gt; objView : TEXCOORD3 , AttribArray &lt; float3 &gt; objLight : TEXCOORD4 ) { float3 dXYZdU = objPosition[1] - objPosition[0]; float dSdU = texCoord[1].s - texCoord[0].s; float3 dXYZdV = objPosition[2] - objPosition[0]; float dSdV = texCoord[2].s - texCoord[0].s; float3 tangent = normalize (dSdV * dXYZdU - dSdU * dXYZdV); for ( int i=0; i&lt;3; i++) { float3 normal = objNormal[i], binormal = cross (tangent,normal); float3x3 basis = float3x3 ( tangent , binormal, normal); float3 surfaceLightVector : TEXCOORD1 = mul (basis, objLight[i]); float3 surfaceViewVector : TEXCOORD2 = mul (basis, objView[i]); emitVertex (position[i], texCoord[i], surfaceLightVector, surfaceViewVector); } } warning: not tolerant of mirroring (see next version)

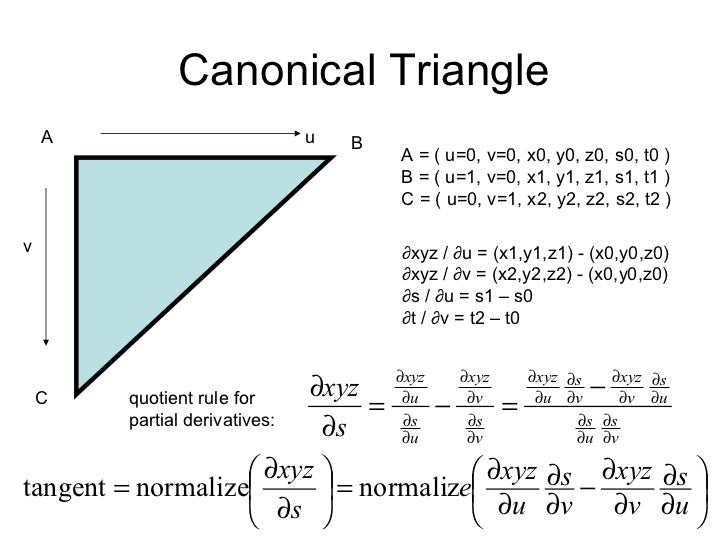

  • 4. Canonical Triangle A B C A = ( u=0, v=0, x0, y0, z0, s0, t0 ) B = ( u=1, v=0, x1, y1, z1, s1, t1 ) C = ( u=0, v=1, x2, y2, z2, s2, t2 ) ∂ xyz / ∂u = (x1,y1,z1) - (x0,y0,z0) ∂ xyz / ∂v = (x2,y2,z2) - (x0,y0,z0) ∂ s / ∂u = s1 – s0 ∂ t / ∂v = t2 – t0 v u quotient rule for partial derivatives:

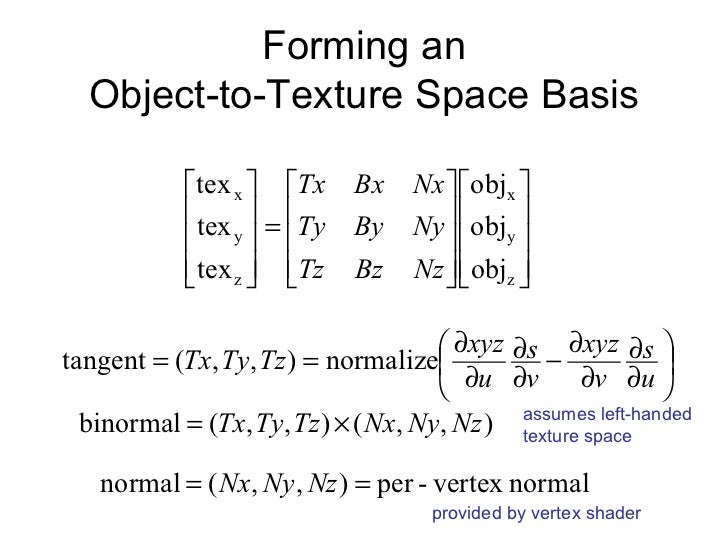

  • 5. Forming an Object-to-Texture Space Basis assumes left-handed texture space provided by vertex shader

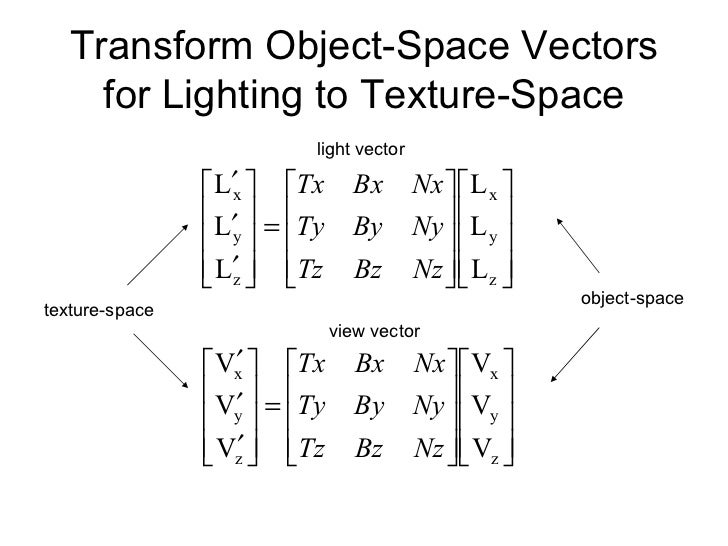

  • 6. Transform Object-Space Vectors for Lighting to Texture-Space object-space texture-space light vector view vector
  • 7. Issue: Texture Mirroring <ul><li>Texture space is ad-hoc </li></ul><ul><ul><li>Mapping defined by artists during model construction </li></ul></ul><ul><ul><li>Artists often “re-use” regions of texture space </li></ul></ul><ul><ul><li>Includes mirroring regions of the texture </li></ul></ul><ul><ul><ul><li>Example: bilateral symmetry of face or humanoid </li></ul></ul></ul><ul><li>Mathematical consequence of mirroring </li></ul><ul><ul><li>Signed area of triangle in texture space is negative </li></ul></ul><ul><ul><li>Requires reversal of the sense of gradients </li></ul></ul><ul><ul><li>Geometry shader can compensate </li></ul></ul>
  • 8. Compensating for Texture Mirroing If signed area in texture space “less than” zero, compute basis with negated tangent: 2x2 determinant

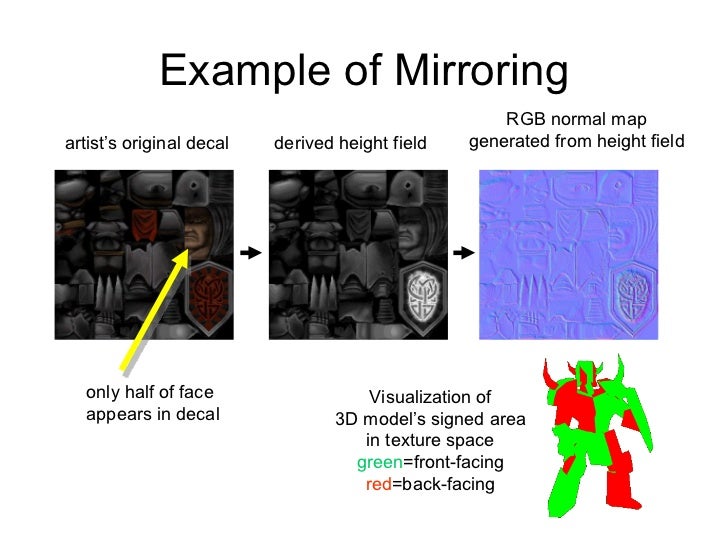

  • 9. Example of Mirroring artist’s original decal derived height field RGB normal map generated from height field Visualization of 3D model’s signed area in texture space green =front-facing red =back-facing only half of face appears in decal

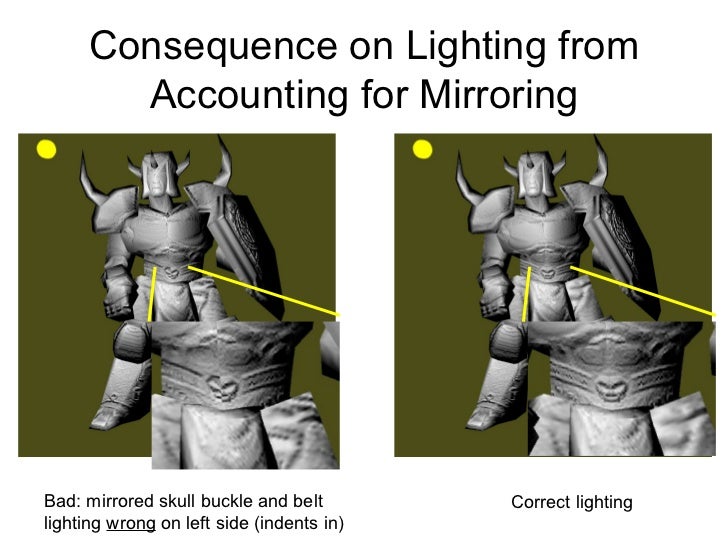

  • 10. Consequence on Lighting from Accounting for Mirroring Bad: mirrored skull buckle and belt lighting wrong on left side (indents in) Correct lighting

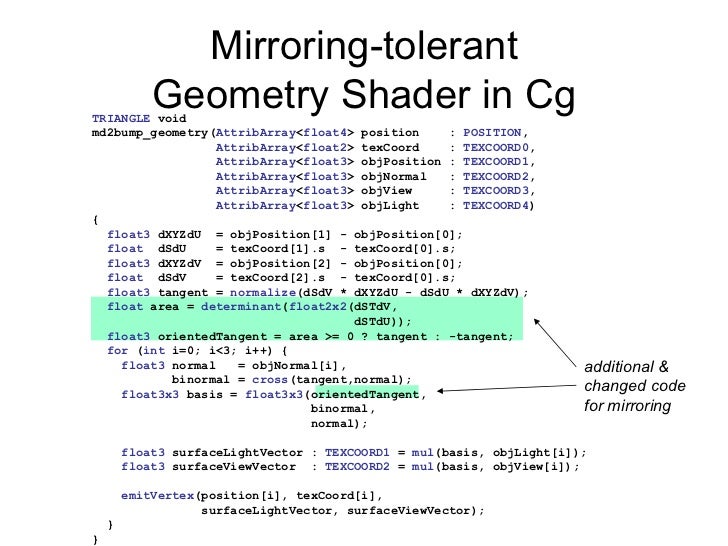

  • 11. Mirroring-tolerant Geometry Shader in Cg TRIANGLE void md2bump_geometry( AttribArray &lt; float4 &gt; position : POSITION , AttribArray &lt; float2 &gt; texCoord : TEXCOORD0 , AttribArray &lt; float3 &gt; objPosition : TEXCOORD1 , AttribArray &lt; float3 &gt; objNormal : TEXCOORD2 , AttribArray &lt; float3 &gt; objView : TEXCOORD3 , AttribArray &lt; float3 &gt; objLight : TEXCOORD4 ) { float3 dXYZdU = objPosition[1] - objPosition[0]; float dSdU = texCoord[1].s - texCoord[0].s; float3 dXYZdV = objPosition[2] - objPosition[0]; float dSdV = texCoord[2].s - texCoord[0].s; float3 tangent = normalize (dSdV * dXYZdU - dSdU * dXYZdV); float area = determinant ( float2x2 (dSTdV, dSTdU)); float3 orientedTangent = area &gt;= 0 ? tangent : -tangent; for ( int i=0; i&lt;3; i++) { float3 normal = objNormal[i], binormal = cross (tangent,normal); float3x3 basis = float3x3 (orientedTangent, binormal, normal); float3 surfaceLightVector : TEXCOORD1 = mul (basis, objLight[i]); float3 surfaceViewVector : TEXCOORD2 = mul (basis, objView[i]); emitVertex (position[i], texCoord[i], surfaceLightVector, surfaceViewVector); } } additional &amp; changed code for mirroring

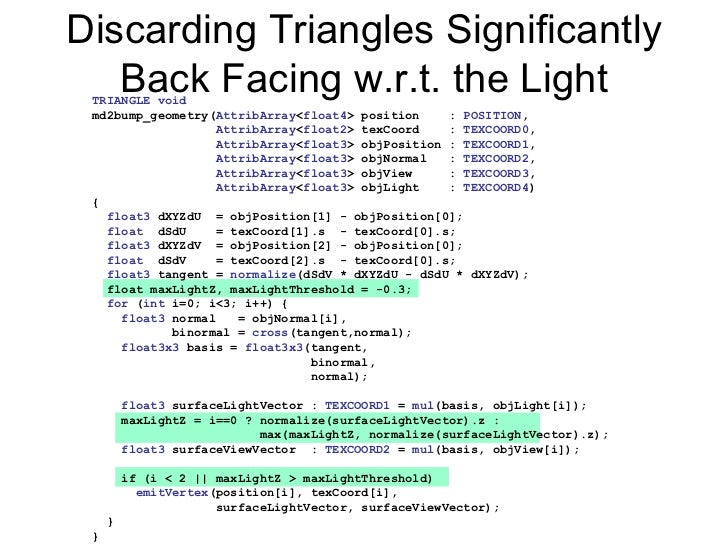

  • 12. Discarding Triangles Significantly Back Facing w.r.t. the Light TRIANGLE void md2bump_geometry( AttribArray &lt; float4 &gt; position : POSITION , AttribArray &lt; float2 &gt; texCoord : TEXCOORD0 , AttribArray &lt; float3 &gt; objPosition : TEXCOORD1 , AttribArray &lt; float3 &gt; objNormal : TEXCOORD2 , AttribArray &lt; float3 &gt; objView : TEXCOORD3 , AttribArray &lt; float3 &gt; objLight : TEXCOORD4 ) { float3 dXYZdU = objPosition[1] - objPosition[0]; float dSdU = texCoord[1].s - texCoord[0].s; float3 dXYZdV = objPosition[2] - objPosition[0]; float dSdV = texCoord[2].s - texCoord[0].s; float3 tangent = normalize (dSdV * dXYZdU - dSdU * dXYZdV); float maxLightZ, maxLightThreshold = -0.3; for ( int i=0; i&lt;3; i++) { float3 normal = objNormal[i], binormal = cross (tangent,normal); float3x3 basis = float3x3 ( tangent , binormal, normal); float3 surfaceLightVector : TEXCOORD1 = mul (basis, objLight[i]); maxLightZ = i==0 ? normalize(surfaceLightVector).z : max(maxLightZ, normalize(surfaceLightVector).z); float3 surfaceViewVector : TEXCOORD2 = mul (basis, objView[i]); if (i &lt; 2 || maxLightZ &gt; maxLightThreshold) emitVertex (position[i], texCoord[i], surfaceLightVector, surfaceViewVector); } }

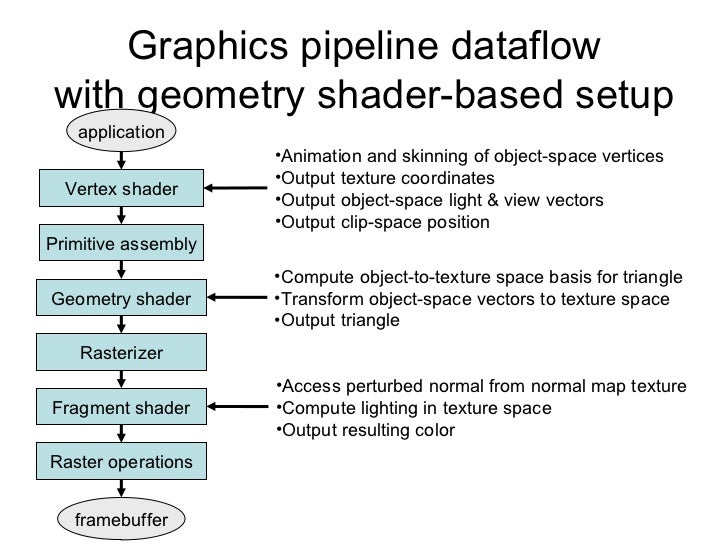

  • 13. Graphics pipeline dataflow with geometry shader-based setup application Vertex shader Primitive assembly Geometry shader Rasterizer Fragment shader Raster operations framebuffer <ul><li>Animation and skinning of object-space vertices </li></ul><ul><li>Output texture coordinates </li></ul><ul><li>Output object-space light &amp; view vectors </li></ul><ul><li>Output clip-space position </li></ul><ul><li>Compute object-to-texture space basis for triangle </li></ul><ul><li>Transform object-space vectors to texture space </li></ul><ul><li>Output triangle </li></ul><ul><li>Access perturbed normal from normal map texture </li></ul><ul><li>Compute lighting in texture space </li></ul><ul><li>Output resulting color </li></ul>

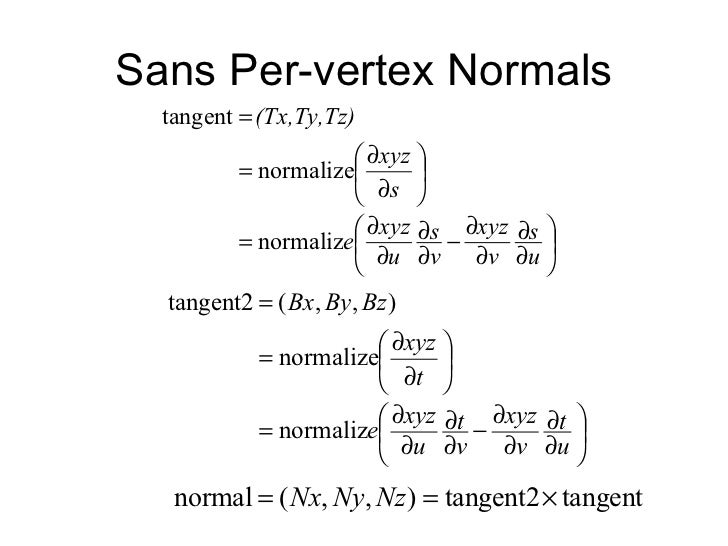

  • 14. Sans Per-vertex Normals

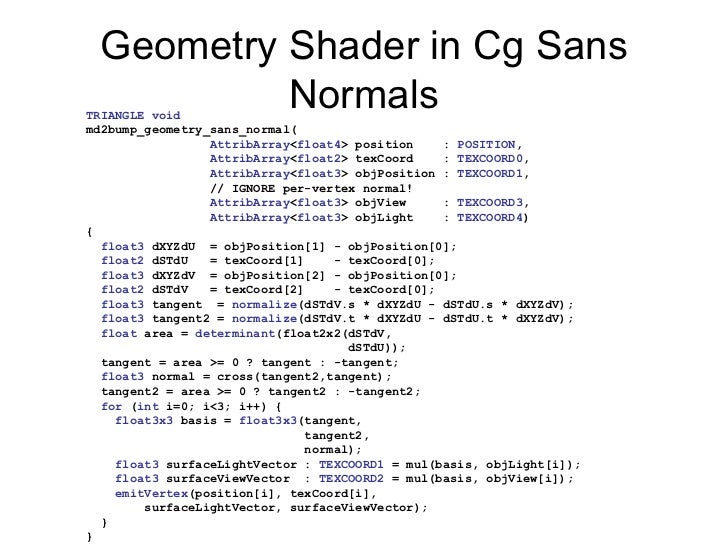

  • 15. Geometry Shader in Cg Sans Normals TRIANGLE void md2bump_geometry_sans_normal( AttribArray &lt; float4 &gt; position : POSITION , AttribArray &lt; float2 &gt; texCoord : TEXCOORD0 , AttribArray &lt; float3 &gt; objPosition : TEXCOORD1 , // IGNORE per-vertex normal! AttribArray &lt; float3 &gt; objView : TEXCOORD3 , AttribArray &lt; float3 &gt; objLight : TEXCOORD4 ) { float3 dXYZdU = objPosition[1] - objPosition[0]; float2 dSTdU = texCoord[1] - texCoord[0]; float3 dXYZdV = objPosition[2] - objPosition[0]; float2 dSTdV = texCoord[2] - texCoord[0]; float3 tangent = normalize (dSTdV.s * dXYZdU - dSTdU.s * dXYZdV); float3 tangent2 = normalize (dSTdV.t * dXYZdU - dSTdU.t * dXYZdV); float area = determinant (float2x2(dSTdV, dSTdU)); tangent = area &gt;= 0 ? tangent : -tangent; float3 normal = cross(tangent2,tangent); tangent2 = area &gt;= 0 ? tangent2 : -tangent2; for ( int i=0; i&lt;3; i++) { float3x3 basis = float3x3 (tangent, tangent2, normal); float3 surfaceLightVector : TEXCOORD1 = mul(basis, objLight[i]); float3 surfaceViewVector : TEXCOORD2 = mul(basis, objView[i]); emitVertex (position[i], texCoord[i], surfaceLightVector, surfaceViewVector); } }
  • 16. Geometry shader setup with and without per-vertex normals Setup without per-vertex normals, relying on normalized gradients only; faceted look Setup with per-vertex normals; smoother lighting appearance
  • 17. Visualizing Tangent, Normal, and Bi-normals for Discontinuities <ul><li>Using per-vertex normals </li></ul>Visualize normals Reasonably smooth Visualize tangents Flat per-triangle Visualize tangents Semi-smooth, semi-flat

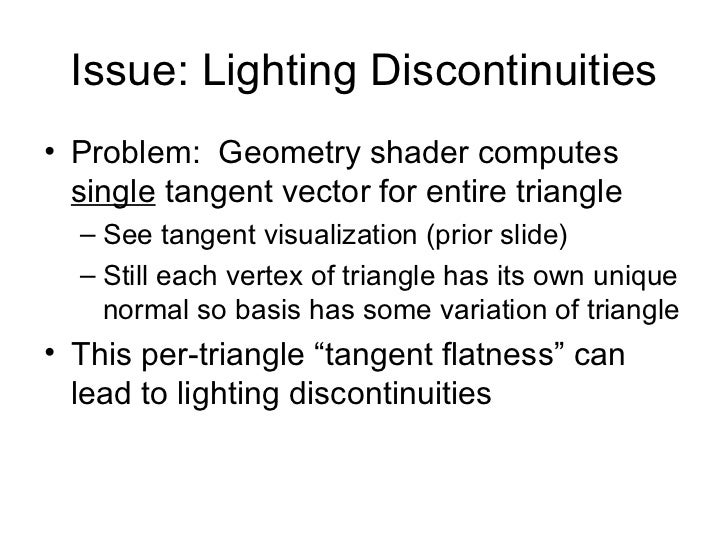

  • 18. Issue: Lighting Discontinuities <ul><li>Problem: Geometry shader computes single tangent vector for entire triangle </li></ul><ul><ul><li>See tangent visualization (prior slide) </li></ul></ul><ul><ul><li>Still each vertex of triangle has its own unique normal so basis has some variation of triangle </li></ul></ul><ul><li>This per-triangle “tangent flatness” can lead to lighting discontinuities </li></ul>

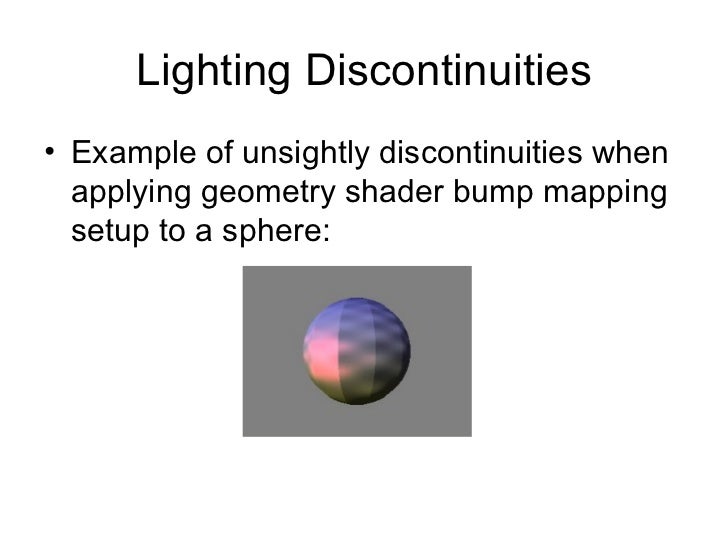

  • 19. Lighting Discontinuities <ul><li>Example of unsightly discontinuities when applying geometry shader bump mapping setup to a sphere: </li></ul>

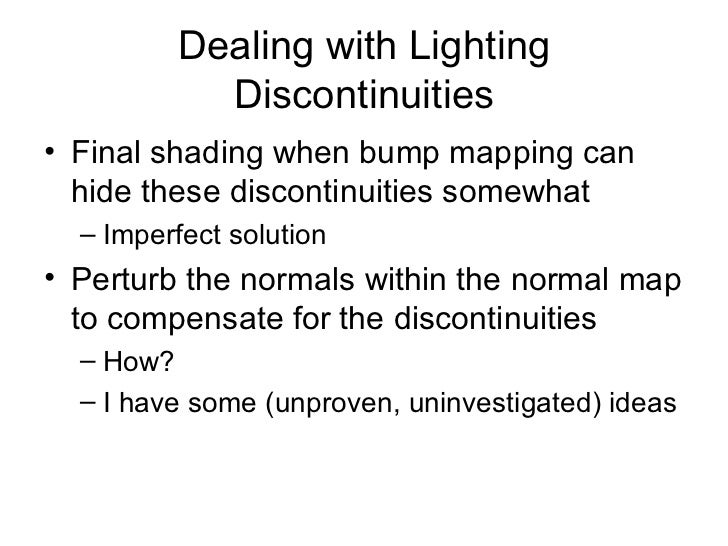

  • 20. Dealing with Lighting Discontinuities <ul><li>Final shading when bump mapping can hide these discontinuities somewhat </li></ul><ul><ul><li>Imperfect solution </li></ul></ul><ul><li>Perturb the normals within the normal map to compensate for the discontinuities </li></ul><ul><ul><li>How? </li></ul></ul><ul><ul><li>I have some (unproven, uninvestigated) ideas </li></ul></ul>

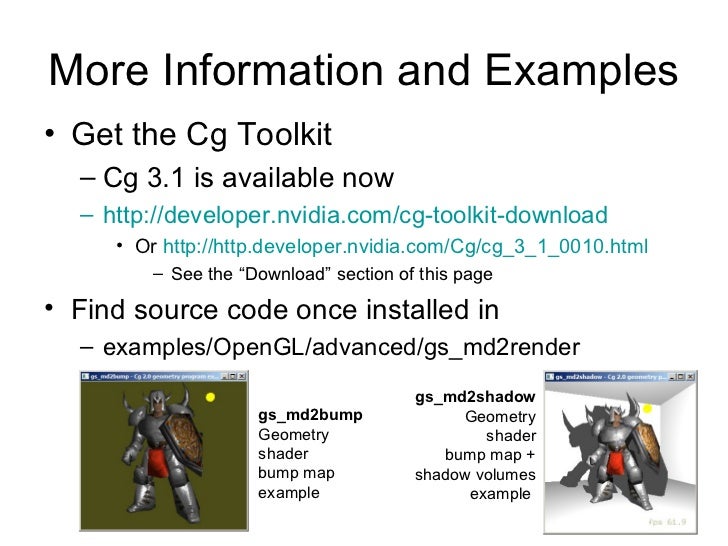

  • 21. More Information and Examples <ul><li>Get the Cg Toolkit </li></ul><ul><ul><li>Cg 3.1 is available now </li></ul></ul><ul><ul><li>http://developer.nvidia.com/cg-toolkit-download </li></ul></ul><ul><ul><ul><li>Or http://http.developer.nvidia.com/Cg/cg_3_1_0010.html </li></ul></ul></ul><ul><ul><ul><ul><li>See the “Download” section of this page </li></ul></ul></ul></ul><ul><li>Find source code once installed in </li></ul><ul><ul><li>examples/OpenGL/advanced/gs_md2render </li></ul></ul>gs_md2bump Geometry shader bump map example gs_md2shadow Geometry shader bump map + shadow volumes example
  • 22. Supplemental Slides
  • 23. Authored 3D Model Inputs Key frame blended 3D model Decal skin Bump skin Gloss skin GPU Rendering

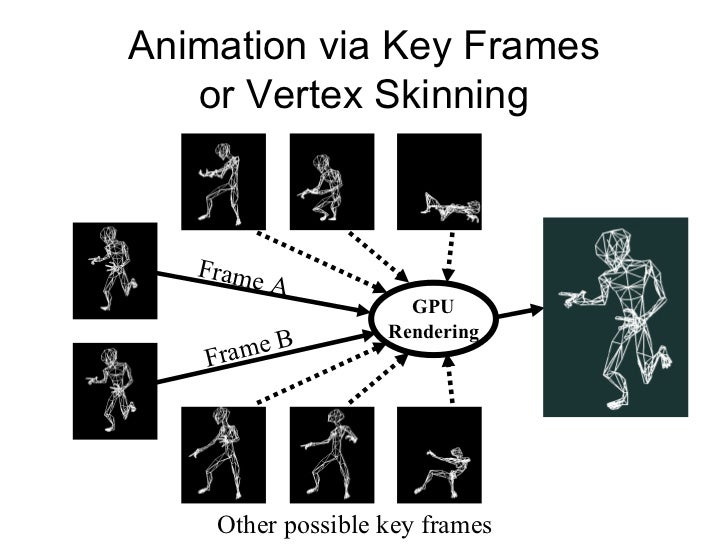

  • 24. Animation via Key Frames or Vertex Skinning GPU Rendering Frame A Frame B Other possible key frames

×
