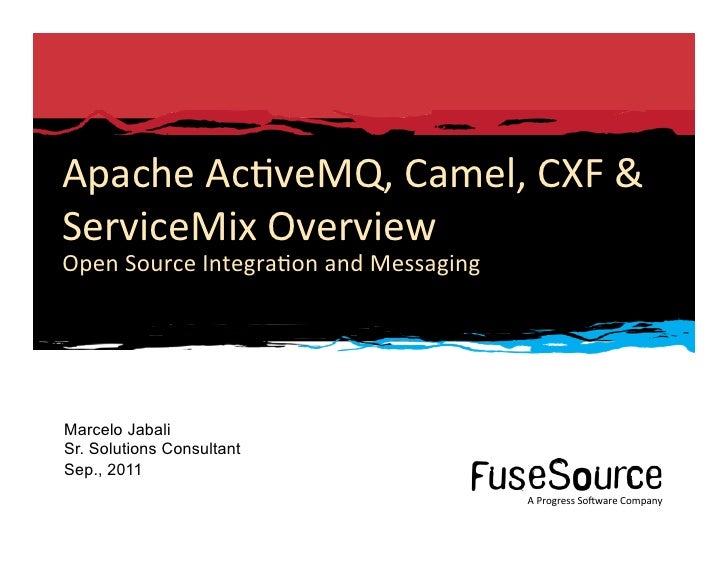

  • 1. Apache  Ac6veMQ,  Camel,  CXF  &  ServiceMix  Overview  Open  Source  Integra6on  and  Messaging   Marcelo Jabali Sr. Solutions Consultant Sep., 2011 A  Progress  So3ware  Company  1   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 2. Agenda   §  Apache  Ac6veMQ   §  Apache  Camel   §  Apache  CXF   §  Apache  ServiceMix   §  FuseSource  Overview  2   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 3. About  Me   Marcelo  Jabali     FuseSource     marcelo@fusesource.com     marcelojabali.blogspot.com       mjabali    3   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 4. Apache  Ac6veMQ   §  A  high  performance,  reliable  messaging  fabric,  suppor6ng   JMS,  C,  .Net,  and  other  frameworks.  Clients connect to thebroker using Networkconnectors with connectors controlsimple URIs how the broker interacts with other brokers for discovery, replication, Topics and queues failover, clustering created and store & dynamically. forward. … all based on a flexible Spring- File & JDBC-based based core. message stores supported.4   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 5. JMS  Fundamentals   Broker <<Application>> <<Application>> :JMSClient Produce Consume :JMSClient message Destination message Producer Consumer §  The  JMS  specifica6on  defines  a  set  of  Java  interfaces  and   seman6cs  for  inter-­‐applica6on  messaging   §  JMS defines two messaging models: •  Point-to-point (PTP) •  Publish and Subscribe (Pub/Sub)  5   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 6. Point-­‐to-­‐Point  Messaging  Model   Broker Client A Queue Produce Consume Client B message message §  With the Point-to-Point messaging model: •  Each message has only one and only consumer. •  There are no timing dependencies; consumers do not have to be connected at the time the message is sent. §  PTP is ideal for processing business transactions.6   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 7. Publish  and  Subscribe  Messaging  Model   Client B Broker Client A Topic Client C Produce Consume message message Client D §  With the Pub/Sub messaging model: •  One message goes to zero-to-many consumers based on the number of current subscribers •  Subscribers with an active subscription at the time the broker gets the message receive a copy of the message •  Subscribers can be durable or non-durable §  Pub/Sub is ideal for publishing business events.7   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 8. JMS  Classes  and  Interfaces   §  These  are  the  classes  and  interfaces  that  you  use  to  program   the  JMS  client  applica6on  8   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 9. JMS  Messages   §  Messages  form  the  basic  unit  of  work  of  a  message   provider   §  They  are  simple  and  flexible   §  Basic  components  of  a  message:   •  Header  (JMSDes6na6on,  JMSDeliveryMode,  JMSExpira6on,  etc)   •  Proper6es  (op6onal)  –  User-­‐defined  proper6es   •  Body  (op6onal)  9   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 10. Ac6veMQ  Enhancements  to  JMS   §  Ac6veMQ  Connec6on  Factory  segngs   •  disableTimeStampByDefault,  copyMessageOnSend,  useCompression,   objectMessageSerializa6onDefered,  useAsyncSend,   useRetroac6veConsumer   §  Des6na6ons  are  typically  created  on  demand   •  They  can  also  be  created  at  the  broker  startup   §  Retroac6ve  Consumers   •  Last  Image,  Fixed  Count  or  Fixed  Size   §  Des6na6on  Policies   •  Dispatch policies – load balance consumers/producers across destinations. •  Recovery Policies – recover messages/subscriptions. •  Pre-fetch policies – acknowledge messages sent to consumers in batches.  10   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 11. Ac6veMQ  Enhancements  to  JMS  (cont.)   §  Advisory  Channels   •  Starting and stopping consumers and producers •  Creating and destroying temporary destinations •  Expiring messages on topics and queues •  Sending messages from brokers to destinations with no consumers •  Starting and stopping connections   §  Exclusive  Consumer  Priority   §  Message  Groups   §  Composite  &  Virtual  Des6na6ons   •  Forward,  Route  &  High-­‐Available  Load-­‐Balanced  Durable  Subscribers  11   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 12. What  are  Network  of  Brokers?   §  In basic deployments, producers and consumers connect to the same broker to exchange messages §  With broker networks, messages not consumed locally are forwarded broker-to-broker and dispatched to remote clients. •  The message can travel through multiple brokers before it is consumed •  Each message is owned by a single broker at any point in time. §  Broker networks allow you to scale your deployment by: •  Accommodating many more clients, e.g. when the number of sockets is limited by the OS •  Increasing message throughput because messages are load- balanced across all interested consumers. •  Distributing consumers and producers geographically across a WAN, firewall or other bridges12   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 13. Network  of  Brokers  -­‐  Example   P A C C B C §  Brokers  A,  B  and  C  are  part  of  a  broker  network   §  There  is  a  producer  to  a  queue  on  broker  A  and  consumers   from  the  queue  on  brokers  A  and  B   §  Messages  sent  to  the  queue  are  dispatched  to  consumers  on   A  and  B;  messages  are  not  forwarded  to  C   •  If  a  consumer  from  the  queue  starts  on  C,  messages  will  flow  there  as   well    13   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 14. Replica6on,  Clustering  &  Failover  Broker replication Shared message store <<jvm>> <<jvm>> frodo:ActiveMQ frodo:ActiveMQ Master state Brokers replicated to compete for slave using file system or network database connector. lock. <<jvm>> <<jvm>> samwise:ActiveMQ samwise:ActiveMQ14   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 15. Networks  Of  Master-­‐Slave  Pairs   §  A  clustered,  highly  available  approach   <<jvm>> <<jvm>> <<jvm>> frodo:ActiveMQ gandalf:ActiveMQ merry:ActiveMQMasterSlave <<jvm>> <<jvm>> <<jvm>> samwise:ActiveMQ saruman:ActiveMQ pip:ActiveMQ15   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 16. Apache  Camel   §  Apache  Camel  is  a   powerful  Open   Source  Integra6on   Framework  based  on   known  Enterprise   Integra6on  Paqerns             http://enterpriseintegrationpatterns.com/16   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 17. Apache  Camel  -­‐  Paqerns   §  50+  Enterprise  Integra6on  Paqerns   http://camel.apache.org/eip17   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 18. Apache  Camel  –  Components,  Data  Formats  and  Languages   §  80  Components  (ac6vemq,  bean,  cxf,  file,  3p,  hibernate,  jdbc,   iba6s,  jms,  jeqy,  mina,  neqy,  6mer,  xslt,  etc)     •  http://camel.apache.org/components.html   §  19  Data  Formats  (csv,  serializa6on,  zip,  hl7,  soap,  jaxb,  etc)   •  http://camel.apache.org/data-format.html §  15  Expression  Languages  (EL,  Simple,  XQuery,  Xpath,   JavaScript,  Ruby,  Python,  PHP,  etc)     •   http://camel.apache.org/languages.html18   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 19. Apache  Camel  -­‐  Architecture  Camel can bedeployed in a wide An endpoint is a Containervariety of container message sourcetypes or sink Camel context EndpointsThe Camel context isan instance of theCamel runtimeenvironment Components A component is a plug-in endpoint factory; Camel provides a wide variety of components 19   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 20. Apache  Camel   §  Camel  provides  an  embedded  DSL  (in  Java,  Spring  or   Scala)  for  implemen6ng  enterprise  integra6on  paqerns   •  The  DSL  uses  URIs  to  define  endpoints  which  are  combined  to   generate  integra6on  flows  20   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 21. Apache  Camel   §  Camel  Content-­‐Based  Router  -­‐  Spring  DSL    <camelContext> <route> <from uri="activemq:queue:NewOrders"/> <choice> <when> <xpath>/order/product = widget</xpath> <to uri="activemq:Orders.Widgets"/> </when> <otherwise> <to uri="activemq:Orders.Gadgets"/> </otherwise> </choice> </route> </camelContext>  21   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 22. Apache  Camel   §  Camel  Content-­‐Based  Router  -­‐  Java  DSL     from("activemq:queue:NewOrders") .choice() .when().xpath("/order/product = widget") .to("activemq:Orders.Widget") .otherwise() .to("activemq:Orders.Gadget");  22   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 23. Typical  Camel  Route  Development  Process   §  Use a Maven archetype to generate an outline project §  Edit the POM to include additional dependencies §  Add your Java code into src/main/java, and/or Spring configuration to src/main/resources/META-INF/spring §  Add instructions to the Maven Felix plugin, to assist in the generation of OSGi manifest information §  Test using the Camel Maven plugin mvn camel:run §  Deploy into the Apache ServiceMix OSGi container •  Drop into deploy/ directory (pre-production testing) •  Install a bundle/feature from a maven repository (production environment)23   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 24. Apache  Camel  -­‐  Example   §  Goals   •   Pickup  files  from  a  directory   •   Make  sure  we  only  pickup  3  files  per  30  seconds   •   Store  into  JMS  queue   •   Listen  on  JMS  queue   •   And  upload  file  to  FTP  server  24   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 25. Apache  Camel  –  Example   §  Camel  Route  Spring  XML  DSL   <camelContext> <route> <from uri="file:camellos/inbox?move=.done"/> <throttle maximumRequestsPerPeriod="3" timePeriodMillis="30000”> <to uri="activemq:queue:camellos"/> </throttle> </route> <route> <from uri="activemq:queue:camellos"/> <to uri="ftp://admin:secret@localhost:3333"/> </route> </camelContext> 25     Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 26. Apache  CXF   §  Apache CXF is an open-source Java service framework §  Full implementation of the JAX-WS 2.0 specification, radically simplifying the process of exposing existing Java code as a Web service or writing new Web services. §  Provides design-time tools and runtime infrastructure that are technology-neutral. §  Designed to work with variety of container servers, languages, and messaging systems §  Originally named Celtix and later moved to Apache where it was merged with the Xfire project26   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 27. Building  Applica6ons  with  CXF   §  CXF abstracts away the details of inter-process communication between services and consumers. •  … allows developers to focus efforts on business logic rather than integration logic. §  CXF supports code-first and contract-first approaches: •  Expose “plain old Java objects” (POJOs) as a services, or •  Explicitly annotate Java classes, or •  Start with a WSDL contract. §  Use CXF to develop both client- and server-side components. •  Deploy as standalone Java applications, or easily integrate into a Spring-based application  27   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 28. Apache  CXF  -­‐  Architecture   §  CXF provides a layered communication stack to services and consumers28   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 29. Apache  CXF  -­‐  Architecture   §  When a component sends a message to a service, it uses a Java API derived from the WSDL contract •  The JAX-WS mapping is used. •  The Java API is protocol neutral. §  A CXF binding creates the message payload •  Pure XML, SOAP, JSON, or some other message format. §  Quality-of-service extensions can be added using message interceptors •  CXF supports a number of Web Services QoS standards. §  CXF then transmits the message using a transport. •  CXF includes HTTP, JMS, and AMQP out-of-the-box. •  You can write custom transports for CXF; for example: TCP, SMTP, FTP  29   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 30. CXF  Deployment  Model   §  CXF can also be deployed in a number of different container technologies: •  In a Servlet engine (e.g. Tomcat) •  In a J2EE container (using bi-directional JCA) (e.g. JBOSS) •  In a JBI (Java Business Integration) container (e.g. ServiceMix) •  In an OSGi container (e.g. ServiceMix) •  Stand-alone JVM (e.g. java –jar myapp.jar) §  This flexible deployment approach allows you to deploy your CXF service-oriented components anywhere  30   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 31. Apache  ServiceMix   §  Full open source implementation of an Enterprise Service Bus •  Based on OSGi technology (http://www.osgi.org) §  Support for multiple component models •  OSGi bundles •  JBI artifacts •  Servlets •  Spring beans •  Camel routes (http://camel.apache.org) •  CXF web services and RESTful services (http:// cxf.apache.org) •  Extensible to support additional component models, such as EJB31   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 32. Apache  ServiceMix  -­‐  Architecture   §  ServiceMix employs a layered architecture based on OSGi •  The core : A lightweight runtime named “Karaf”, which extends OSGi with powerful features for handling and managing OSGI bundles •  The technology layer : A layer of component technologies that sits on top of the core to support your applications32   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 33. Apache  ServiceMix  –  Core  Layer  Features   §  Hot deployment support for OSGi bundles §  Dynamic configuration of services through the OSGi “ConfigurationAdmin” service §  Dynamic logging back-end provided by Log4J supports different APIs (SLF4J, Java Utils, JCL, Avalon, Tomcat, OSGi) §  Application provisioning through file-drop, Maven repository and remote download (http://) §  Administration via an extensible shell console §  Secure remote access via ssh §  Security framework based on JAAS33   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 34. Apache  ServiceMix  –  Technology  Layer  Features   §  Spring Framework •  ServiceMix loads an OSGi bundle into its runtime, or generates an OSGi bundle on the fly, and then instantiates the Spring application context §  JMS Message Broker •  ServiceMix deploys the Apache ActiveMQ broker (OSGi-ready) §  JAX-WS/JAX-RS Web Services support •  ServiceMix deploys the Apache CXF runtime (OSGi-ready) §  Enterprise Integration Patterns (EIP) support •  ServiceMix deploys the Apache Camel runtime (OSGi-ready) §  Java Business Integration (JBI) support •  ServiceMix provides a JBI 1.0 container, to support legacy code implemented as service units / service assemblies and deployed using ServiceMix 3.x §  Can be extended to support technologies such as SCA or EJB334   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 35. Apache  ServiceMix  –  Deployment  Model   §  When you deploy a ServiceMix solution, you typically deploy the core (Karaf) plus one or more technology components §  Examples: •  To support EIPs : Karaf runtime + Camel feature •  To support JAX-WS/JAX-RS solutions : Karaf runtime + CXF feature •  To support JMS solutions : Karaf runtime + ActiveMQ feature •  To support JBI-based solutions : Karaf runtime + JBI feature35   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 36. FuseSource  Corpora6on  The  Leaders  in  Open  Source  Integra9on  and  Messaging   Produc9zed  distribu9ons   •   Integrated  Team  behind  the  projects   •   Tested   •   Leaders  at  Apache   •   Tooling   •   Product  roadmaps   •   Code  contribu9ons   Enterprise  support   •   Subscrip9ons   •   Training   •   Consul9ng   36   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 37. FuseSource  Subscrip6on  :  Cer6fied  Distribu6ons   Fuse  ESB  (ServiceMix),  Fuse  Message  Broker  (Ac9veMQ),   Fuse  Media9on  Router  (Camel),  Fuse  Services  Framework  (CXF)   •  Tested  –  integrated  tests  on  supported  plasorms   •  Produc6zed  distribu6ons  –  versioned,  supported  releases   •  Freely  available  with  Apache  license  (can  edit  code  and  redistribute)   •  Enterprise-­‐class  distribu6ons  of  popular  apache  projects  37   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 38. Forrester  Wave  Report  Q2  2011:  Fuse  ESB  is  a  “Leader”   §  FuseSource  placed  in   “Leader”  category  in   company  with  large,   established  vendors   §  One  of  few  open  source   solu6ons  considered  for   this  report   §  Highest  ranked  open   source  solu6on  38   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 39. FuseSource  :  Team  that  Wrote  the  Code   No  one  knows  the  code,  or  influences  the  projects  at  Apache   more  than  FuseSource:   •  Co-­‐founders  and  PMC  members  of  ServiceMix,  Ac6veMQ,  Camel,  …   •  Over  25  ac6ve  commiqers  on  11  Apache  projects  Guillaume  Nodet   James  Strachan   Rob  Davis   Hiram  Chirino   Dejan Gert Jon  Anstey   Gary  Tully   Willem Jiang   Claus  Ibsen   Bosanac   Vanthienen   39   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 40. FuseSource  Subscrip6on  =  Long  Term  Success   Support •  Enterprise-­‐class  24x7  coverage   •  Global  organiza6on   •  Mission-­‐cri6cal   Influence integra6on  exper6se   •  Product  roadmaps   •  Updates  and  migra6on   •  Planning  processes   assistance   •  Conduit  to  Apache   Tools•  Development  •  Opera6ons  •  Management  •  Performance  •  Documenta6on   40   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company
  • 41. Thanks!  No  vendor  lock-­‐in   Free  to  redistribute   Enterprise  class   A  Progress  So3ware  Company  41   Copyright  ©  2011  Progress  So3ware  Corpora6on  and/or  its  subsidiaries  or  affiliates.  All  rights  reserved.     A  Progress  So3ware  Company

×
