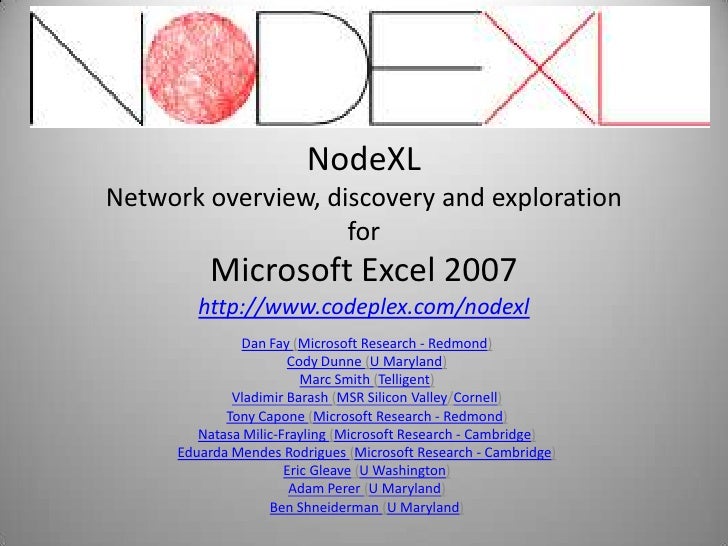

NodeXL
Network overview, discovery and exploration
                    for
         Microsoft Excel 2007
        http://ww...
The NodeXL Team
Problem: No network chart in Excel
Problem: No
network chart in
     Excel
NodeXL: Network analysis and visualization tool

• Cyclic Graph data structures have limited
  support in existing Office ...
NodeXL: Goal: Make SNA easier
• Existing Social Network Tools are challenging
  for many novice users
• Tools like Excel a...
Social Network Analysis Toolkit
        Tools to support the study of the social network structure of
              social...
8
The Ties that Blind?




                       9
The Ties that Blind?




                 Reply-To Network
                 Network at distance 2 for the most prolific au...
11
Darwin Bell
The Ties that Blind?




           Pajek without modification can
     sometimes reveal structures of great interest.
Mapping
Newsgroup
Social
Ties




Microsoft.public.windowsxp.server.general
                                              ...
14
Distinguishing attributes:
        • Answer person
          – Outward ties to local isolates
          – Relative absence...
Distinguishing attributes:
        • Answer person
          – Outward ties to local isolates
          – Relative absence...
Clear and consistent signatures
       of an “Answer Person”
                                   100




                  ...
Roles Project
                                                         • Using Netscan
Answer Person, microsoft.public.win...
NodeXL:
Network Overview, Discovery and Exploration
for Excel
• Leverage spreadsheet for storage of edge and
  vertex data
The NodeXL project is

Available via the CodePlex

Open Source Project

Hosting Site:

http://www.codeplex.com/nodexl
NodeXL workflow

data importation > processing > calculation > refinement >
a network graph that tells a useful story
Thes...
NodeXL: Import data from multiple sources:

                       • Multiple network
                         “spigots” p...
Social media platforms are
A source of multiple
Social network data sets:

“Friends”
“Replies”
“Follows”
“Comments”
“Reads...
Export data to alternate file formats:




  Prepare data for analysis
NodeXL: Import edges from other spreadsheets




• Map data columns from existing spreadsheets
NodeXL: Merge Duplicate Edges (if any)




• Aggregate duplicate edges and add a
  “Tie Strength Column” to store the coun...
NodeXL: Calculate Network Analytics and Metrics

• Starter library of
  basic network
  measures
• Users may unselect
  re...
NodeXL: Insert network sub-graph images

• Create “ego-
  centric”
  networks for
  each node in
  the network
• Select nu...
NodeXL:

Display nodes
with subgraph
images
sorted by
network
attributes
using Excel
Data|Sort
NodeXL:
Get reports of   Metric                  Value
                 Graph Type                         Directed
global...
NodeXL: Display whole graph




• Toggle display of whole graph display pane
  with Show/Hide Graph Pane
NodeXL: Create a new whole graph display




• Select “Read Workbook” to load the graph into
  the Display Pane.
• The tit...
NodeXL: Viewing the whole graph
NodeXL: Using Dynamic Filters to simplify the graph


                          • Each data column
                       ...
NodeXL: Apply dynamic filters to the data
NodeXL: Map data to display attributes
• Map Edge
  and Vertex
  attributes
  to size,
  width,
  color,
  opacity,
  and ...
NodeXL: Decorated Network Graphs
NodeXL: filtered, decorated, labeled networks
NodeXL: Clustered networks
NodeXL: Add URLS to Right-click menu of Nodes
NodeXL: Filtered clusters
Right click the canvass to control
attributes of selected nodes
NodeXL: Import social networks from email
NodeXL: Import social networks from email
Systematic Yet Flexible
Network Analysis Tasks
1. Overall network metrics (e.g. number of nodes, number of
   edges, densi...
Sub Graph                               Whole
     /                                  Graph
 All Time                     ...
Random Layout
Fruchterman-Reingold Layout
          (Dense)
Fruchterman-Reingold Layout
          (Loose)
Random Layout
  (Decorated)
X = In-degree, Y = Out-degree
NodeXL Next Steps
• Enhanced layout controls
  – Smart selection of nodes
• Clustering and composite nodes
  – Add/remove ...
NodeXL Partnerships and community
•   University of Maryland
•   Northwestern University
•   Ohio University
•   Stanford ...
NodeXL User tasks and goals
NodeXL
Network overview, discovery and exploration
                    for
         Microsoft Excel 2007
        http://ww...
2009 - Node XL v.84+ - Social Media Network Visualization Tools For Excel 2007
2009 - Node XL v.84+ - Social Media Network Visualization Tools For Excel 2007
