2009 Node XL Overview: Social Network Analysis in Excel 2007 2009 Node XL Overview: Social Network Analysis in Excel 2007 Presentation Transcript

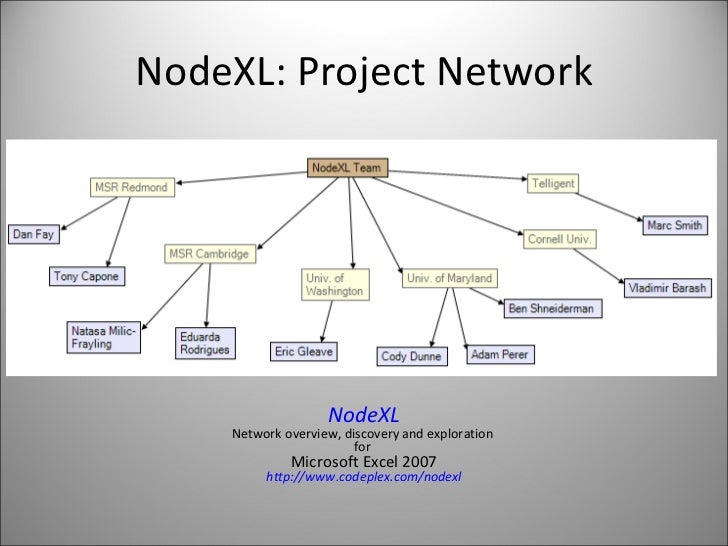

  • NodeXL: Project Network NodeXL Network overview, discovery and exploration for Microsoft Excel 2007 http://www.codeplex.com/nodexl
  • NodeXL Network overview, discovery and exploration for Microsoft Excel 2007 http://www.codeplex.com/nodexl Dan Fay ( MSR Redmond ) Cody Dunne ( U Maryland ) Marc Smith ( Telligent ) Vladimir Barash ( MSR Silicon Valley / Cornell ) Tony Capone ( MSR Redmond ) Natasa Milic-Frayling ( MSR Cambridge ) Eduarda Mendes Rodrigues ( MSR Cambridge ) Eric Gleave ( U Washington ) Adam Perer ( U Maryland ) Ben Shneiderman ( U Maryland )
  • Problem: No network chart in Excel
  • NodeXL : Network analysis and visualization tool
    • Cyclic Graph data structures have limited support in existing Office tools
    • Network analysis is of growing importance in academic, commercial, and Internet social media contexts
    • Existing network analysis tools have command line interfaces or demand steep learning curves
    • Many network data sets already live in Excel!
  • NodeXL: Goal: Make SNA easier
    • Existing Social Network Tools are challenging for many novice users
    • Tools like Excel are widely used
    • Leveraging a spreadsheet as a host for SNA lowers barriers to network data analysis and display
  • Social Network Analysis Toolkit Tools to support the study of the social network structure social media and other network structures Sociologist “ What are the structures of communication in scientific discussions?” User Experience Information Visualization “ What are the best UI/UX workflows for network analysis tools?” Computer Scientist Algorithmicist for Social Network Measures “ What are the measures and algorithms needed for understanding networks?”
  • NodeXL: N etwork O verview, D iscovery and E xploration for E x ce l
    • Leverage spreadsheet for storage of edge and vertex data
  •
  • NodeXL: Import data from multiple sources:
    • Multiple network “spigots” provide edge lists from several common sources and data formats.
  • NodeXL: Import edges from other spreadsheets
    • Map data columns from existing spreadsheets
  • NodeXL: Merge Duplicate Edges (if any)
    • Aggregate duplicate edges and add a “Tie Strength Column” to store the count of “duplicates” (edges could be from multiple time slices).
  • NodeXL: Calculate Network Analytics and Metrics
    • Starter library of basic network measures
    • Users may unselect resource intensive measures
  • NodeXL: Insert network sub-graph images
    • Create “ego-centric” networks for each node in the network
    • Select number of degrees out to include
  • NodeXL: Display nodes sorted by network attributes u sing Excel Data|Sort
  • NodeXL: Get reports of global network metrics Metric Value Graph Type Directed Unique Edges 7,852 Edges With Duplicates 0 Total Edges 7,852 Self-Loops 10 Vertices 174 Graph Density 0.260514259
  • NodeXL: Display whole graph
    • Toggle display of whole graph display pane with Show/Hide Graph Pane
  • NodeXL: Create a new whole graph display
    • Select “Read Workbook” to load the graph into the Display Pane.
    • The title “Document Actions” is imposed by Excel
  • NodeXL: Viewing the whole graph
  • NodeXL: Using Dynamic Filters to simplify the graph
    • Each data column (including dates) associated with an edge or vertex is exposed with a slider filter.
    • Filtered nodes and edges turn gray or become invisible
  • NodeXL: Apply dynamic filters to the data
  • NodeXL: Map data to display attributes
    • Map Edge and Vertex attributes to size, width, color, opacity, and shape
  • NodeXL: Decorated Network Graphs
  • NodeXL: filtered, decorated, labeled networks
  • NodeXL: Clustered networks
  • NodeXL: Filtered clusters
  • NodeXL: Add URLS to Right-click menu of Nodes
  • NodeXL: Import social networks from email
  • NodeXL: Import social networks from email
  • NodeXL Next Steps
    • Enhanced layout controls
      • Smart selection of nodes
    • Clustering and composite nodes
      • Add/remove a node to/from a cluster
      • Add/remove a node to/from a composite
    • Add social network data sources:
      • Twitter, YouTube, Facebook, Outlook, Messenger, etc.
    • Your suggestions?
  • NodeXL Partnerships and community
    • University of Maryland
    • Northwestern University
    • Ohio University
    • Stanford University
    • University of Pennsylvania
    • 5,000 + downloads on Codeplex
  • NodeXL Network overview, discovery and exploration for Microsoft Excel 2007 http://www.codeplex.com/nodexl Dan Fay ( MSR Redmond ) Cody Dunne ( U Maryland ) Marc Smith ( Telligent ) Vladimir Barash ( MSR Silicon Valley / Cornell ) Tony Capone ( MSR Redmond ) Natasa Milic-Frayling ( MSR Cambridge ) Eduarda Mendes Rodrigues ( MSR Cambridge ) Eric Gleave ( U Washington ) Adam Perer ( U Maryland ) Ben Shneiderman ( U Maryland )
  • NodeXL: Project Network NodeXL Network overview, discovery and exploration for Microsoft Excel 2007 http://www.codeplex.com/nodexl
