One Year of Porting
Post-mortem of two Linux/SteamOS launches
Leszek Godlewski

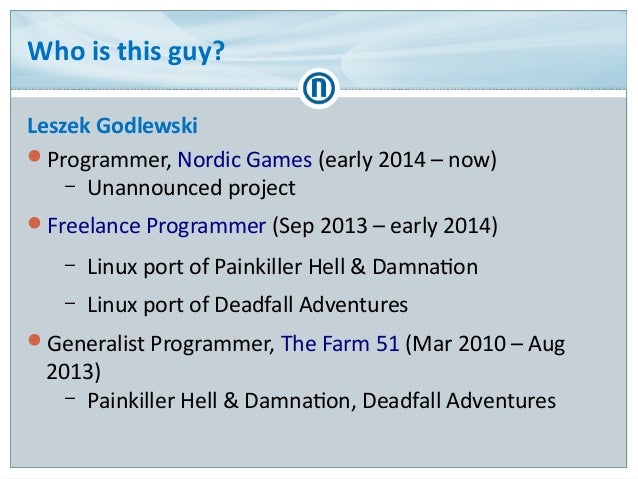

Who is this guy?
Leszek Godlewski
Programmer, Nordic Games (early 2014 – now)
– Unannounced project
Freelance Programmer...

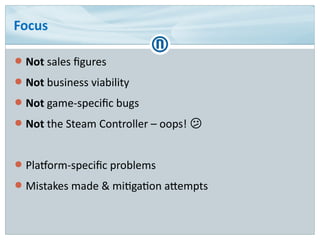

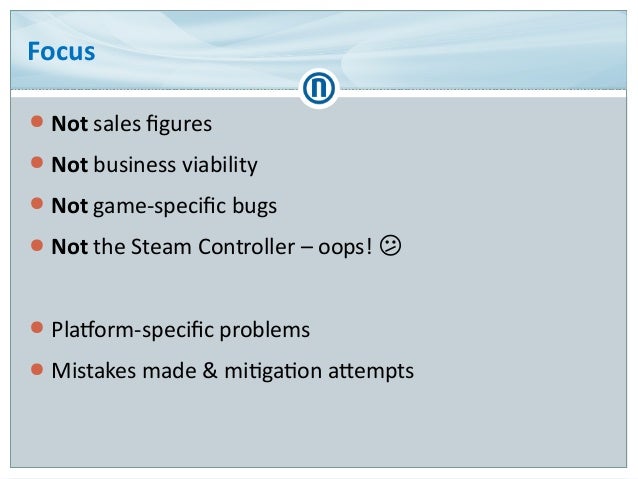

Focus
● Not sales figures
● Not business viability
● Not game-specific bugs
● Not the Steam Controller – oops! �
● Platfor...
Agenda
● The ports
● Laying down the foundations
– Build system
– Compilers
– Linking
– Boilerplate
● Release and feedback...

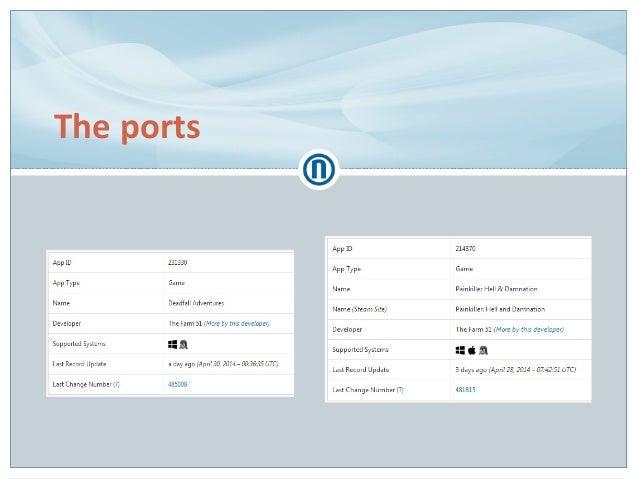

The ports
Painkiller Hell & Damnation (The Farm 51)
Deadfall Adventures (The Farm 51)

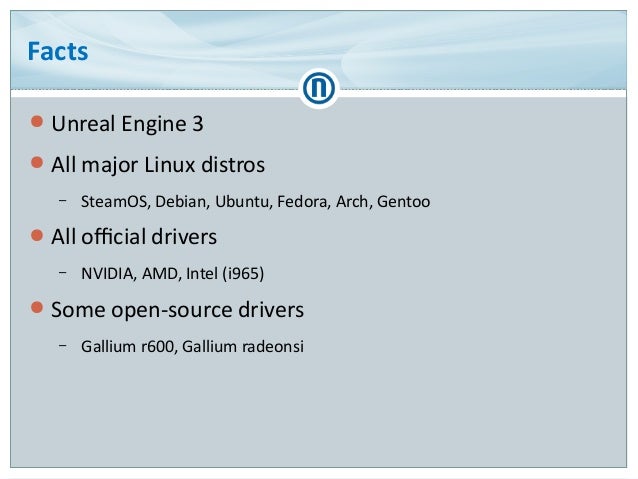

Facts
● Unreal Engine 3
● All major Linux distros
– SteamOS, Debian, Ubuntu, Fedora, Arch, Gentoo
● All official drivers
–...

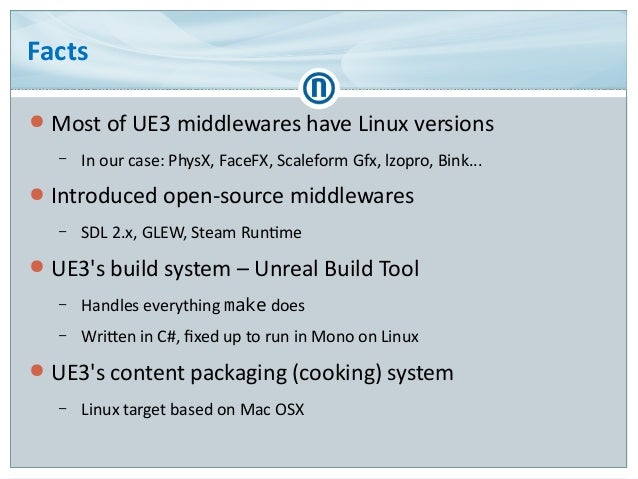

Facts
● Most of UE3 middlewares have Linux versions
– In our case: PhysX, FaceFX, Scaleform Gfx, lzopro, Bink...
● Introdu...

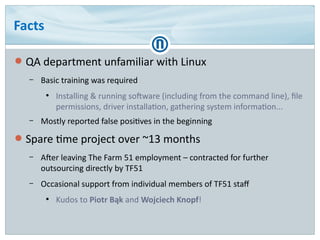

Facts
● QA department unfamiliar with Linux
– Basic training was required
●
Installing & running software (including from ...

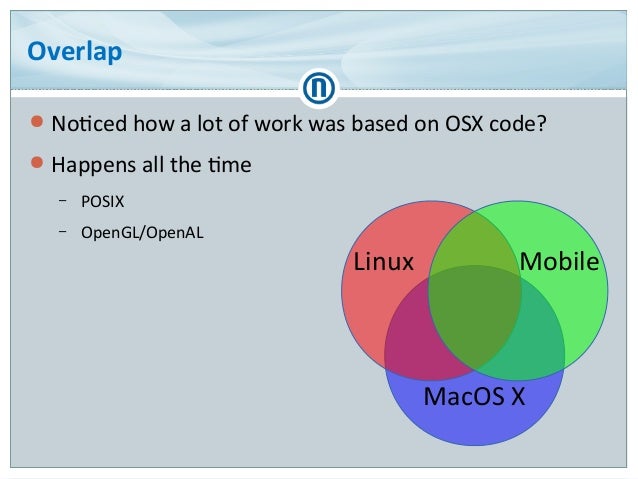

Overlap
● Noticed how a lot of work was based on OSX code?
● Happens all the time
– POSIX
– OpenGL/OpenAL
MacOS X
Linux Mo...

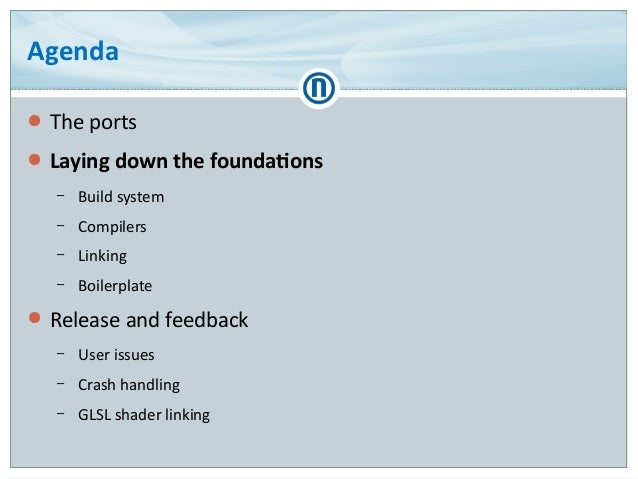

Agenda
● The ports
● Laying down the foundations
– Build system
– Compilers
– Linking
– Boilerplate
● Release and feedback...
Laying down the foundations

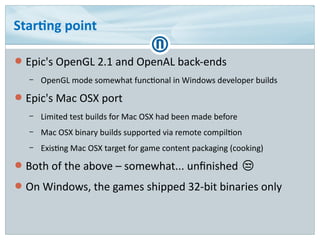

Starting point
● Epic's OpenGL 2.1 and OpenAL back-ends
– OpenGL mode somewhat functional in Windows developer builds
● Ep...

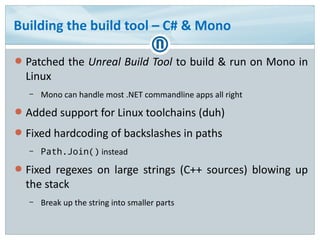

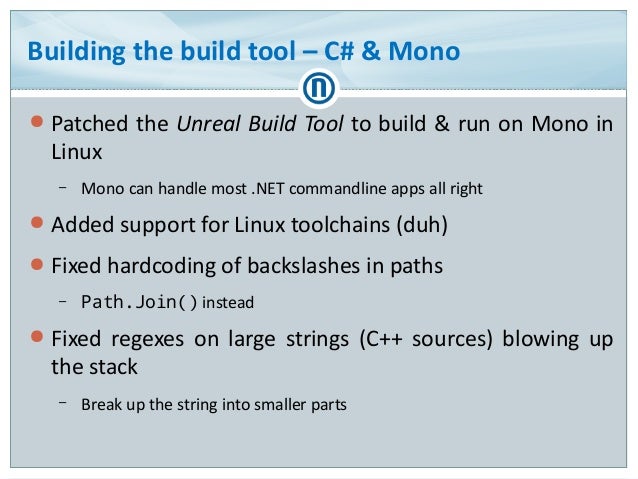

Building the build tool – C# & Mono
● Patched the Unreal Build Tool to build & run on Mono in
Linux
– Mono can handle most...

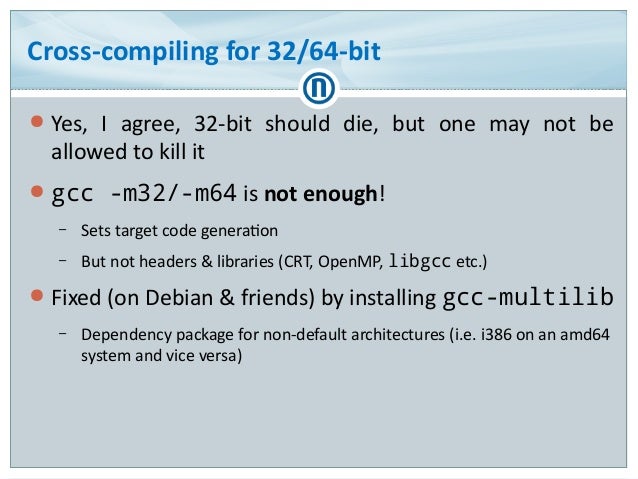

Cross-compiling for 32/64-bit
● Yes, I agree, 32-bit should die, but one may not be
allowed to kill it
● gcc -m32/-m64 is ...

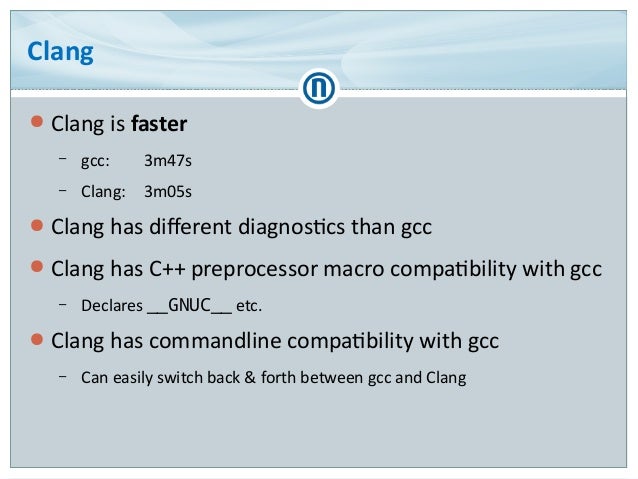

Clang
● Clang is faster
– gcc: 3m47s
– Clang: 3m05s
● Clang has diferent diagnostics than gcc
● Clang has C++ preprocessor...

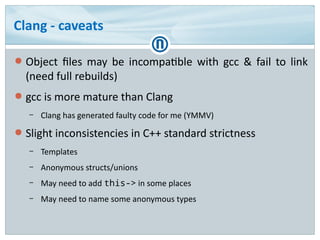

Clang - caveats
● Object files may be incompatible with gcc & fail to link
(need full rebuilds)
● gcc is more mature than ...

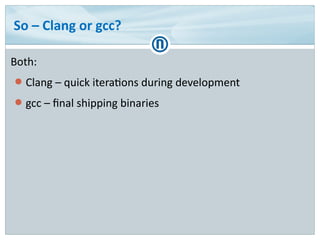

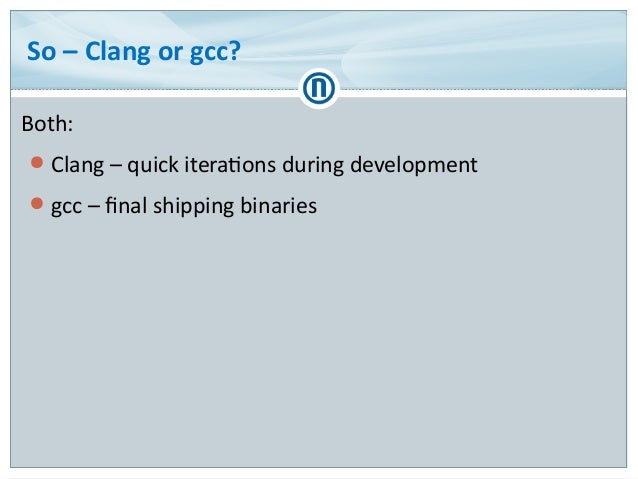

So – Clang or gcc?
Both:
● Clang – quick iterations during development
● gcc – final shipping binaries

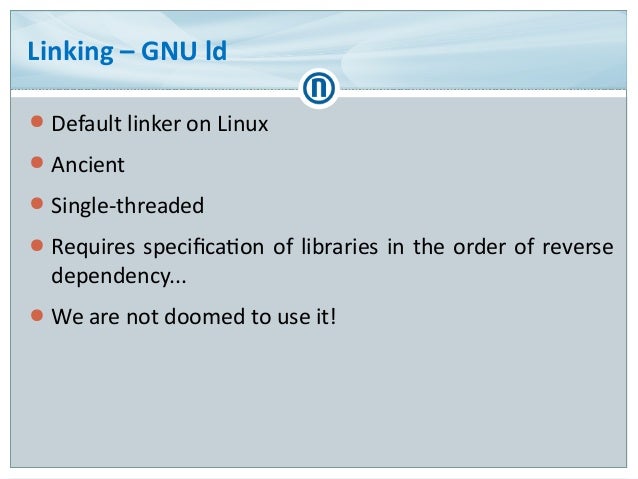

Linking – GNU ld
● Default linker on Linux
● Ancient
● Single-threaded
● Requires specification of libraries in the order ...

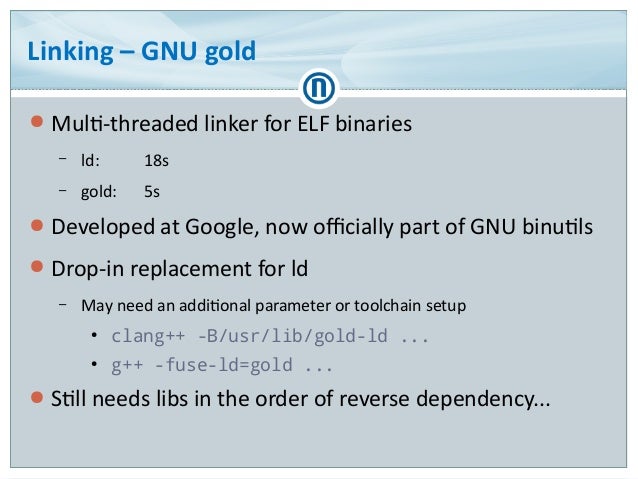

Linking – GNU gold
● Multi-threaded linker for ELF binaries
– ld: 18s
– gold: 5s
● Developed at Google, now officially par...

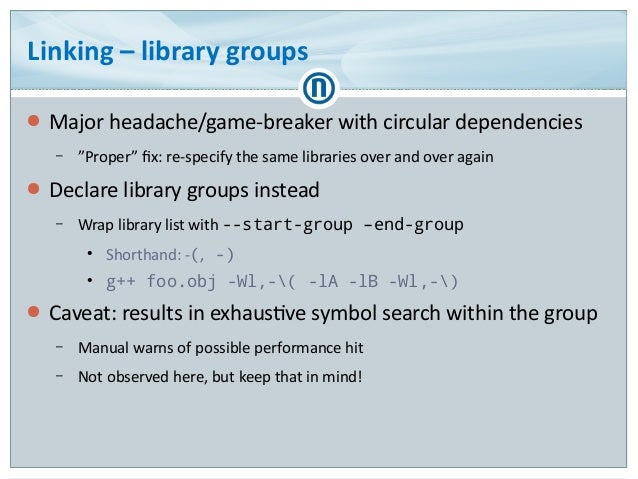

Linking – library groups
● Major headache/game-breaker with circular dependencies
– ”Proper” fix: re-specify the same libr...

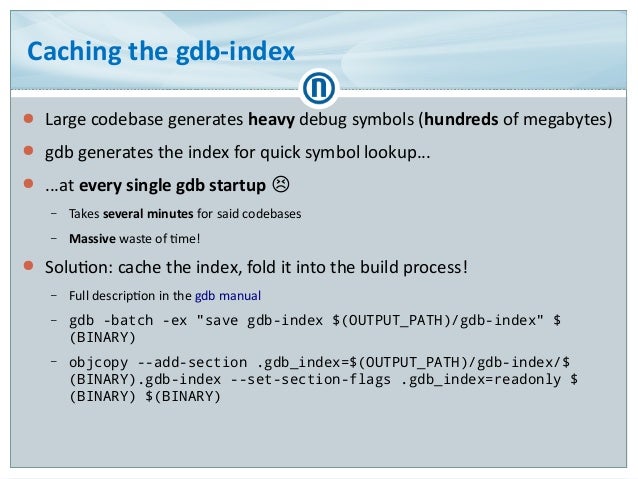

Caching the gdb-index
● Large codebase generates heavy debug symbols (hundreds of megabytes)
● gdb generates the index for...

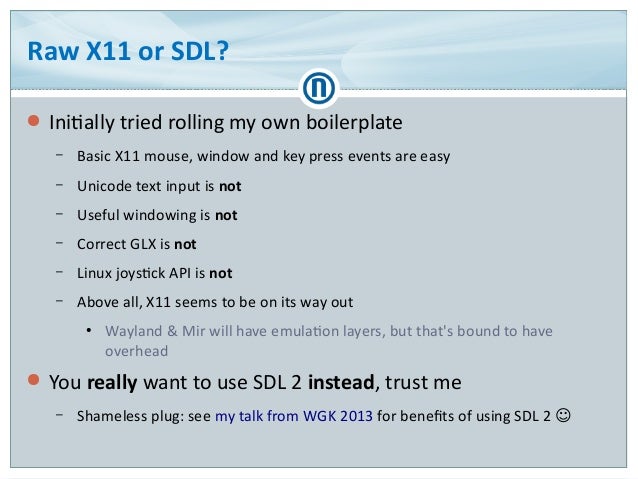

Raw X11 or SDL?
● Initially tried rolling my own boilerplate
– Basic X11 mouse, window and key press events are easy
– Uni...

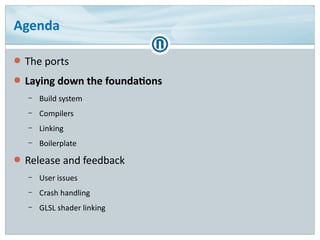

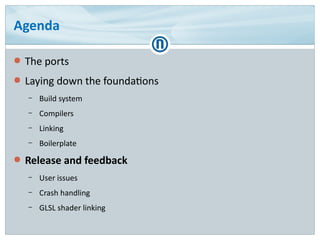

Agenda
● The ports
● Laying down the foundations
– Build system
– Compilers
– Linking
– Boilerplate
● Release and feedback...
Release and feedback

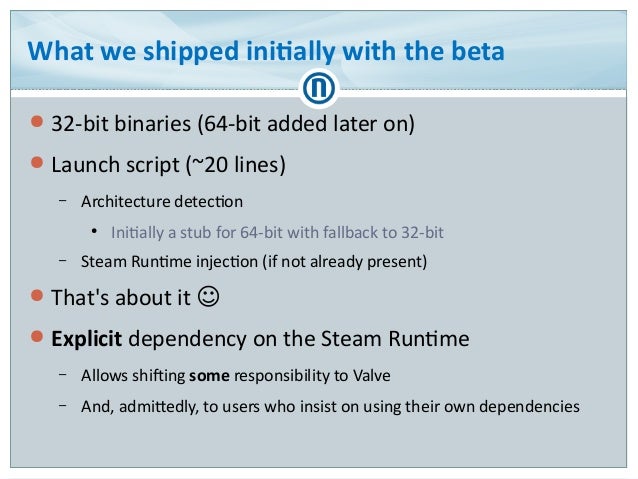

What we shipped initially with the beta
● 32-bit binaries (64-bit added later on)
● Launch script (~20 lines)
– Architectu...

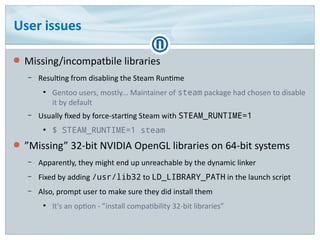

User issues
● Missing/incompatbile libraries
– Resulting from disabling the Steam Runtime
●
Gentoo users, mostly... Mainta...

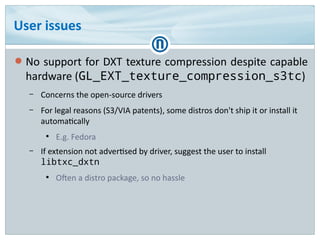

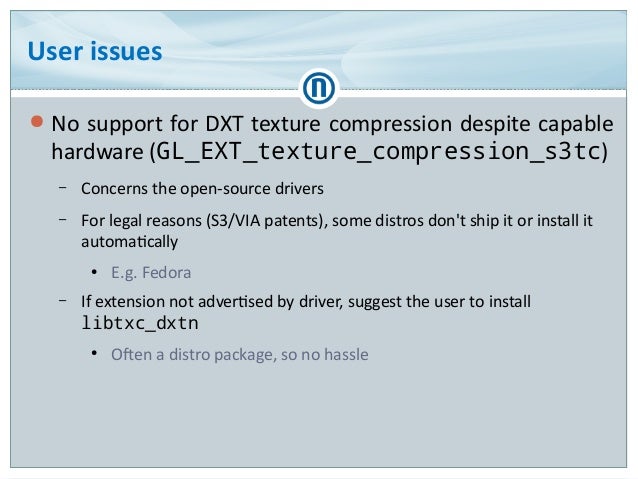

User issues
● No support for DXT texture compression despite capable
hardware (GL_EXT_texture_compression_s3tc)
– Concerns...

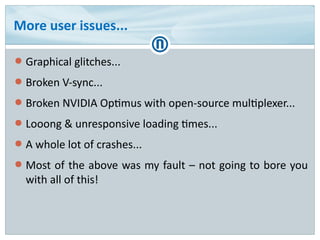

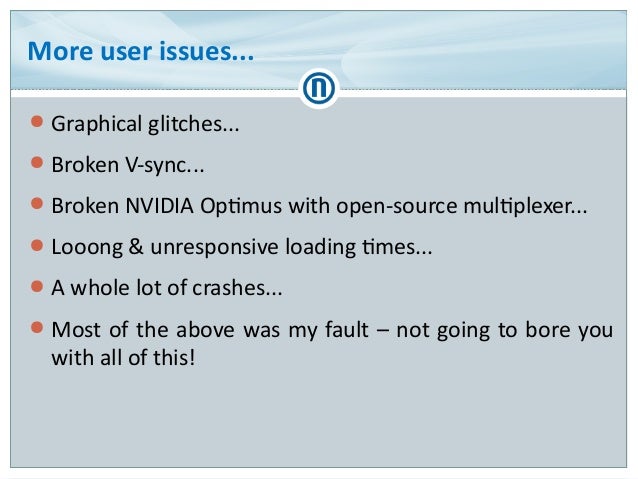

More user issues...
● Graphical glitches...
● Broken V-sync...
● Broken NVIDIA Optimus with open-source multiplexer...
● L...

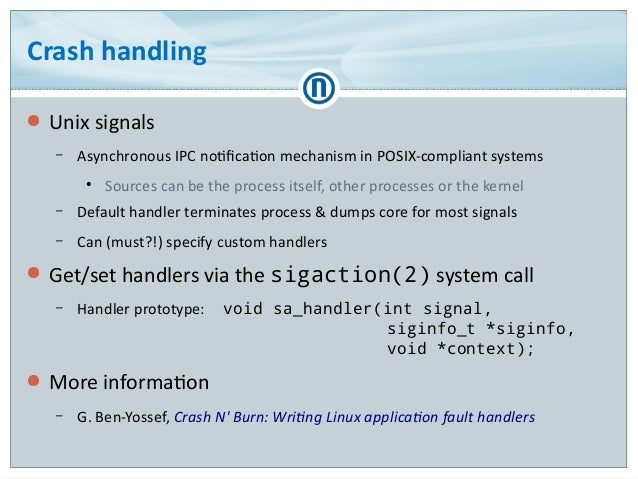

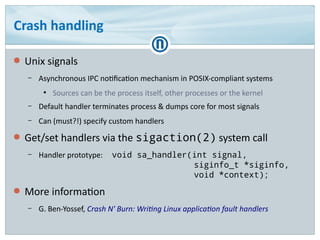

Crash handling
● Unix signals
– Asynchronous IPC notification mechanism in POSIX-compliant systems
●
Sources can be the pr...

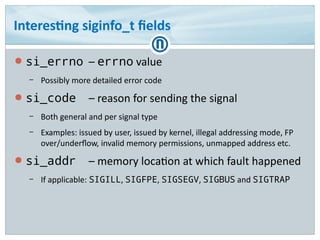

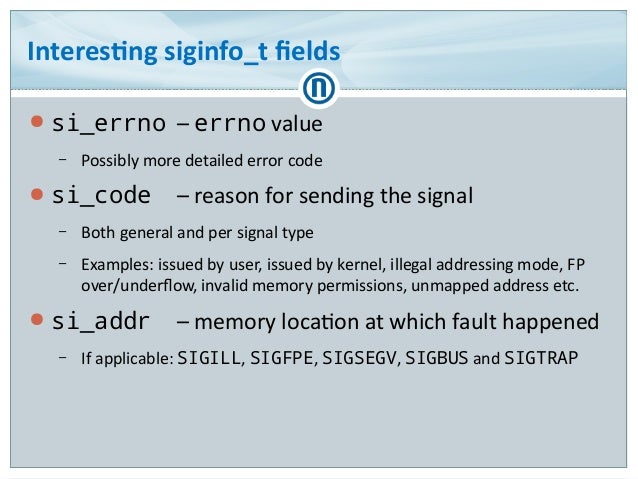

Interesting siginfo_t fields
● si_errno – errno value
– Possibly more detailed error code
● si_code – reason for sending t...

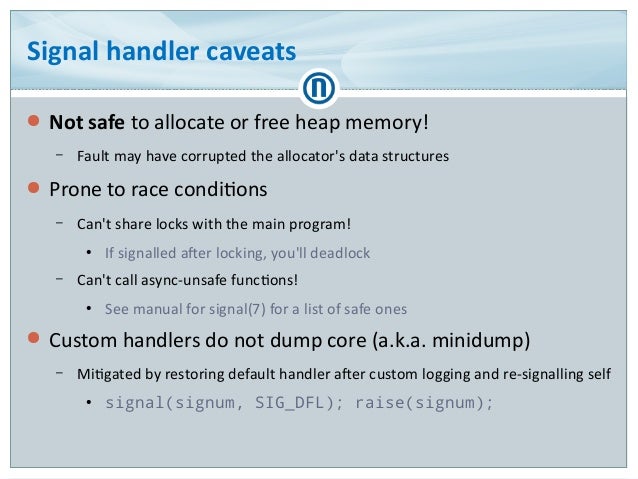

Signal handler caveats
● Not safe to allocate or free heap memory!
– Fault may have corrupted the allocator's data structu...

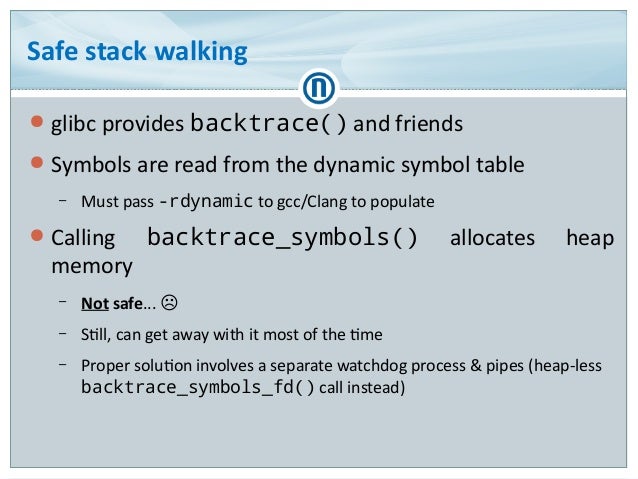

Safe stack walking
● glibc provides backtrace() and friends
● Symbols are read from the dynamic symbol table
– Must pass -...

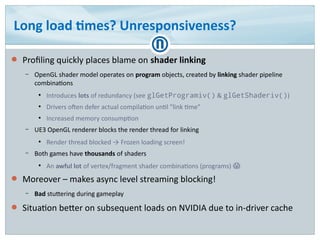

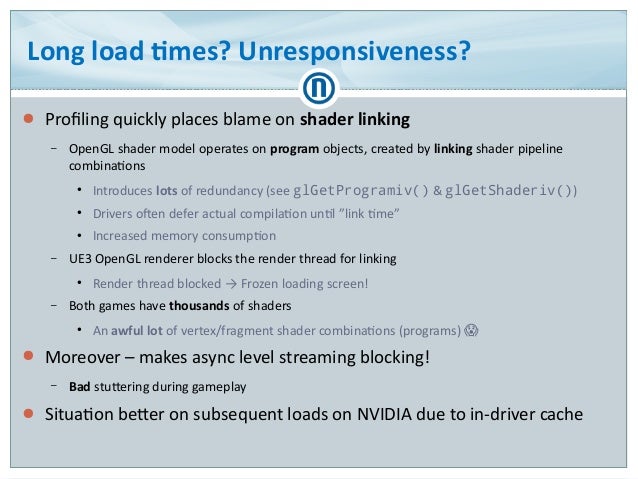

Long load times? Unresponsiveness?
● Profiling quickly places blame on shader linking
– OpenGL shader model operates on pr...

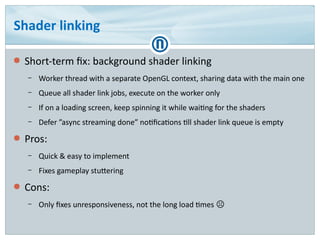

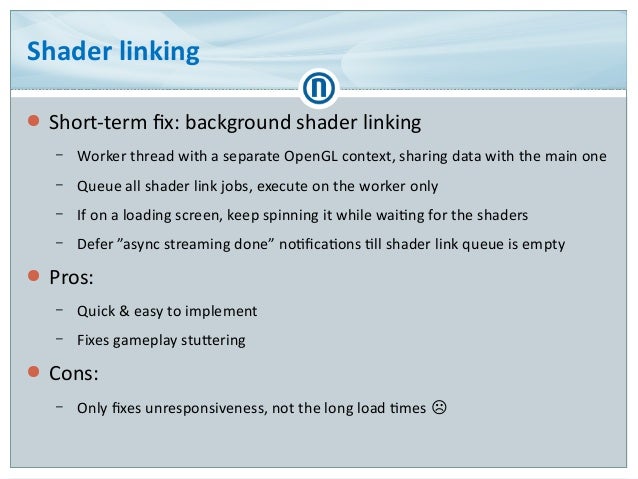

Shader linking
● Short-term fix: background shader linking
– Worker thread with a separate OpenGL context, sharing data wi...
Shader linking

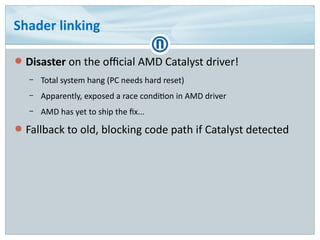

● Disaster on the official AMD Catalyst driver!
– Total system hang (PC needs hard reset)
– Apparently, exp...

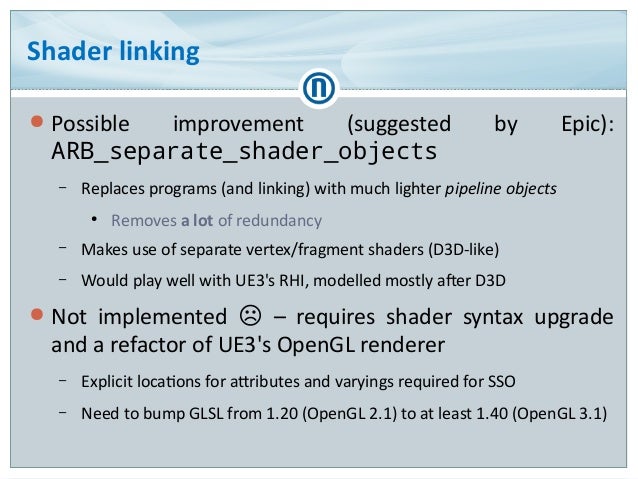

Shader linking
● Possible improvement (suggested by Epic):
ARB_separate_shader_objects
– Replaces programs (and linking) w...

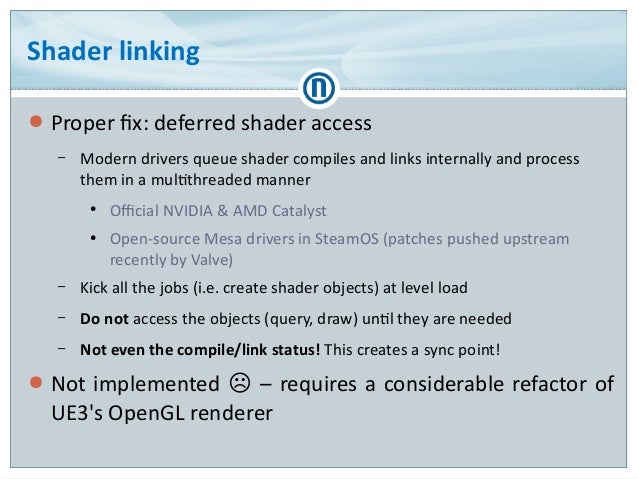

Shader linking
● Proper fix: deferred shader access
– Modern drivers queue shader compiles and links internally and proces...
Summary

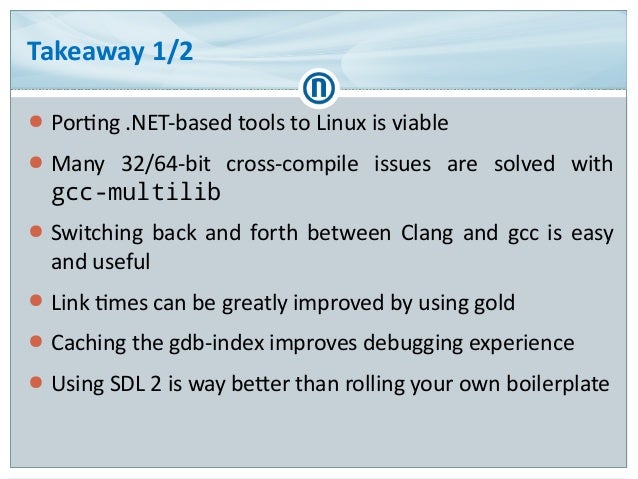

Takeaway 1/2
● Porting .NET-based tools to Linux is viable
● Many 32/64-bit cross-compile issues are solved with
gcc-multi...

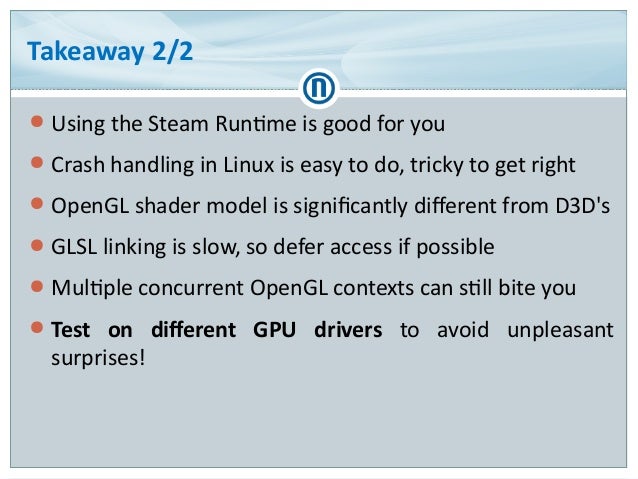

Takeaway 2/2
● Using the Steam Runtime is good for you
● Crash handling in Linux is easy to do, tricky to get right
● Open...
@ l go d l ews k i @ n o rd i c ga m e s . at
t @ T h e I n e Q u ati o n
K w w w. i n e q u ati o n . o rg
Questions?
F u rt h e r N o rd i c G a m e s i nfo rm ati o n :
K w ww. n o rd i c ga m e s . at
Deve l o p me nt i nfo rmati o n :
K...
