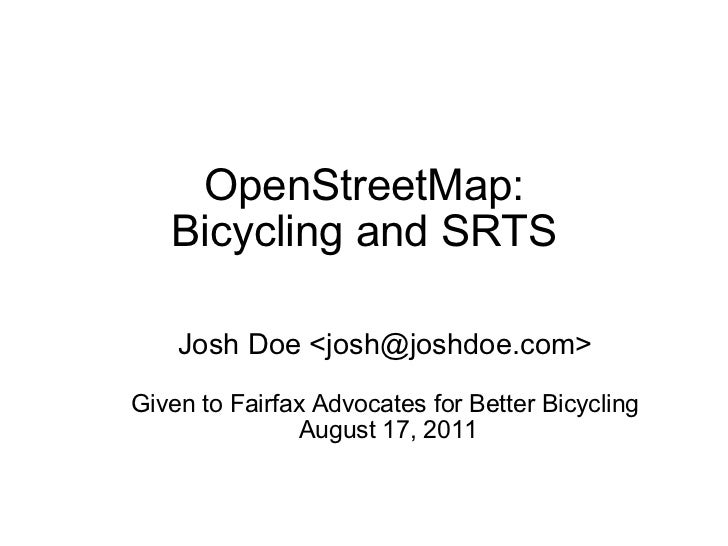

  1. 1. OpenStreetMap: Bicycling and SRTS Josh Doe <josh@joshdoe.com> Given to Fairfax Advocates for Better Bicycling   August 17, 2011
  2. 2. Outline <ul><ul><li>What is OpenStreetMap (OSM)? </li></ul></ul><ul><ul><li>What can be done with OSM </li></ul></ul><ul><ul><li>OSM data model </li></ul></ul><ul><ul><li>How to map </li></ul></ul><ul><ul><li>Safe Routes to School (SRTS) Mapping Toolkit </li></ul></ul>
  3. 3. What is OpenStreetMap? <ul><ul><li>Community driven project to map the world </li></ul></ul><ul><ul><li>Anyone can contribute, like Wikipedia </li></ul></ul><ul><ul><ul><li>History is kept: vandalism can be undone </li></ul></ul></ul><ul><ul><li>Collaboratively determined mapping conventions </li></ul></ul><ul><ul><li>Data is freely available for anyone to use </li></ul></ul>
  4. 4. What can be done with OSM data? <ul><ul><li>Online maps </li></ul></ul><ul><ul><li>Mobile apps </li></ul></ul><ul><ul><li>Routing/navigation </li></ul></ul><ul><ul><li>Analysis </li></ul></ul>
  5. 5. OpenStreetMap.org
  6. 6. Open.MapQuest.com
  7. 7. Paper Maps
  8. 8. Routing © 2011 CloudMade - Map data CCBYSA 2011 OpenStreetMap.org contributors
  9. 9. Analysis Sidewalks and roads maintained by my subdivision
  10. 10. Elevation Profile Web Service
  11. 11. Ride the City.com <ul><ul><li>Uses own database of trails for routing, OSM for map </li></ul></ul><ul><ul><li>Planning switch to OSM for routing </li></ul></ul><ul><ul><ul><li>Test server setup for Baltimore-Washington metro area </li></ul></ul></ul>
  12. 12. OpenTripPlanner.com <ul><ul><li>Multi-modal trip planner (walking, biking, transit) </li></ul></ul>
  13. 13. Humanitarian Relief <ul><ul><li>Dedicated Humanitarian OpenStreetMap team </li></ul></ul><ul><ul><ul><li>Humanitarian Response & Economic Development </li></ul></ul></ul><ul><ul><li>Haiti, Sendai, Libya, and many others </li></ul></ul><ul><ul><li>Used by Fairfax County Urban Search & Rescue Team (VA-TF1) during Haiti response </li></ul></ul>CC BY-NC-SA 2.0 Erica 'junipermarie' http://flic.kr/p/7f9a9y Courtesy VA-TF1 member
  14. 14. OSM Data Model <ul><ul><li>Three feature types: </li></ul></ul><ul><ul><ul><li>Nodes (points, vertices) </li></ul></ul></ul><ul><ul><ul><li>Ways (edges, lines) </li></ul></ul></ul><ul><ul><ul><li>Relations </li></ul></ul></ul><ul><ul><li>Areas as closed ways, or multipolygons with relations </li></ul></ul><ul><ul><li>Tags (attributes) open ended </li></ul></ul><ul><ul><ul><li>Key-value system, string based </li></ul></ul></ul><ul><ul><ul><li>e.g. name=Patrick Henry Library,amenity=library </li></ul></ul></ul><ul><ul><li>  Topological </li></ul></ul><ul><ul><ul><li>Ways connect with common node </li></ul></ul></ul><ul><ul><li>Features have unique internal id + version number </li></ul></ul>
  15. 15. On-the-ground Surveying <ul><li>Photo CC-BY-SA Gordon Joly http://flic.kr/p/4KPZ8B </li></ul>
  16. 16. Walking Papers.org <ul><ul><li>Print, survey & annotate, scan, edit </li></ul></ul>
  17. 17. Aerial Imagery VBMP 2007 (6-inch) <ul><ul><li>Microsoft Bing imagery (global), federal/state/local imagery </li></ul></ul>
  18. 18. Potlatch2 - online editor
  19. 19. JOSM - Java editor
  20. 20. <ul><ul><li>MapDust - error reporting </li></ul></ul><ul><ul><ul><li>Embed on any website </li></ul></ul></ul><ul><ul><li>JOSM validator </li></ul></ul><ul><ul><ul><li>Checks before uploading </li></ul></ul></ul><ul><ul><li>OSM Watch List </li></ul></ul><ul><ul><ul><li>Reports of changes in an area </li></ul></ul></ul><ul><ul><li>KeepRight </li></ul></ul><ul><ul><ul><li>Automatic error detection </li></ul></ul></ul><ul><ul><li>Many other specialized tools </li></ul></ul>Quality Assurance
  21. 21. Safe Routes to School <ul><ul><li>US federal program to: </li></ul></ul><ul><ul><ul><li>Promote walking and biking to school </li></ul></ul></ul><ul><ul><ul><li>Provide funding for improvement of infrastructure </li></ul></ul></ul><ul><ul><li>Maps are a critical component of SRTS application </li></ul></ul><ul><ul><li>No standard method to produce maps </li></ul></ul>
  22. 22. Safe Routes to School Mapping Toolkit <ul><ul><li>Just a concept! </li></ul></ul><ul><ul><li>Automatic creation of maps for SRTS applications </li></ul></ul><ul><ul><ul><li>No GIS skills needed </li></ul></ul></ul><ul><ul><ul><li>Near-professional quality, standardized maps </li></ul></ul></ul><ul><ul><li>OSM-based </li></ul></ul><ul><ul><ul><li>Community can map infrastructure </li></ul></ul></ul><ul><ul><ul><li>Benefits other data users (routing, printed maps, etc.) </li></ul></ul></ul><ul><ul><ul><li>Toolkit can be used across the country </li></ul></ul></ul><ul><ul><li>Map types </li></ul></ul><ul><ul><ul><li>Current and planned infrastructure </li></ul></ul></ul><ul><ul><ul><li>Walkability analysis (distance maps) </li></ul></ul></ul><ul><ul><ul><ul><li>% improvement in access </li></ul></ul></ul></ul><ul><ul><li>http://wiki.openstreetmap.org/wiki/Safe_Routes_to_School_Mapping_Toolkit </li></ul></ul>
  23. 23. Walkability Example <ul><ul><li>Terra Centre Elementary School </li></ul></ul><ul><ul><ul><li>New sidewalk being built </li></ul></ul></ul><ul><ul><ul><li>Already mapped trails and sidewalks </li></ul></ul></ul><ul><ul><ul><li>Determine walkability before and after construction </li></ul></ul></ul><ul><ul><li>Assumptions: </li></ul></ul><ul><ul><ul><li>1 mile walking distance (show 1/4 mile increments) </li></ul></ul></ul><ul><ul><ul><li>Unsafe to walk along secondary roads and above </li></ul></ul></ul><ul><ul><ul><li>Unsafe to cross secondary and above without crossing </li></ul></ul></ul><ul><ul><li>  Could add more criteria </li></ul></ul><ul><ul><ul><li>Elevation, curb cuts (wheelchair accessibility) </li></ul></ul></ul>
  24. 24. Walkability before new sidewalk Attendance boundary in green
  25. 25. Walkability after new sidewalk Attendance boundary in green
  26. 26. Notes <ul><ul><li>This presentation is licensed CC-BY-SA </li></ul></ul><ul><ul><li>Some slides CC-BY-SA Harry Wood http://goo.gl/iHYN9 </li></ul></ul><ul><li>  </li></ul><ul><ul><li>Some links: </li></ul></ul><ul><ul><li>http://www.openstreetmap.org </li></ul></ul><ul><ul><li>http://www.open.mapquest.com </li></ul></ul><ul><ul><li>http://open.mapquest.com/ </li></ul></ul><ul><ul><li>http://wiki.openstreetmap.org/wiki/Safe_Routes_to_School_Mapping_Toolkit </li></ul></ul><ul><ul><li>&quot;OpenStreetMap: Data Model, Crowdsourcing, and Technology&quot;, http://www.applied-geoinformatics.org/index.php/agse/agse2010/paper/view/181/115 </li></ul></ul>
