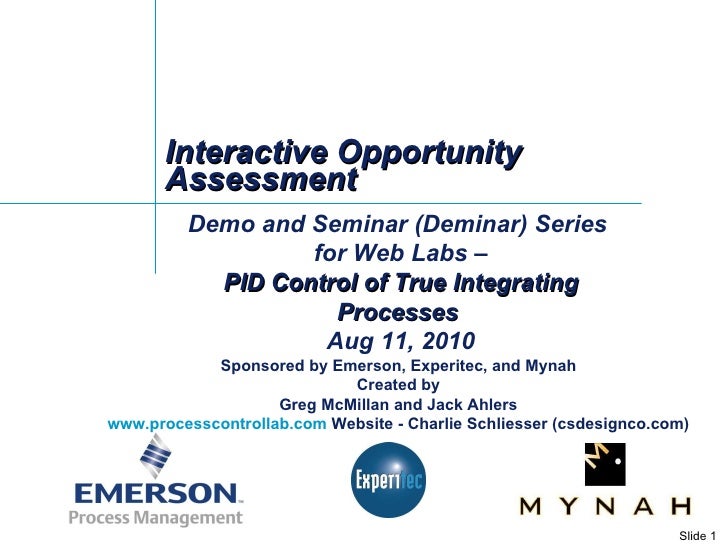

Interactive Opportunity Assessment Demo and Seminar (Deminar) Series  for Web Labs – PID Control of True Integrating Proce...
Welcome <ul><li>Gregory K. McMillan  </li></ul><ul><ul><li>Greg is a retired Senior Fellow from Solutia/Monsanto and an IS...
Top Ten Reasons to Elect a Control Engineer as a President   <ul><li>(10) Completely automated and remotely controlled com...
Top Ten Reasons to Elect a Control Engineer as a President   <ul><li>( 1)  A computer in every pocket </li></ul>
Demos of Control Loop Opportunities to Reduce Fed-Batch and Startup Time <ul><li>PID on Error Structure </li></ul><ul><ul>...
Demos of Control Loop Opportunities to Reduce Fed-Batch and Startup Time <ul><li>Full Throttle (Bang-Bang Control)  - The ...
Integrating Response Time (seconds)  o K i  =  { [ CV 2    t 2  ]   CV 1    t 1  ] }   CO  CO ramp rate is ...
Loop Block Diagram  p1  p2  p2 K pv  p1  c1  m2  m2  m1  m1 K cv  c  c2 Valve Process Controller Measurement K ...
<ul><li> CV    change in controlled variable (%) </li></ul><ul><li> CO    change in controller output (%) </li></ul><u...
PID Structure ER is external reset (e.g. secondary PV) Dynamic Reset Limit   SP   proportional derivative  Gain   ...
PID Structure Choices <ul><li>PID action on error (  = 1 and    = 1) </li></ul><ul><li>PI action on error, D action on ...
Contribution of Each PID Mode  (Step Change in the Set Point)  CO 2  =   CO 1  SP seconds/repeat  CO 1 Time (seconds) ...
Lambda Tuning for  Integrating Processes Integrating Process Gain: Controller Gain: Controller Integral (Reset) Time: Lamb...
Primary and secondary K p    secondary   p    primary   p    total  o    K i    K p   ...
Demo of Effect of PID Structure 3 on Setpoint Response <ul><li>Objective  – Show slow setpoint response from just integral...
Other Control Loop Opportunities to Reduce Fed-Batch and Startup Time <ul><li>Output Lead-Lag   </li></ul><ul><ul><li>A le...
Other Control Loop Opportunities to Reduce Fed-Batch and Startup Time <ul><li>Feed Maximization </li></ul><ul><ul><li>Mode...
Example of Advanced Regulatory Control (reduced batch cycle time by 25%) 08/11/10 feed A feed B coolant makeup CAS ratio C...
Sequence Opportunities  to Reduce Pure-Batch and Startup Time <ul><li>Reduce wait times, operator attention requests, and ...
Demo of Effect of PID Structure 1 on Setpoint Response <ul><li>Objective  – Show faster setpoint response from addition of...
Identified Responses for  Batch Profile Control
Model Predictive Control (MPC) of  Growth Rate and Product Formation Rate Product Formation Rate Biomass Growth rate Subst...
Demo of Effect of SP Feedforward on Setpoint Response <ul><li>Objective  – Show how reduce batch cycle time by use of setp...
Model Predictive Control (MPC)  Reduces Batch Cycle Time Batch Basic Fed-Batch APC Fed-Batch Batch Inoculation Inoculation...
Model Predictive Control (MPC)  Improves Batch Predictions Current Product  Yield (AY6-10D) Current Batch  Time (AY6-10A) ...
Demo of Effect of Bang-Bang Control on Setpoint Response <ul><li>Objective  – Show how to reduce batch and startup time by...
Structure 3 Rise Time = 8.5 min Settling Time = 8.5 min Overshoot = 0% Structure 1 Rise Time = 1.6 min Settling Time = 7.5...
Help Us Improve These Deminars! WouldYouRecommend.Us/105679s21/
Join Us Aug 25, Wednesday  10:00 am  CDT <ul><li>PID Control of Runaway Processes  (How to Improve the Performance of Exot...
QUESTIONS?
