Basic concepts of value chain analysis forsheep and goat value chains development                in Ethiopia              ...

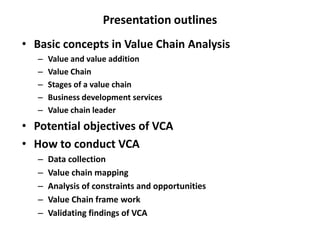

Presentation outlines• Basic concepts in Value Chain Analysis   –   Value and value addition   –   Value Chain   –   Stage...

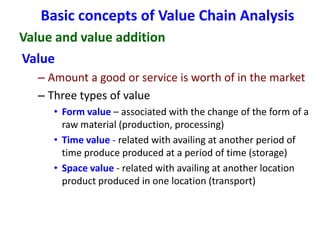

Basic concepts of Value Chain AnalysisValue and value additionValue   – Amount a good or service is worth of in the market...
What is a Value Chain (1)• VC encompass the full range of activities and  services required to bring a product or  service...

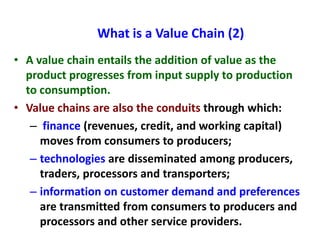

What is a Value Chain (2)• A value chain entails the addition of value as the  product progresses from input supply to pro...

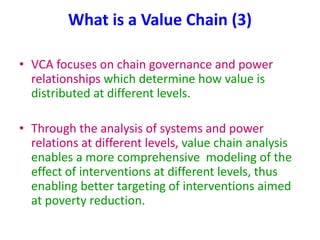

What is a Value Chain (3)• VCA focuses on chain governance and power  relationships which determine how value is  distribu...

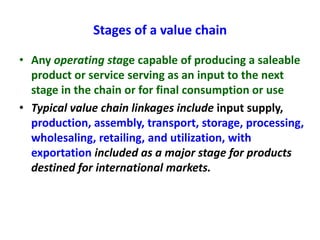

Stages of a value chain• Any operating stage capable of producing a saleable  product or service serving as an input to th...

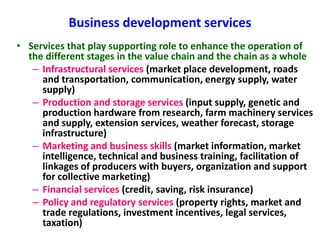

Business development services• Services that play supporting role to enhance the operation of  the different stages in the...

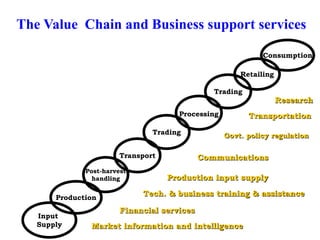

The Value Chain and Business support services                                                             Consumption     ...

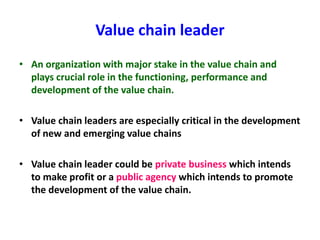

Value chain leader• An organization with major stake in the value chain and  plays crucial role in the functioning, perfor...

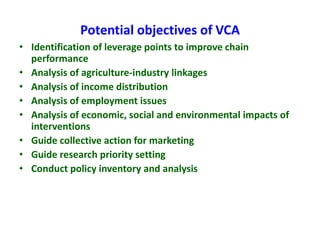

Potential objectives of VCA• Identification of leverage points to improve chain  performance• Analysis of agriculture-indu...

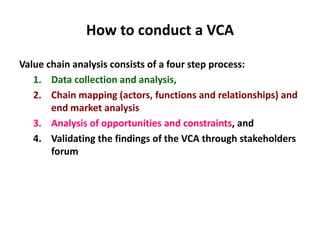

How to conduct a VCAValue chain analysis consists of a four step process:   1. Data collection and analysis,   2. Chain ma...

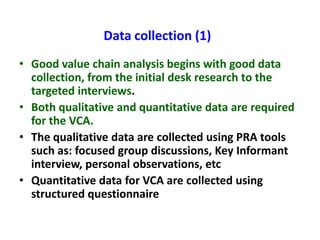

Data collection (1)• Good value chain analysis begins with good data  collection, from the initial desk research to the  t...

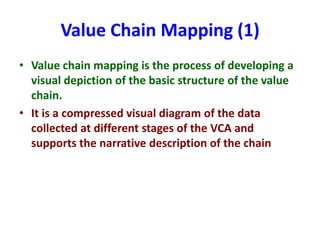

Value Chain Mapping (1)• Value chain mapping is the process of developing a  visual depiction of the basic structure of th...

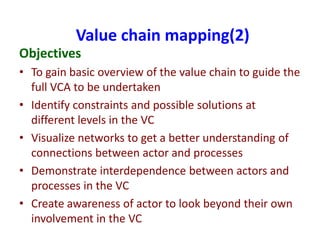

Value chain mapping(2)Objectives• To gain basic overview of the value chain to guide the  full VCA to be undertaken• Ident...

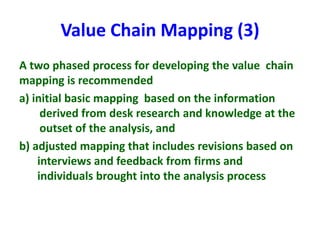

Value Chain Mapping (3)A two phased process for developing the value chainmapping is recommendeda) initial basic mapping b...
value chain mapping (4)• There is no such a thing as a comprehensive, all  encompassing VC map• There are many potential d...

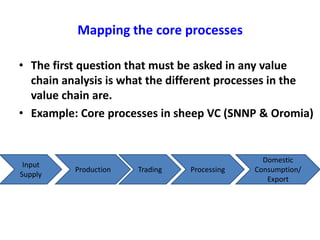

Mapping the core processes• The first question that must be asked in any value  chain analysis is what the different proce...

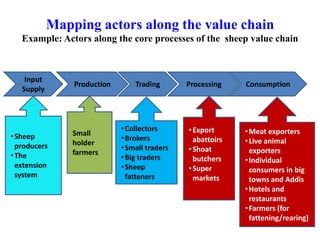

Mapping actors along the value chain   Example: Actors along the core processes of the sheep value chain    Input         ...

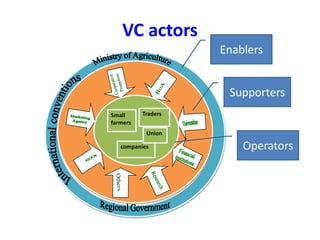

VC actors                    Enablers                     SupportersSmall     Tradersfarmers           Union   companies  ...

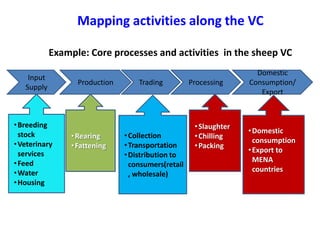

Mapping activities along the VC            Example: Core processes and activities in the sheep VC                         ...
Mapping product flows             Example: Sheep value chain functions, actors, and product flows                         ...
Mapping Volume of product flowsExample: Product Supply Pattern in the Shoat Value Chain (Borena)                          ...

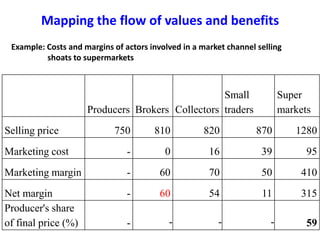

Mapping the flow of values and benefits Example: Costs and margins of actors involved in a market channel selling         ...

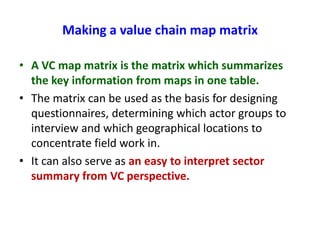

Making a value chain map matrix• A VC map matrix is the matrix which summarizes  the key information from maps in one tabl...

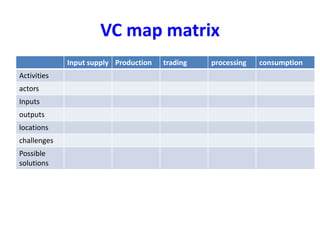

VC map matrix             Input supply Production   trading   processing   consumptionActivitiesactorsInputsoutputslocatio...

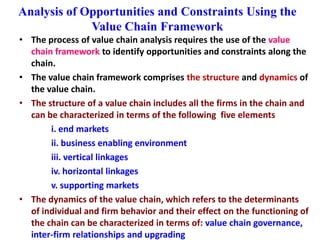

Analysis of Opportunities and Constraints Using the             Value Chain Framework• The process of value chain analysis...

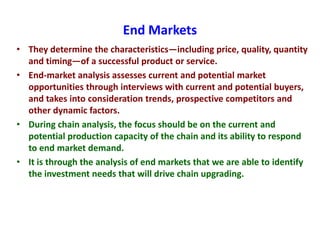

End Markets• They determine the characteristics—including price, quality, quantity  and timing—of a successful product or ...

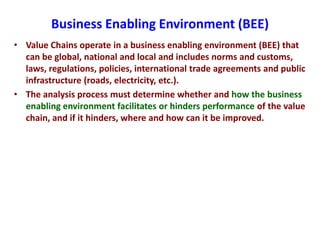

Business Enabling Environment (BEE)• Value Chains operate in a business enabling environment (BEE) that  can be global, na...

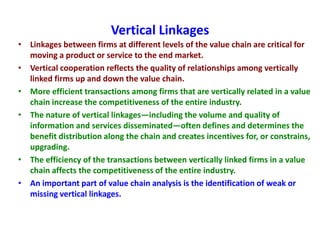

Vertical Linkages• Linkages between firms at different levels of the value chain are critical for  moving a product or ser...

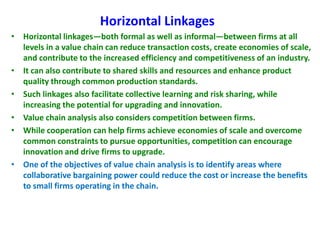

Horizontal Linkages• Horizontal linkages—both formal as well as informal—between firms at all  levels in a value chain can...
Supporting Markets• Support markets include financial services; cross-cutting services such as  business consulting, legal...

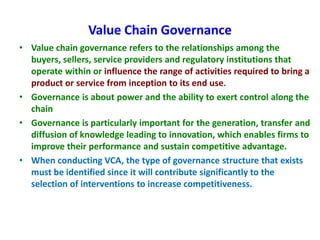

Value Chain Governance• Value chain governance refers to the relationships among the  buyers, sellers, service providers a...

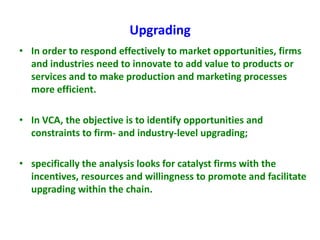

Upgrading• In order to respond effectively to market opportunities, firms  and industries need to innovate to add value to...

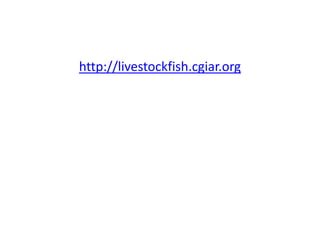

http://livestockfish.cgiar.org
