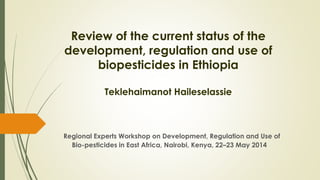

Review of the current status of the
development, regulation and use of
biopesticides in Ethiopia
Teklehaimanot Haileselass...

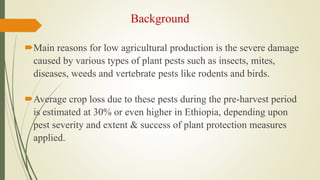

Background
Main reasons for low agricultural production is the severe damage
caused by various types of plant pests such ...

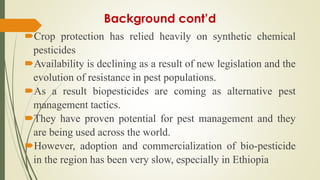

Background cont’d
Crop protection has relied heavily on synthetic chemical
pesticides
Availability is declining as a res...

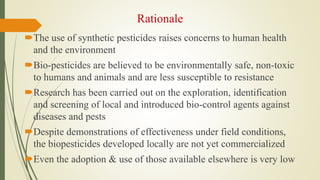

Rationale
The use of synthetic pesticides raises concerns to human health
and the environment
Bio-pesticides are believe...

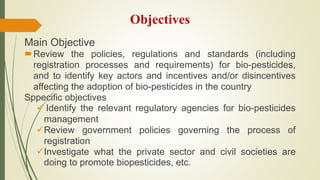

Objectives
Main Objective
Review the policies, regulations and standards (including
registration processes and requiremen...
Methods
Literature Review on General issues related to biopesticides
Review of the Pesticide Registration and Control
Pr...

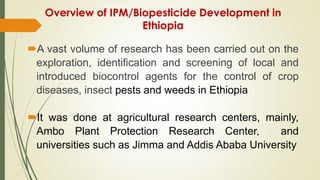

Overview of IPM/Biopesticide Development in
Ethiopia
A vast volume of research has been carried out on the
exploration, i...

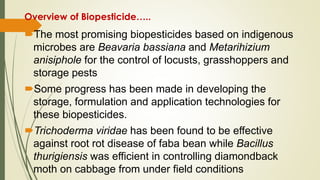

Overview of Biopesticide…..
The most promising biopesticides based on indigenous
microbes are Beavaria bassiana and Metar...

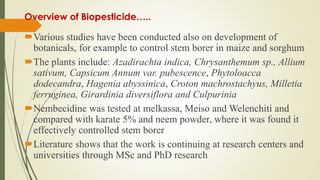

Overview of Biopesticide…..
Various studies have been conducted also on development of
botanicals, for example to control...

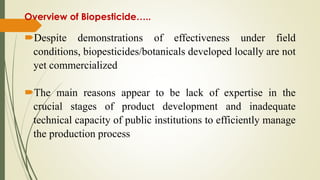

Overview of Biopesticide…..
Despite demonstrations of effectiveness under field
conditions, biopesticides/botanicals deve...

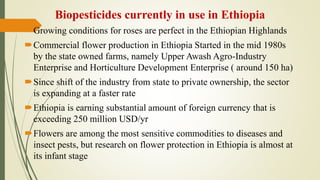

Biopesticides currently in use in Ethiopia
Growing conditions for roses are perfect in the Ethiopian Highlands
Commercia...

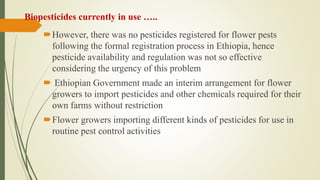

Biopesticides currently in use …..
However, there was no pesticides registered for flower pests
following the formal regi...

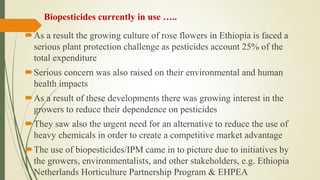

Biopesticides currently in use …..
As a result the growing culture of rose flowers in Ethiopia is faced a
serious plant p...

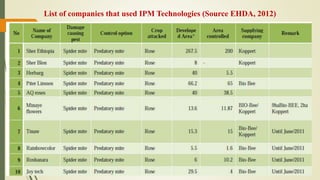

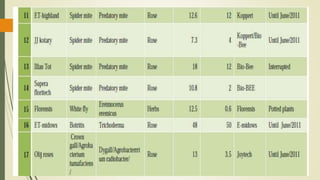

List of companies that used IPM Technologies (Source EHDA, 2012)

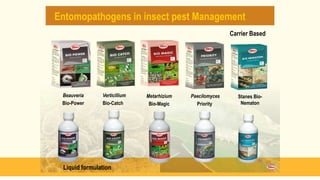

Beauveria
Bio-Power
Paecilomyces
Priority
Metarhizium
Bio-Magic
Verticillium
Bio-Catch
Stanes Bio-
Nematon
Liquid formulat...
Bio-Insecticides in Pest management
Stage of
Management
Product trade
Name
Active
ingredient
Nature Formulation
type
Use
P...

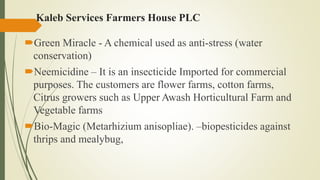

Kaleb Services Farmers House PLC
Green Miracle - A chemical used as anti-stress (water
conservation)
Neemicidine – It is...

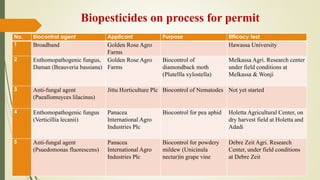

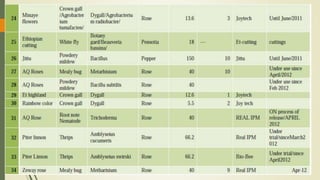

Biopesticides on process for permit
No. Biocontrol agent Applicant Purpose Efficacy test
1 Broadband Golden Rose Agro
Farm...

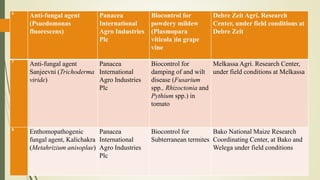

6
Anti-fungal agent
(Psuedomonas
fluorescens)
Panacea
International
Agro Industries
Plc
Biocontrol for
powdery mildew
(Pla...

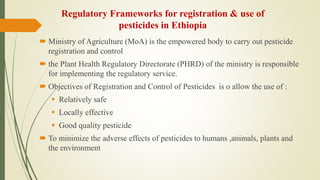

Regulatory Frameworks for registration & use of
pesticides in Ethiopia
 Ministry of Agriculture (MoA) is the empowered bo...

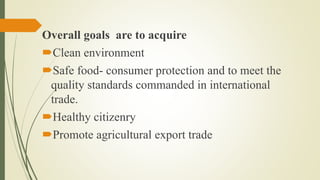

Overall goals are to acquire
Clean environment
Safe food- consumer protection and to meet the
quality standards commande...

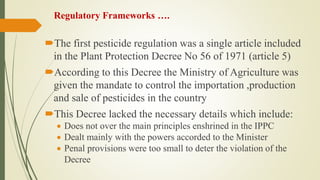

Regulatory Frameworks ….
The first pesticide regulation was a single article included
in the Plant Protection Decree No 5...

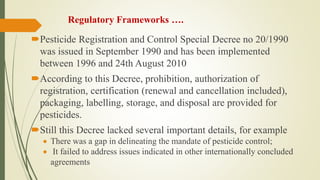

Regulatory Frameworks ….
Pesticide Registration and Control Special Decree no 20/1990
was issued in September 1990 and ha...

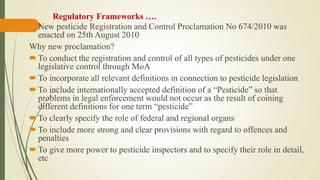

Regulatory Frameworks ….
New pesticide Registration and Control Proclamation No 674/2010 was
enacted on 25th August 2010
...

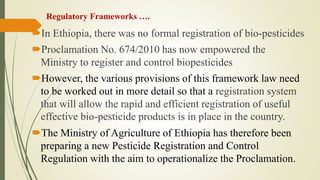

Regulatory Frameworks ….
In Ethiopia, there was no formal registration of bio-pesticides
Proclamation No. 674/2010 has n...
Regulatory Frameworks ….

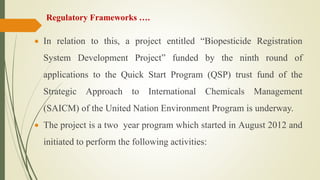

 In relation to this, a project entitled “Biopesticide Registration
System Development Project” ...
Regulatory Frameworks ….

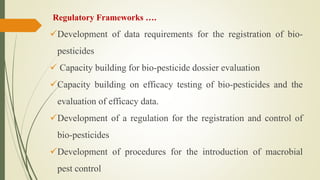

Development of data requirements for the registration of bio-
pesticides
 Capacity building for...

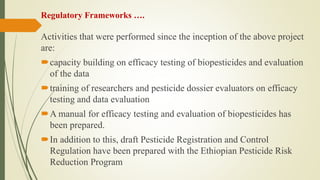

Regulatory Frameworks ….
Activities that were performed since the inception of the above project
are:
capacity building o...

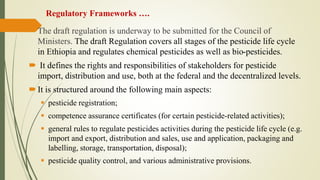

Regulatory Frameworks ….
The draft regulation is underway to be submitted for the Council of
Ministers. The draft Regulat...
Regulatory Frameworks ….
Yet Preparation of directives and guidelines in not done
Some of the directives and guidelines ...

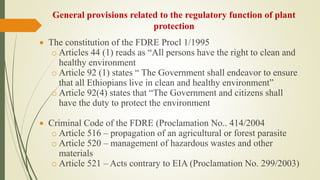

General provisions related to the regulatory function of plant
protection
 The constitution of the FDRE Procl 1/1995
o Ar...

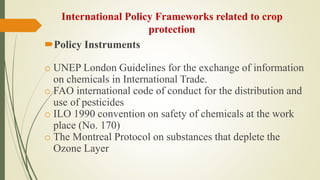

International Policy Frameworks related to crop
protection
Policy Instruments
o UNEP London Guidelines for the exchange o...

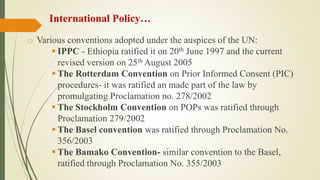

International Policy…
o Various conventions adopted under the auspices of the UN:
 IPPC - Ethiopia ratified it on 20th Ju...

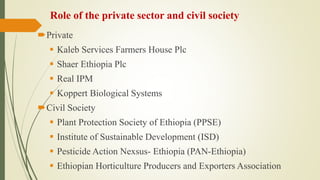

Role of the private sector and civil society
Private
 Kaleb Services Farmers House Plc
 Shaer Ethiopia Plc
 Real IPM
...

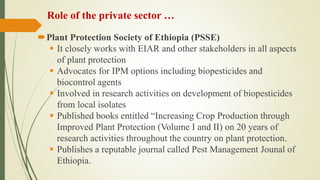

Role of the private sector …
Plant Protection Society of Ethiopia (PSSE)
 It closely works with EIAR and other stakehold...
Role of the private sector …

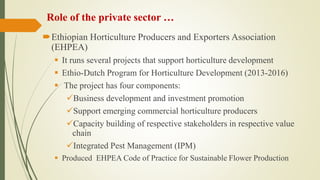

Ethiopian Horticulture Producers and Exporters Association
(EHPEA)
 It runs several project...

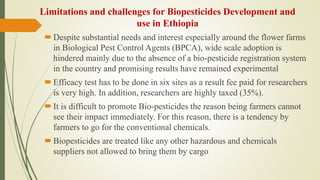

Limitations and challenges for Biopesticides Development and
use in Ethiopia
Despite substantial needs and interest espec...

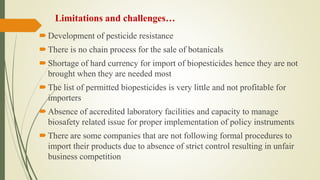

Limitations and challenges…
Development of pesticide resistance
There is no chain process for the sale of botanicals
Sh...

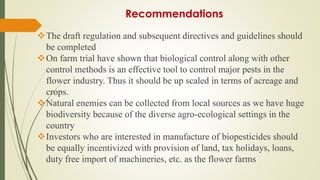

Recommendations
The draft regulation and subsequent directives and guidelines should
be completed
On farm trial have sho...

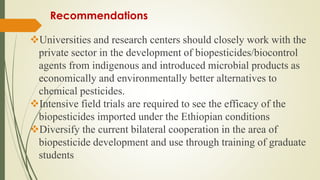

Recommendations
Universities and research centers should closely work with the
private sector in the development of biope...
