Eclipse Labs              for Improving             DSL Development              AtlanMod Team               (Hugo Bruneli...
AtlandMod: an Expert Research Team           in MDE/Modeling  A common team between INRIA, Ecole                 Applicat...
Developing DSLs…29/06/2012     © AtlanMod - atlanmod-contact@mines-nantes.fr   3
Developing DSLs… Domain-Specific Language  – Abstract syntax: metamodel  – Concrete syntax(es): textual or graphical  – S...
Eclipse Labs prototypes…29/06/2012         © AtlanMod - atlanmod-contact@mines-nantes.fr   5
Collaboro: Enabling the collaborative                definition of DSLs Goal  Make the DSL development process more  coll...
Collaboro: Enabling the collaborative               definition of DSLs Collaboration in DSL development… 29/06/2012      ...
Collaboro: Enabling the collaborative             definition of DSLs Click here for accessing the demo…
EMFtoCSP: automatically verifying               EMF/UML/OCL models Goal  Verification of EMF static models and UML Class ...
EMFtoCSP: automatically verifying              EMF/UML/OCL models Automated verification of metamodel… EMF Models        ...
EMFtoCSP: automatically verifying         EMF/UML/OCL models Click here for accessing the demo…
Virtual EMF: transparently composing,         weaving or linking models Goal  Scalable and transparent generation of mode...
Virtual EMF: transparently composing,        weaving or linking models Transparent linking between different  models…    ...
Virtual EMF: transparently composing,        weaving or linking models Click here for accessing the demo…
Thanks for your attention! Useful links   – Collaboro           http://code.google.com/a/eclipselabs.org/p/collaboro/   ...
Upcoming SlideShare
Loading in...5
×

Eclipse Labs for Improving DSL Development - Eclipse DemoCamp Juno 2012 in Nantes

1,402
-1

Published on

Published in: Technology, Sports
0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
1,402
On Slideshare
0
From Embeds
0
Number of Embeds
1
Actions
Shares
0
Downloads
9
Comments
0
Likes
1
Embeds 0
No embeds

No notes for slide
  • Non-invasive model composition and synchronisation “ a virtual model is a model whose (virtual) model elements are proxies to elements contained in other models”
  • Eclipse Labs for Improving DSL Development - Eclipse DemoCamp Juno 2012 in Nantes

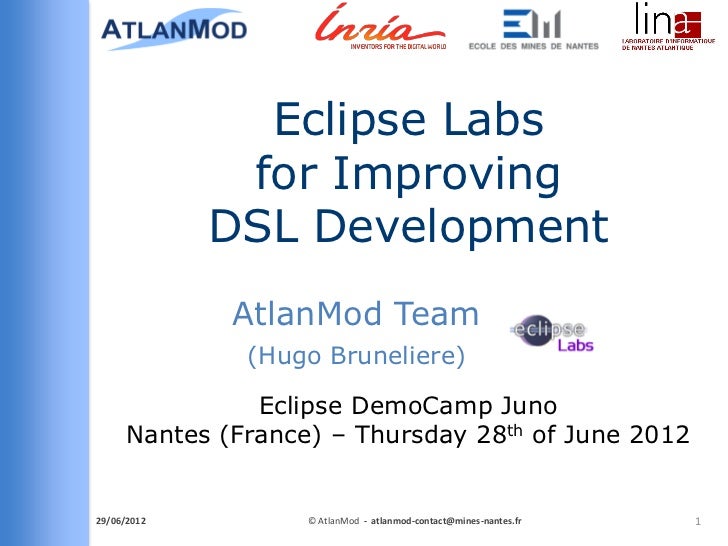

    1. 1. Eclipse Labs for Improving DSL Development AtlanMod Team (Hugo Bruneliere) Eclipse DemoCamp Juno Nantes (France) – Thursday 28th of June 201229/06/2012 © AtlanMod - atlanmod-contact@mines-nantes.fr 1
