0
© Hortonworks Inc. 2013
ETL 2.0
Reference Architecture
Page 1
George Vetticaden - Hortonworks: Solutions Engineer
George T...
© Hortonworks Inc. 2013
George Vetticaden
•  Solutions Engineer – Big Data at Hortonworks
•  Chief Architect and Co-Founde...
© Hortonworks Inc. 2013
George Trujillo
•  Master Principal Big Data Specialist - Hortonworks
•  Tier One BigData, Oracle ...
© Hortonworks Inc. 2013
Challenges with a Traditional ETL Platform
Page 4
Incapable/high
complexity when
dealing with loos...
© Hortonworks Inc. 2013
Hadoop Based ETL Platform
Page 5
-Support for any type
of data: structured/
unstructured
-Linearly...
© Hortonworks Inc. 2013
Key Capability in Hadoop: Late binding
Page 6
DATA


SERVICES

OPERATIONAL

SERVICES
...
© Hortonworks Inc. 2013
Organize Tiers and Process with Metadata
Page 7
Work
Tier
Standardize, Cleanse, Transform
MapReduc...
© Hortonworks Inc. 2013
ETL Reference Architecture
Page 8
Model/
Apply Metadata
Extract &
Load
Publish
Exchange
Explore
Vi...
© Hortonworks Inc. 2012: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION
ETL Reference Architect...
HCatalog
© Hortonworks Inc. 2013
HCatalog
Table access
Aligned metadata
REST API
•  Raw Hadoop data
•  Inconsistent, unknown
•  Too...
© Hortonworks Inc. 2013

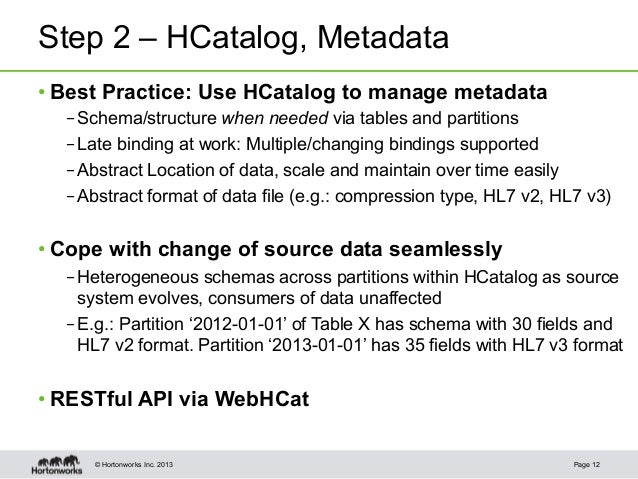

• Best Practice: Use HCatalog to manage metadata
– Schema/structure when needed via tables and par...
© Hortonworks Inc. 2013

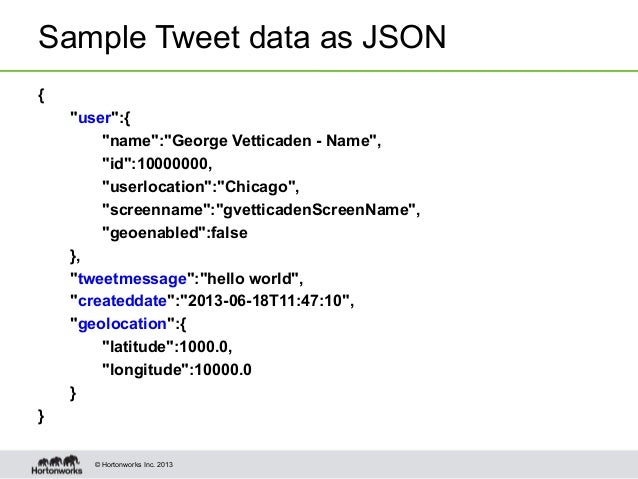

Sample Tweet data as JSON
{
"user":{
"name":"George Vetticaden - Name",
"id":10000000,
"userlocati...
© Hortonworks Inc. 2013
Hive/HCat Schema for the Twitter Data
create external table tweet (
user struct <
userlocation:str...
© Hortonworks Inc. 2013
Pig Example
Page 15
Count how many time users tweeted an url:
raw = load '/user/kibana/twitter/lan...
© Hortonworks Inc. 2012: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION
ETL Reference Architect...
© Hortonworks Inc. 2013
Step 3&4 – Transform, Aggregate, Explore
• MapReduce
– For Programmers
– When control matters
• Hi...
Common Processing Patterns
© Hortonworks Inc. 2013
Common ETL Processing Patterns
• Long-term data retention
• Staging for Data Exploration
• Data Cl...
© Hortonworks Inc. 2013

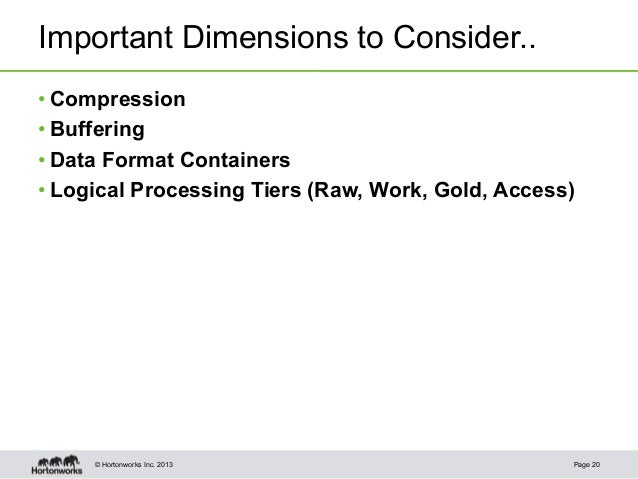

Important Dimensions to Consider..
• Compression
• Buffering
• Data Format Containers
• Logical Pr...
© Hortonworks Inc. 2013
Compression in Hadoop is Important
•  Biggest performance bottleneck in Hadoop: Read/Write IO
•  C...
© Hortonworks Inc. 2013

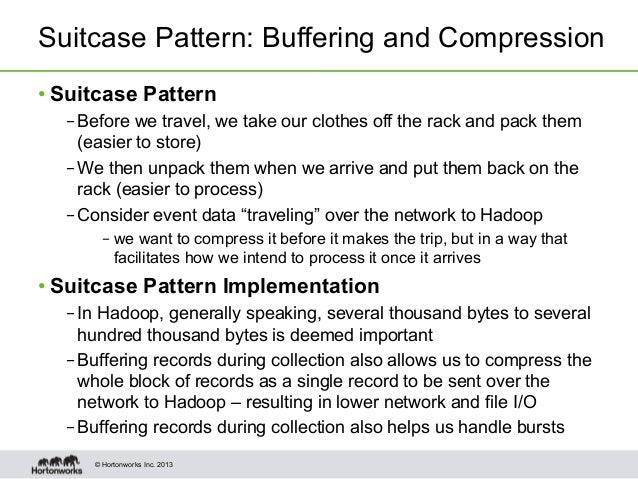

Suitcase Pattern: Buffering and Compression
• Suitcase Pattern
– Before we travel, we take our clo...
© Hortonworks Inc. 2013
Time Series: The Key to MapReduce
• Event data has a natural temporal ordering
– Observations clos...
© Hortonworks Inc. 2013
Different Data Format Containers
Page 24
Data Format Description Key Advantages
Sequence File Pers...
© Hortonworks Inc. 2013
Best Practices for Processing Patterns
Page 25
Processing
Pattern
Tier
Path
Data
Format
Compres
si...
© Hortonworks Inc. 2013
The Question that You are dying to Ask..
What Tooling do I have to do orchestrate
these ETL flows?...
© Hortonworks Inc. 2013
Falcon: One-stop Shop for Data Lifecycle
Apache Falcon
Provides Orchestrates
Data Management Needs...
© Hortonworks Inc. 2013
Falcon Usage At A Glance.
>  Falcon provides the key services data processing applications need.
>...
© Hortonworks Inc. 2013
Falcon Example: Multi-Cluster Failover
>  Falcon manages workflow, replication or both.
>  Enables...
© Hortonworks Inc. 2013
Example – Data Lifecycle Management
• User creates entities using DSL
– Cluster for Primary, Clust...
© Hortonworks Inc. 2013
Thanks/Questions…
Page 31
Upcoming SlideShare
Loading in...5
×

A Reference Architecture for ETL 2.0

10,625

Published on

More and more organizations are moving their ETL workloads to a Hadoop based ELT grid architecture. Hadoop`s inherit capabilities, especially it`s ability to do late binding addresses some of the key challenges with traditional ETL platforms. In this presentation, attendees will learn the key factors, considerations and lessons around ETL for Hadoop. Areas such as pros and cons for different extract and load strategies, best ways to batch data, buffering and compression considerations, leveraging HCatalog, data transformation, integration with existing data transformations, advantages of different ways of exchanging data and leveraging Hadoop as a data integration layer. This is an extremely popular presentation around ETL and Hadoop.

Published in: Technology

Transcript of "A Reference Architecture for ETL 2.0 "

  1. 1. © Hortonworks Inc. 2013 ETL 2.0 Reference Architecture Page 1 George Vetticaden - Hortonworks: Solutions Engineer George Trujillo - Hortonworks: Master Principal Big Data Specialist
  2. 2. © Hortonworks Inc. 2013 George Vetticaden •  Solutions Engineer – Big Data at Hortonworks •  Chief Architect and Co-Founder of eScreeningz §  Enterprise Architect vFabric Cloud App Platform – VMware §  Specialties: §  Big Data and Cloud Computing §  Hadoop §  Cloud Application Platforms (PAAS) – Cloud Foundry, Heroku §  Infrastructure as Service Platforms – vCloud Director, AWS §  Virtualization – vSphere, vCenter §  J2EE §  Hibernate, Spring §  ESB and Middleware Integration §  SOA Architecture
  3. 3. © Hortonworks Inc. 2013 George Trujillo •  Master Principal Big Data Specialist - Hortonworks •  Tier One BigData, Oracle and BCA Specialist - VMware •  20+ years Oracle DBA: DW, BI, RAC, Streams, Data Guard, Perf, B/R §  Oracle Double ACE §  Sun Microsystem's Ambassador for Application Middleware §  Oracle Fusion Council & Oracle Beta Leadership Council §  Two terms Independent Oracle Users Group Board of Directors §  Recognized as one of the “Oracles of Oracle” by IOUG §  MySQL Certified DBA §  VMware Certified Instructor (VCI) Sun Ambassador
  4. 4. © Hortonworks Inc. 2013 Challenges with a Traditional ETL Platform Page 4 Incapable/high complexity when dealing with loosely structured data Data discarded due to cost and/or performance -Lot of time spent understanding source and defining destination data structures -High latency between data generation and availability No visibility into transactional data -Doesn’t scale linearly. -License Costs High EDW used as an ETL tool with 100s of transient staging tables

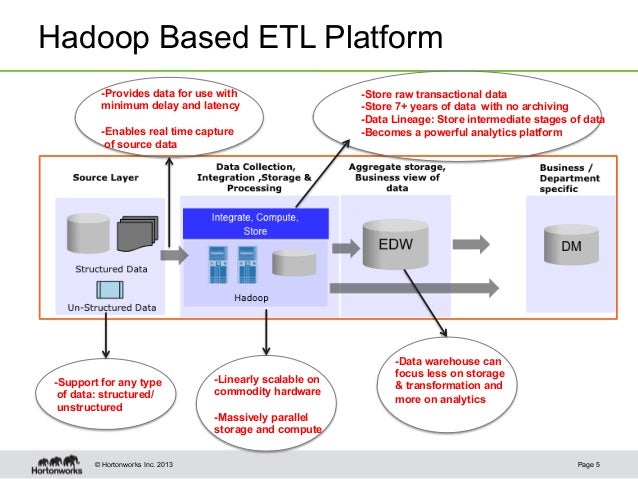

  5. 5. © Hortonworks Inc. 2013 Hadoop Based ETL Platform Page 5 -Support for any type of data: structured/ unstructured -Linearly scalable on commodity hardware -Massively parallel storage and compute -Store raw transactional data -Store 7+ years of data with no archiving -Data Lineage: Store intermediate stages of data -Becomes a powerful analytics platform -Provides data for use with minimum delay and latency -Enables real time capture of source data -Data warehouse can focus less on storage & transformation and more on analytics

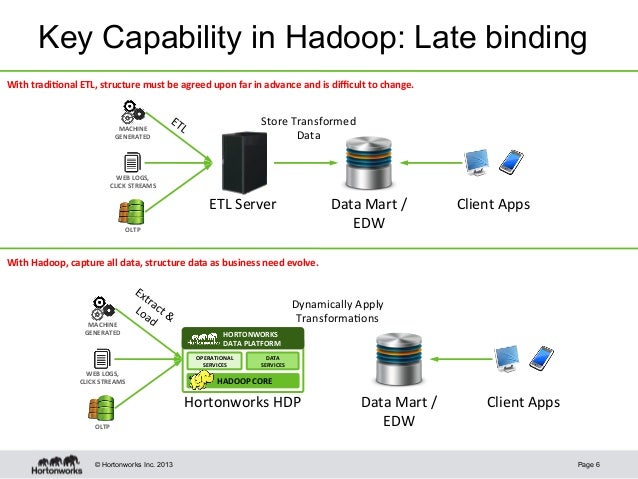

  6. 6. © Hortonworks Inc. 2013 Key Capability in Hadoop: Late binding Page 6 DATA     SERVICES   OPERATIONAL   SERVICES   HORTONWORKS     DATA  PLATFORM   HADOOP  CORE   WEB  LOGS,     CLICK  STREAMS   MACHINE   GENERATED   OLTP   Data  Mart  /   EDW   Client  Apps   Dynamically  Apply   Transforma8ons   Hortonworks  HDP   With  tradi=onal  ETL,  structure  must  be  agreed  upon  far  in  advance  and  is  difficult  to  change.   With  Hadoop,  capture  all  data,  structure  data  as  business  need  evolve.   WEB  LOGS,     CLICK  STREAMS   MACHINE   GENERATED   OLTP   ETL  Server   Data  Mart  /   EDW   Client  Apps   Store  Transformed   Data

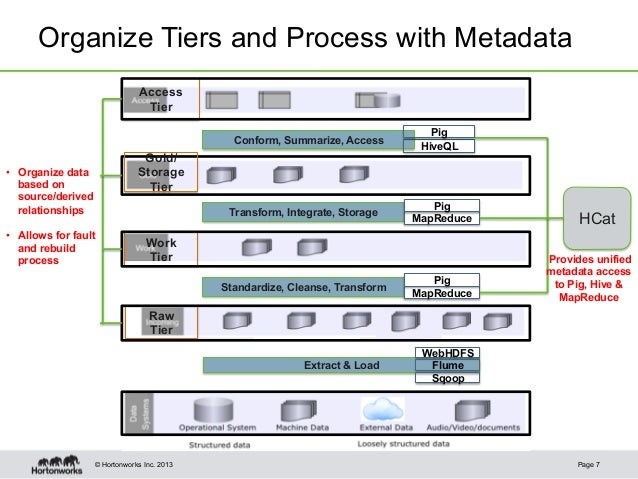

  7. 7. © Hortonworks Inc. 2013 Organize Tiers and Process with Metadata Page 7 Work Tier Standardize, Cleanse, Transform MapReduce Pig Raw Tier Extract & Load WebHDFS Flume Sqoop Gold/ Storage Tier Transform, Integrate, Storage MapReduce Pig Conform, Summarize, Access HiveQL Pig Access Tier HCat Provides unified metadata access to Pig, Hive & MapReduce •  Organize data based on source/derived relationships •  Allows for fault and rebuild process
  8. 8. © Hortonworks Inc. 2013 ETL Reference Architecture Page 8 Model/ Apply Metadata Extract & Load Publish Exchange Explore Visualize Report Analyze Publish Event Signal Data Transformation Transform & Aggregate
  9. 9. © Hortonworks Inc. 2012: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION ETL Reference Architecture Page 9 Organize/Model Create Metadata Extract & Load Publish Exchange Explore Visualize Report Analyze Publish Event Signal Data Transformation Transform & Aggregate
  10. 10. HCatalog

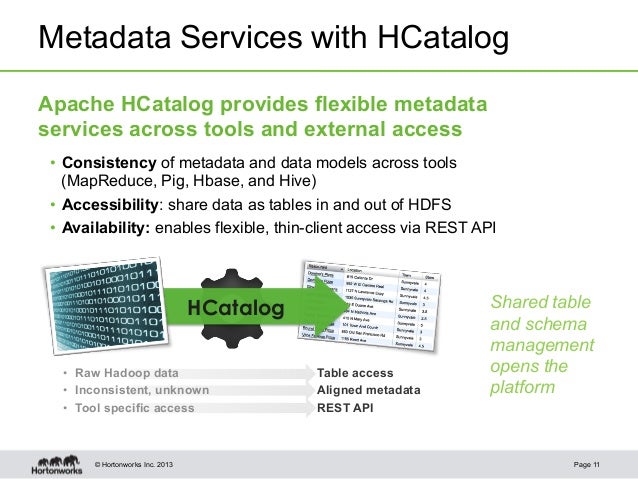

  11. 11. © Hortonworks Inc. 2013 HCatalog Table access Aligned metadata REST API •  Raw Hadoop data •  Inconsistent, unknown •  Tool specific access Apache HCatalog provides flexible metadata services across tools and external access Metadata Services with HCatalog •  Consistency of metadata and data models across tools (MapReduce, Pig, Hbase, and Hive) •  Accessibility: share data as tables in and out of HDFS •  Availability: enables flexible, thin-client access via REST API Shared table and schema management opens the platform Page 11
  12. 12. © Hortonworks Inc. 2013 • Best Practice: Use HCatalog to manage metadata – Schema/structure when needed via tables and partitions – Late binding at work: Multiple/changing bindings supported – Abstract Location of data, scale and maintain over time easily – Abstract format of data file (e.g.: compression type, HL7 v2, HL7 v3) • Cope with change of source data seamlessly – Heterogeneous schemas across partitions within HCatalog as source system evolves, consumers of data unaffected – E.g.: Partition ‘2012-01-01’ of Table X has schema with 30 fields and HL7 v2 format. Partition ‘2013-01-01’ has 35 fields with HL7 v3 format • RESTful API via WebHCat Page 12 Step 2 – HCatalog, Metadata
  13. 13. © Hortonworks Inc. 2013 Sample Tweet data as JSON { "user":{ "name":"George Vetticaden - Name", "id":10000000, "userlocation":"Chicago", "screenname":"gvetticadenScreenName", "geoenabled":false }, "tweetmessage":"hello world", "createddate":"2013-06-18T11:47:10", "geolocation":{ "latitude":1000.0, "longitude":10000.0 } }

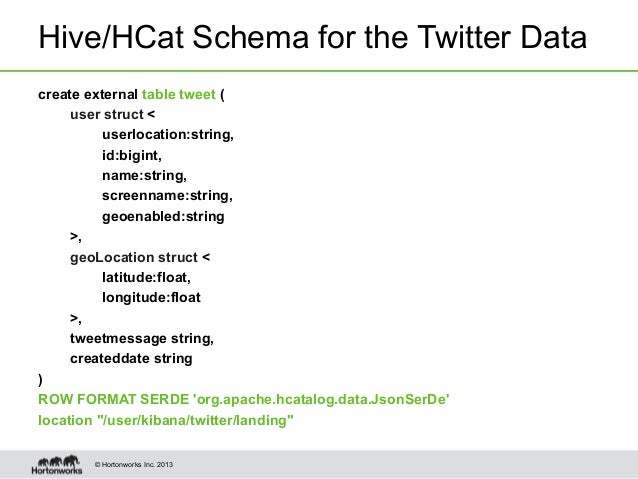

  14. 14. © Hortonworks Inc. 2013 Hive/HCat Schema for the Twitter Data create external table tweet ( user struct < userlocation:string, id:bigint, name:string, screenname:string, geoenabled:string >, geoLocation struct < latitude:float, longitude:float >, tweetmessage string, createddate string ) ROW FORMAT SERDE 'org.apache.hcatalog.data.JsonSerDe' location "/user/kibana/twitter/landing"
  15. 15. © Hortonworks Inc. 2013 Pig Example Page 15 Count how many time users tweeted an url: raw = load '/user/kibana/twitter/landing' as (user, tweetmessage); botless = filter raw by myudfs.NotABot(user); grpd = group botless by (url, user); cntd = foreach grpd generate flatten(url, user), COUNT(botless); store cntd into '/data/counted/20120530'; Using HCatalog: raw = load ’tweet' using HCatLoader(); botless = filter raw by myudfs.NotABot(user) and ds == '20120530’; grpd = group botless by (url, user); cntd = foreach grpd generate flatten(url, user), COUNT(botless); store cntd into 'counted' using HCatStorer(); No need to know file location No need to declare schema Partition filter

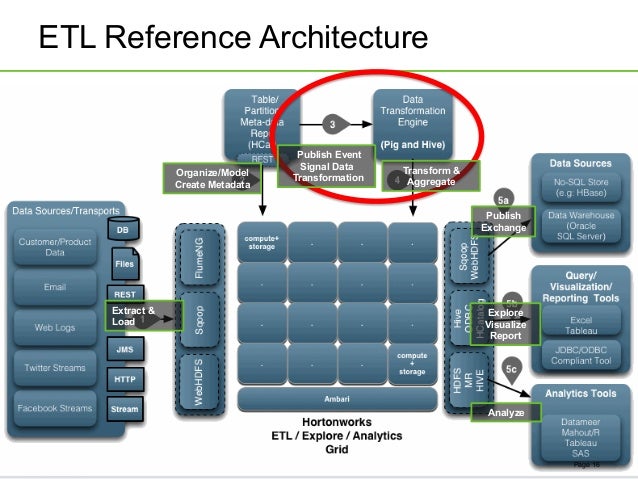

  16. 16. © Hortonworks Inc. 2012: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION ETL Reference Architecture Page 16 Organize/Model Create Metadata Extract & Load Publish Exchange Explore Visualize Report Analyze Publish Event Signal Data Transformation Transform & Aggregate

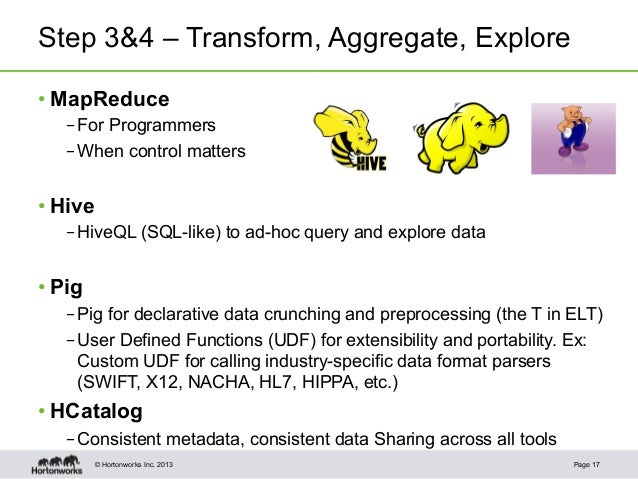

  17. 17. © Hortonworks Inc. 2013 Step 3&4 – Transform, Aggregate, Explore • MapReduce – For Programmers – When control matters • Hive – HiveQL (SQL-like) to ad-hoc query and explore data • Pig – Pig for declarative data crunching and preprocessing (the T in ELT) – User Defined Functions (UDF) for extensibility and portability. Ex: Custom UDF for calling industry-specific data format parsers (SWIFT, X12, NACHA, HL7, HIPPA, etc.) • HCatalog – Consistent metadata, consistent data Sharing across all tools Page 17
  18. 18. Common Processing Patterns
  19. 19. © Hortonworks Inc. 2013 Common ETL Processing Patterns • Long-term data retention • Staging for Data Exploration • Data Cleansing • Data Enrichment Page 19
  20. 20. © Hortonworks Inc. 2013 Important Dimensions to Consider.. • Compression • Buffering • Data Format Containers • Logical Processing Tiers (Raw, Work, Gold, Access) Page 20

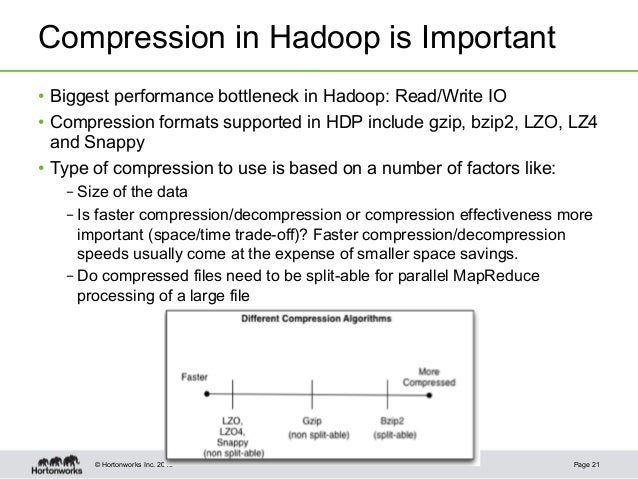

  21. 21. © Hortonworks Inc. 2013 Compression in Hadoop is Important •  Biggest performance bottleneck in Hadoop: Read/Write IO •  Compression formats supported in HDP include gzip, bzip2, LZO, LZ4 and Snappy •  Type of compression to use is based on a number of factors like: – Size of the data – Is faster compression/decompression or compression effectiveness more important (space/time trade-off)? Faster compression/decompression speeds usually come at the expense of smaller space savings. – Do compressed files need to be split-able for parallel MapReduce processing of a large file Page 21
  22. 22. © Hortonworks Inc. 2013 Suitcase Pattern: Buffering and Compression • Suitcase Pattern – Before we travel, we take our clothes off the rack and pack them (easier to store) – We then unpack them when we arrive and put them back on the rack (easier to process) – Consider event data “traveling” over the network to Hadoop – we want to compress it before it makes the trip, but in a way that facilitates how we intend to process it once it arrives • Suitcase Pattern Implementation – In Hadoop, generally speaking, several thousand bytes to several hundred thousand bytes is deemed important – Buffering records during collection also allows us to compress the whole block of records as a single record to be sent over the network to Hadoop – resulting in lower network and file I/O – Buffering records during collection also helps us handle bursts

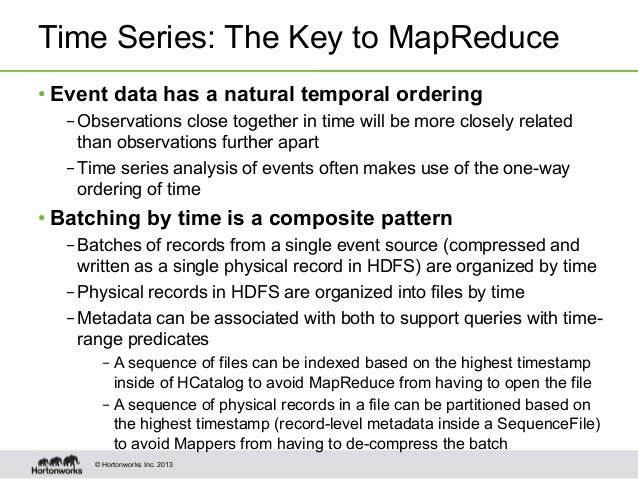

  23. 23. © Hortonworks Inc. 2013 Time Series: The Key to MapReduce • Event data has a natural temporal ordering – Observations close together in time will be more closely related than observations further apart – Time series analysis of events often makes use of the one-way ordering of time • Batching by time is a composite pattern – Batches of records from a single event source (compressed and written as a single physical record in HDFS) are organized by time – Physical records in HDFS are organized into files by time – Metadata can be associated with both to support queries with time- range predicates – A sequence of files can be indexed based on the highest timestamp inside of HCatalog to avoid MapReduce from having to open the file – A sequence of physical records in a file can be partitioned based on the highest timestamp (record-level metadata inside a SequenceFile) to avoid Mappers from having to de-compress the batch
  24. 24. © Hortonworks Inc. 2013 Different Data Format Containers Page 24 Data Format Description Key Advantages Sequence File Persistent data structure for binary key-value pairs. Row-oriented. This means that fields in each row are stored together as the contents of as single sequence-file record •  Split-able •  Compress-able at Block and Row Level •  Work well as contains for small files. HDFS and MapReduce are optimized for large files, so packing files into a Sequence file makes storing and processing the smaller files more efficient Avro File Similar to sequence files (split-able, compressible, row-oriented) except they have support schema evolution and binding in multiple language Schema stored in the file itself •  Split-able •  Compress-able at Block and Row Level •  Ideally suited for unstructured data sets with constantly changing attributes/schema RC File Similar to sequence and avro file but are column-oriented •  Provides faster access to subset of columns without doing a full table scan across all columns Optimized RC File Optimized RC Fileformat supporting sql like types and has more efficient serialization/ deserialization •  Provides faster access in Next Generation MR •  HIVE-3874

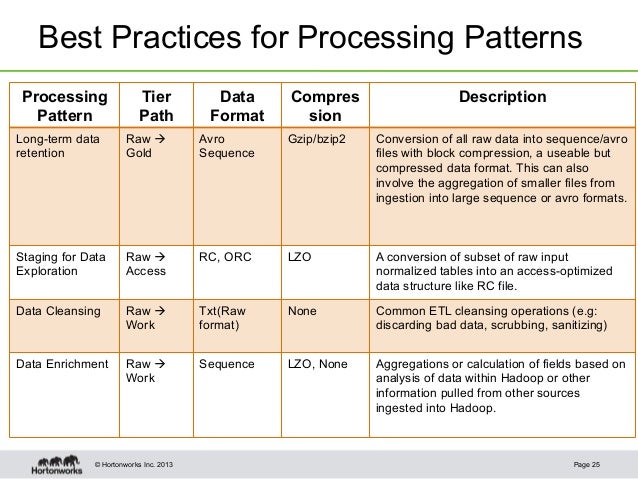

  25. 25. © Hortonworks Inc. 2013 Best Practices for Processing Patterns Page 25 Processing Pattern Tier Path Data Format Compres sion Description Long-term data retention Raw à Gold Avro Sequence Gzip/bzip2 Conversion of all raw data into sequence/avro files with block compression, a useable but compressed data format. This can also involve the aggregation of smaller files from ingestion into large sequence or avro formats. Staging for Data Exploration Raw à Access RC, ORC LZO A conversion of subset of raw input normalized tables into an access-optimized data structure like RC file. Data Cleansing Raw à Work Txt(Raw format) None Common ETL cleansing operations (e.g: discarding bad data, scrubbing, sanitizing) Data Enrichment Raw à Work Sequence LZO, None Aggregations or calculation of fields based on analysis of data within Hadoop or other information pulled from other sources ingested into Hadoop.
  26. 26. © Hortonworks Inc. 2013 The Question that You are dying to Ask.. What Tooling do I have to do orchestrate these ETL flows? Page 26
  27. 27. © Hortonworks Inc. 2013 Falcon: One-stop Shop for Data Lifecycle Apache Falcon Provides Orchestrates Data Management Needs Tools Multi Cluster Management Oozie Replication Sqoop Scheduling Distcp Data Reprocessing Flume Dependency Management Map / Reduce Hive and Pig Jobs Falcon provides a single interface to orchestrate data lifecycle. Sophisticated DLM easily added to Hadoop applications.
  28. 28. © Hortonworks Inc. 2013 Falcon Usage At A Glance. >  Falcon provides the key services data processing applications need. >  Complex data processing logic handled by Falcon instead of hard-coded in apps. >  Faster development and higher quality for ETL, reporting and other data processing apps on Hadoop. Hortonworks Data Management Product (Herd, Continiuum) (or Data Processing Applications, Customer Management Software) Spec Files or REST APIs Data Import and Replication Scheduling and Coordination Data Lifecycle Policies Multi-Cluster Management SLA Management Falcon Data Lifecycle Management Service

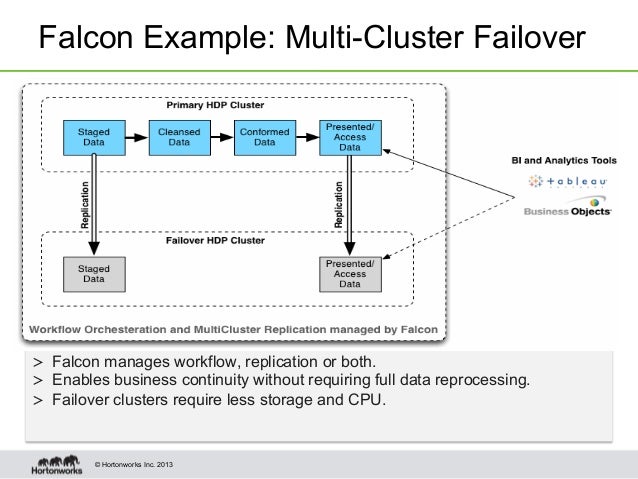

  29. 29. © Hortonworks Inc. 2013 Falcon Example: Multi-Cluster Failover >  Falcon manages workflow, replication or both. >  Enables business continuity without requiring full data reprocessing. >  Failover clusters require less storage and CPU. Staged Data Cleansed Data Conformed Data Presented Data Staged Data Presented Data BI and Analytics Primary Hadoop Cluster Failover Hadoop Cluster Replication
  30. 30. © Hortonworks Inc. 2013 Example – Data Lifecycle Management • User creates entities using DSL – Cluster for Primary, Cluster for Secondary (BCP) – Data Set – Submits to Falcon (RESTful API) • Falcon orchestrates these into scheduled workflows – Maintains the dependencies and relationships between entities – Instruments workflows for dependencies, retry logic, Table/ Partition registration, notifications, etc. – Creates a scheduled recurring workflow for – Copying data from source to target(s) – Purging expired data on source and target(s) <cluster colo=”colo-1" description="test cluster" name=”cluster-primary" xmlns="uri:ivory:cluster:0.1”> <interfaces> <interface type="readonly" endpoint="hftp://localhost:50070" version="1.1.1"/> <interface type="write" endpoint="hdfs://localhost:54310” version="1.1.1"/> <interface type="execute" endpoint="localhost:54311" version="1.1.1"/> <interface type="workflow" endpoint="http://localhost:11000/oozie/" version="3.3.0"/> <interface type="messaging" endpoint="tcp://localhost:61616?daemon=true" version="5.1.6"/> </interfaces> </cluster> <feed description="TestHourlySummary" name="TestHourlySummary” xmlns="uri:ivory:feed:0.1"> <partitions/> <groups>bi</groups> <frequency>hours(1)</frequency> <late-arrival cut-off="hours(4)"/> <clusters> <cluster name=”cluster-primary" type="source"> <validity start="2012-01-01T00:00Z" end="2099-12-31T00:00Z"/> <retention limit="days(2)" action="delete"/> </cluster> <cluster name=”cluster-BCP" type="target"> <validity start="2012-01-01T00:00Z" end="2099-12-31T00:00Z"/> <retention limit="days(2)" action="delete"/> </cluster> </clusters> <locations> <location type="data” path="/projects/test/TestHourlySummary/${YEAR}-${MONTH}-${DAY}-${HOUR}"/> <location type="stats" path="/none"/> <location type="meta" path="/none"/> </locations> <ACL owner=”venkatesh" group="users" permission="0755"/> <schema location="/none" provider="none"/> </feed>
  31. 31. © Hortonworks Inc. 2013 Thanks/Questions… Page 31
