HMS: Scalable    Configuration Management System     for Hadoop               Kan Zhang (IBM)               Eric Yang (IBM...
Motivation■    Goal: managing Hadoop stack in a data center     –  Multiple clusters, 10,000+ nodes, inter-cluster operati...
HMS Approach     Controller                                          Agent                            ZooKeeper       Stor...
ZooKeeper                                        /                            /dir1                /dir2                  ...
Leveraging ZooKeeper■    Storing cluster state     –  Each cluster node is represented by a znode in ZooKeeper     –  Node...
HMS Overview                  ZooKeeper                                cmd-                               queue           ...
Design Implications■    All cluster state is stored in ZooKeeper     –  Built-in fault-tolerance and HA     –  Cluster and...
Node List    {        "@url":"http://10.0.1.201:4080/v1/nodes/manifest/test",        "roles":[          {"@name":"namenode...
Package Manifest{    "@url": "http://10.0.1.201:4080/v1/software/stack/hadoop-1.0.3",    "@name": "hadoop",    "@version":...
Configuration Plan{    “@url”: ”http://host/config/hadoop-1.0.3”,    “@roles”: [      { “role” : “namenode”, “actions” : [...
Start NameNode{    “@url”: ”http://host/config/hadoop-1.0.3”,    “@roles”: [      { “role” : “namenode”, “actions” : [ … ]...
Compiled Plan{     "startTime":"Thu Jun 07 13:11:29 {PDT 2012",                                        "action":{     "sta...
Start JobTracker{    “@url”: ”http://host/config/hadoop-1.0.3”,    “@roles”: [      { “role” : “namenode”, “actions” : [ …...
Compiled Plan 2{                                                {                                                         ...
Node State[zk: localhost:2181(CONNECTED) 5] get /hms/clusters/my-test-cluster/bdvm021.svl.ibm.com{  "states":[    { ... },...
Q&A•  HMS prototype is available on GitHub     https://github.com/macroadster/hms•  Credits     Kan Zhang (kzhang@apache.o...
Upcoming SlideShare
Loading in …5
×

HMS: Scalable Configuration Management System for Hadoop

2,984 views

Published on

Published in: Technology, Business
0 Comments
4 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total views
2,984
On SlideShare
0
From Embeds
0
Number of Embeds
69
Actions
Shares
0
Downloads
0
Comments
0
Likes
4
Embeds 0
No embeds

No notes for slide

HMS: Scalable Configuration Management System for Hadoop

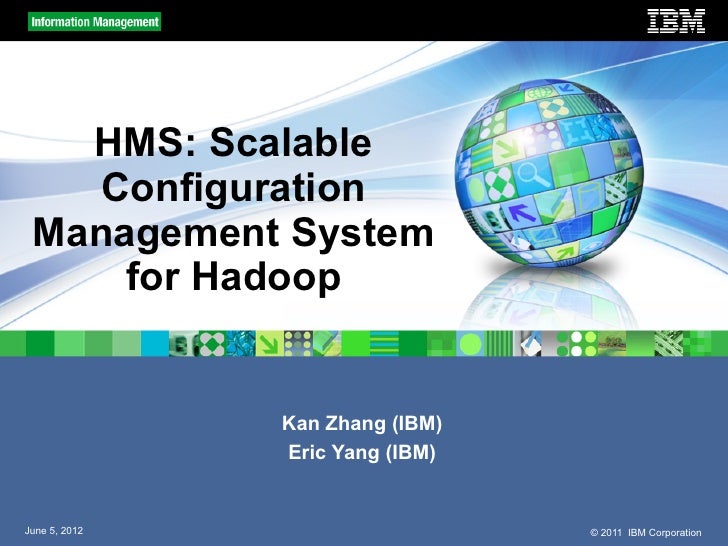

  1. 1. HMS: Scalable Configuration Management System for Hadoop Kan Zhang (IBM) Eric Yang (IBM)June 5, 2012 © 2011 IBM Corporation
