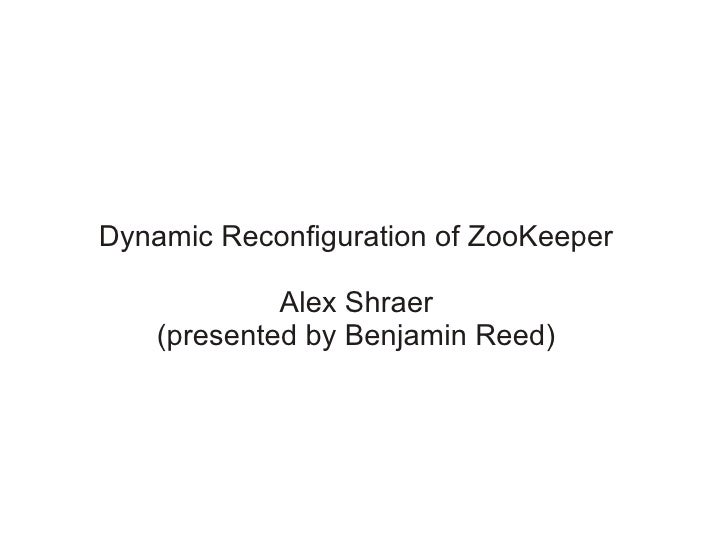

  • 1. Dynamic Reconfiguration of ZooKeeper Alex Shraer (presented by Benjamin Reed)
  • 2. Why ZooKeeper?• Lots of servers• Lots of processes• High volumes of data• Highly complex software systems• … mere mortal developers
  • 3. What ZooKeeper gives you● Simple programming model● Coordination of distributed processes● Fast notification of changes● Elasticity● Easy setup● High availability
  • 4. ZooKeeper Configuration• Membership• Role of each server – E.g., follower or observer• Quorum System spec – Zookeeper: majority or hierarchical• Network addresses & ports• Timeouts, directory paths, etc.
  • 5. Zookeeper - distributed and replicated ZooKeeper Service Leader Server Server Server Server Server Client Client Client Client Client Client Client Client• All servers store a copy of the data (in memory)• A leader is elected at startup• Reads served by followers, all updates go through leader• Update acked when a quorum of servers have persisted the change (on disk)• Zookeeper uses ZAB - its own atomic broadcast protocol
  • 6. Dynamic Membership Changes• Necessary in every long-lived system!• Examples: – Cloud computing: adapt to changing load, don’t pre-allocate! – Failures: replacing failed nodes with healthy ones – Upgrades: replacing out-of-date nodes with up-to-date ones – Free up storage space: decreasing the number of replicas – Moving nodes: within the network or the data center – Increase resilience by changing the set of servers Example: asynch. replication works as long as > #servers/2 operate:
  • 7. Dynamic Membership Changes• Necessary in every long-lived system!• Examples: – Cloud computing: adapt to changing load, don’t pre-allocate! – Failures: replacing failed nodes with healthy ones – Upgrades: replacing out-of-date nodes with up-to-date ones – Free up storage space: decreasing the number of replicas – Moving nodes: within the network or the data center – Increase resilience by changing the set of servers Example: asynch. replication works as long as > #servers/2 operate:
  • 8. Dynamic Membership Changes• Necessary in every long-lived system!• Examples: – Cloud computing: adapt to changing load, don’t pre-allocate! – Failures: replacing failed nodes with healthy ones – Upgrades: replacing out-of-date nodes with up-to-date ones – Free up storage space: decreasing the number of replicas – Moving nodes: within the network or the data center – Increase resilience by changing the set of servers Example: asynch. replication works as long as > #servers/2 operate:
  • 9. Dynamic Membership Changes• Necessary in every long-lived system!• Examples: – Cloud computing: adapt to changing load, don’t pre-allocate! – Failures: replacing failed nodes with healthy ones – Upgrades: replacing out-of-date nodes with up-to-date ones – Free up storage space: decreasing the number of replicas – Moving nodes: within the network or the data center – Increase resilience by changing the set of servers Example: asynch. replication works as long as > #servers/2 operate:
  • 10. Dynamic Membership Changes• Necessary in every long-lived system!• Examples: – Cloud computing: adapt to changing load, don’t pre-allocate! – Failures: replacing failed nodes with healthy ones – Upgrades: replacing out-of-date nodes with up-to-date ones – Free up storage space: decreasing the number of replicas – Moving nodes: within the network or the data center – Increase resilience by changing the set of servers Example: asynch. replication works as long as > #servers/2 operate:
  • 11. Dynamic Membership Changes• Necessary in every long-lived system!• Examples: – Cloud computing: adapt to changing load, don’t pre-allocate! – Failures: replacing failed nodes with healthy ones – Upgrades: replacing out-of-date nodes with up-to-date ones – Free up storage space: decreasing the number of replicas – Moving nodes: within the network or the data center – Increase resilience by changing the set of servers Example: asynch. replication works as long as > #servers/2 operate:
  • 12. Hazards of Manual Reconfiguration E A C {A, B, C} B {A, B, C} D {A, B, C} • Goal: add servers E and D
  • 13. Hazards of Manual Reconfiguration E A C {A, B, C, D, E} {A, B, C, D, E} B {A, B, C, D, E} D {A, B, C, D, E} {A, B, C, D, E} • Goal: add servers E and D • Change Configuration
  • 14. Hazards of Manual Reconfiguration E A C {A, B, C, D, E} {A, B, C, D, E} B {A, B, C, D, E} D {A, B, C, D, E} {A, B, C, D, E} • Goal: add servers E and D • Change Configuration • Restart Servers
  • 15. Hazards of Manual Reconfiguration E A C {A, B, C, D, E} {A, B, C, D, E} B {A, B, C, D, E} D {A, B, C, D, E} {A, B, C, D, E} • Goal: add servers E and D • Change Configuration • Restart Servers
  • 16. Hazards of Manual Reconfiguration E A C {A, B, C, D, E} {A, B, C, D, E} B {A, B, C, D, E} D {A, B, C, D, E} {A, B, C, D, E} • Goal: add servers E and D • Change Configuration • Restart Servers
  • 17. Hazards of Manual Reconfiguration E A C {A, B, C, D, E} {A, B, C, D, E} B {A, B, C, D, E} D {A, B, C, D, E} {A, B, C, D, E} • Goal: add servers E and D • Change Configuration • Restart Servers • Lost and !
  • 18. 18 Just use a coordination service! • Zookeeper is the coordination service – Don’t want to deploy another system to coordinate it! • Who will reconfigure that system ? – GFS has 3 levels of coordination services • More system components -> more management overhead • Use Zookeeper to reconfigure itself! – Other systems store configuration information in Zookeeper – Can we do the same?? – Only if there are no failures
  • 19. Recovery in Zookeeper C E BsetData(/x, 5) D A
  • 20. Recovery in Zookeeper C E BsetData(/x, 5) D A
  • 21. Recovery in Zookeeper C E BsetData(/x, 5) D A
  • 22. Recovery in Zookeeper C E BsetData(/x, 5) D A
  • 23. This doesn’t work for reconfigurations! E C B {A, B, C, D, E} {A, B, C, D, E}setData(/zookeeper/config, {A, B, F}) {A, B, C, D, E} D remove C, D, E add F F {A, B, C, D, E} A {A, B, C, D, E}
  • 24. This doesn’t work for reconfigurations! E C B {A, B, C, D, E} {A, B, C, D, E}setData(/zookeeper/config, {A, B, F}) {A, B, C, D, E} D remove C, D, E add F F {A, B, C, D, E} A {A, B, F} {A, B, F}
  • 25. This doesn’t work for reconfigurations! E C B {A, B, C, D, E} {A, B, C, D, E} setData(/zookeeper/config, {A, B, F}) {A, B, C, D, E} D remove C, D, E add F F {A, B, C, D, E} A {A, B, F} {A, B, F}• Must persist the decision to reconfigure in the old config before activating the new config!• Once such decision is reached, must not allow further ops to be committed in old config
  • 26. Our Solution• Correct• Fully automatic• No external services or additional components• Minimal changes to Zookeeper• Usually unnoticeable to clients – Pause operations only in rare circumstances – Clients work with a single configuration• Rebalances clients across servers in new configuration• Reconfigures immediately• Speculative Reconfiguration – Reconfiguration (and commands that follow it) speculatively sent out by the primary, similarly to all other updates
  • 27. Principles● Commit reconfig in a quorum of the old ensemble – Submit reconfig op just like any other update● Make sure new ensemble has latest state before becoming active – Get quorum of synced followers from new config – Get acks from both old and new ensembles before committing updates proposed between reconfig op and activation – Activate new configuration when reconfig commits● Once new ensemble active old ensemble cannot commit or propose new updates● Gossip activation through leader election and syncing● Verify configuration id of leader and follower
  • 28. Failure free flow
  • 29. Reconfiguration scenario 1 E A C {A, B, C} {A, B, C} B {A, B, C} D {A, B, C} {A, B, C} • Goal: add servers E and D
  • 30. Reconfiguration scenario 1 E A C {A, B, C} B {A, B, C} D {A, B, C} • Goal: add servers E and D • doesnt commit until quorums of both ensembles ack
  • 31. Reconfiguration scenario 1 E A C {A, B, C} {A, B, C} B {A, B, C} D {A, B, C} {A, B, C} • Goal: add servers E and D • doesnt commit until quorums of both ensembles ack
  • 32. Reconfiguration scenario 1 E A C {A, B, C} {A, B, C} B {A, B, C} D {A, B, C} {A, B, C} • Goal: add servers E and D • doesnt commit until quorums of both ensembles ack
  • 33. Reconfiguration scenario 1 E A C {A, B, C, D, E} {A, B, C, D, E} B {A, B, C} D {A, B, C, D, E} {A, B, C, D, E} • Goal: add servers E and D • doesnt commit until quorums of both ensembles ack
  • 34. Reconfiguration scenario 1 E A C {A, B, C, D, E} {A, B, C, D, E} B {A, B, C} D {A, B, C, D, E} {A, B, C, D, E} • Goal: add servers E and D • doesnt commit until quorums of both ensembles ack • E and D gossip new configuration to C
  • 35. Reconfiguration scenario 1 E A C {A, B, C, D, E} {A, B, C, D, E} B {A, B, C, D, E} D {A, B, C, D, E} {A, B, C, D, E} • Goal: add servers E and D • doesnt commit until quorums of both ensembles ack • E and D gossip new configuration to C
  • 36. Example - reconfig using CLIreconfig -add 1=host1.com:1234:1235:observer;1239 -add 2=host2.com:1236:1237:follower;1231 -remove 5● Change follower 1 to an observer and change its ports● Add follower 2 to the ensemble● Remove follower 5 from the ensemblereconfig -file myNewConfig.txt -v 234547● Change the current config to the one in myNewConfig.txt● But only if current config version is 234547getConfig -w -c● set a watch on /zookeeper/config● -c means we only want the new connection string for clients
  • 37. When it will not work● Quorum of new ensemble must be in sync● Another reconfig in progress● Version condition check fails
  • 38. How do you know you are done● Write something somewhere
  • 39. The “client side” of reconfiguration• When system changes, clients need to stay connected – The usual solution: directory service (e.g., DNS)• Re-balancing load during reconfiguration is also important!• Goal: uniform #clients per server with minimal client migration – Migration should be proportional to change in membership X 10 X 10 X 10
  • 40. The “client side” of reconfiguration• When system changes, clients need to stay connected – The usual solution: directory service (e.g., DNS)• Re-balancing load during reconfiguration is also important!• Goal: uniform #clients per server with minimal client migration – Migration should be proportional to change in membership X 10 X 10 X 10
  • 41. Our approach - Probabilistic Load Balancing• Example 1 : X 10 X 10 X 10
  • 42. Our approach - Probabilistic Load Balancing• Example 1 : X 10 X 10 X 10
  • 43. Our approach - Probabilistic Load Balancing• Example 1 : X6 X6 X6 X6 X6 – Each client moves to a random new server with probability 0.4 – 1 – 3/5 = 0.4 – Exp. 40% clients will move off of each server
  • 44. Our approach - Probabilistic Load Balancing• Example 1 : X6 X6 X6 X6 X6 – Each client moves to a random new server with probability 0.4 – 1 – 3/5 = 0.4 – Exp. 40% clients will move off of each server● Example 2 : X6 X6 X6 X6 X6
  • 45. Our approach - Probabilistic Load Balancing• Example 1 : X6 X6 X6 X6 X6 – Each client moves to a random new server with probability 0.4 – 1 – 3/5 = 0.4 – Exp. 40% clients will move off of each server● Example 2 : X6 X6 X6 X6 X6
  • 46. Our approach - Probabilistic Load Balancing• Example 1 : X6 X6 X6 X6 X6 – Each client moves to a random new server with probability 0.4 – 1 – 3/5 = 0.4 – Exp. 40% clients will move off of each server● Example 2 : 4/18 4/18 10/18 X6 X6 X6 X6 X6 – Connected clients don’t move – Disconnected clients move to old servers with prob 4/18 and new one with prob 10/18 – Exp. 8 clients will move from A, B, C to D, E and 10 to F
  • 47. Our approach - Probabilistic Load Balancing• Example 1 : X6 X6 X6 X6 X6 – Each client moves to a random new server with probability 0.4 – 1 – 3/5 = 0.4 – Exp. 40% clients will move off of each server● Example 2 : 4/18 4/18 10/18 X 10 X 10 X 10 – Connected clients don’t move – Disconnected clients move to old servers with prob 4/18 and new one with prob 10/18 – Exp. 8 clients will move from A, B, C to D, E and 10 to F
  • 48. Current Load Balancing
  • 49. ProbabilisticCurrent Load Balancing When moving from config. S to S’:E (load (i, S )) = load (i, S ) + ∑ load ( j, S ) ⋅ Pr( j → i ) − load (i, S ) ∑ Pr(i → j ) j∈S ∧ j ≠i j∈S ∧ j ≠i expected #clients #clients connected to i in S’ connected #clients(10 in last example) to i in S #clients moving to i from moving from i to other servers in S other servers in S’ Solving for Pr we get case-specific probabilities. Input: each client answers locally Question 1: Are there more servers now or less ? Question 2: Is my server being removed? Output: 1) disconnect or stay connected to my server if disconnect 2) Pr(connect to one of the old servers) and Pr(connect to newly added server)
  • 50. Implementation• Implemented in Zookeeper (Java & C), integration ongoing – 3 new Zookeeper API calls: reconfig, getConfig, updateServerList – feature requested since 2008, expected in 3.5.0 release (july 2012)• Dynamic changes to: – Membership – Quorum System – Server roles – Addresses & ports• Reconfiguration modes: – Incremental (add servers E and D, remove server B) – Non-incremental (new config = {A, C, D, E}) – Blind or conditioned (reconfig only if current config is #5)• Subscriptions to config changes – Client can invoke client-side re-balancing upon change
  • 51. 52 Summary • Design and implementation of reconfiguration for Apache Zookeeper – being contributed into Zookeeper codebase • Much simpler than state of the art, using properties already provided by Zookeeper • Many nice features: – Doesn’t limit concurrency – Reconfigures immediately – Preserves primary order – Doesn’t stop client ops – Zookeeper used by online systems, any delay must be avoided – Clients work with a single configuration at a time – No external services – Includes client-side rebalancing
