SSA 2012—Developments at Schempp-Hirth

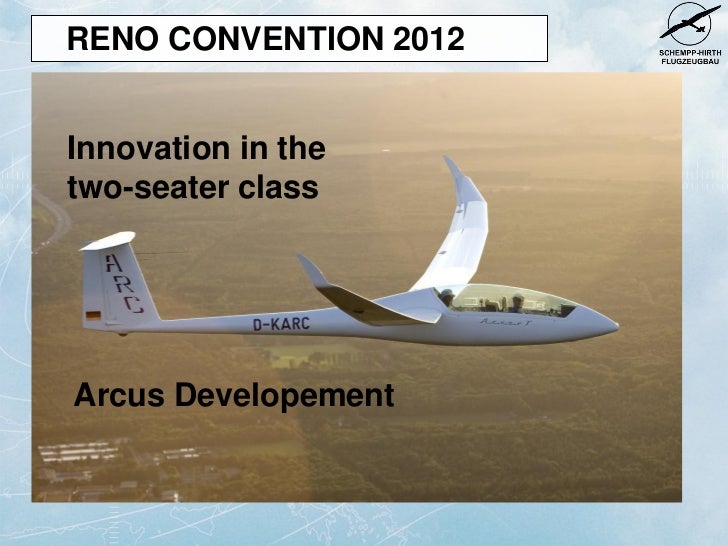

RENO CONVENTION 2012Innovation in thetwo-seater classArcus Developement

Preliminiary considerations : Swen Lehner Christoph Wannenmacher Joachim Krauter

Preliminiary considerations: Dr. Werner Würz Director of the laminar wind tunnel of the University Stuttgart

Preliminiary considerations Reference was Ventus 2cxM/Nimbus 4DM: Comparable stall speed Comparable take of speed First start-airfoil: WW99k137 Wing area: 15,6 m2

Arcus - Design: Aerodynamic Aeroelastic Flight characteristics Project: Arcus Structure Airworthiness requirements Operation limits

Arcus – Design: Airfoil optimizing: Werner Würz, LWK Stuttgart Wing geometry - optimizing: Jan Himisch Karl Heinz Horstmann DLR Braunschweig

Arcus - Design: Winglet optimizing: Prof. Mark Maughmer, PSU

Arcus - Design: Aeroelastic optimizing: Andreas Lutz (Aka München, now Schempp-Hirth) Jan Schwochow DLR Göttingen

Arcus – Molding:

First mold Beginning January 2009

Resumee (subjektive CG)• Agil, good manoevrability• Arcus with high wingloading climbs as good as the Duo´s•Advantage by straight flights with high speeds• Starting, landing: Flaps, 3-panel airbreaks, high and springloaded undercarriage, roomy cockpit, comfortable• Performance – for example Reinhard Schramme inBitterwasser/Namibia• makes fun

Resumee (subjektive CG)• Performance – for example Reinhard Schramme inBitterwasser/Namibia

Arcus M

Arcus E

Arcus E Arcus E above the factory

Quintus Innovation in the Open ClassDevelopement

Preliminiary considerations : -Pilot desire for a fast Open Class selfaunch sailplane -With a high wingload range for competition pilots -AND easy ground handling and agil in the air for record flights, for recreation and expedition and above all: for fun flights New concept necessary!

Preliminiary considerations : Span + wingarea downsizing, high aspect ratio Low weight for wingloads below 39kg/qm (6,9 lb/ft2), With water ballast extrem high wingloading 58kg/qm (almost 12 lb/ft2) ! Solution: new wing design with 23m (75,5 ft) as a result of fruity cooperation with Lange Aviation

Preliminiary considerations : Fuselage - Comfort - Safety (new strict CS 22) - Elegance Wing - Modern airfoil - High performance with high wingloads . and in high speeds

Preliminiary considerations : Propulsion System -New Solo 2625-2i with electronic controlled fuel injection for max. power also at high density altitude -70 HP -New, fully automatic ILEC control for easy operation („ON-OFF switch“) -Integrated steering tailwheel /(System Lange)

First Design Study :

„Sister Ship Antares 23E : Modern airfoils from Loek Boermans for Antares and Quintus

Preliminiary considerations :Winglet optimizing: Prof. Mark Maughmer, PSU

Quintus Prototyping Root rib connection Proofed center steel frame for maximum Pilot Protection

Quintus Prototyping

Quintus M 70 horsepower with electronic injection system

Quintus M

Quintus

Quintus M

Quintus M Do you like it...?

Top Trainer, Duo Discus XL

Top performance, Duo Discus XL Gordon Boettger Hugh BenettAlmost 1300 miles in 13 hours

Certified total rescue system

Certified Emergency Exit Assist SystemNOAH

Certified manual operated rudder control Jet sustainer

The „heilige Discus“ - new referencesailplane for the IDAFLIEG measurements

Other Activities

And what we like most... :-)

Thank you for your attention
