Sunjoy Grand Casual Gazebo Assembly and Instructions Manual

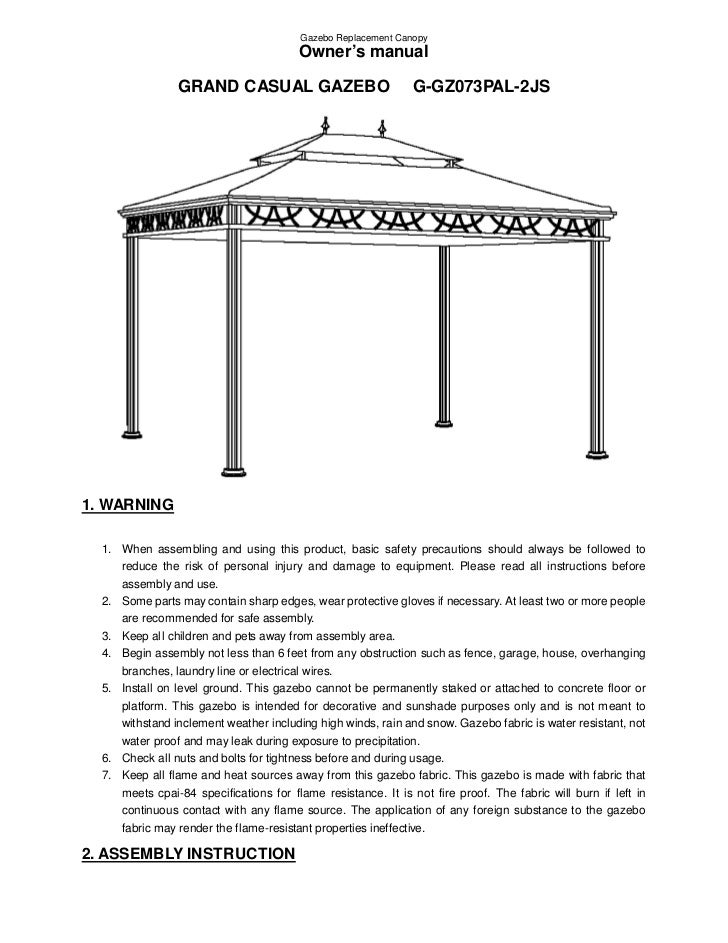

  1. 1. Gazebo Replacement Canopy Owner’s manual GRAND CASUAL GAZEBO G-GZ073PAL-2JS1. WARNING 1. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all instructions before assembly and use. 2. Some parts may contain sharp edges, wear protective gloves if necessary. At least two or more people are recommended for safe assembly. 3. Keep all children and pets away from assembly area. 4. Begin assembly not less than 6 feet from any obstruction such as fence, garage, house, overhanging branches, laundry line or electrical wires. 5. Install on level ground. This gazebo cannot be permanently staked or attached to concrete floor or platform. This gazebo is intended for decorative and sunshade purposes only and is not meant to withstand inclement weather including high winds, rain and snow. Gazebo fabric is water resistant, not water proof and may leak during exposure to precipitation. 6. Check all nuts and bolts for tightness before and during usage. 7. Keep all flame and heat sources away from this gazebo fabric. This gazebo is made with fabric that meets cpai-84 specifications for flame resistance. It is not fire proof. The fabric will burn if left in continuous contact with any flame source. The application of any foreign substance to the gazebo fabric may render the flame-resistant properties ineffective.2. ASSEMBLY INSTRUCTION
  2. 2. Gazebo Replacement Canopy2.1 Part list:(Pay attention to part # 1, 2, 4 & 5 below, you should quote the correct left/right part when ordering areplacement part from our customer service representative.)MAIN FRAME PARTS1. Long Siderails (70.5") – (4) (inclusive of 2 left & 2 right siderails with label of 1L or 1R on each one)2. Short Siderails (58.4") -- (4 ) (inclusive of 2 left & 2 right siderails with label of 2L or 2R on each one)3. Column -- (4)4. Long gutter -- (4) (inclusive of 2 left & 2 right gutter with label of 4L or 4R on each one)5. Short gutter -- (4) (inclusive of 2 left & 2 right gutter with label of 5L or 5R on each one)6. Aluminum pipe (weld on gutter) -- (8)7. Long roof support bar (pre-assembled snap link) -- (4)8. Short roof support bar (pre-assembled snap link and one end weld outer connector) -- (4)9. Center fitting -- (1)10. Big center bar -- (1)11. 4-way fitting -- (2)12. Column base -- (4)13. Column top connector -- (4) (composed of A & B)14.  Bend -- (4)15. Plastic connector -- (4)16. Inner connector -- (8)17. Corner connector -- (8)18. Finial -- (2)19. Slip hook – (32)20. Stake -- (12)21. Big Canopy -- (1)22. Hook (pre-assembled on big canopy rim) -- (32)23. Top panel -- (4)24. Side panel -- (1)25. Mosquito net -- (4)26. Small center bar -- (1)27. 3-way fitting -- (2)28. Small top frame -- (4)29. Small canopy – (1)ASSEMBLY HARDWARE30. Screw M6*15 -- (8) 31. Screw M8*15 -- (4) (pre-assembled on #13A)32. Screw M6*35 -- (8) 33. Screw M6*30 -- (32)34. Screw M6*10 -- (64) (4 pcs pre-assembled on plastic insert of gutter)35. Wrench – (2) 36. Nut M6 -- (16) (8 pcs pre-assembled on plastic insert of gutter)37. Round-head nut M8 -- (4) 38. Round-head nut M6 -- (20)39. Nut M8 -- (4) (pre-assembled on #13A) 40. Screw M6*25 – (4)41. Tapping screw ST3.5*14 – (8) (pre-assembled on gutter bottom)
  3. 3. Gazebo Replacement Canopy2.2 Assembly: (Tools required for assembly: a screwdriver)Step1. Check all parts and hardware listed in the parts list. Lay them on a clear and level surface prior toassembly. Ideally, the gazebo frame should be set up in its desired location to avoid moving it after assembly.Step2. Assemble gazebo big top frame.Attach long gutter (#4) to long siderail (#1) with screw M6*30 (#33), fix them by screwdriver. Repeat same wayto attaching the short gutter (#5) to short siderail (#2) (Fig. 1 & 2).Warning: ensure the length of siderail and gutter is matching, misplaying might result in assemblyfailure.Step3. As Fig. 2 shows, the gutter and siderail have been assembled into one-piece after finishing step 2.Before you connect two adjacent gutter & siderail sets, you should screw off the pre-assembled screw M6*10(#34) from the plastic insert of gutter; then inert inner connector (#16) to one end of the assembled siderail(#1), make sure the screw holes on siderail & inner connector are lined up. Then fix two siderails by insertingscrews M6*10 (#34) through siderail and inner connector, tighten them by screwdriver (Fig. 3 & 4). Meanwhile,push two adjacent gutters directly opposite to connect them together (Fig. 5).Note: when screw off the pre-assembled screw M6*10 (#34) from the plastics insert of gutter, DO NOTSCREW OFF PRE-ASSEMBLED NUTS at this time since the nuts are used to fix short roof support bar (#8) togutters in next steps, screw them off now may result in assembly failure.Step4. Repeat step 3 to attach other sets of siderail & gutter. Ensure long parts (#1 & #4) are connected withlong parts (#1 & #4); short parts (#2 & #5) are connected with short parts (#2 & #5); mis-connecting the longparts to short parts will lead to assembly failure.Step5. Combine 4 assembled gutter & siderail sets into a rectangle frame. Insert corner connecter (#17)to one of two adjacent siderails (#1 or #2) (Fig. 6), then insert plastic connector (#15) into one of the gutter (#4or #5) (Fig. 7); fix siderails by screws M6*10 (#34), join gutters by plastic connector (#15) (Fig. 8 & 9).
  4. 4. Gazebo Replacement CanopyStep6. Repeat step 5 to assemble other sets of siderails (#1 & #2) and gutters (#4 & #5) into a full rectangleframe.Step7. Attach A part of column top connector (#13A) to B part (#13B), fix them by twoscrews M6*10 (#34) and round-head nut M6 (#38) (Fig. 10).Step8. Attach whole column top connector (#13) to the corner of assembled top rectangleframe by inserting screws M6*30 (#33) through #13B into the screw hole of siderail, fixthem in place with round-head nuts M6 (#38), tighten screws by screwdriver (Fig. 11).Repeat step 7&8 to attach rest three column top connectors to assembled top rectangleframe.Step9. Assemble supporting parts of gazebo big top.Insert big center bar (#10) through center fitting (#9), make sure the snap links of bigcenter bar (#10) are locked into center fitting (#9). Then join two 4-way fittings ((#11) to the big center bar (#10)Fig. 12 & Fig.13 is the appearance of an assembled top center. (Upward) (Downward)Step10. Insert one end of short roof support bar (#8) to the middle branch of 4-wayfitting (#11), then attach another end with outer connector to the assembled toprectangle frame by inserting screws M6*10 (#34) to pre-assembled nut that on plasticinsert of gutters, through screw holes of outer connector and gutter (Fig.14), fix screwswith a screwdriver. Use the same way to attach remaining short roof support bars (#8) tothe remaining 4-way fitting (#11), center fitting and top rectangle frame.Step11. Insert one end of long roof support bar (#7) to 4-way fitting (#11) side branch, insert another end ofsupport bar to part A of column top connector (#13). Make sure the snap links of long roof support bar (#7) arelocked into the 4-way fitting (#11) & column top connector (#13) properly.Step12. Repeat step 11 to connect remaining 4-way fitting (#11) & column topconnectors (#13) with rest long roof support bars (#7). Fig. 15 is the appearanceof an assembled gazebo big top skeleton. You may put big top skeleton aside.Step13. Assemble gazebo small top.Attach two 3-way fittings (#27) to small center bar (#26) respectively (Fig. 16), make sure the snap links ofsmall center bar (#26) are locked into pre-drilled holes of 3-way fittings (#27). Then Attach small top frames(#28) to 3-way fittings (Fig.17), make sure the snap links of small top frame are locked into pre-drilled holes of3-way fittings. Repeat same way to assemble remaining small top frames to 3-way fittings.
  5. 5. Gazebo Replacement CanopyStep14. Place big canopy (#21) on the assembled big top skeleton slackly, leavingthe center of big top skeleton uncovered. Then attach small top frames (#28) tolong roof support bars (#7), fix them by screws M6*25 (#40) and round-head nutsM6 (#38) (Fig.18).Step15. Put small canopy (#29) on assembled small top frame (#28), pull it tightlyover the frame. Then screw on two finials (#18) on small canopy (Fig.19).Step16. Tighten big canopy (#21) to fit big top skeleton, leaving the screw (#31) outsideof pre-assembled brass ring of canopy corner; then screw on round-head nut (#37) toscrew M8*15 (#31), tighten nut a few revolutions (Fig. 20).Step 17 Fix big canopy rim to gazebo top frame by pre-assembled hooks (#22).Now your gazebo top is finished, you may put it aside standby. Fig.21 is theappearance of an assembled gazebo top.Step18. Assemble gazebo columns (#3).Attach the column base (#12) to one end of column (#3) with screws M6*15 (#30),fix them by screwdriver (Fig. 22). Repeat the same step to assemble remaining threecolumns (#3).Warning: must ask four helpers (at least) to do following procedure together; donot attempt to assemble it alone.Step19. Ask your helpers put up whole assembled gazebo top, let the column (#3)through the column top connector (#13), then attach column to gazebo top by  bend(#14), screws M6*35 (#32) and nuts M6 (#36) (Fig. 23). Tighten them by screwdriver.Step20. Repeat step 19 to attach remaining 3 columns (#3) to gazebo top. Thensecure the column base (#12) to the ground with stakes (#20).Step21. Stick top panels (#23) to siderails by pre-sewed Velcro straps (Fig. 24 & 25).
  6. 6. Gazebo Replacement CanopyStep22. Install mosquito net (#25) to gazebo.Attach slip hook (#19) to mosquito net border as Fig. 26.Step23. Screw off the tapping screws ST3.5*14 (#41) that pre-assembled on gutterthen put slip hook (with mosquito net) into the slot of gutter orderly from the enlargedhole of the gutter bottom (Upward View Fig. 27, 28 & 29).Step24. Tighten tapping screws ST3.5*14 (#41) with screwdriver after installing all slip hooks (#19) in slot toavoid hooks sliding out (Upward View Fig. 30).Step25. Install side panel (#24) to gazebo. Hang the side panel (#24) on bottom line of siderail; fix it byThe pre-sewn Velcro straps on the inside of the side panel (#24) (Fig. 31).Now your gazebo is ready for use.

×
