Reportedly, some fast food chains started (2007) to use their waste cooking oil to make bio-diesel. In one example encompassing 1200 restaurants, the entire corporate truck fleet of 155 vehicles was ...

Reportedly, some fast food chains started (2007) to use their waste cooking oil to make bio-diesel. In one example encompassing 1200 restaurants, the entire corporate truck fleet of 155 vehicles was
converted to biodiesel, which means 6.1 million liters of waste oil put to use on the roads. Other sources reveal that McDonald's trucks in Austria have been using biodiesel "for a few years."

In order to show how Comparative Decision Analysis-Economic Safety Margin (CDA-ESM) can
help in the selection of the best Vegetal Waste Oil management alternative, we will consider as an

example a restaurant, i.e. a commercial kitchen (for example an ”average sized” fast food restaurant,
of roughly 150m2, or less than 500m3 construction volume) or any equivalent Medium Sized Business (MSB).


The MSB's Management wants to find a better way to deal with their waste frying oils, but also wants to avoid the implementation of the filtering station necessary for an automotive use of its

waste oils(1). Furthermore, the MSB does not have enough vehicles to make the fleet conversion
economically feasible/reasonable.

Management is also fully aware that, reportedly, some large chains like Burger King and
McDonald’s would like to utilize frying oil to heat water, but has heard they don’t have the space for a redundant system and fast-food restaurant personnel may not have the time nor the ability to operate a more complex burner system. However, Management has recently learned that there are
off-the-shelf solution with burners capable of burning waste oils that are simple to use, can even
accommodate several fuels, and, with some restrictions, can be inserted in existing furnaces, thus

avoiding expensive replacements.


Management has therefore to decide whether they want to maintain the status quo, i.e. the presently active waste frying-oil management/disposal or to switch to a new installation which would include
a burner capable of using those waste oils to generate useful heat. The new installation should not
be redundant (no need for extra room) with the present one, and should either use the existing
furnace with a new burner, or replace the old system with a brand new one.


This paper shows how to set up the data necessary for the alternative selection using an innovative
alternative evaluation methodology called CDA/ESM (Comparative Decision Analysis/Economic

Safety Margin) (C.+F. Oboni, 2009). CDA/ESM brings to MSBs the opportunity to apply Risk
Based Decision Making to the alternative selection process and to explore how two code compliant and perfectly legitimate alternatives may differ on the long term, not only in their costs, but also in

their risk profile (upside and downside risks, i.e. opportunities and failures).

CDA/ESM eliminates the pitfalls of NPV (see below) and has been used at preliminary design level

(Oboni and Oboni 2007, 2008; Oboni 1999-2000, 2005) to support decisions in many
industries/situations by comparing alternatives in financial terms, including:

a) life’s cycle economic balance encompassing internal and external risks and

b) project implementation and demobilization costs and risks.


CDA/ESM has been successfully applied to date to industrial alternatives such as: rope v.s. road transportation, surface v.s. underground solutions, environmental rehabilitation projects, water treatments alternatives, transportation networks and go/no-go decisions.


CDA/ESM is particularly useful when comparing long term projects, as its “risks included” cumulative cost evaluation eliminates the “zeroing effect” and the “rosy scenario syndrome” linked to NPV (See Web Pages in References). It has already been shown in many instances that attempts to tweak the NPV to include risks are generally misleading (C.+F. Oboni, 2009).


(1)Vegetable oils have to be treated, reducing their viscosity, in order to be used in modern diesel
engines without damage. Old d

Statistics

Views

Total Views
2,523
Views on SlideShare
2,523
Embed Views
0

Actions

Likes
0
Downloads
10
Comments
0

0 Embeds 0

No embeds

Accessibility

Categories

Upload Details

Uploaded via as Adobe PDF

Usage Rights

© All Rights Reserved

Report content

Flagged as inappropriate Flag as inappropriate
Flag as inappropriate

Select your reason for flagging this presentation as inappropriate.

Cancel
  • Full Name Full Name Comment goes here.
    Are you sure you want to
    Your message goes here
    Processing…
Post Comment
Edit your comment

Cda Esm Waste Oil Disposal Applications Cda Esm Waste Oil Disposal Applications Document Transcript

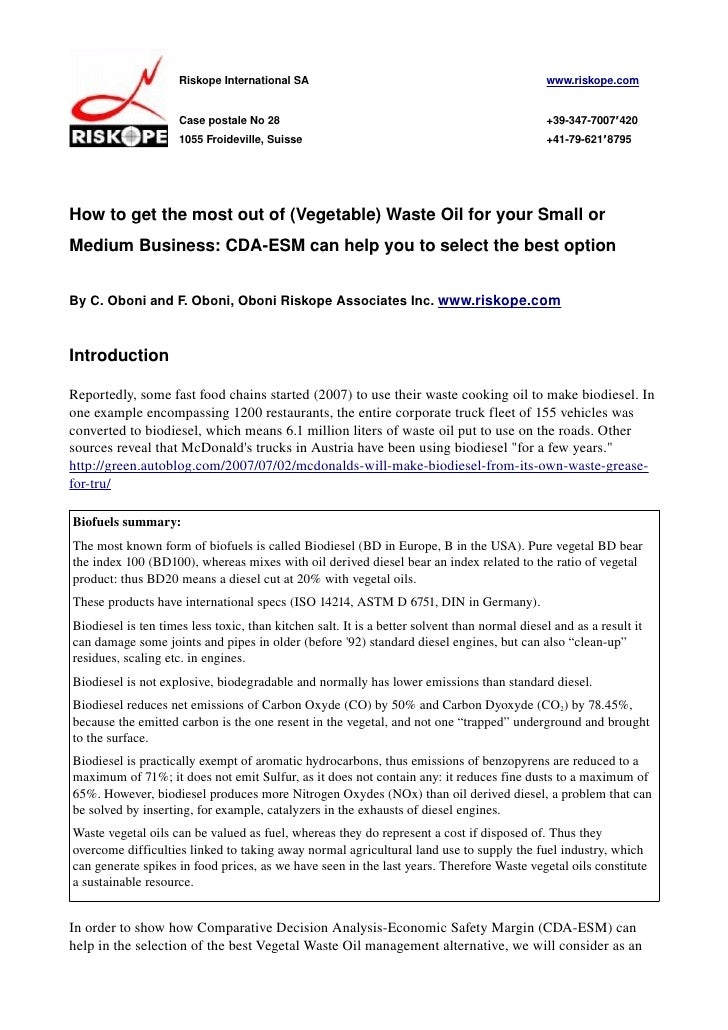

  • Riskope International SA www.riskope.com Case postale No 28 +39-347-7007’420 1055 Froideville, Suisse +41-79-621’8795 How to get the most out of (Vegetable) Waste Oil for your Small or Medium Business: CDA-ESM can help you to select the best option By C. Oboni and F. Oboni, Oboni Riskope Associates Inc. www.riskope.com Introduction Reportedly, some fast food chains started (2007) to use their waste cooking oil to make biodiesel. In  one example encompassing 1200 restaurants, the entire corporate truck fleet of 155 vehicles was  converted to biodiesel, which means 6.1 million liters of waste oil put to use on the roads. Other  sources reveal that McDonald's trucks in Austria have been using biodiesel "for a few years."  http://green.autoblog.com/2007/07/02/mcdonalds­will­make­biodiesel­from­its­own­waste­grease­ for­tru/ Biofuels summary: The most known form of biofuels is called Biodiesel (BD in Europe, B in the USA). Pure vegetal BD bear  the index 100 (BD100), whereas mixes with oil derived diesel bear an index related to the ratio of vegetal  product: thus BD20 means a diesel cut at 20% with vegetal oils. These products have international specs (ISO 14214, ASTM D 6751, DIN in Germany). Biodiesel is ten times less toxic, than kitchen salt. It is a better solvent than normal diesel and as a result it  can damage some joints and pipes in older (before '92) standard diesel engines, but can also “clean­up”  residues, scaling etc. in engines. Biodiesel is not explosive, biodegradable and normally has lower emissions than standard diesel.  Biodiesel reduces net emissions of Carbon Oxyde (CO) by 50% and Carbon Dyoxyde (CO2) by 78.45%,  because the emitted carbon is the one resent in the vegetal, and not one “trapped” underground and brought  to the surface. Biodiesel is practically exempt of aromatic hydrocarbons, thus emissions of benzopyrens are reduced to a  maximum of 71%; it does not emit Sulfur, as it does not contain any: it reduces fine dusts to a maximum of  65%. However, biodiesel produces more Nitrogen Oxydes (NOx) than oil derived diesel, a problem that can  be solved by inserting, for example, catalyzers in the exhausts of diesel engines. Waste vegetal oils can be valued as fuel, whereas they do represent a cost if disposed of. Thus they  overcome difficulties linked to taking away normal agricultural land use to supply the fuel industry, which  can generate spikes in food prices, as we have seen in the last years. Therefore Waste vegetal oils constitute  a sustainable resource. In order to show how Comparative Decision Analysis­Economic Safety Margin (CDA­ESM) can  help in the selection of the best Vegetal Waste Oil management alternative, we will consider as an
