Hedge End sub station - Rainwater Harvesting case study

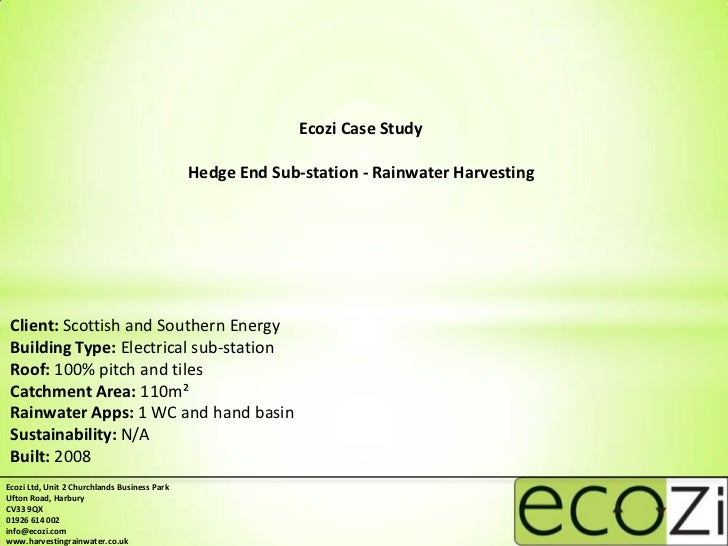

Ecozi Case Study Hedge End Sub-station - Rainwater Harvesting Client: Scottish and Southern Energy Building Type: Electrical sub-station Roof: 100% pitch and tiles Catchment Area: 110m² Rainwater Apps: 1 WC and hand basin Sustainability: N/A Built: 2008Ecozi Ltd, Unit 2 Churchlands Business ParkUfton Road, HarburyCV33 9QX01926 614 002info@ecozi.comwww.harvestingrainwater.co.uk

About Ecozi – Rainwater Harvesting Systems: Ecozi is a specialist rainwater harvesting and grey water recycling system provider. Ecozi design, supply, install and maintain water recycling systems throughout the UK for commercial and residential customers. Ecozi work to all industry standards and are members of the UK Rainwater Harvesting Association. With our experience from installation, commissioning and maintenance the service levels offered by Ecozi are amongst the highest in the industry. Market leading German manufacturers are key supply partners to Ecozi, providing advanced reliable systems with low risks to end customers.Ecozi Ltd, Unit 2 Churchlands Business ParkUfton Road, HarburyCV33 9QX01926 614 002info@ecozi.comwww.harvestingrainwater.co.uk

Rainwater Harvesting Requirements: Remote infrastructure sites, such as wind farms and substations are often, only occasionally manned. The cost of installing a mains water supply to these remote sites is often over £100,000. At Hedge End, near Southampton, Skanska required a proven rainwater harvesting system supplier to design and supply a rain recovery solution to eliminate the need to install a mains water service to the site. Ecozi has already supplied several other remote infrastructure sites when approached by Skanska so the solution was already proven. The system is designed on the assumption the rainwater demand is low enough so the tank does not run dry. No mains water back-up is available for WC flushing and hand basin applications. Due to poor ground conditions and uncertainty of vehicle loads on the tank precast concrete was specified. Precast concrete tanks are rated for 44T trucks as standard and require no additional structural works. Shipped pre-fitted with all internal components the tank was placed in the final position by delivery truck mounted crane. The submersible pump is controlled by a flow switch located with a tank contents display panel inside the building. A fine particle and UV filter provide disinfection to the water for hand washing in the WC basin. An auto filter spray was specified to eliminate routine maintenance. Every 7 days a solenoid controlled valve sprays rainwater for 3 minutes on the filter.Ecozi Ltd, Unit 2 Churchlands Business ParkUfton Road, HarburyCV33 9QX01926 614 002info@ecozi.comwww.harvestingrainwater.co.uk

Contact Details:Ecozi LtdUnit 2 Churchlands Business ParkUfton RoadHarburyCV33 9QXTel:01926 614 002Email: info@ecozi.comVisit our website at: www.ecozi.comSubscribe to our blog: www.harvestingrainwater.co.ukJoin in the conversation via our Social Media Channels:FacebookTwitterGoogle+Linkedin
