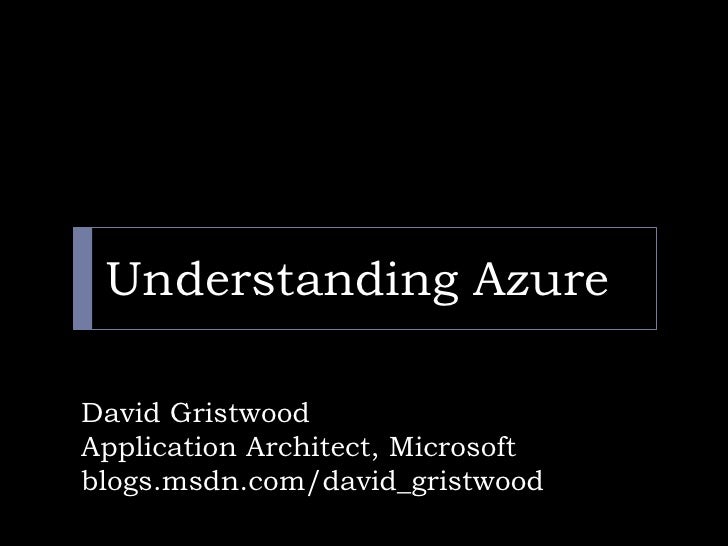

Understanding Azure<br />David Gristwood<br />Application Architect, Microsoft <br />blogs.msdn.com/david_gristwood<br />
Why a Cloud Platform?<br />Reduce capital & operations costs<br />Simplify application deployment & management <br />Simpl...
RNLI & Windows Azure<br />www.aws.net/services/cloud-services/case-study  <br />
The Azure Philosophy<br />
Azure is about Scale<br /><ul><li>Azure is designed from the ground up for true Internet scale
Builds on our existing on-line properties and services
Supports the “Scale Fast, Fail Fast” model to ride the peaks and troughs</li></ul>www.flickr.com/photos/januszbc/177618449...
Characteristics of Azure Applications<br />“Elasticity” <br /><ul><li>Need massive scale
Need high reliability
Have variable load
Have short or unpredictable lifetime</li></ul>http://www.flickr.com/photos/39919537@N06/3666813048/<br />
Helps your Systems Scale<br /><ul><li>Most architecture is hidden inside code
Azure encourages you to define your application into constituent parts
Azure can scale the parts of your application as appropriate</li></ul>www.flickr.com/photos/39818355@N00/2128626176<br />
Flexible Architecture <br /><ul><li>Systems evolve over time
Cloud is not an “all or nothing” proposition
Azure makes it easier to extend to the cloud</li></ul>www.flickr.com/photos/tomkpunkt/3695066577<br />
Opening up the Cloud<br /><ul><li>Allow developers to apply their existing skills to the cloud
Support for .NET, Ruby, PHP, Java
Interoperability with any platform, tools or technology </li></ul>www.flickr.com/photos/h19/2306213399/in/set-721575942245...
Flexible Business Model<br /><ul><li>No up front hardware purchase
Pay as you go costing model
Ideal in current economical climate </li></ul>www.flickr.com/photos/cleebster/2508660124<br />
Data Centers<br />
Windows Azure Platform Availability <br />2010<br />Northern Europe<br />North Central USA<br />2010<br />2010<br />Easter...
Delivering an Efficient & Sustainable Cloud<br />Microsoft has run Online Servicessince 1994<br />1st MSFT datacentre buil...
Chicago Datacentre – Scalable, Sustainable <br />One of world’s largest datacentres using   containers,  on-line on July 2...
Dublin Datacentre<br /><ul><li>First Mega Datacentre built outside the US,  on-line on July 2009
Cost $500 million,  303+sq ft facility and growing
EU Datacenter Best Practice Award Winner
Stand-alone Server Pods
 Environmentally Sustainable
 Free Air-Cooling via Air-Side Economization
 50% less energy use vs. traditional facilities
1 % water use vs. traditional facilities
1.25 PUE
5.4MegaWatts today, 22.2 MW for future use
ISO 27001:2005 Accreditation
SAS 70 Type I and II  Attestations</li></li></ul><li>The Azure Platform<br />
The Azure Services PlatformThe Big Picture<br />AppFabric<br />SQL Azure<br />Applications<br />Windows Azure<br />Applica...
SERVICES<br />SERVICES<br />SERVERS<br />SERVERS<br />Applications <br />Available <br />Now<br />Developer Tools<br />Pro...
Windows Azure<br />
Application<br /> Compute<br />Storage<br />Fabric<br />Config<br />Windows AzureWindows in the cloud<br />AppFabric<br />...
Web vs Worker Role<br />Worker Role<br />Web Role<br />System Host<br />IIS Host<br />Your Code<br />Your Code<br />
Common Azure Pattern<br />Worker Role<br />Web Role<br />Queue<br />Storage<br />Blob<br />Storage<br />
Storage<br />Storage*<br />Queue<br />Blob<br />Account<br />Tables<br />* New for 2010 - “Drives” – durable NTFS volumes ...
Blobs<br />Blobs<br />Containers<br />Photo1.png<br />Photo2.png<br />Pictures<br />Photo3.png<br />
Tables<br />Entities<br />Tables<br />Genre = …<br />Title    = …<br />Movies<br />Genre = …<br />Title    = …<br />Actors...
Partitions and Rows<br />
