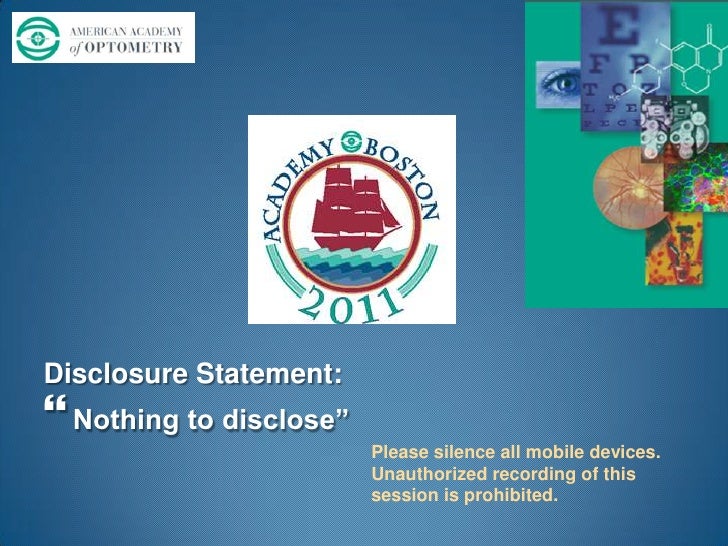

Disclosure Statement:<br />Nothing to disclose”<br />Please silence all mobile devices.<br />Unauthorized recording of thi...
3D Vision Syndrome<br />A  Technologically Driven<br />Visual Impairment<br />
Dominick M. Maino, OD, MEd, FAAO, FCOVD-A<br />AOA National Spokesperson on 3 D Vision Syndrome<br />AOA Classroom 3D Proj...
Introduction: Understanding 3D technology & How it was Developed<br />Photo credit: http://science.howstuffworks.com/3-d-g...
Simulated 3D vsReal World 3D Why Now? <br />
 Virtual 3 D: Why Now?<br />
3 D Tipping Point A 3D TV Tipping Point?http://www.cnbc.com/id/41591929/A_3D_TV_Tipping_Point Stereoscopic 3D Technologies...
ESPN: 3D Is at the Tipping Point<br />3D Printing Technology Nearing Tipping PointWill you one day print yourself a new bo...
+<br />
Many activities including:<br />Symposia, 3D Users Experience Tech Summit, The 3Ds of 3D Viewing<br />AOA YouTube Videos<b...
The Public Health Implications of Virtual 3D <br />Michael Duenas, OD <br />The Visual System and Virtual 3D <br />Jim She...
The Public Health Implications of Virtual 3D - Michael Duenas(http://www.youtube.com/watch?feature=player_embedded&v=howdZ...
The Visual System and Virtual 3D - Jim Sheedy, O.D., Ph.D. (http://www.youtube.com/watch?v=ZLpwCC5yxlo&feature=related)<br />
3D: The User Experience Story - Philip J. Corriveau (http://www.youtube.com/watch?v=1IiHNit3RPM&feature=related)<br />
Exploring a New Dimension <br />- Chris Haws (http://www.youtube.com/watch?v=4qZw98mkIhI&feature=related )<br />
Brock String Debuts at the Consumer Electronics Show<br />Kids@Play Summit at CES 2011<br />Dominick M. Maino, OD, MEd, FA...
Available from:<br />AOA<br />3D@Home<br />3deyehealth.org<br />MainosMemos<br />
Binocular Vision Dysfunction as a Medical & Public Health Issue<br />
Improving Binocular Vision - Creating a Better Audience<br />
Improving 3D Television Technology but Not Creating a Better 3D Viewing Audience<br />1920’s  Image Credit : Baird Televis...
Improving 3D Movie Technology but Not Creating a Better 3D Viewing Audience<br />1953 Image Credit: Mystic Cinema<br />   ...
Improving 3D Gaming Technology but Not Creating a Better Gamer<br />Image Credit: Nintendo<br />Image Credit: Daily Motion...
Improving Classroom Technology but Have Not Created a Better 3D Viewing Student<br />Image Credit: American Optometric Ass...
History of 3D<br />3D in the Classroom: See Well, Learn Well<br />3D Timeline<br />
3 D Stereo Scopes<br />1844<br />Scottish inventor and writer David Brewster<br /> introduced the Stereoscope<br />1862<br...
The first 3D Movies<br />1950’s <br />The Golden Age of 3D Movies<br />Imax Second Mini-Golden Age<br />Today: Platinum Ag...
Some of the first 3D Movies included:<br />Bwana Devil  (1952 ) starring Robert Stack<br />http://www.youtube.com/watch?v=...
House of Wax (1953) starring Vincent Price<br />
13 Ghosts (1960)<br />http://www.youtube.com/watch?v=Zdwq3jdvZD I<br />
The Mask  (1961)<br />http://www.youtube.com/watch?v=xGTApr_SAts<br />
3D Television<br />Stereoscopic television was first demonstrated by <br />John Logie Baird in 1928<br />Stereo TV<br />St...
3D Television<br />Stereoscopic television was first demonstrated by John Logie Baird in 1928<br />http://www.youtube.com/...
3D Education<br />VRMagic Digital BIO<br />
3D Education<br />http://www.3dmedicaleducation.co.uk/index.php/anatomy/lumbar_vertebrae/<br />
3D Video-games<br />
3D Tech - NASA Uses Video Games for Visualization & Engineering <br />http://www.youtube.com/watch?v=v-mFx6blZK8<br />NASA...
3D Glasses<br />Techniques to Achieve 3D<br />
3D in the Classroom: See Well, Learn Well<br />
Passive<br />3D glasses technology<br />Linearly polarized glasses<br />Two images are projected superimposed onto the sam...
Passive<br />3D glasses technology<br />Circularly polarized glasses<br />Light that is left-circularly polarized is extin...
Circularly polarized glasses<br />
RealD Cinema system uses an electronically driven circular polarizer<br />Infitec glasses<br />Infitec  (interference filt...
Dolby 3D theatres<br />Complementary color anaglyphs (use red and cyan)<br />Lenticular printing used to produce images wi...
3D glasses technology<br />Active<br />Active<br />LCD shutter glasses<br />A liquid crystal glasses stop or allow light i...
Active 3D Glasses<br />small LCD screens<br />when voltage applied lens goes dark<br />synced with screen showing 3D conte...
Active 3D Glasses<br /> this method of 3D cuts refresh rate in half<br />Known to cause headaches<br />http://www.3d-tvbuy...
Active 3D Glasses<br />3D Personal Display Spectacles<br />two small screens in the glasses <br />display separate images ...
Autostereoscopic displays  Auto 3D<br />Almont Green 3D Photography<br />(http://almontgreen.wordpress.com/)<br />
Autostereoscopic displays  Auto 3D<br />Nintendo 3DS<br />Nintendo 3DS is hazardous to the <br />eyes of children (Nope!)<...
How Does Nintendo 3DS Work?<br />two separate outputs at slightly different angles one for your left eye and the other for...
3D Vision Syndrome<br />What constitutes a syndrome?<br />A group of symptoms that collectively indicate or characterize a...
So is the 3D Vision Syndrome <br />Really a Syndrome?<br />Yes.<br />The symptoms and signs consistently include: headache...
The 3D’s of 3D Viewing: <br />Discomfort, Dizziness and Lack of Depth<br />Discomfort:<br />Since 3D viewing is based on t...
The 3D’s of 3D Viewing: <br />Discomfort, Dizziness and Lack of Depth<br />Dizziness:<br />3D technology can exaggerate vi...
The 3D’s of 3D Viewing: <br />Discomfort, Dizziness and Lack of Depth<br />Lack of Depth:<br />A viewer lacking binocular ...
Symptoms of 3D Vision Syndrome<br />asthenopia, headaches, blurred vision, eyestrain, diplopia, dizziness/nausea and visio...
Symptoms of 3D Vision Syndrome<br />…a happy, actively engaged users of 3D content?<br />Image Credit: American Optometric...
3D Vision Syndrome …<br />… is comprised of a group of symptoms and physical signs that collectively indicate or character...
How to Dx an Individual with<br />3D Vision Syndrome<br />Examination Sequence<br />Comprehensive<br />Visual Efficiency/S...
How to Dx an Individual with<br />3D Vision Syndrome<br />Case Hx<br />Salient Findings<br />
How to Tx an Individual with<br />3D Vision Syndrome<br />We really don’t <br />know the best methodology/approach.<br />
How to Tx an Individual with<br />3D Vision Syndrome<br />Use what we do know<br />Rx/Prism<br />Optometric Vision Therapy...
These are your eyes….<br />These are your eyes<br />On 3D!<br />
3D Vision Syndrome <br />Single Subject Design Research Study <br />Patient #1<br />Symptoms: <br />blurred vision, double...
3D Vision Syndrome <br />Patient #1<br />27 y/o white female <br />College educated<br />Athletic trainer<br />Hx of readi...
3D Vision Syndrome <br />Patient #1<br />Initial Findings<br />VA’s CLS RE/LE 20/20<br />OR RE -.25, LE PL   Acceptable Fi...
3D Vision Syndrome <br />Patient #1<br />Initial Findings<br />Random Dot 100” (?)<br />NPC 2/6/4”<br />After 5 attempts p...
3D Vision Syndrome <br />Patient #1<br />Initial Findings<br />Accommodative Facility diplopia<br />MEM variable<br />Ocul...
3D Vision Syndrome <br />Patient #1<br />Diagnosis<br />Convergence insufficiency<br />Accommodative dysfunctions<br />Hea...
3D Vision Syndrome <br />Patient #1<br />Plan<br />Obtain past records<br />Start Optometric Vision Therapy<br />
3D Vision Syndrome <br />Patient #1<br />Previous Eye Examination (10/09)<br />“No Binocular Testing Done!”<br />Hx “Gener...
3D Vision Syndrome <br />Patient #1<br />Optometric Vision Therapy<br />Phase 1Phase 2Phase 3Phase 4<br />Mono	Biocular	  ...
3D Vision Syndrome <br />Patient #1      Optometric Vision Therapy<br /> OVT #1<br />HC Saccades<br />HC Rock<br />HTS (sa...
3D Vision Syndrome <br />Patient #1      Optometric Vision Therapy<br />OVT  #2<br />Reviewed HVT<br />Vision Builder (sac...
3D Vision Syndrome <br />Patient #1      Optometric Vision Therapy<br />OVT  #3<br />Reviewed HVT<br />Minus lens dips<br ...
3D Vision Syndrome <br />Patient #1      Optometric Vision Therapy<br />OVT  #4<br />Reviewed HVT<br />Vision Builder Rand...
3D Vision Syndrome <br />Patient #1      Optometric Vision Therapy<br />OVT  #5<br />Reviewed HVT<br />+/- Flippers (mono)...
3D Vision Syndrome <br />Patient #1      Optometric Vision Therapy<br />OVT  #6<br />Review HVT<br />ECC<br />Vectogram Ju...
3D Vision Syndrome <br />Patient #1      Optometric Vision Therapy<br />Progress evaluation #1<br />20/15 BVA, RE/LE<br />...
3D Vision Syndrome <br />Patient #1      Optometric Vision Therapy<br />OVT #7<br />Clown vectograms (push BI)<br />Chicag...
3D Vision Syndrome <br />Patient #1      Optometric Vision Therapy<br />OVT #8<br />Clown vectograms (push BI) with +/-1.0...
3D Vision Syndrome <br />Patient #1      Optometric Vision Therapy<br />Progress Evaluation #2<br />1 month later<br />Maj...
Ended Here:<br />Majority of symptoms resolved<br />BVA 20/20 RE, LE<br />Slight + CL OR<br />Pur/Sac +4<br />CT ortho/2 E...
Convergence insufficiency, Accommodative dysfunctions, Headache, Diplopia, Blurred vision, Double vision, Nausea, Dizzines...
Computer Programs Used in Optometric Vision Therapy<br />Computer Aided Vision Therapy <br />Home Therapy Solutions<br />
3D as a Public Information and Marketing Tool<br />3D in the News-Print Media-Internet<br />In Your Office-3D Pictures-New...
3D in the News ABC Chicago<br />http://abclocal.go.com/wls/story?section=news/health&id=7298893<br />
NBC News Broadcast<br />http://www.wlbz2.com/news/local/story.aspx?storyid=145741&catid=9<br />
AOA TV<br />http://www.iwantmyaoatv.com/<br />
Diagnosis<br />Maino D. Brock String Debuts at 2011 Consumer Electronics Show. Optom Vis Dev 2011;42(1):6-9.<br />
Print /Digital Media<br />
Blogs<br />
MainosMemos.blogspot.com<br />
Radio<br />
The 3D’s of 3D Viewing: <br />Discomfort, Dizziness and Lack of Depth<br />Discomfort<br />Dizziness<br />Lack of Depth<br />
The 4th D of 3D Viewing<br />The fourth “D” of 3D Viewing should be to call your….<br />Doctor of Optometry<br />
3D in the Classroom: <br />See Well, Learn Well<br />
3D Resources<br />AOA <br />http://www.aoa.org<br />American Academy of Optometry<br />http://www.aaopt.org<br />3D Eye He...
Questions?<br />Dominick M. Maino, O.D., M.Ed., F.A.A.O., F.C.O.V.D-A.<br />Professor, <br />Pediatrics/Binocular Vision S...
