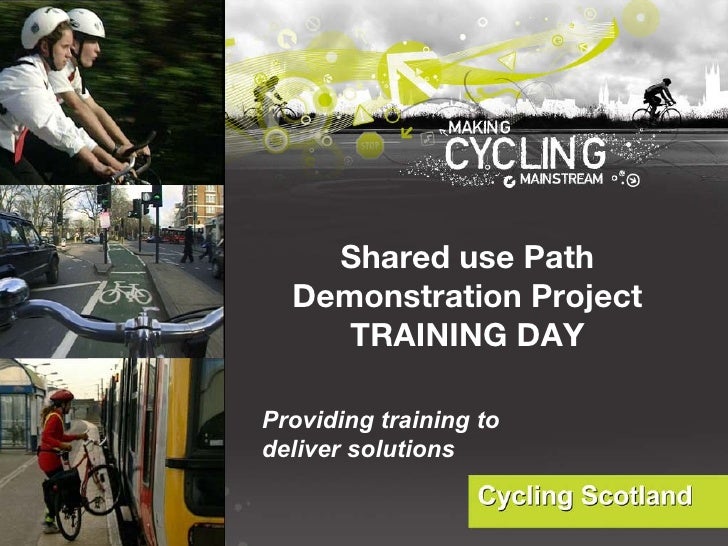

    1. 1. Shared use Path Demonstration Project TRAINING DAY Providing training to deliver solutions
    2. 2. Demonstration Project – Shared Use Path – Devon Way <ul><li>6/7 th October 2010 </li></ul><ul><li>Alloa </li></ul><ul><li>Peter Leslie and Clary Elliott </li></ul><ul><li>Clackmannanshire Council - Thanks </li></ul>Providing training to deliver solutions
    3. 3. LEARNING OUTCOMES <ul><li>Be aware of and be able to: </li></ul><ul><li>Introduce the Demonstration Project </li></ul>
    4. 4. LEARNING OUTCOMES <ul><li>Be aware of and be able to: </li></ul><ul><li>Introduce the Demonstration Project </li></ul><ul><li>Summarise Design Manuals available for use by Practitioners </li></ul>
    5. 5. LEARNING OUTCOMES <ul><li>Be aware of and be able to: </li></ul><ul><li>Introduce the Demonstration Project </li></ul><ul><li>Summarise Design Manuals available for use by Practitioners </li></ul><ul><li>Summarise surfaces available and users characteristics </li></ul>
    6. 6. LEARNING OUTCOMES <ul><li>Be aware of and be able to: </li></ul><ul><li>Introduce the Demonstration Project </li></ul><ul><li>Summarise Design Manuals available for use by Practitioners </li></ul><ul><li>Summarise surfaces available and users characteristics </li></ul><ul><li>Discuss Access Control and Disabled Users Requirements </li></ul>
    7. 7. LEARNING OUTCOMES <ul><li>Be aware of and be able to: </li></ul><ul><li>Introduce the Demonstration Project </li></ul><ul><li>Summarise Design Manuals available for use by Practitioners </li></ul><ul><li>Summarise surfaces available and users characteristics </li></ul><ul><li>Discuss Access Control and Disabled Users Requirements </li></ul><ul><li>Detail crossing requirements and options </li></ul>
    8. 8. LEARNING OUTCOMES <ul><li>Turn all of the learning outcomes into designs </li></ul>
    9. 9. Demonstration Project – Shared Use Path – Devon Way Before we get started Name Council Describe your journey here Homework
    10. 10. Demonstration Project – Shared Use Path – Devon Way Introduction
    11. 11. Devon Way - Information Core Path Linking Alloa and Dollar 10km long linking 7 settlements Alloa Railway Station, Community Health Centre, Liveries and Primary Schools and other amenities.
    12. 12. Demonstration Project – Shared Use Path – Devon Way Why Complete a Demonstration Project?
    13. 13. Cycling Scotland Policy Drivers <ul><li>National Outcomes </li></ul><ul><li>National Indicators and Targets </li></ul><ul><li>Cycle Action Plan for Scotland </li></ul><ul><li>“ By 2020, 10% of all journeys taken in Scotland will be by bike” </li></ul><ul><li>Questions and Queries </li></ul><ul><li>Scottish Outdoor Access Code </li></ul>
    14. 14. Cycle Action Plan for Scotland Professionals – Perth October 2008
    15. 15. Cycle Action Plan for Scotland <ul><li>Action 2: To work with key stakeholders and the tertiary education sector to offer accredited modules on integrating cycling best practice within their professional spheres. </li></ul><ul><li>Action 7: To complete the missing links in the National Cycle Network in Scotland. </li></ul><ul><li>Action 8: To promote the use of planning policy, access legislation and design guidance to a wide range of professionals; and to promote the outcomes of access legislation in the form of leisure activities. </li></ul>
    16. 16. Cycle Action Plan for Scotland <ul><li>Action 2: Making Cycling Mainstream </li></ul><ul><li>Up skill the workforce delivering cycle facilities in Scotland </li></ul><ul><li>Local Authority </li></ul><ul><li>University </li></ul><ul><li>Demonstration Project </li></ul><ul><ul><li>Visual approach </li></ul></ul><ul><ul><li>Continuous Development </li></ul></ul><ul><ul><li>Various Locations </li></ul></ul>
    17. 17. Partners – National Agencies <ul><li>Paths for All </li></ul><ul><ul><li>Current demonstration projects and experience of delivering demonstration projects </li></ul></ul><ul><li>Sustrans </li></ul><ul><ul><li>Extensive knowledge of shared use routes and path projects </li></ul></ul><ul><li>Where Next? </li></ul>
    18. 18. Partners – Local Authority Delivery <ul><li>Clackmannanshire Council </li></ul><ul><ul><li>Meeting held between the parties and over the course of 6 months the project was developed and the following stages agreed: </li></ul></ul><ul><li>Inception </li></ul><ul><li>Public Questionnaire </li></ul><ul><li>Design Report </li></ul><ul><li>Design </li></ul><ul><li>Construction </li></ul><ul><li>Maintenance </li></ul><ul><li>Training </li></ul>
    19. 19. Devon Way – Demonstration Project <ul><li>Accessible </li></ul><ul><li>Typical situations </li></ul><ul><li>Live </li></ul><ul><li>Varying provisions </li></ul><ul><li>Can see relevance to their own sites </li></ul><ul><li>Financial and human resources available </li></ul>
    20. 20. Why the Devon Way? Existing capital investment The route is live Requires Development Clackmannanshire Council have provided excellent infrastructure to date along the Devon Way The site is in full ownership of the Council
    21. 21. Inception Report – Funding <ul><li>Scottish Rural Development Programme – Access </li></ul><ul><li>Forth Valley and Lomond Leader </li></ul><ul><li>Sustrans </li></ul><ul><li>Central Scotland Green Network </li></ul><ul><li>Click to locate funding sources </li></ul>
    22. 22. Inception Report – Objectives of the Demonstration Project <ul><li>Objective 1 – Encourage active travel (walking, cycling and equestrian) along the strategic Devon Way path. </li></ul><ul><ul><li>The local community and users are an important part of the project as they have to be attracted to using the path. Therefore the demonstration site will look at how they can attract users and the local community. </li></ul></ul><ul><li>Objective 2 – Demonstrate and promote good practice for shared use paths and active travel infrastructure using real life examples. </li></ul><ul><li>Objective 3 – Delivery of a training venue which will assist practitioners in the judgement/assessment of installing shared use and active travel infrastructure. </li></ul><ul><ul><li>The second and third objective identifies how the demonstration site will aid path practitioners and professionals working within the field of active travel </li></ul></ul>
    23. 23. Delivery of Objectives <ul><li>Objective 1 – Encourage active travel (walking, cycling and equestrian) along the strategic Devon Way path. </li></ul><ul><ul><li>Signing </li></ul></ul><ul><ul><li>Tourism Route – Leaflets </li></ul></ul><ul><ul><li>Active Travel Promotion – Commuting - Led rides </li></ul></ul><ul><ul><li>Council Promotion of Route </li></ul></ul>
    24. 24. Delivery of Objectives <ul><li>Objective 2 – Demonstrate and promote good practice for shared use paths and active travel infrastructure using real life examples. </li></ul><ul><ul><li>Shared Use Surfaces </li></ul></ul><ul><ul><li>Crossings </li></ul></ul><ul><ul><li>Conflict Reduction (Width/Surface) </li></ul></ul><ul><ul><li>Access Control </li></ul></ul><ul><ul><li>Cycle Parking </li></ul></ul><ul><ul><li>Monitoring </li></ul></ul><ul><ul><li>Interpretation of Path Network </li></ul></ul>
    25. 25. Inception Report – Objectives of the Demonstration Project <ul><li>Objective 3 – Delivery of a training venue which will assist practitioners in the judgement/assessment of installing shared use and active travel infrastructure. </li></ul><ul><li>We are here today and the ongoing training delivery will be as follows: </li></ul><ul><li>Action Plan </li></ul><ul><li>Email updates </li></ul><ul><li>Site Visit </li></ul><ul><li>Course Delivery after Construction </li></ul>
    26. 26. Objective 2 <ul><ul><li>We are to cover the following areas today and information sheets will be provided on all areas in due course </li></ul></ul><ul><ul><li>Design Manuals </li></ul></ul><ul><ul><li>Shared Use Surfaces </li></ul></ul><ul><ul><li>Crossings </li></ul></ul><ul><ul><li>Access Control </li></ul></ul>
    27. 27. Objective 2 <ul><ul><li>How are we covering objective 2 </li></ul></ul><ul><ul><li>Produce and distribute a design report (literature review) to relevant practitioners. </li></ul></ul><ul><ul><li>The design report will be distributed to local authorities and other relevant practitioners through the use of Paths for All and Cycling Scotland website. This will be achieved through information sheets rather than publication of a full report. </li></ul></ul><ul><ul><li>Complete the construction of the project. </li></ul></ul><ul><ul><li>The design report will be updated to include construction issues/findings and be distributed to local authorities and relevant practitioners through the use of Paths for All and Cycling Scotland website. </li></ul></ul><ul><ul><li>This Leads us onto our first topic today – </li></ul></ul><ul><ul><li>Design Manuals </li></ul></ul>
    28. 29. Design Manuals <ul><li>Group Exercises </li></ul><ul><ul><li>List the design manuals you currently use </li></ul></ul><ul><ul><li>What information would you look for within the manual and how would you use the manuals? </li></ul></ul>
    29. 31. Active Travel Design Manuals <ul><li>Netherlands - Crow – Design manual for bicycle traffic </li></ul><ul><li>UK – DFT – Cycle Infrastructure Design </li></ul><ul><li>Scotland – TS - Cycling By Design 2010 </li></ul>
    30. 32. Sustrans Publications - Guidelines <ul><li>Connect 2 and Greenway Design Guide – 2007 </li></ul><ul><li>The NCN – Guidelines and Practical Details -1997 </li></ul><ul><li>Making Ways for the Bicycle – 1994 </li></ul><ul><li>www.sustrans.org.uk/resources </li></ul>
    31. 33. Active Travel Design Manuals <ul><li>UK – TFL – London Design Standards </li></ul><ul><li>Scotland – SE – Design for Streets </li></ul>
    32. 34. Active Travel Design Internet <ul><li>www.cyclingengland.co.uk </li></ul><ul><li>www.ctc.org.uk/Benchmarking </li></ul><ul><li>www.cyclingresourcecentre.org.au/ </li></ul><ul><li>www.fietsberaad.nl/ </li></ul>
    33. 35. Sustrans Publications – Notes <ul><li>Technical Information Notes – Current - Available from Sustrans </li></ul><ul><li>Information Sheets – Some are Dated - Available from Website </li></ul>
    34. 36. Path Construction <ul><li>Countryside Access Design Guide </li></ul><ul><li>Lowland Path Construction </li></ul><ul><li>Upland Path Management </li></ul><ul><li>Scottish Access Technical Information Network (SATIN) </li></ul>
    35. 37. Other Design Manuals <ul><li>Equestrian – </li></ul><ul><ul><li>British Horse Society </li></ul></ul><ul><ul><li>www.iprow.co.uk </li></ul></ul><ul><li>Disabled Users </li></ul><ul><ul><li>Fieldfare Trust </li></ul></ul><ul><ul><li>http://91.135.228.71/$sitepreview/phototrails-dev.org/default.cfm?walk=Devon-Way---Fishcross-to- Devonside&page = trail&walk_id =70 </li></ul></ul><ul><li>Walker </li></ul><ul><ul><li>www.livingstreets.org.uk/scotland </li></ul></ul><ul><li>Cyclist </li></ul><ul><ul><li>Natural Surface Trails by Design </li></ul></ul><ul><ul><li>Trail Solutions - IMBA </li></ul></ul>
    36. 38. Shared use Paths <ul><li>Who are the users? </li></ul>
    37. 40. Group Exercise? <ul><li>First of all get to know playmobil as they are going to be with you all day. </li></ul><ul><li>Dog Walker </li></ul><ul><li>Family (Sorry) </li></ul><ul><li>Wheelchair </li></ul><ul><li>Cyclist </li></ul><ul><li>Rambler </li></ul><ul><li>Equestrian </li></ul>
    38. 41. How do we cater for all? <ul><li>Space Requirements? </li></ul><ul><li>Reasons for use of Path? </li></ul><ul><li>Origin and Destinations? </li></ul><ul><li>Path Conditions? </li></ul><ul><li>Safety? </li></ul><ul><li>Enjoyment / Aesthetics? </li></ul>
    39. 42. Gathered the characteristics of each user group <ul><li>How do we design a surface for each user? </li></ul>
    40. 43. Different Users <ul><li>Can we come up with an agreed surface? </li></ul><ul><li>In your groups please list three points you feel are key for your user group in a surface </li></ul>
    41. 44. Other Interested Parties <ul><li>Funding </li></ul><ul><li>Local Authority Maintenance </li></ul><ul><li>Landowners (Neighbour) </li></ul><ul><li>Statutory Bodies </li></ul>
    42. 45. Ideal Surface to suit a shared use path <ul><li>Thoughts? </li></ul><ul><li>Think outside the box </li></ul>
    43. 47. Devon Way – Shared Use Path – Trial Surfaces <ul><li>Existing 2.5m wide bound surface </li></ul><ul><li>2.5m wide tar spray and chip with Recycled Tyre Chips </li></ul><ul><li>Toptrec – Machine Laid </li></ul><ul><li>2.5m wide 150mm Subbase and Whin </li></ul><ul><li>2.5m wide bound surface and 2.5m sub-base/whin equestrian path </li></ul>
    44. 48. Devon Way – Shared Use Path – Trial Surfaces <ul><li>Existing 2.5m wide bound surface </li></ul>
    45. 49. Devon Way – Shared Use Path – Trial Surfaces <ul><li>Tar spray and chip with Recycled Tyre Chips </li></ul>
    46. 50. Devon Way – Shared Use Path – Trial Surfaces
    47. 51. Devon Way – Shared Use Path – Trial Surfaces <ul><li>WRAP – Executive Summary </li></ul><ul><li>Discussion with Suppliers – Will pay for you to use them. </li></ul>
    48. 52. Devon Way – Shared Use Path – Trial Surfaces <ul><li>Toptrec – Machine Laid </li></ul>
    49. 53. Devon Way – Shared Use Path – Trial Surfaces <ul><li>150mm Subbase and Whin </li></ul>
    50. 54. Devon Way – Shared Use Path – Trial Surfaces <ul><li>2.5m wide bound surface and 2.5m sub-base/whin equestrian path </li></ul>
    51. 55. Devon Way – Shared Use Path – Trial Surfaces Any Questions As mentioned the design report will contain the information and be circulated on completion
    52. 56. Coffee/Tea and Biscuits
    53. 57. Accessibility and Access Controls <ul><li>What is the objective? </li></ul><ul><li>What are the requirements of different user groups? </li></ul>
    54. 58. Access Controls - Options <ul><li>Bollards </li></ul><ul><li>Chicanes </li></ul><ul><li>Planting </li></ul><ul><li>Path alignment – horizontal and vertical </li></ul><ul><li>Community ‘policing’ </li></ul><ul><li>Nothing </li></ul>
    55. 59. Accessibility Objectives <ul><li>Prevent motorised users </li></ul><ul><li>Allow free flow of users </li></ul><ul><li>Alert users to hazards / potential conflicts </li></ul><ul><li>Slow users’ speed </li></ul>
    56. 60. Access Controls - Examples Providing training to deliver solutions
    57. 61. Accessibility - Documents <ul><li>Transport Scotland Disability Discrimination Act: Good Practice Guide for Roads </li></ul><ul><li>BT / Fieldfare Trust Country Side for All </li></ul><ul><li>Design guides referenced earlier </li></ul><ul><li>Sustrans TIN and Information Sheet </li></ul><ul><li>Proposed Sustrans Arts and Gateways guide </li></ul>
    58. 62. Do access controls work?
    59. 63. Good Practice
    60. 64. Instead of us going on about the different users we would like to show you the following video. We think this shows the different users perspective and requirements. Remember by 2025, disabled people will have the same opportunities and choices as non-disabled people on travel choices Disable Discrimination Act Compliance
    61. 65. <ul><li>Video - </li></ul><ul><li>http://www.transportscotland.gov.uk/road/Roads-for-All-Conference-2010-video </li></ul>
    62. 66. Discuss Video Devon Way Audit - Promoting Countryside Access for Disabled People - Phototrails http://91.135.228.71/$sitepreview/phototrails- dev.org/default.cfm?walk =Devon-Way---Fishcross-to- Devonside&page = trail&walk_id =70
    63. 67. Thankfully I am now going to pass onto Alan Murray from Clackmannanshire Council to present crossings located in the council area
    64. 68. Pedestrian / Cycle Crossings <ul><li>Islands </li></ul><ul><li>Zebra </li></ul><ul><li>Puffin / Pelican </li></ul><ul><li>Toucan </li></ul><ul><li>Pegasus </li></ul>
    65. 72. Pedestrian / Cycle Crossings <ul><li>Islands </li></ul><ul><li>Zebra </li></ul><ul><li>Puffin / Pelican </li></ul><ul><li>Toucan </li></ul><ul><li>Pegasus </li></ul>
    66. 73. Other Options Cycling by Design Side Road Crossing – Bend Out There are other options but due to it being adjacent to a trunk road this was preferred
    67. 74. Other Options Side Road Crossing – Bend In Raise Table crossing with no give way markings
    68. 75. Other Options Side Road Crossing – Bend In Raise Table crossing both with give way markings
    69. 76. Other Options Side Road Crossing – Surfacing On Road Give Way Markings
    70. 77. Other Options Side Road Crossing – Bend out Raise Table crossing both with on road give way markings
    71. 78. Other Options Main Road Crossing – Traffic Island
    72. 79. Other Options Main Road Crossing – Rumble Strips and Coloured Surfacing Within Cycling by Design for use on the Trunk Road
    73. 80. Crossings Design Site Specific One size does not fit all Crossing Attributes Simple Field of Vision for All users Decision Making Cycling by Design Transport for London
    74. 81. Summary <ul><li>We’ve looked at: </li></ul><ul><li>Devon Way </li></ul><ul><li>Demonstration Project Introduction </li></ul><ul><li>Design Manuals </li></ul><ul><li>Shared Surfaces </li></ul><ul><li>Access Control </li></ul><ul><li>Crossings </li></ul>
    75. 82. <ul><li>Are there any questions from this mornings presentations? </li></ul>
    76. 83. Site Visit this Afternoon <ul><li>Project isn’t constructed but is designed </li></ul><ul><li>Group working to develop designs </li></ul><ul><li>Consider a specific aspect and general issues </li></ul><ul><li>Feedback and discussion on site </li></ul><ul><li>Proposals to take forward </li></ul><ul><li>Action Plan </li></ul>
    77. 84. Site Visit this Afternoon <ul><li>Scenario 1 </li></ul><ul><ul><li>B Road Crossing with Access Control </li></ul></ul><ul><ul><ul><li>Ramp </li></ul></ul></ul><ul><ul><ul><li>Surfacing either side of the crossing </li></ul></ul></ul>
    78. 85. Site Visit this Afternoon <ul><li>Scenario 2 </li></ul><ul><ul><li>Minor Road Crossing with Access Control </li></ul></ul><ul><ul><ul><li>Surfacing either side of crossing </li></ul></ul></ul><ul><ul><ul><li>DDA Compliance </li></ul></ul></ul>
    79. 86. Site Visit this Afternoon <ul><li>Scenario 3 </li></ul><ul><ul><li>Pegasus Crossing (All Users) </li></ul></ul><ul><ul><ul><li>Surfacing either side of crossing </li></ul></ul></ul><ul><ul><ul><li>DDA Compliance </li></ul></ul></ul><ul><ul><ul><li>Access Control </li></ul></ul></ul>
    80. 87. Site Visit this Afternoon <ul><li>All </li></ul><ul><ul><li>Signing / Interpretation – Core Path Plan </li></ul></ul><ul><ul><li>DDA Compliance </li></ul></ul><ul><ul><li>What would like to see in a Demonstration Project </li></ul></ul><ul><ul><li>Meet at Bridge on Plan after 1 hour </li></ul></ul>
    81. 88. THANK YOU Peter Leslie Clary Elliott Providing training to deliver solutions

    ×
