©Continuent 2014
Geographically Distributed
Multi-Master MySQL Clusters
Robert Hodges, CEO
Jeff Mace, Director of Services

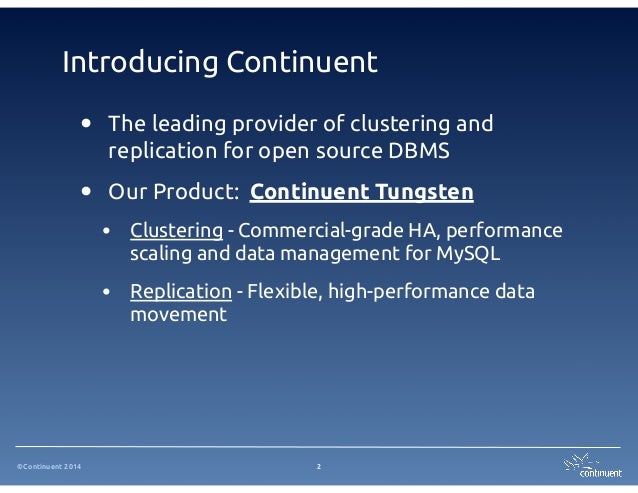

©Continuent 2014
Introducing Continuent
2
• The leading provider of clustering and
replication for open source DBMS
• Our ...
©Continuent 2014

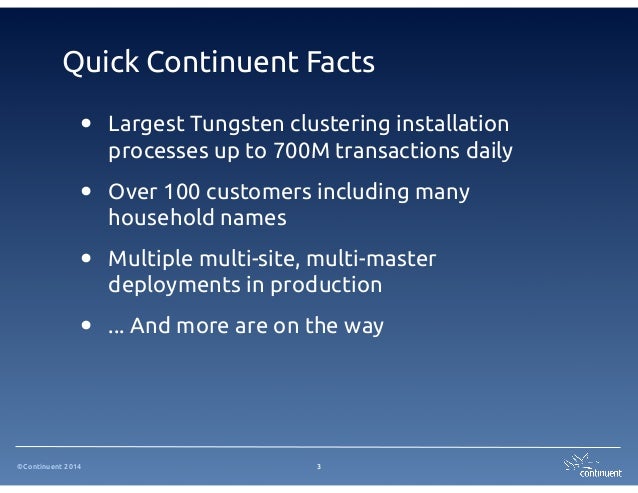

Quick Continuent Facts
• Largest Tungsten clustering installation
processes up to 700M transactions daily...
©Continuent 2014 4
Tungsten Clustering in Two Minutes
©Continuent 2014
Tungsten Database-as-a-Service
5
Tungsten clusters combine off-
the-shelf open source DBMS
servers into d...

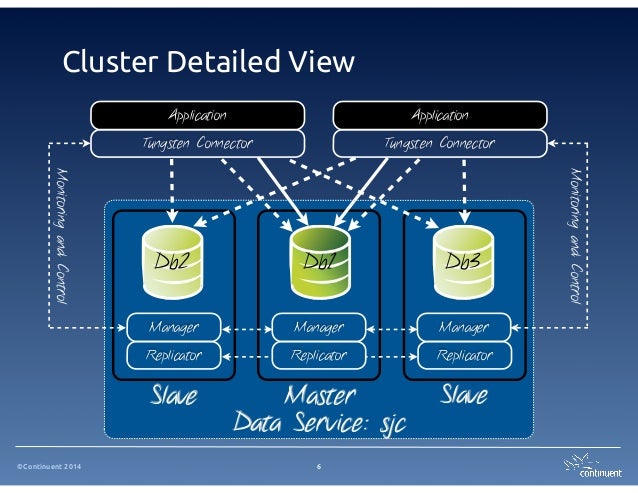

©Continuent 2014
Cluster Detailed View
6
Application
Tungsten Connector
Application
Tungsten Connector
Replicator
Db2
Repl...
©Continuent 2014 7
Tungsten Replication in Four Minutes
©Continuent 2014

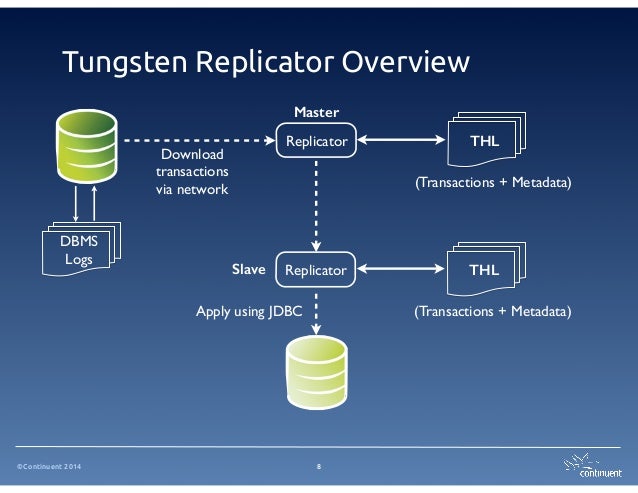

Tungsten Replicator Overview
8
Master
(Transactions + Metadata)
Slave
THL
DBMS

Logs
Replicator
(Transac...

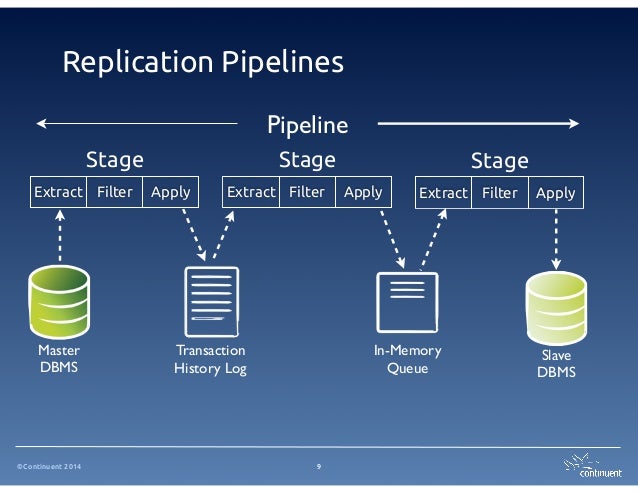

©Continuent 2014
Replication Pipelines
9
Extract Filter Apply
Stage
Extract Filter Apply
Stage
Pipeline
Master

DBMS
Tran...

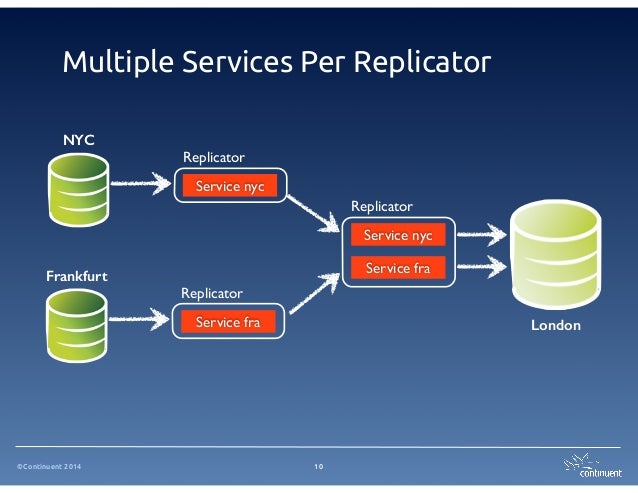

©Continuent 2014
Multiple Services Per Replicator
10
NYC
Replicator
London
Service nyc
Frankfurt
Replicator
Service fra
Re...

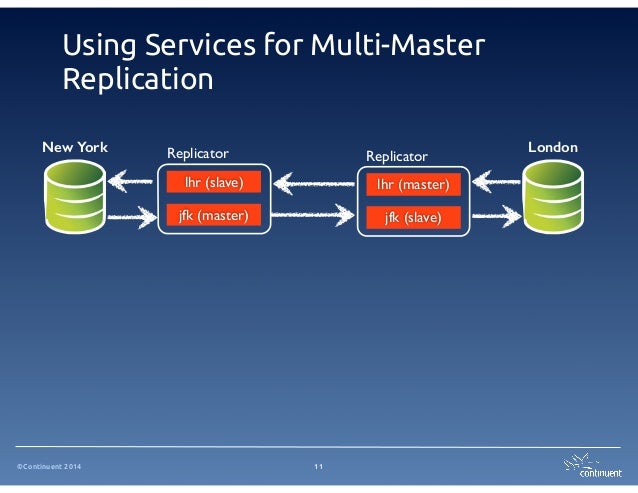

©Continuent 2014
Using Services for Multi-Master
Replication
11
New York London
Replicator
lhr (master)
jfk (slave)
Replic...
©Continuent 2014 12
Introducing Multi-Site
Multi-Master Clustering

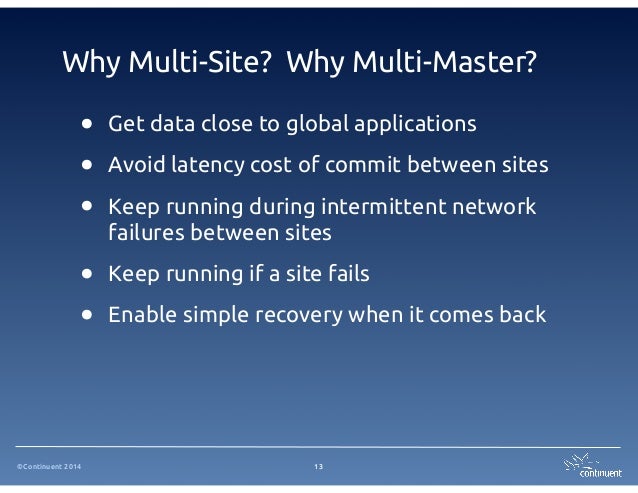

©Continuent 2014
Why Multi-Site? Why Multi-Master?
13
• Get data close to global applications
• Avoid latency cost of comm...

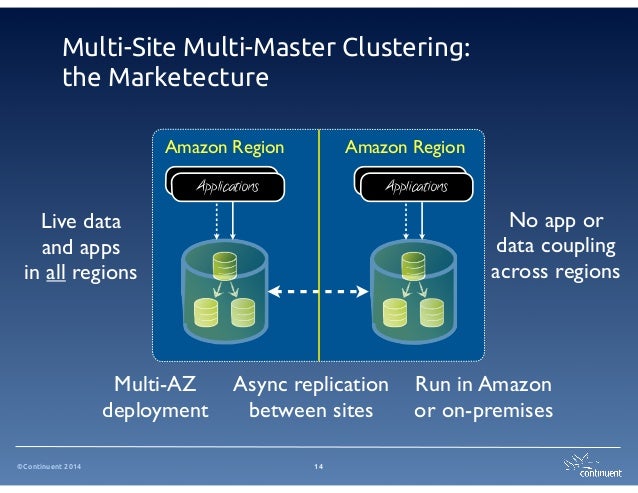

©Continuent 2014
Multi-Site Multi-Master Clustering:
the Marketecture
14
No app or
data coupling
across regions
Applicatio...

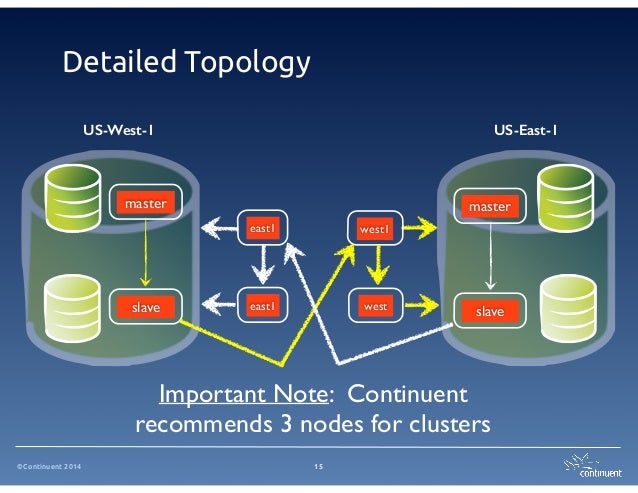

©Continuent 2014
Detailed Topology
15
US-West-1 US-East-1
master
slave east1
east1
west
west1
master
slave
Important Note:...

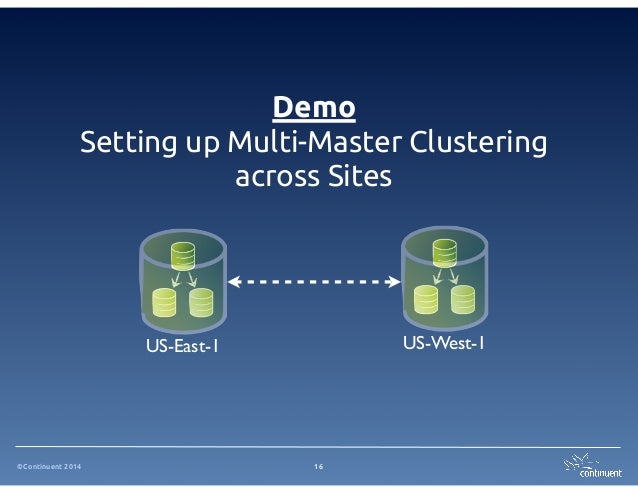

©Continuent 2014 16
Demo
Setting up Multi-Master Clustering
across Sites
US-East-1 US-West-1
©Continuent 2014

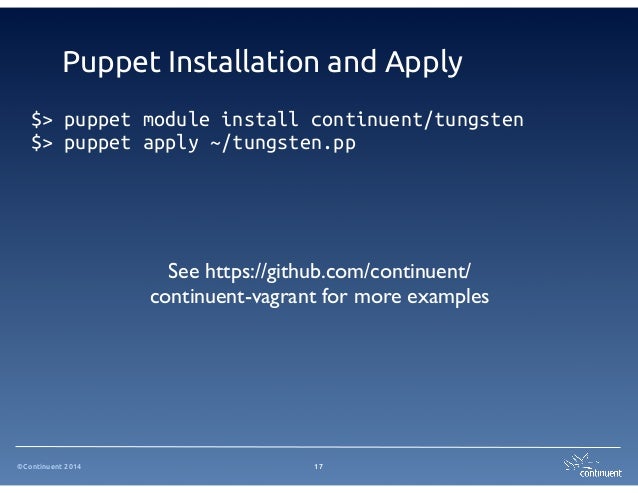

Puppet Installation and Apply
17
$> puppet module install continuent/tungsten
$> puppet apply ~/tungsten....
©Continuent 2014 18
Failures in Multi-Master Topologies

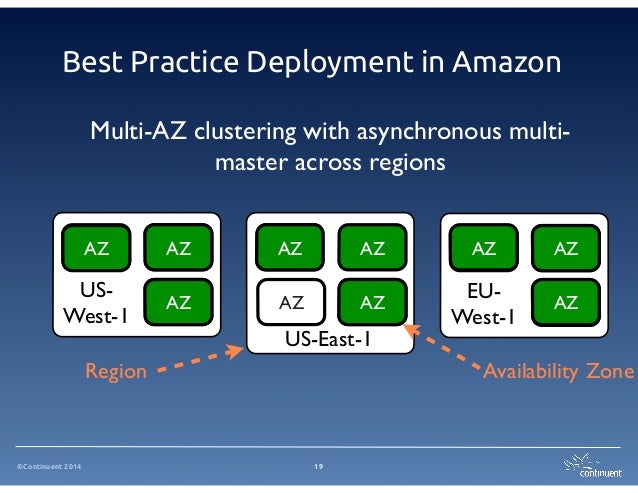

©Continuent 2014
Best Practice Deployment in Amazon
19
Multi-AZ clustering with asynchronous multi-
master across regions
...
©Continuent 2014
Normal Multi-Master Configuration
20
master
slave
master
slaveeast1
east1
west
west1
US-West-1 US-East-1

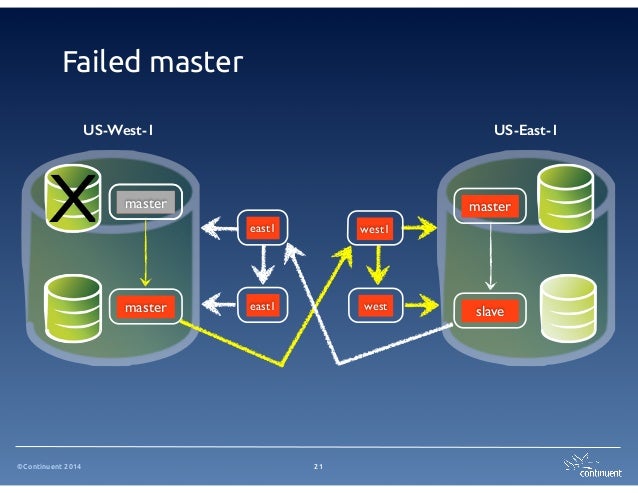

©Continuent 2014
Failed master
21
master
master
master
slave
master
X
east1
east1
west
west1
US-West-1 US-East-1
©Continuent 2014

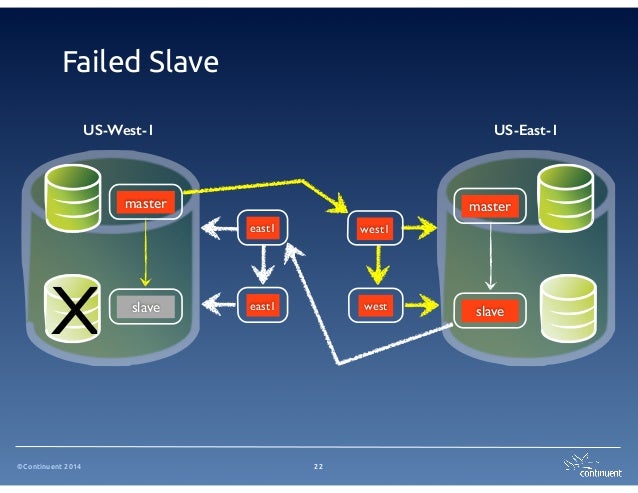

Failed Slave
22
master
slave
master
slave
X east1
east1
west
west1
US-West-1 US-East-1
©Continuent 2014

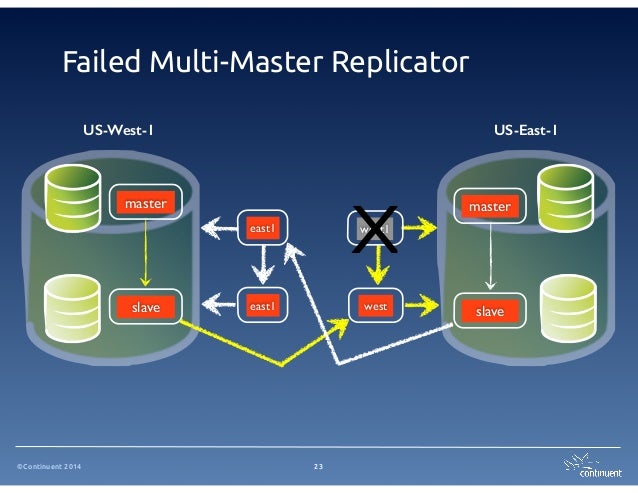

Failed Multi-Master Replicator
23
master
slave
master
slaveeast1
east1
west
west1
X
US-West-1 US-East-1
©Continuent 2014
Full-Site Failure
24
master
slave
master
slaveeast1
east1
west
west1
X
US-West-1 US-East-1
©Continuent 2014 25
Enabling Data Replication Policies
with Filters
©Continuent 2014

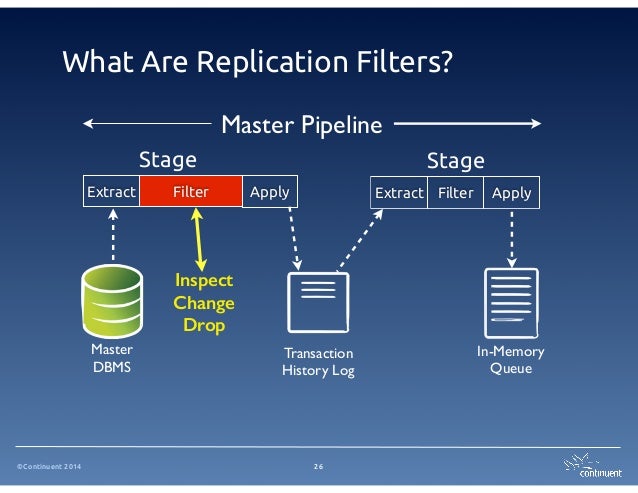

What Are Replication Filters?
26
Extract Filter Apply
Stage
Extract Filter Apply
Stage
Master Pipeline
Ma...
©Continuent 2014
Problem: Handling PII Data
27
CREATE TABLE `personal_info` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`useri...
©Continuent 2014
Problem: Application-Specific Rules
28
mysql> select * from personal_info;
+----+--------+---------------...
©Continuent 2014
Adding Filters to Meet Requirements
29
Extract Filter(s) Apply
Stage
Extract Filter Apply
Stage
Master Pi...

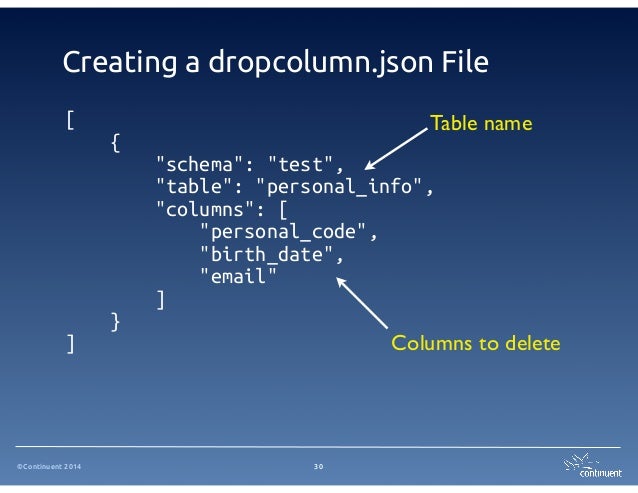

©Continuent 2014
Creating a dropcolumn.json File
[
{
"schema": "test",
"table": "personal_info",
"columns": [
"personal_co...
©Continuent 2014

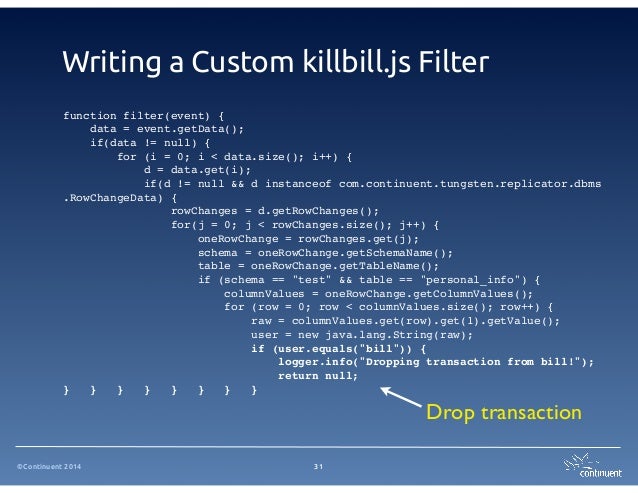

Writing a Custom killbill.js Filter
function filter(event) {!
data = event.getData();!
if(data != null) {...
©Continuent 2014

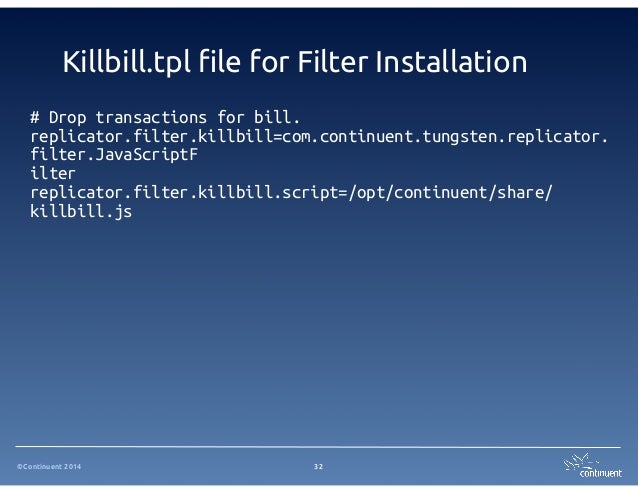

Killbill.tpl file for Filter Installation
# Drop transactions for bill.
replicator.filter.killbill=com.co...

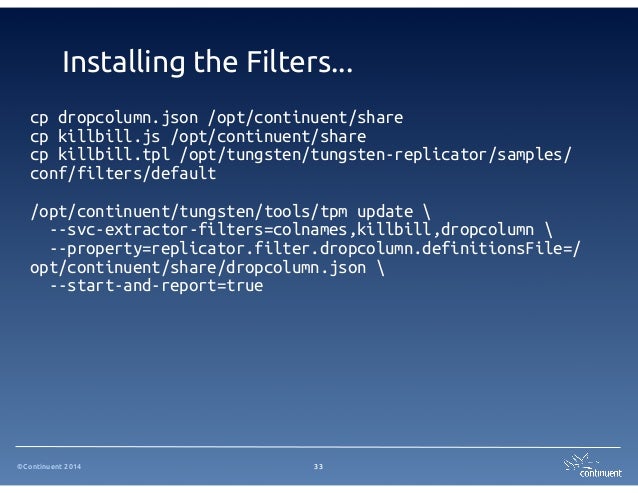

©Continuent 2014
Installing the Filters...
cp dropcolumn.json /opt/continuent/share
cp killbill.js /opt/continuent/share
c...
©Continuent 2014
Resulting Data on Slave(s)
34
mysql> select * from personal_info;
+----+--------+---------------+--------...
©Continuent 2014
Conclusion
35
©Continuent 2014

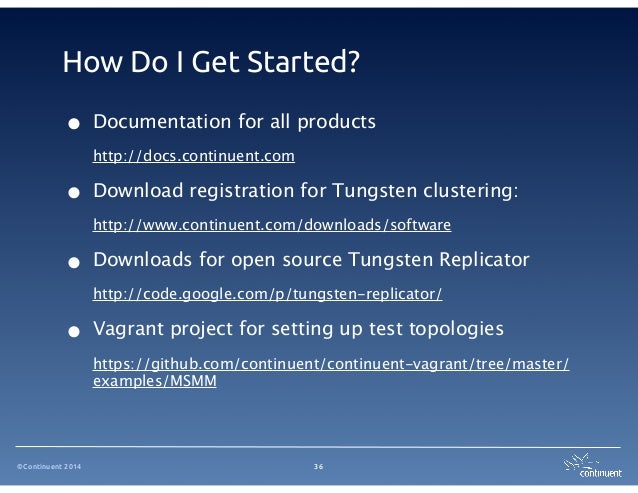

How Do I Get Started?
36
• Documentation for all products
http://docs.continuent.com
• Download registrat...
©Continuent 2014
Continuent Web Page:

http://www.continuent.com

!
Tungsten Replicator:

http://code.google.com/p/tung...
Upcoming SlideShare
Loading in...5
×

Geographically Distributed Multi-Master MySQL Clusters

648

Published on

In this webinar, we discuss the multi-master capabilities of Continuent Tungsten to help you build and manage systems that spread data across multiple sites. We cover important topics such as setting up large scale topologies, handling failures, and how to handle data privacy issues like removing personally identifiable information or handling privacy law restrictions on data movement. We will conclude with a live demonstration of a distributed MySQL solution with Continuent Tungsten clusters working across multiple Amazon Web Services (AWS) availability zones and regions.

Published in: Technology
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total Views
648
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
18
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Geographically Distributed Multi-Master MySQL Clusters

  1. 1. ©Continuent 2014 Geographically Distributed Multi-Master MySQL Clusters Robert Hodges, CEO Jeff Mace, Director of Services
  2. 2. ©Continuent 2014 Introducing Continuent 2 • The leading provider of clustering and replication for open source DBMS • Our Product: Continuent Tungsten • Clustering - Commercial-grade HA, performance scaling and data management for MySQL • Replication - Flexible, high-performance data movement
  3. 3. ©Continuent 2014 Quick Continuent Facts • Largest Tungsten clustering installation processes up to 700M transactions daily • Over 100 customers including many household names • Multiple multi-site, multi-master deployments in production • ... And more are on the way 3
  4. 4. ©Continuent 2014 4 Tungsten Clustering in Two Minutes
  5. 5. ©Continuent 2014 Tungsten Database-as-a-Service 5 Tungsten clusters combine off- the-shelf open source DBMS servers into data services with: ! • 24x7 data access • Scaling of load on replicas • Simple management commands ! ...without app changes or data migration Amazon US West apache /php GonzoPortal.com Connector Connector
  6. 6. ©Continuent 2014 Cluster Detailed View 6 Application Tungsten Connector Application Tungsten Connector Replicator Db2 Replicator Db3Db1 Replicator Slave SlaveMaster Manager Manager Manager MonitoringandControl MonitoringandControl Data Service: sjc
  7. 7. ©Continuent 2014 7 Tungsten Replication in Four Minutes
  8. 8. ©Continuent 2014 Tungsten Replicator Overview 8 Master (Transactions + Metadata) Slave THL DBMS Logs Replicator (Transactions + Metadata) THLReplicator Download transactions via network Apply using JDBC
  9. 9. ©Continuent 2014 Replication Pipelines 9 Extract Filter Apply Stage Extract Filter Apply Stage Pipeline Master DBMS Transaction History Log In-Memory Queue Slave DBMS Extract Filter Apply Stage
  10. 10. ©Continuent 2014 Multiple Services Per Replicator 10 NYC Replicator London Service nyc Frankfurt Replicator Service fra Replicator Service nyc Service fra
  11. 11. ©Continuent 2014 Using Services for Multi-Master Replication 11 New York London Replicator lhr (master) jfk (slave) Replicator lhr (slave) jfk (master)
  12. 12. ©Continuent 2014 12 Introducing Multi-Site Multi-Master Clustering
  13. 13. ©Continuent 2014 Why Multi-Site? Why Multi-Master? 13 • Get data close to global applications • Avoid latency cost of commit between sites • Keep running during intermittent network failures between sites • Keep running if a site fails • Enable simple recovery when it comes back
  14. 14. ©Continuent 2014 Multi-Site Multi-Master Clustering: the Marketecture 14 No app or data coupling across regions ApplicationApplications ApplicationApplications Amazon Region Amazon Region Live data and apps in all regions Multi-AZ deployment Async replication between sites Run in Amazon or on-premises
  15. 15. ©Continuent 2014 Detailed Topology 15 US-West-1 US-East-1 master slave east1 east1 west west1 master slave Important Note: Continuent recommends 3 nodes for clusters
  16. 16. ©Continuent 2014 16 Demo Setting up Multi-Master Clustering across Sites US-East-1 US-West-1
  17. 17. ©Continuent 2014 Puppet Installation and Apply 17 $> puppet module install continuent/tungsten $> puppet apply ~/tungsten.pp See https://github.com/continuent/ continuent-vagrant for more examples
  18. 18. ©Continuent 2014 18 Failures in Multi-Master Topologies
  19. 19. ©Continuent 2014 Best Practice Deployment in Amazon 19 Multi-AZ clustering with asynchronous multi- master across regions US-East-1 AZAZ AZ AZ EU- West-1 AZ AZ AZ US- West-1 AZ AZ AZ AZAZ AZ AZAZ Availability ZoneRegion AZ AZ AZ
  20. 20. ©Continuent 2014 Normal Multi-Master Configuration 20 master slave master slaveeast1 east1 west west1 US-West-1 US-East-1
  21. 21. ©Continuent 2014 Failed master 21 master master master slave master X east1 east1 west west1 US-West-1 US-East-1
  22. 22. ©Continuent 2014 Failed Slave 22 master slave master slave X east1 east1 west west1 US-West-1 US-East-1
  23. 23. ©Continuent 2014 Failed Multi-Master Replicator 23 master slave master slaveeast1 east1 west west1 X US-West-1 US-East-1
  24. 24. ©Continuent 2014 Full-Site Failure 24 master slave master slaveeast1 east1 west west1 X US-West-1 US-East-1
  25. 25. ©Continuent 2014 25 Enabling Data Replication Policies with Filters
  26. 26. ©Continuent 2014 What Are Replication Filters? 26 Extract Filter Apply Stage Extract Filter Apply Stage Master Pipeline Master DBMS Transaction History Log In-Memory Queue Inspect Change Drop
  27. 27. ©Continuent 2014 Problem: Handling PII Data 27 CREATE TABLE `personal_info` ( `id` int(11) NOT NULL AUTO_INCREMENT, `userid` varchar(250) DEFAULT NULL, `personal_code` varchar(250) DEFAULT NULL, `birth_date` date DEFAULT NULL, `email` varchar(250) DEFAULT NULL, PRIMARY KEY (`id`) ) ENGINE=InnoDB DEFAULT CHARSET=utf8 Requirement 1: Do not replicate personally identifiable information
  28. 28. ©Continuent 2014 Problem: Application-Specific Rules 28 mysql> select * from personal_info; +----+--------+---------------+------------+-----------------+ | id | userid | personal_code | birth_date | email | +----+--------+---------------+------------+-----------------+ | 1 | fre11 | secret | 1985-01-16 | bobr@gmail.com | | 2 | bill | verysecret | 1995-01-16 | billk@gmail.com | +----+--------+---------------+------------+-----------------+ Requirement 2: prevent userid ‘bill’ from replicating
  29. 29. ©Continuent 2014 Adding Filters to Meet Requirements 29 Extract Filter(s) Apply Stage Extract Filter Apply Stage Master Pipeline Master DBMS Transaction History Log In-Memory Queue colnames killbill dropcolumns dropcolumns.json
  30. 30. ©Continuent 2014 Creating a dropcolumn.json File [ { "schema": "test", "table": "personal_info", "columns": [ "personal_code", "birth_date", "email" ] } ] 30 Table name Columns to delete
  31. 31. ©Continuent 2014 Writing a Custom killbill.js Filter function filter(event) {! data = event.getData();! if(data != null) {! for (i = 0; i < data.size(); i++) {! d = data.get(i);! if(d != null && d instanceof com.continuent.tungsten.replicator.dbms! .RowChangeData) {! rowChanges = d.getRowChanges();! for(j = 0; j < rowChanges.size(); j++) {! oneRowChange = rowChanges.get(j);! schema = oneRowChange.getSchemaName();! table = oneRowChange.getTableName();! if (schema == "test" && table == "personal_info") {! columnValues = oneRowChange.getColumnValues();! for (row = 0; row < columnValues.size(); row++) {! raw = columnValues.get(row).get(1).getValue();! user = new java.lang.String(raw);! if (user.equals("bill")) {! logger.info("Dropping transaction from bill!");! return null;! } } } } } } } }! 31 Drop transaction
  32. 32. ©Continuent 2014 Killbill.tpl file for Filter Installation # Drop transactions for bill. replicator.filter.killbill=com.continuent.tungsten.replicator. filter.JavaScriptF ilter replicator.filter.killbill.script=/opt/continuent/share/ killbill.js 32
  33. 33. ©Continuent 2014 Installing the Filters... cp dropcolumn.json /opt/continuent/share cp killbill.js /opt/continuent/share cp killbill.tpl /opt/tungsten/tungsten-replicator/samples/ conf/filters/default ! /opt/continuent/tungsten/tools/tpm update --svc-extractor-filters=colnames,killbill,dropcolumn --property=replicator.filter.dropcolumn.definitionsFile=/ opt/continuent/share/dropcolumn.json --start-and-report=true 33
  34. 34. ©Continuent 2014 Resulting Data on Slave(s) 34 mysql> select * from personal_info; +----+--------+---------------+------------+-------+ | id | userid | personal_code | birth_date | email | +----+--------+---------------+------------+-------+ | 1 | fre11 | NULL | NULL | NULL | +----+--------+---------------+------------+-------+ 1 row in set (0.00 sec) ! Requirement 2: No bill! Requirement 1: PII columns cleared
  35. 35. ©Continuent 2014 Conclusion 35
  36. 36. ©Continuent 2014 How Do I Get Started? 36 • Documentation for all products http://docs.continuent.com • Download registration for Tungsten clustering: http://www.continuent.com/downloads/software • Downloads for open source Tungsten Replicator http://code.google.com/p/tungsten-replicator/ • Vagrant project for setting up test topologies https://github.com/continuent/continuent-vagrant/tree/master/ examples/MSMM
  37. 37. ©Continuent 2014 Continuent Web Page: http://www.continuent.com ! Tungsten Replicator: http://code.google.com/p/tungsten-replicator Our Blogs: http://scale-out-blog.blogspot.com http://datacharmer.org/blog http://www.continuent.com/news/blogs 560 S. Winchester Blvd., Suite 500 San Jose, CA 95128 Tel +1 (866) 998-3642 Fax +1 (408) 668-1009 e-mail: sales@continuent.com
