COGILITY SOFTWARE The Leader In Model Driven Complex Event Processing




                                              Co...
When the Model is Not the System



                                             Most modeling software is like
         ...
The Real System is MUCH More Complex


                                        An actual system is like the
             ...
What if…



                 It were possible to build a model of a
                  system using a much superior modeli...
Cogility Studio: The Model is the System


        A model of an IT system built within Cogility Studio is not a
        ...
Cogility Studio: Architecture Big
                     Cogility Studio: Architecture Big Picture
                         ...
Conventional MDA Approach: Model Translation


  Conventional approach
   to an MDA based
   executable model is via
   t...
Translation: An Evolutionary Approach



        Model Driven systems are a paradigm shift in the way in which
         s...
Cogility Studio: Model Driven Execution (MDX)


        Cogility’s approach is more akin to “programming with objects”
  ...
Cogility Studio: Model Driven Execution

  Cogility does not depend                                            Configurat...
Cogility Studio: Execution Architecture

                                  Cogility
                                  Mode...
Cogility Studio: Automated J2EE Model Interface



                                         Generated
                    ...
Cogility Studio: Directly Executable Model-Driven Action Semantics



                                     Database
      ...
Cogility Studio: Highly Accessible Execution Data



                                 Database
                           ...
Cogility Manager: Model Aware Execution Environment


          Cogility’s execution environment has complete semantic
  ...
System Command Console: Cogility ActionPad




16                                 © 2010 Cogility Software Corporation   A...
Limits of Human Comprehension




          Research in cognitive science indicates that on average we can
           int...
Chunking and Evolution of Computer Languages


          The concept of aggregating low-level detail into a reusable chun...
Applying Chunking to a Typical IT System




                                                   Parse Input
           Com...
Cogility Studio: Reducing IT Complexity by Chunking


          Cogility defines an IT System using a combination of powe...
Cogility Studio: Executable Action Semantics


         Further, Cogility provides a number of powerful, executable,
    ...
Cogility Studio: Action Semantics Chunks




         The Action Semantics itself can be chunked as follows

           ...
Conclusion: Model Driven Execution With Cogility Studio

         Cogility Studio provides essential executable modeling ...
Additional Reading

         Some of the concepts that have been discussed here have been
          discussed by others.
...
Cogility Studio: The Model Is The System

         Cogility’s unique abilities
              Cogility’s unique capabilit...
Upcoming SlideShare
Loading in...5
×

The Benefits of Cogility

6,019

Published on

Provides products to commercial organizations and government projects seeking to improve their application delivery and development timelines and resource load

Published in: Technology, Sports
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total Views
6,019
On Slideshare
0
From Embeds
0
Number of Embeds
3
Actions
Shares
0
Downloads
8
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Transcript of "The Benefits of Cogility"

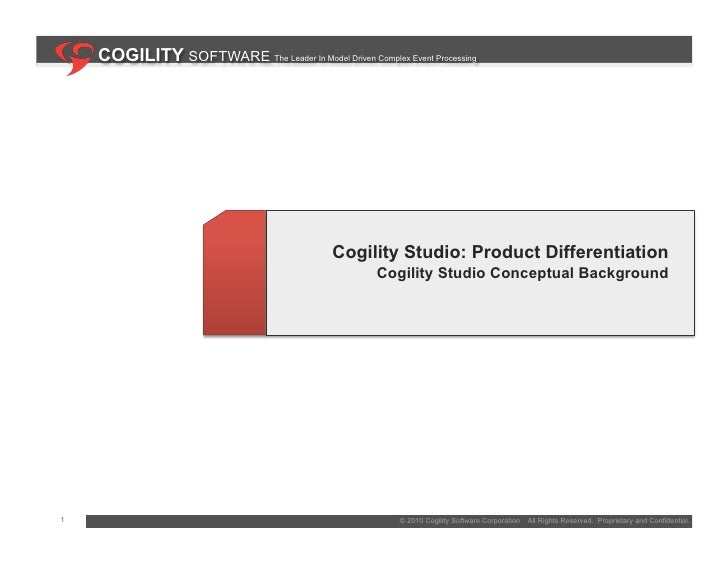

  1. 1. COGILITY SOFTWARE The Leader In Model Driven Complex Event Processing Cogility Studio: Product Differentiation Cogility Studio Conceptual Background 1 © 2010 Cogility Software Corporation 1 All Rights Reserved. Proprietary and Confidential.
