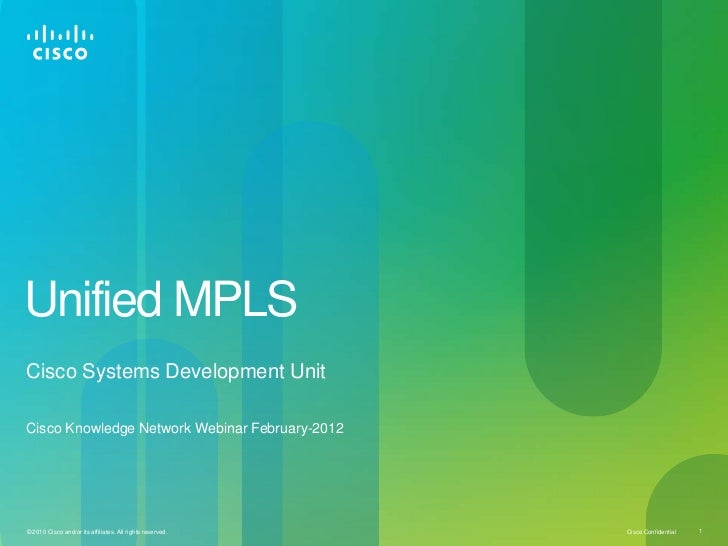

    • 1. Unified MPLSCisco Systems Development UnitCisco Knowledge Network Webinar February-2012© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 1
    • 2. • Service and revenue mixes are changing as packet transport requirements explode• The compelling events of Cloud and LTE are driving adoption of intelligent packet based networks to deliver optimal transport• Simplification by protocol reduction, minimal configuration and separation of service from transport operations are all required to realize a cost effective network that can be operated at large scale• Advances in MPLS Technology make a single end to end control, data and management plane feasible for today’s NGNs.• The benefits are simplified operations, reduced skill set for operations, elimination of both protocol translation between domains and scale limitations of legacy technologies.• Leading operators are adopting this approach now to develop a single multiservice network that can improve ROI by the process of “build once, use many times”.© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 2
    • 3. • Why Unified MPLS• What is Unified MPLS• Unified MPLS for Mobile Transport (UMMT) system overview QoS Resiliency OAM and PM Synchronization Distribution Management• Summary and Key Takeaways© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3
    • 4. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 4
    • 5. • Packet transport delivers the most efficient and cost effective solution for the exploding packet traffic demands seen in networks today• Infrastructure is converging to get better utilization of fiber and microwave assets, driving the need for virtualization• Compelling events of LTE for mobile and cloud for wireline drives the need for intelligent packet networks• Legacy TDM and ATM transport will persist for many years• For converged packet transport, virtualization and legacy support, the industry has chosen MPLS• Unified MPLS now brings scale enhancements and operational simplification to meet the most demanding operator needs© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 5
    • 6. 90+% 2011 2013 2016 IP Traffic Private Line Private Line Private Line TDM/OTN TDM/OTN TDM/OTN Traffic Traffic Traffic ~50-70%* 20-30% 0─10% Packet Circuit Private/Public Private/Public Private/Public IP Traffic IP Traffic IP Traffic Packet Legacy TDM ~30-50% 70-80% 90+% Traffic• SP revenue shifting from circuits to packet services** 5 yrs  ~80% revenue derived from packet services• Packet traffic increasing at 34% CAGR***• Massive change in SP traffic make-up in next 5 years**ACG Research 2011, ** Cisco Research 2010, ***Cisco VNI 2011© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 6
    • 7. TDM transport of packets is no longer economically viable, lacks statistical multiplexing which makes it veryChart from Infonetics, Text from DT expensive Full transformation to NGN needs to occur from core to customer Long term vision is critical, this will be the network for the next decade What is the most effective technology choice that will: Minimize CapEx and OpEx? Provide carrier class service delivery? Maximize service agility? Carriers want the deterministic attributes of transport networks with the flexibility of the internet © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 7
    • 8. Legacy backhaul 2G/3G Hierarchical Backhaul Architecture BTS/NodeB• 2G/3G hierarchical backhaul architecture• Transport from RAN to Aggregation Network BTS/NodeB MSC GGSN Abis/Iub BSC/RNC middle-man sitting at local aggregation domain SGSN BSC/RNC• Hub-spoke connectivity from BSC/RNC to BTS/NodeB LTE/EPC Flattened Backhaul ArchitectureNext-Gen Backhaul eNodeB PGW SGW• LTE flattened all-IP backhaul architecture MME eNodeB S1-u• Transport from RAN to Core Network S1-c• Multipoint connectivity (S1-u, S1c interface) from RAN to Core EPC gateways S1-c• Mesh connectivity in RAN (X2 interface) between X2 eNodeBs S1-u MME• MME/SGW pooling requires eNodeB connectivity SGW/PGW to multiple MME/SGW RAN Aggregation Core© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8
