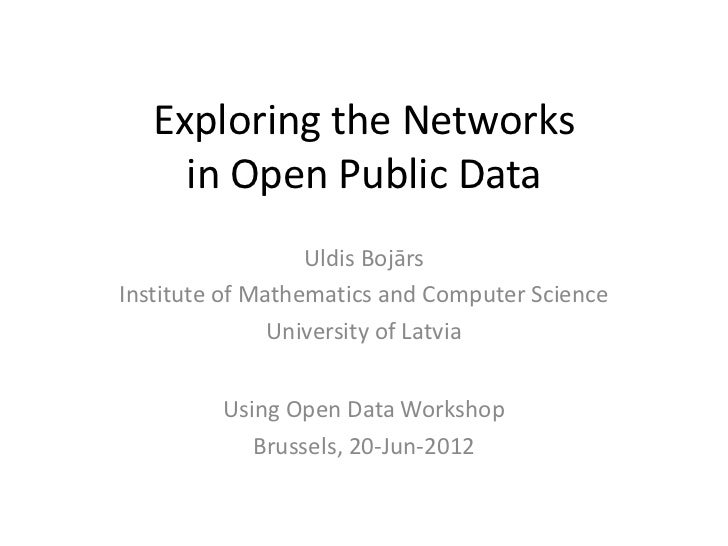

  • Exploring the Networks in Open Public Data Uldis BojārsInstitute of Mathematics and Computer Science University of Latvia Using Open Data Workshop Brussels, 20-Jun-2012
  • About us• Institute of Mathematics and Computer Science, University of Latvia – http://www.lumii.lv/resource/show/170 – Uldis Bojārs @CaptSolo – Valdis Krebs http://orgnet.com – Pēteris Ručevskis
  • Network visualisation and analysisApplications:• discover interesting patterns• explore data in [more] detailWork from the Open Data Hackaton in Riga• analysis of Saeima voting patterns• http://opendata.lv
  • Overview• Data needs to be Open• Pre-processing and filtering the data – selecting what to show• Data visualization – iterative process (visualize, refine, repeat)• What’s next?
  • Open Data needed first (!)“Open data is data that can befreely used, reused and redistributed by anyone …” http://opendefinition.org/Data needs to be:• open• easy to useStill a problem in Latvia:• only a few datasets are open in an easy-to-consume form (PDF does not count :)
  • http://titania.saeima.lv/LIVS11/SaeimaLIVS2_DK.nsf/0/9DEA96450E79B7E5C2257944007E589D?OpenDocument
  • Pre-processing• Input: – raw vote data (scraped from the website) published at http://data.opendata.lv/• Output: – nodes (MPs) – edges (connections between them)• What is a connection?
  • Defining graph connections• Connect MPs if they have voted similarly – disagreed on at most n% of decisions• Filter out cases where almost all MPs voted the same• Filter out trivial decisions• Filter out noise
  • Node colour legend• Ruling coalition: – Zatler’s Reform Party – Unity – the National Alliance• Opposition: – Harmony Centre – Greens / Farmers Party• a few non-party MPs
  • MPs who always vote the same (n = 0%) Connection criteria too narrow
  • MPs who disagree in less than 35% of cases Connection criteria too broad (everyone agrees, really?)
  • Refining the visualisation• Need to find the right cut-off values (n%) – where patterns [start to] appear – and the visualisation makes sense• Show the results to domain experts – MPs, journalists, political researchers, …• Experts: – help improve visualisations – can discover new things for themselves
  • MPs who disagree in less than 11% of casesOpposition parties [sometimes] vote the same
  • MPs who disagree in less than 25% of cases Bridges appear b/w position and opposition parties(see slides 21, 22 re the bridging role of yellow nodes)
  • What next?• Improve our understanding of data• Enhance visualisations – add clusters, etc.• Create multiple visualisations – different topics, changes in time, etc.• Bring in more data – explain nodes & edges
  • network visualisation example #1 Donations to political partieshttp://www.thenetworkthinkers.com/2011/12/ innovation-happens-at-intersections.html
  • network visualisation example #2Intra-company communication patterns
  • Conclusion• Need more, useful Open Data• Discovering patterns, making sense of data – helping make sense = purpose of visualisations• Looking forward to collaboration re: – Using Open Data – Data Visualisation and Analysis
  • More info• Uldis Bojārs uldis.bojars@gmail.com• Social Network Analysis talk / Valdis Krebs http://www.slideshare.net/DERIGalway/ valdis-krebs-social-network-analysis-19872007• Smart Network Analyzer tool http://sna.lumii.lv/ in development at IMCS, University of Latvia
