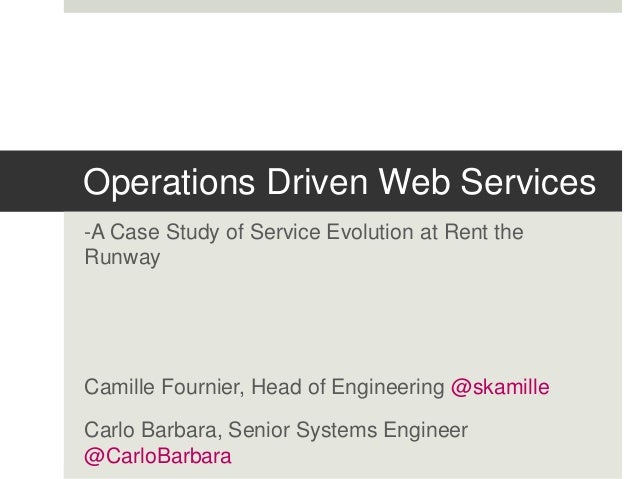

  • 1. Operations Driven Web Services -A Case Study of Service Evolution at Rent the Runway Camille Fournier, Head of Engineering @skamille Carlo Barbara, Senior Systems Engineer @CarloBarbara

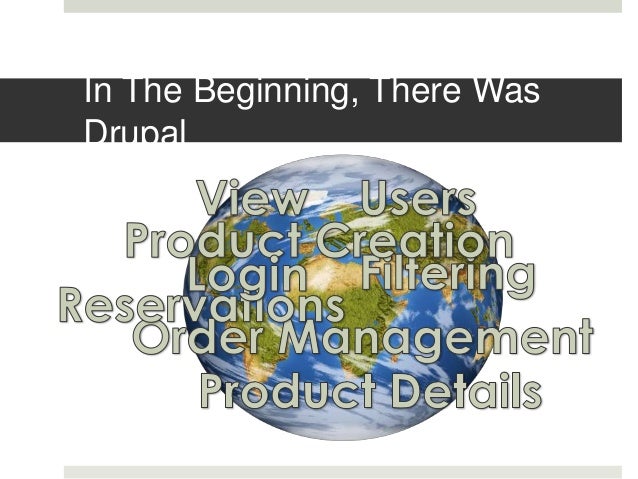

  • 2. In The Beginning, There Was Drupal

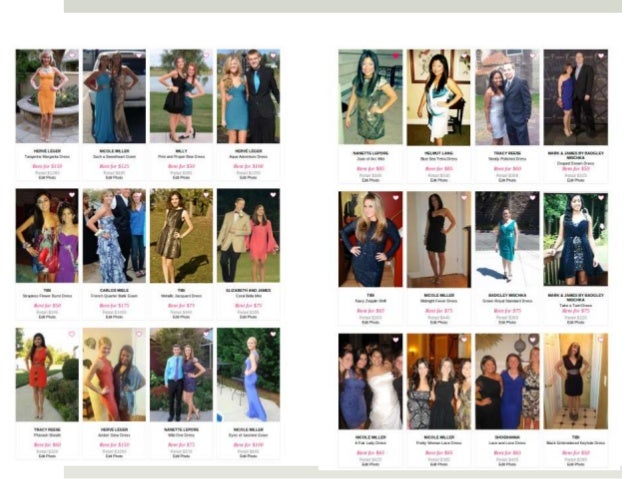

  • 3. There was also all of these folks…

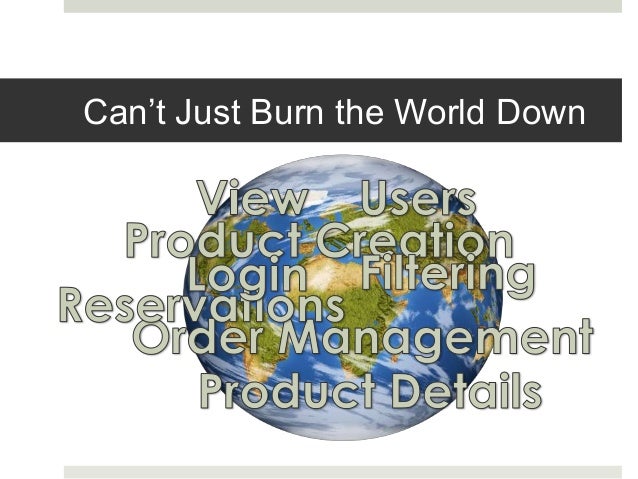

  • 4. Can‟t Just Burn the World Down

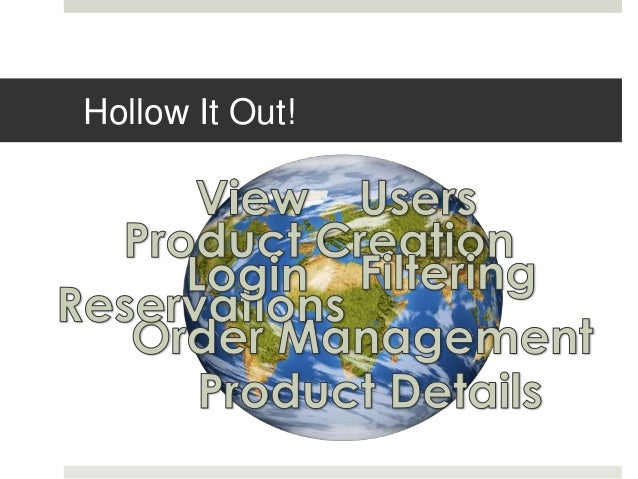

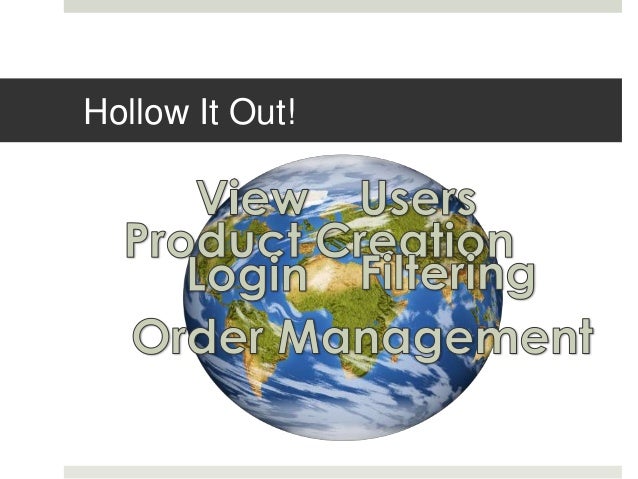

  • 5. Hollow It Out!
  • 6. Hollow It Out!

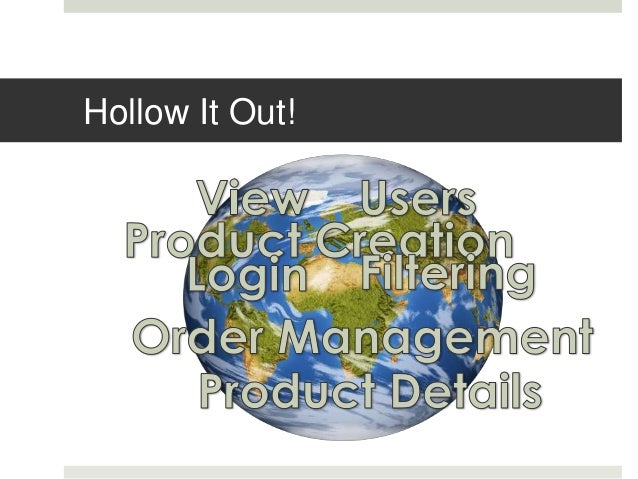

  • 7. Hollow It Out!
  • 8. Hollow It Out!

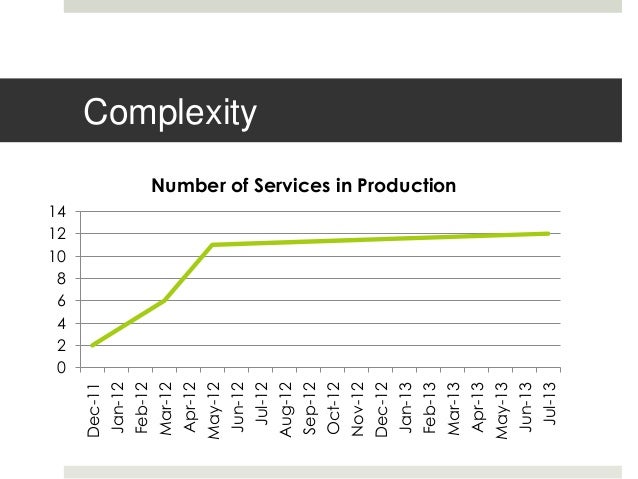

  • 9. Complexity 0 2 4 6 8 10 12 14 Dec-11 Jan-12 Feb-12 Mar-12 Apr-12 May-12 Jun-12 Jul-12 Aug-12 Sep-12 Oct-12 Nov-12 Dec-12 Jan-13 Feb-13 Mar-13 Apr-13 May-13 Jun-13 Jul-13 Number of Services in Production

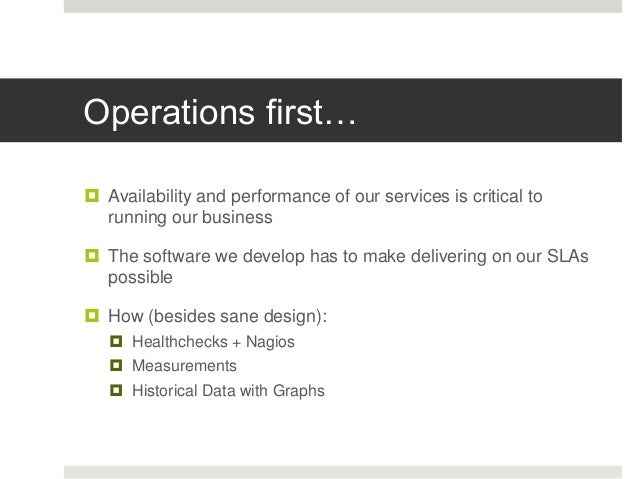

  • 10. Operations first…  Availability and performance of our services is critical to running our business  The software we develop has to make delivering on our SLAs possible  How (besides sane design):  Healthchecks + Nagios  Measurements  Historical Data with Graphs

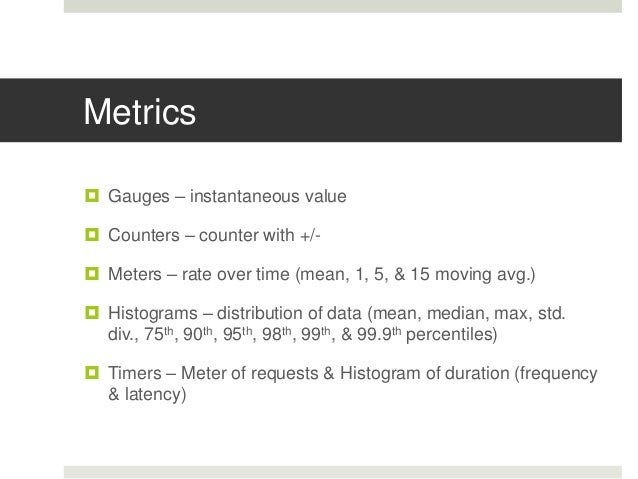

  • 11. Metrics  Gauges – instantaneous value  Counters – counter with +/-  Meters – rate over time (mean, 1, 5, & 15 moving avg.)  Histograms – distribution of data (mean, median, max, std. div., 75th, 90th, 95th, 98th, 99th, & 99.9th percentiles)  Timers – Meter of requests & Histogram of duration (frequency & latency)

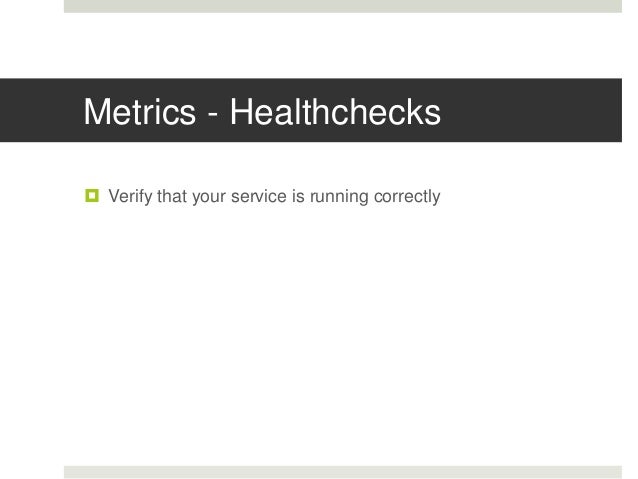

  • 12. Metrics - Healthchecks  Verify that your service is running correctly

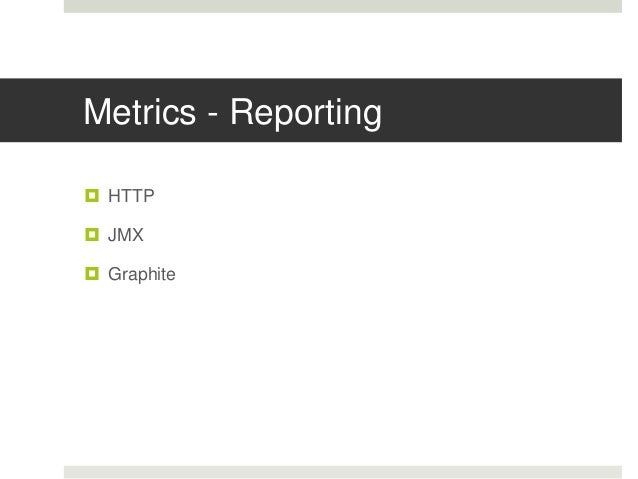

  • 13. Metrics - Reporting  HTTP  JMX  Graphite

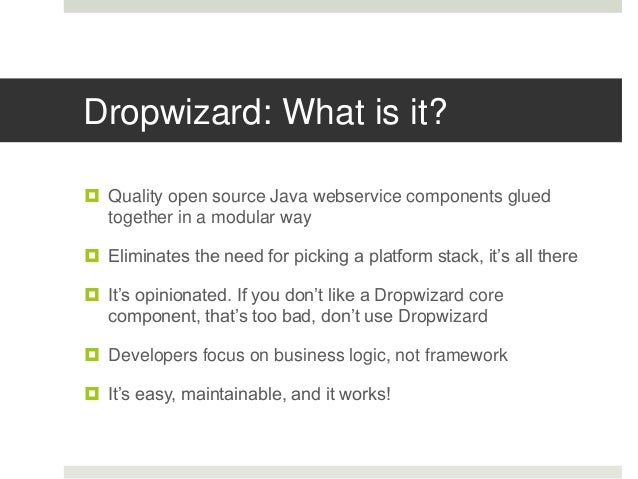

  • 14. Dropwizard: What is it?  Quality open source Java webservice components glued together in a modular way  Eliminates the need for picking a platform stack, it‟s all there  It‟s opinionated. If you don‟t like a Dropwizard core component, that‟s too bad, don‟t use Dropwizard  Developers focus on business logic, not framework  It‟s easy, maintainable, and it works!

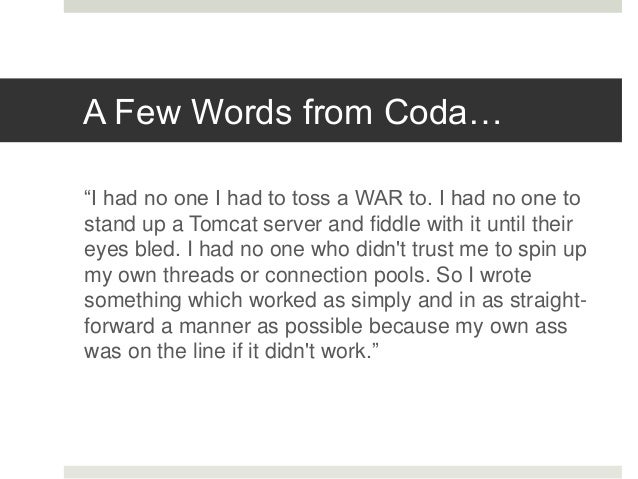

  • 15. A Few Words from Coda… “I had no one I had to toss a WAR to. I had no one to stand up a Tomcat server and fiddle with it until their eyes bled. I had no one who didn't trust me to spin up my own threads or connection pools. So I wrote something which worked as simply and in as straight- forward a manner as possible because my own ass was on the line if it didn't work.”
  • 16. Dropwizard: The Ingredients  Jersey for REST  Jackson for JSON  Jetty for a webserver  Metrics for measuring  YAML for configuring  Dropwizard for weaving everything together

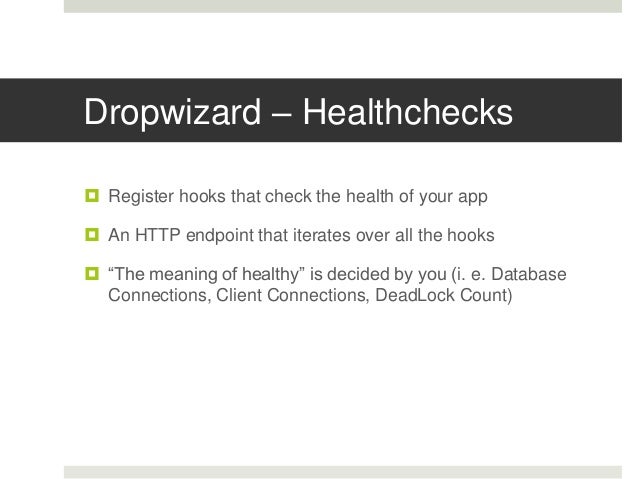

  • 17. Dropwizard – Healthchecks  Register hooks that check the health of your app  An HTTP endpoint that iterates over all the hooks  “The meaning of healthy” is decided by you (i. e. Database Connections, Client Connections, DeadLock Count)

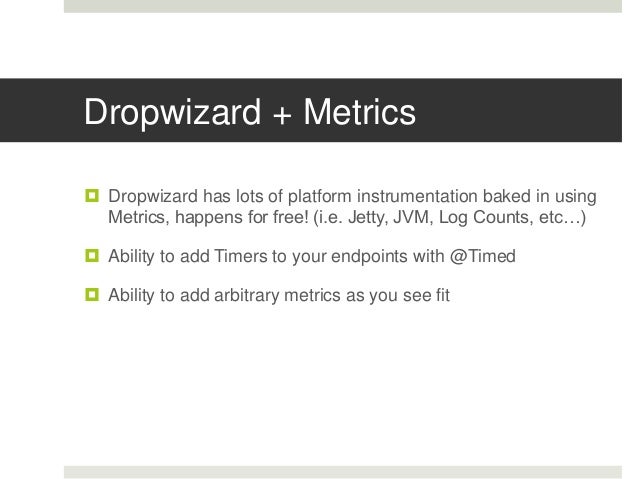

  • 18. Dropwizard + Metrics  Dropwizard has lots of platform instrumentation baked in using Metrics, happens for free! (i.e. Jetty, JVM, Log Counts, etc…)  Ability to add Timers to your endpoints with @Timed  Ability to add arbitrary metrics as you see fit

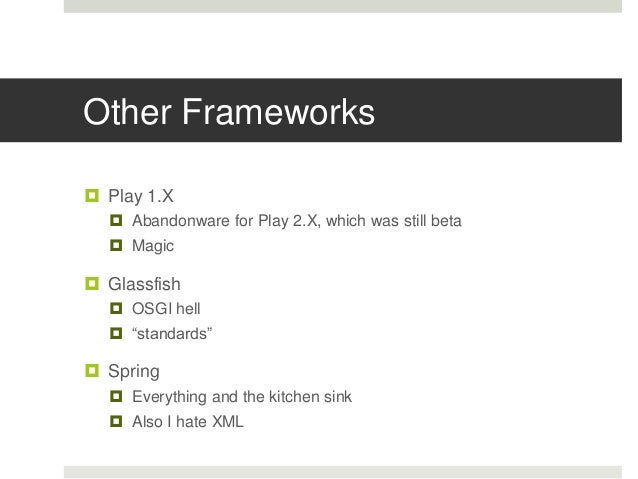

  • 19. Other Frameworks  Play 1.X  Abandonware for Play 2.X, which was still beta  Magic  Glassfish  OSGI hell  “standards”  Spring  Everything and the kitchen sink  Also I hate XML

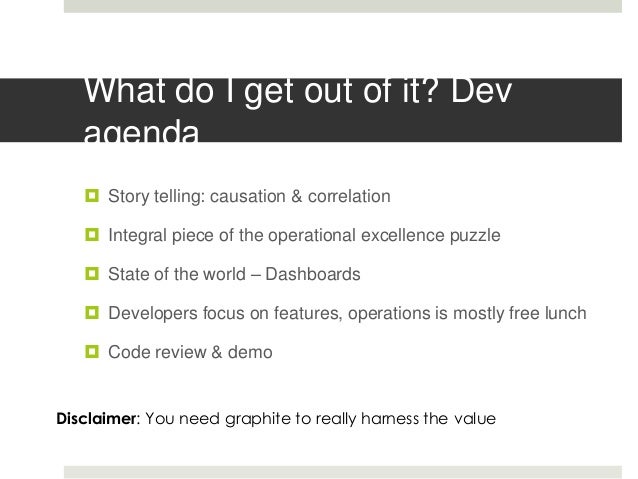

  • 20. What do I get out of it? Dev agenda  Story telling: causation & correlation  Integral piece of the operational excellence puzzle  State of the world – Dashboards  Developers focus on features, operations is mostly free lunch  Code review & demo Disclaimer: You need graphite to really harness the value

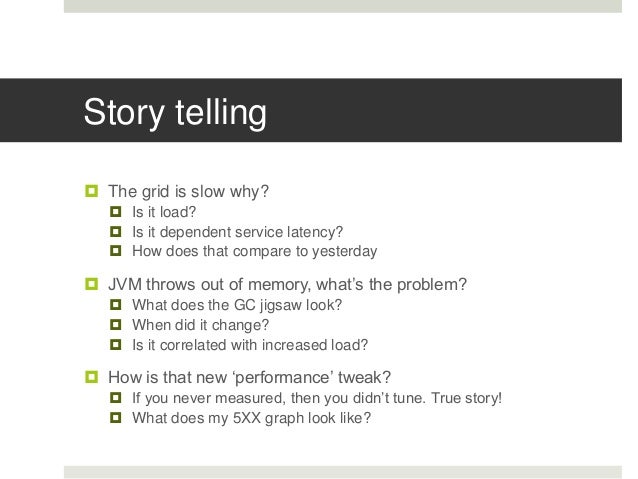

  • 21. Story telling  The grid is slow why?  Is it load?  Is it dependent service latency?  How does that compare to yesterday  JVM throws out of memory, what‟s the problem?  What does the GC jigsaw look?  When did it change?  Is it correlated with increased load?  How is that new „performance‟ tweak?  If you never measured, then you didn‟t tune. True story!  What does my 5XX graph look like?

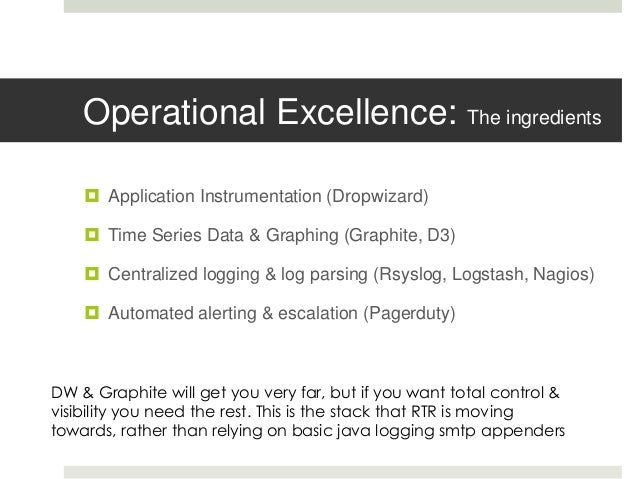

  • 22. Operational Excellence: The ingredients  Application Instrumentation (Dropwizard)  Time Series Data & Graphing (Graphite, D3)  Centralized logging & log parsing (Rsyslog, Logstash, Nagios)  Automated alerting & escalation (Pagerduty) DW & Graphite will get you very far, but if you want total control & visibility you need the rest. This is the stack that RTR is moving towards, rather than relying on basic java logging smtp appenders

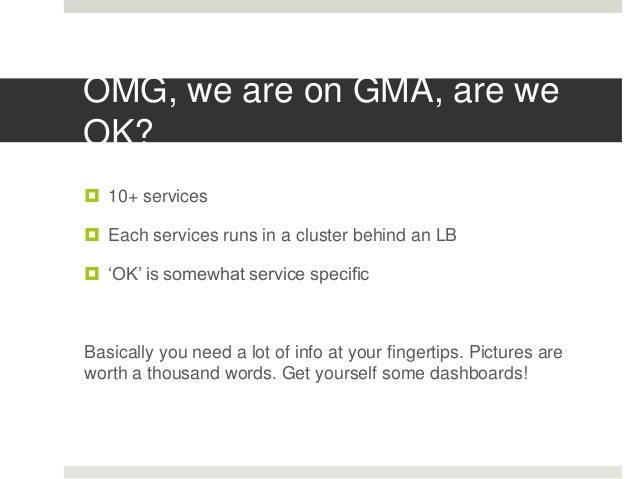

  • 23. OMG, we are on GMA, are we OK?  10+ services  Each services runs in a cluster behind an LB  „OK‟ is somewhat service specific Basically you need a lot of info at your fingertips. Pictures are worth a thousand words. Get yourself some dashboards!

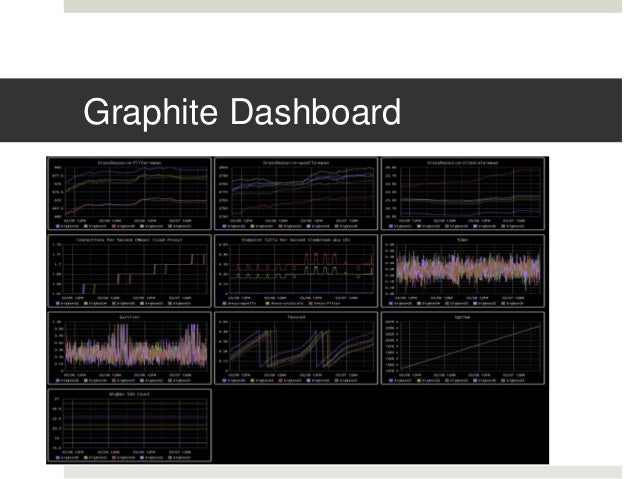

  • 24. Graphite Dashboard

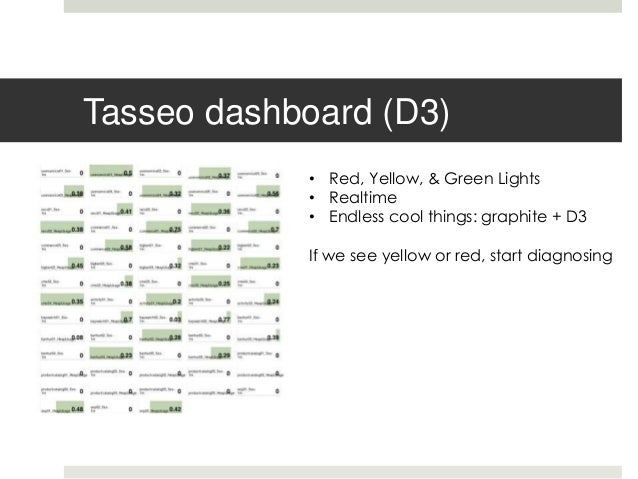

  • 25. Tasseo dashboard (D3) • Red, Yellow, & Green Lights • Realtime • Endless cool things: graphite + D3 If we see yellow or red, start diagnosing

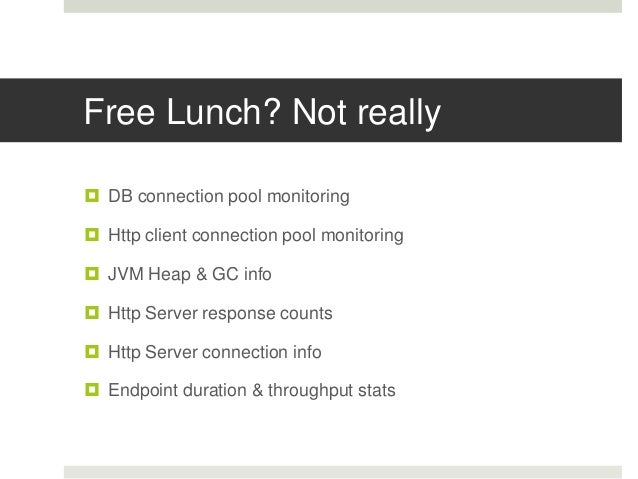

  • 26. Free Lunch? Not really  DB connection pool monitoring  Http client connection pool monitoring  JVM Heap & GC info  Http Server response counts  Http Server connection info  Endpoint duration & throughput stats

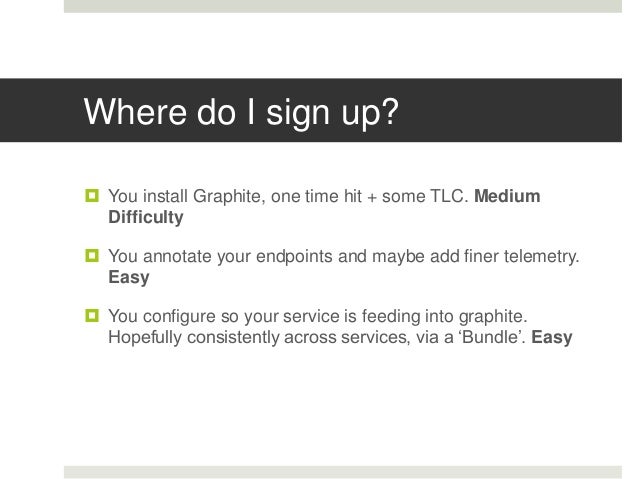

  • 27. Where do I sign up?  You install Graphite, one time hit + some TLC. Medium Difficulty  You annotate your endpoints and maybe add finer telemetry. Easy  You configure so your service is feeding into graphite. Hopefully consistently across services, via a „Bundle‟. Easy

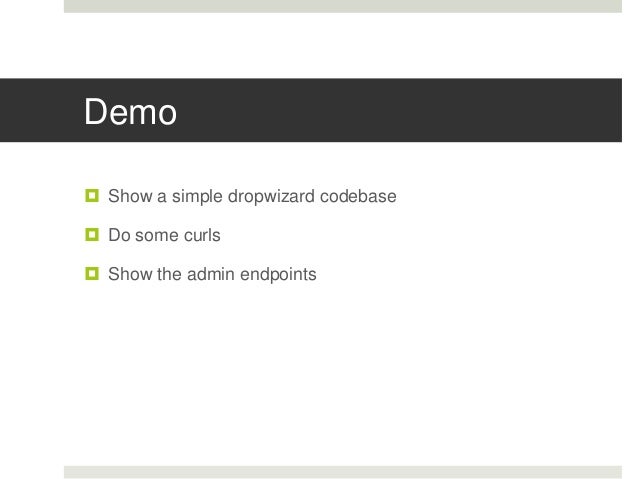

  • 28. Demo  Show a simple dropwizard codebase  Do some curls  Show the admin endpoints

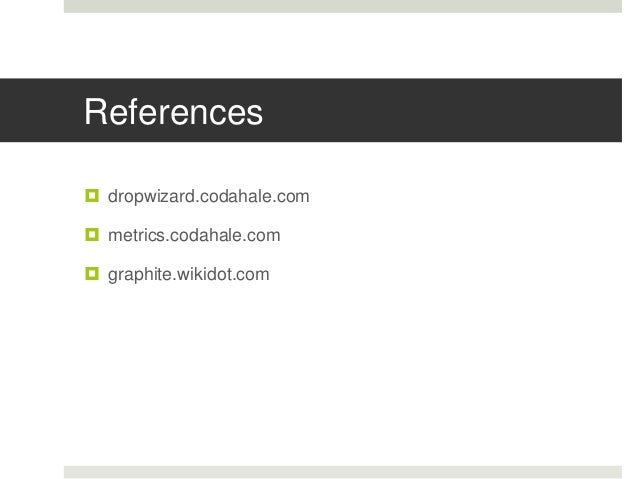

  • 29. References  dropwizard.codahale.com  metrics.codahale.com  graphite.wikidot.com
  • 30. Presenters  @CarloBarbara (www.cabkata.com)  @Skamille (whilefalse.blogspot.com)  Rent The Runway is hiring! (renttherunway.com/careers)
