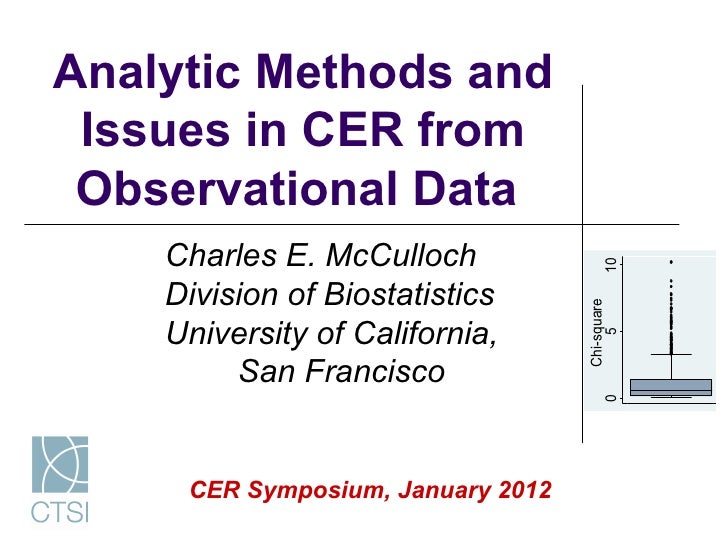

Analytic Methods and Issues in CER from Observational Data  CER Symposium, January 2012 Charles E. McCulloch Division of B...
Outline <ul><li>Some preliminary thoughts  </li></ul><ul><li>Motivating example </li></ul><ul><li>The good old days and wh...
Observational CER <ul><li>One of the objectives of CER is to use observational databases to answer effectiveness questions...
To keep in mind: <ul><li>“ When a selection procedure is biased, taking a large sample does not help.  It just repeats the...
Viewpoint <ul><li>Both randomized and observational studies have a role in CER. </li></ul><ul><li>How can we be as careful...
Example:  treatment of depression <ul><li>Does addition of an internet based cognitive behavioral component aid in treatme...
Example: Depression Data
The good old days <ul><li>The issue : </li></ul><ul><li>The treatment (the predictor of interest) is  confounded by  age (...
Example Treatment effect 1.4 (95% CI 0.6, 2.3)
Issues with regression adjustment <ul><li>Causal estimate is  defined by  a characteristic of the regression model. </li><...
Issues with regression adjustment (true model)
Issues with regression adjustment (fit interaction) Treatment effect 3.2 (95% CI -.6, 7.1) Previously: 1.4 (95% CI 0.6, 2.3)
Regression adjustment <ul><li>To fix the issue in this linear regression situation can just center age.  Use </li></ul><ul...
Another problem <ul><li>The old definition of confounding doesn’t really address causality.  The definition is completely ...
Message <ul><li>Define your causal estimand.  </li></ul><ul><li>Don’t let the statistical method define the target of  you...
<ul><li>Imagine a hypothetical experiment in which you get to observe each participant under both the treatment and contro...
Counterfactuals Outcome under Patient Group Ctl Trt Difference 1 Trt 4 8 4 2 Ctl 0 3 3 3 Trt 4 3 -1 4 Trt 3 4 1 … Ave in p...
Counterfactuals <ul><li>Counter – factual </li></ul><ul><li>Against – the truth </li></ul><ul><li>=Lying </li></ul><ul><li...
Potential Outcomes  – Average Causal Effect <ul><li>A reasonable target of inference is sometimes the average causal effec...
Marginal structural models <ul><li>Consider the averages of Y trt  and Y ctl  across the population (Ave(Y 1 ) and Ave(Y 0...
The new order and the way forward <ul><li>Confounding occurs when an estimation method does not estimate the causal estima...
Propensity scores:  <ul><li>Let prop(x) be the probability of being on treatment as a function of x, the variables that de...
Propensity scores: example
Propensity scores: theory <ul><li>Very important theoretical properties: </li></ul><ul><li>You only need to adjust for pro...
<ul><li>Mean values :  Ave(Trt)= 5.0,  </li></ul><ul><li>Ave(Ctl) = 4.6 </li></ul><ul><li>(Est=0.4, p=0.57, via t-test) </...
Propensity scores: practical issues <ul><li>Often divide propensity scores into quintiles in order to adjust.  </li></ul><...
Propensity scores: estimating the ACE (causal estimand) <ul><li>If the treatment effects vary within strata of propensity ...
Inverse probability weighting <ul><li>Instead of adjusting for the propensity score, we could use it to weight the partici...
IPW:  comments <ul><li>Don’t need quintiles </li></ul><ul><li>Can use with longitudinal studies and time-dependent confoun...
Regression estimation <ul><li>When taking a model-based approach we could get an estimate of the causal effect for each pe...
Regression estimation Predicted causal effect for a trt subject ACE estimated to be 1.2 (CI 0.4, 2.1) Predicted causal eff...
Regression estimation <ul><li>With sufficient data, can fit separate models for treatment and control groups.  </li></ul><...
Doubly robust estimators <ul><li>There are techniques that allow you to combine the features of propensity scores or IPW e...
Instrumental variables <ul><li>All of the techniques described previously depend on the difficult to verify and hard to ac...
Instrumental variables (IVs) <ul><li>An  instrument  is a variable which: </li></ul><ul><li>Is a determinant of the treatm...
IVs <ul><li>The classic example of an instrument is randomization to treatment, because it is 1) the primary determinant o...
IVs:  example of IVs <ul><li>Examples of instruments: </li></ul><ul><li>Effect of maternal smoking on birthweight, IV=stat...
IVs:  Causal estimand <ul><li>IVs do not estimate the ACE. </li></ul><ul><li>Instead they estimate the local average treat...
IVs:  Idea in linear regression <ul><li>Regress the treatment on the instrument, get the predicted values.  This is a func...
IVs:  drawbacks <ul><li>The main drawback of the instrumental variables approach is the leap of faith required to believe ...
Newer ideas <ul><li>Not much new under the sun. </li></ul><ul><li>Not too surprising since many of us have been doing CER ...
Recommendations <ul><li>Measure confounders or consider trying instrumental variables. </li></ul><ul><li>Regression estima...
We wary of methods promising easy causal estimation from observational databases <ul><li>Sensitivity analyses are almost a...
Contact: <ul><li>[email_address] </li></ul>Recommended articles: Average Causal Effects From Nonrandomized Studies: A Prac...
Upcoming SlideShare
Loading in …5
×

Analytic Methods and Issues in CER from Observational Data

1,194 views
1,008 views

Published on

UCSF researcher, Charles McCulloch, PhD, presents. View more related presentations and resources at http://accelerate.ucsf.edu/research/cer

Published in: Health & Medicine
0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total views
1,194
On SlideShare
0
From Embeds
0
Number of Embeds
4
Actions
Shares
0
Downloads
22
Comments
0
Likes
1
Embeds 0
No embeds

No notes for slide
  • Explain carefully: Y axis is delta BDI. Red is treatment group, blue is control. Change in BDI values for blue and red are well interspersed. So average values are about the same. No treatment effect? Perhaps there is confounding by age. Older participants are less likely to adopt the internet intervention (very few red dots on right of graph). And older participants do better in either treatment group. And, for a given age the treatment group seems to do better. In the older age range, we have very few comparators. This lack of overlap makes it almost impossible to understand the relationship between age and delta BDI (among the older ages) in the treatment group. So difficult to model.
  • We fit a regression model. Being careful, neither nonlinearity in the relationship nor interactions are even close to statistically significant, so we stick with the basic model, which is what many people would fit solely. Stat sign treatment effect. Can interpret causally if we believe the only differences between the groups are their ages and model is correct.
  • Lack of overlap is a serious concern because it is difficult to determine if differences are causal or due to the incorrect model. Can see the lack of overlap here, but wouldn’t be able to in a more realistic example with many predictors.
  • Here is the true model from which I generated the (made-up) data. Observations: I fit the wrong model There is little or no treatment effect in the older age group Since most of the data for comparison is in the younger age group (where the treatment effect is larger), I overestimated the average effect across all ages. Note: data generating model was 4+(age-30)*3.5/40 for treatment and 2+(age-30)*6/40 for control. So average causal effect at a given age is the difference, or 3.875-age*0.0625. and the ACE is 3.875-\\bar(age)*0.0625 or 3.875-45.65*0.0625 = 1.02.
  • What!? Treatment effect is now estimated to be 3.2! And not statistically significant. What is going on? When you enter the interaction, the treatment effect is the estimated (extrapolated) value at age=0. Need to center variables so a value of 0 is a value of interest.
  • Statistically significant treatment effect.
  • I learned this in 1978 …. From a book written in 1959 …. Quoting a result from a 1923 paper by Jerzy Neyman.
  • Entries in table are change in BDI. So the first patient was in the Trt group and improved by 8 points. But if they had been in the Ctl group, they would also have improved, by only by 4 points. Patient 3 improved by 3 points. But if they had been in the Ctl group they would have done better and improved by 4 points. Notes: Causal effect need not be the same in each patient. Need not even be the same direction. Could be different in different subgroups of the population, e.g., women, or those who would choose the treatment.
  • Statisticians have enough bad press without such technical definitions.
  • Generic – treatment and control. Marginal – because it is the average effect. Structural – because it is causal.
  • Assume likelihood of choosing the intervention only depends on whether age&lt;50 or not.
  • Doesn’t tell you how to adjust.
  • Perhaps effect isn’t as big among the elderly?
  • If you want an estimate of ACE in a subgroup, use weights for that subgroup.
  • No longer stat significant. Counting one person ten times introduces significant amounts of variability. Small errors in that one observation get magnified.
  • The filled circles represent the (model-based) predicted value for a participant in the treatment or control groups. The open circles represent the (model-based) predicted potential outcome for the participants. So, for example, a participant in the treatment group has a predicted potential outcome in the control group. And vice versa. Now have an estimate of the individual causal effect, which you can average to get ACE. Can either compare predicted potential outcome with predicted value or with the real value.
  • This used to be restricted to numerical, approximately cont outcomes, but modern software allows a wide variety of outcome and predictor types.
  • Cigarette tax may influence smoking, but no direct effect on birthweight. Issues: cigarette tax may not strongly predict smoking. Could cigarette tax be associated with other omitted variables? Suppose localities with high cigarette taxes also have strong maternal educational programs? These could lead to reduced smoking and (through other pathways, e.g., nutrition) better outcomes.
  • Issue: cigarette tax may not strongly predict smoking.
