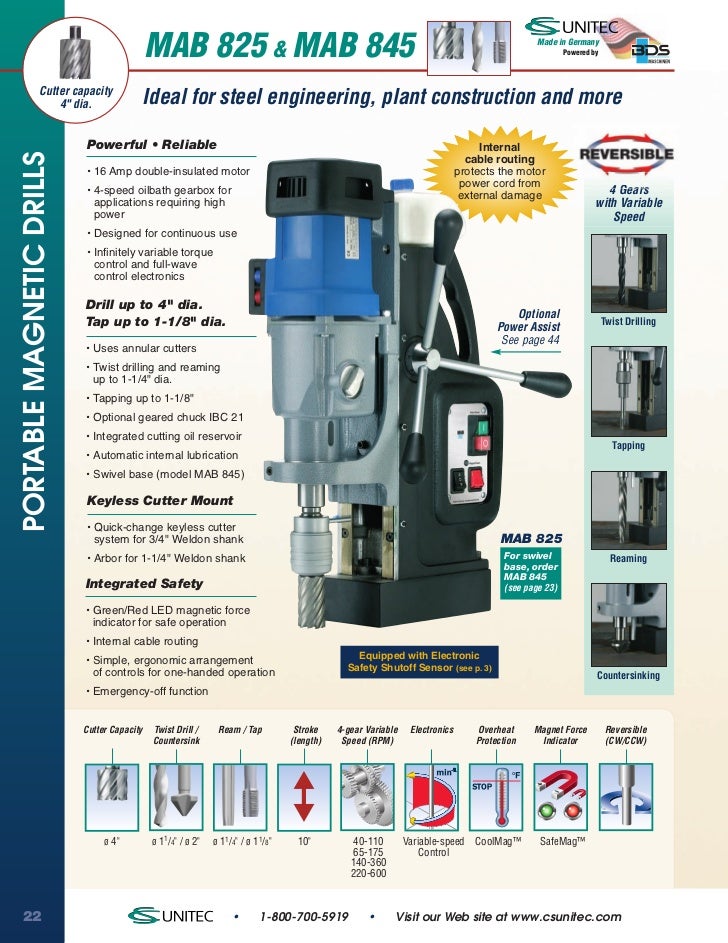

  • 1. MAB 825 & MAB 845 Made in Germany Powered by Cutter capacity 4" dia. Ideal for steel engineering, plant construction and more Powerful • Reliable InternalPORTABLE MAGNETIC DRILLS cable routing • 16 Amp double-insulated motor protects the motor power cord from • 4-speed oilbath gearbox for external damage 4 Gears applications requiring high with Variable power Speed • Designed for continuous use • Infinitely variable torque control and full-wave control electronics Drill up to 4" dia. Optional Tap up to 1-1/8" dia. Power Assist Twist Drilling See page 44 • Uses annular cutters • Twist drilling and reaming up to 1-1/4" dia. • Tapping up to 1-1/8" • Optional geared chuck IBC 21 • Integrated cutting oil reservoir Tapping • Automatic internal lubrication • Swivel base (model MAB 845) Keyless Cutter Mount • Quick-change keyless cutter system for 3/4" Weldon shank MAB 825 • Arbor for 1-1/4" Weldon shank For swivel Reaming base, order MAB 845 Integrated Safety (see page 23) • Green/Red LED magnetic force indicator for safe operation • Internal cable routing Equipped with Electronic • Simple, ergonomic arrangement Safety Shutoff Sensor (see p. 3) of controls for one-handed operation Countersinking • Emergency-off function Cutter Capacity Twist Drill / Ream / Tap Stroke 4-gear Variable Electronics Overheat Magnet Force Reversible Countersink (length) Speed (RPM) Protection Indicator (CW/CCW) ø 4" ø 11/4" / ø 2" ø 11/4" / ø 11/8" 10" 40-110 Variable-speed CoolMag™ SafeMag™ 65-175 Control 140-360 220-60022 • 1-800-700-5919 • Visit our Web site at www.csunitec.com
  • 2. MAB 825 & MAB 845 Specifications Made in Germany Powered by Cutter capacity 14.41" 9.41" 4" dia. PORTABLE MAGNETIC DRILLS 18.70 - 28.54" 22.05" 1.85" 2.58" 1.65" 4.33" 8.66"Model MAB 825 & 845 Model MAB 825 & 845 Specifications Motor Power 16 Amp / 110 Volt Weight 55 lbs. Hole Capacity 4" dia. Twist Drill Capacity 11/4" dia. Tapping Capacity 11/8" dia. Speeds 40-110, 65-175 140-360, 220-600 RPM Magnet Base Size 41/3" W x 85/8" L Dimensions 185/8" H x 147/16" L x 97/16" W Magnetic Force (1" plate) 6600 lbs. 30° Arbor Bore 3/4" and 11/4", standard 3/4" Spindle MT3 Automatic Lubrication Included Model MAB 845 features a swivel Swivel Base Order MAB 845 base providing 30˚ movement left and right and 3/4" forward and * 220 Volt / 50 Hz also available backward. Standard Equipment Rolling Transport Case Standard Optional robust transport case with 1 Magnetic drilling machine Equipment wheels, carrying handle and sturdy 1 Quick-change arbor system also includes closures. Protect your MAB operating 825/845 from water and dust with KEYLESS Weldon 3/4" this rugged case. manual, auto 1 Arbor 11/4" Weldon, MT3 lubrication, Order No. ZHK 825 4 Pilot pins - 1", 2", 3" and 4" depth safety strap, carabin hook, 1 Safety chain gloves, safety 1 Hexagon socket screw key SW 6 glasses, ear protection and 1 Drift key MT3 allen keys. 1 Warranty certificate 1 Carrying case ® Annular Cutters: pages 34-41 ® Accessories: pages 42-50 • 1-800-700-5919 • Visit our Web site at www.csunitec.com 23
