Status of Cassava Genetic Transformation at CIAT.

  1. 1. Status of Cassava Genetic Transformation at CIAT. www.ciat.cgiar.orgSince 1967 / Science to cultivate change July 17th / 2014 Paul Chavarriaga Aguirre, PhD.

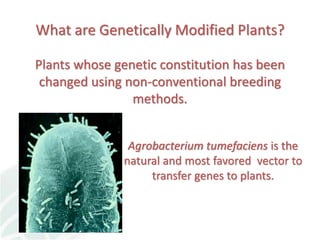

  2. 2. What are Genetically Modified Plants? Plants whose genetic constitution has been changed using non-conventional breeding methods. Agrobacterium tumefaciens is the natural and most favored vector to transfer genes to plants.

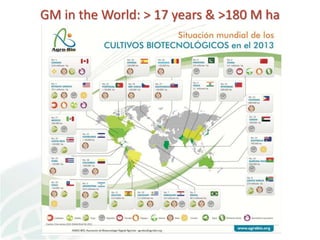

  3. 3. GM in the World: > 17 years & >180 M ha

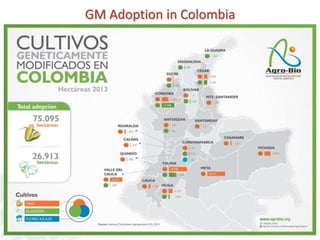

  4. 4. GM Adoption in Colombia

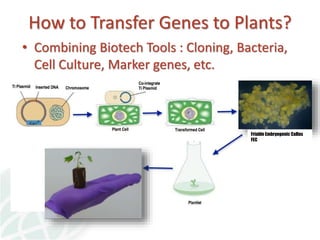

  5. 5. How to Transfer Genes to Plants? • Combining Biotech Tools : Cloning, Bacteria, Cell Culture, Marker genes, etc. Friable Embryogenic Callus FEC

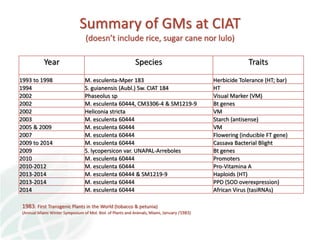

  6. 6. Summary of GMs at CIAT (doesn’t include rice, sugar cane nor lulo) Year Species Traits 1993 to 1998 M. esculenta-Mper 183 Herbicide Tolerance (HT; bar) 1994 S. guianensis (Aubl.) Sw. CIAT 184 HT 2002 Phaseolus sp Visual Marker (VM) 2002 M. esculenta 60444, CM3306-4 & SM1219-9 Bt genes 2002 Heliconia stricta VM 2003 M. esculenta 60444 Starch (antisense) 2005 & 2009 M. esculenta 60444 VM 2007 M. esculenta 60444 Flowering (inducible FT gene) 2009 to 2014 M. esculenta 60444 Cassava Bacterial Blight 2009 S. lycopersicon var. UNAPAL-Arreboles Bt genes 2010 M. esculenta 60444 Promoters 2010-2012 M. esculenta 60444 Pro-Vitamina A 2013-2014 M. esculenta 60444 & SM1219-9 Haploids (HT) 2013-2014 M. esculenta 60444 PPD (SOD overexpression) 2014 M. esculenta 60444 African Virus (tasiRNAs) 1983: First Transgenic Plants in the World (tobacco & petunia) (Annual Miami Winter Symposium of Mol. Biol. of Plants and Animals, Miami, January /1983)

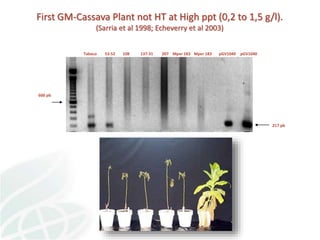

  7. 7. First GM-Cassava Plant not HT at High ppt (0,2 to 1,5 g/l). (Sarria et al 1998; Echeverry et al 2003) Tabaco 53-52 108 137-31 207 Mper 183 Mper 183 pGV1040 600 pb pGV1040 217 pb

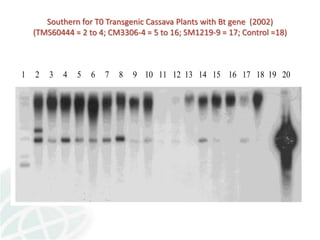

  8. 8. Southern for T0 Transgenic Cassava Plants with Bt gene (2002) (TMS60444 = 2 to 4; CM3306-4 = 5 to 16; SM1219-9 = 17; Control =18) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

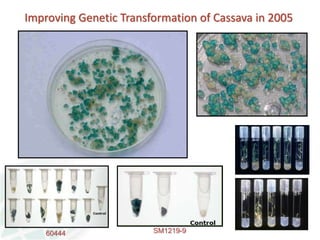

  9. 9. Improving Genetic Transformation of Cassava in 2005 60444 SM1219-9 Protocolo T1
  10. 10. In vitro plants of cassava flower after induction of an heterologous FT gene from Arabidopsis. (unpublished)

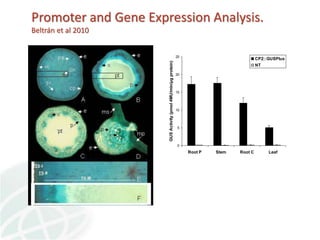

  11. 11. 0 5 10 15 20 25 Root P Stem Root C Leaf GUSActivity(pmol4MU/min/μgprotein) CP2::GUSPlus NT Promoter and Gene Expression Analysis. Beltrán et al 2010

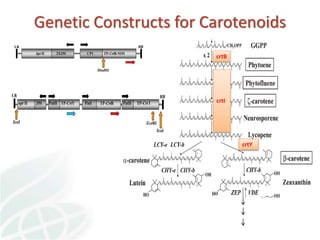

  12. 12. crtB crtI crtY 2X35S LLBB RRBB hpt II CP1 TP-CrtB-NOS HindIII ScaI LB RB EcoRIScaI 35S PatII TP-CrtBPatI PatII TP-Crt ITP-CrtYnpt II Genetic Constructs for Carotenoids

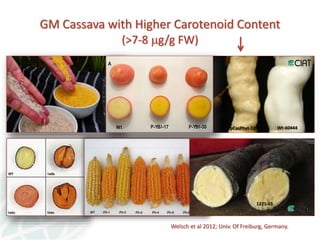

  13. 13. GM Cassava with Higher Carotenoid Content (>7-8 mg/g FW) pCasPhyt-12 1221-55 Wt-60444 Welsch et al 2012; Univ. Of Freiburg, Germany.

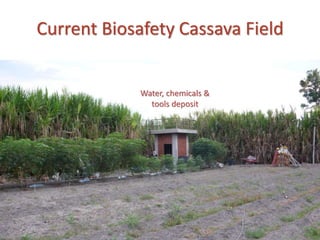

  14. 14. Current Biosafety Cassava Field Water, chemicals & tools deposit

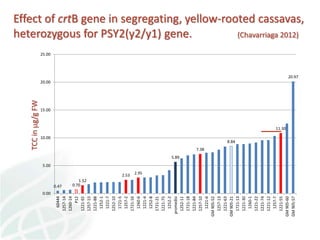

  15. 15. 0.47 0.70 1.52 2.53 2.95 5.89 7.38 8.84 11.30 20.97 0.00 5.00 10.00 15.00 20.00 25.00 60444 1257-14 1260-14 P12 1221-92 1257-15 1221-88 1252-1 1221-7 1252-10 1721-5 1257-2 1721-16 1260-6 1221-4 1252-8 1721-21 1221-75 1252-2 promedio 1252-11 1721-18 1221-84 1257-10 1221-6 GM905-52 1257-13 1221-63 GM905-21 1721-13 1221-30 1260-1 1221-22 1221-74 1221-12 1257-7 1221-55 GM905-60 GM905-57 TCCinmg/gFW Effect of crtB gene in segregating, yellow-rooted cassavas, heterozygous for PSY2(y2/y1) gene. (Chavarriaga 2012)
  16. 16. NSF-BREAD/2010 Fast Breeding for Slow Crops: Doubled Haploids in Cassava and Banana. UC-Davis, IITA, CIAT. Bill y Melinda Gates Foundation, Seattle, WA, 2011
  17. 17. Come on, give us the money! Mmmmh… I don’t know…!

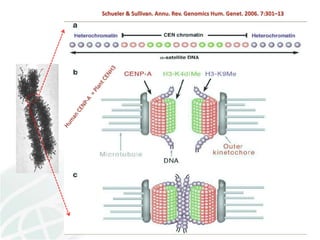

  18. 18. Schueler & Sullivan. Annu. Rev. Genomics Hum. Genet. 2006. 7:301–13

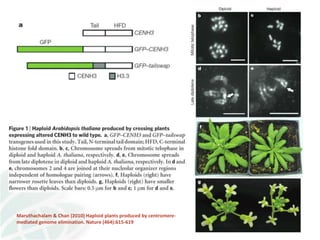

  19. 19. Maruthachalam & Chan (2010) Haploid plants produced by centromere- mediated genome elimination. Nature (464):615-619

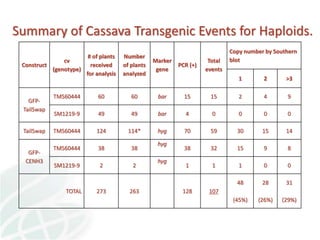

  20. 20. Summary of Cassava Transgenic Events for Haploids. Construct cv (genotype) # of plants received for analysis Number of plants analyzed Marker gene PCR (+) Total events Copy number by Southern blot 1 2 >3 GFP- TailSwap TMS60444 60 60 bar 15 15 2 4 9 SM1219-9 49 49 bar 4 0 0 0 0 TailSwap TMS60444 124 114* hyg 70 59 30 15 14 GFP- CENH3 TMS60444 38 38 hyg 38 32 15 9 8 SM1219-9 2 2 hyg 1 1 1 0 0 TOTAL 273 263 128 107 48 28 31 (45%) (26%) (29%)
  21. 21. A sample of 107 Southern-proved transgenic lines transformed with genes to induce haploidy in Cassava and transferred to Greenhouse (BREAD Project ; UC-Davis and IITA)

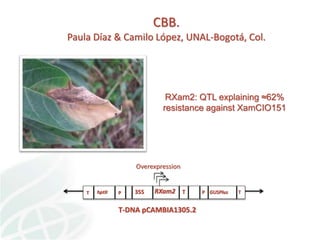

  22. 22. CBB. Paula Díaz & Camilo López, UNAL-Bogotá, Col. T-DNA pCAMBIA1305.2 T hptII RXam2 GUSPlus35SP P TT Overexpression RXam2: QTL explaining ≈62% resistance against XamCIO151
  23. 23. CBB. • Seven constructs introduced into cassava • First four produced >180 plant lines • Second three will produce >>500 lines

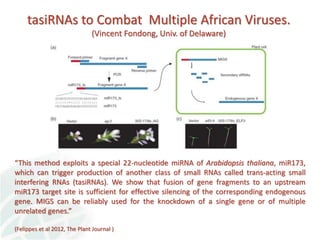

  24. 24. tasiRNAs to Combat Multiple African Viruses. (Vincent Fondong, Univ. of Delaware) “This method exploits a special 22-nucleotide miRNA of Arabidopsis thaliana, miR173, which can trigger production of another class of small RNAs called trans-acting small interfering RNAs (tasiRNAs). We show that fusion of gene fragments to an upstream miR173 target site is sufficient for effective silencing of the corresponding endogenous gene. MIGS can be reliably used for the knockdown of a single gene or of multiple unrelated genes.” (Felippes et al 2012, The Plant Journal )

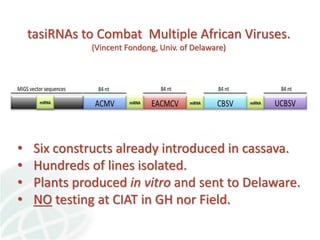

  25. 25. tasiRNAs to Combat Multiple African Viruses. (Vincent Fondong, Univ. of Delaware) • Six constructs already introduced in cassava. • Hundreds of lines isolated. • Plants produced in vitro and sent to Delaware. • NO testing at CIAT in GH nor Field.

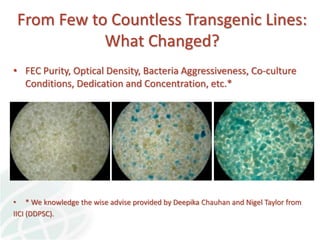

  26. 26. From Few to Countless Transgenic Lines: What Changed? • FEC Purity, Optical Density, Bacteria Aggressiveness, Co-culture Conditions, Dedication and Concentration, etc.* • * We knowledge the wise advise provided by Deepika Chauhan and Nigel Taylor from IICI (DDPSC).

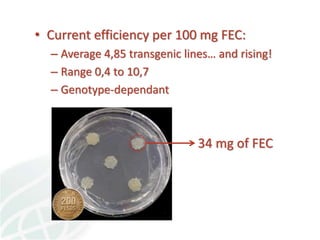

  27. 27. • Current efficiency per 100 mg FEC: – Average 4,85 transgenic lines… and rising! – Range 0,4 to 10,7 – Genotype-dependant 34 mg of FEC

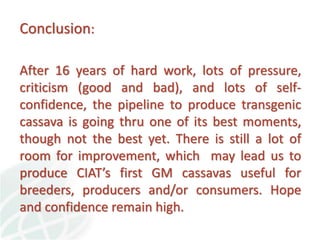

  28. 28. Conclusion: After 16 years of hard work, lots of pressure, criticism (good and bad), and lots of self- confidence, the pipeline to produce transgenic cassava is going thru one of its best moments, though not the best yet. There is still a lot of room for improvement, which may lead us to produce CIAT’s first GM cassavas useful for breeders, producers and/or consumers. Hope and confidence remain high.

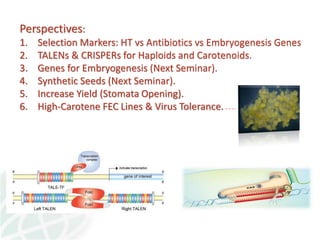

  29. 29. Perspectives: 1. Selection Markers: HT vs Antibiotics vs Embryogenesis Genes 2. TALENs & CRISPERs for Haploids and Carotenoids. 3. Genes for Embryogenesis (Next Seminar). 4. Synthetic Seeds (Next Seminar). 5. Increase Yield (Stomata Opening). 6. High-Carotene FEC Lines & Virus Tolerance.

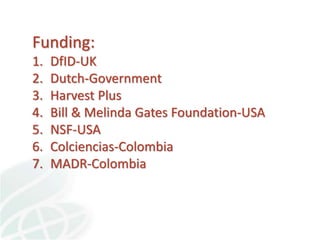

  30. 30. Funding: 1. DfID-UK 2. Dutch-Government 3. Harvest Plus 4. Bill & Melinda Gates Foundation-USA 5. NSF-USA 6. Colciencias-Colombia 7. MADR-Colombia
  31. 31. TheTeam:APricelessLoad!
  32. 32. Thank you…

×
