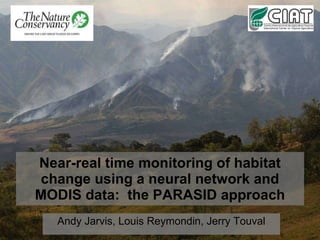

  • 1. Near-real time monitoring of habitat change using a neural network and MODIS data: the PARASID approach Andy Jarvis, Louis Reymondin, Jerry Touval

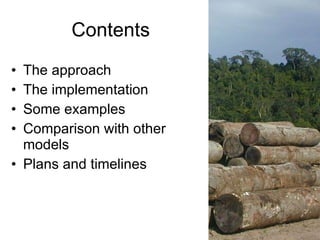

  • 2. Contents
    • The approach
    • The implementation
    • Some examples
    • Comparison with other models
    • Plans and timelines

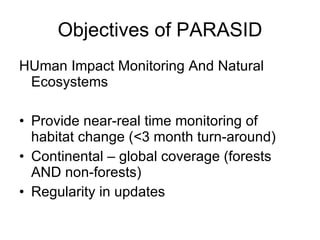

  • 3. Objectives of PARASID
    • HUman Impact Monitoring And Natural Ecosystems
    • Provide near-real time monitoring of habitat change (<3 month turn-around)
    • Continental – global coverage (forests AND non-forests)
    • Regularity in updates

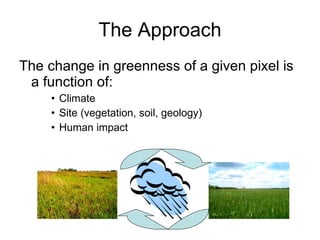

  • 4. The Approach
    • The change in greenness of a given pixel is a function of:
        • Climate
        • Site (vegetation, soil, geology)
        • Human impact

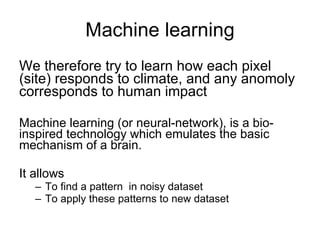

  • 5. Machine learning
    • We therefore try to learn how each pixel (site) responds to climate, and any anomoly corresponds to human impact
    • Machine learning (or neural-network), is a bio-inspired technology which emulates the basic mechanism of a brain.
    • It allows
      • To find a pattern in noisy dataset
      • To apply these patterns to new dataset
  • 6. NDVI Evolution and novelty detection Novelty/Anomoly
  • 7. NDVI Cleaning using HANTS
    • Eliminate all short-term variations
    • Uses NDVI quality information
    • Iterative fitting of cleaned curve using
      • Fourier analysis
      • Least-square fitting to good quality values

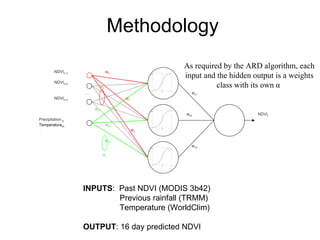

  • 8. Methodology As required by the ARD algorithm, each input and the hidden output is a weights class with its own α α 0 α c INPUTS : Past NDVI (MODIS 3b42) Previous rainfall (TRMM) Temperature (WorldClim) OUTPUT : 16 day predicted NDVI NDVI t Precipitation (t) Temperature (t) … … w 0 w 1 w 2 NDVI (t-1) NDVI (t-2) NDVI (t-n) w p1 w p2 w p3 w o1 w o2 w o3

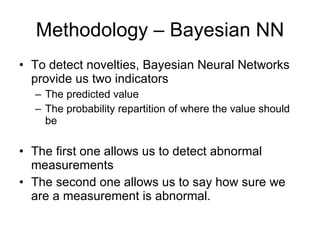

  • 9. Methodology – Bayesian NN
    • To detect novelties, Bayesian Neural Networks provide us two indicators
      • The predicted value
      • The probability repartition of where the value should be
    • The first one allows us to detect abnormal measurements
    • The second one allows us to say how sure we are a measurement is abnormal.

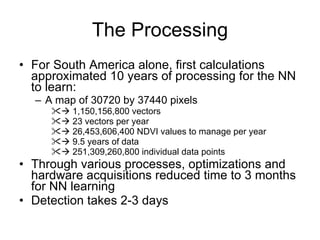

  • 10. The Processing
    • For South America alone, first calculations approximated 10 years of processing for the NN to learn:
      • A map of 30720 by 37440 pixels
        •  1,150,156,800 vectors
        •  23 vectors per year
        •  26,453,606,400 NDVI values to manage per year
        •  9.5 years of data
        •  251,309,260,800 individual data points
    • Through various processes, optimizations and hardware acquisitions reduced time to 3 months for NN learning
    • Detection takes 2-3 days

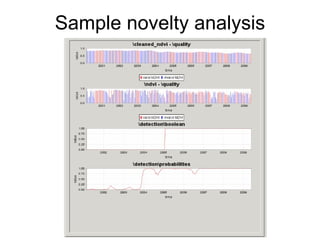

  • 11. Sample novelty analysis

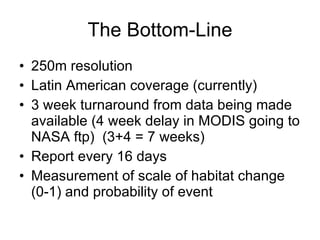

  • 12. The Bottom-Line
    • 250m resolution
    • Latin American coverage (currently)
    • 3 week turnaround from data being made available (4 week delay in MODIS going to NASA ftp) (3+4 = 7 weeks)
    • Report every 16 days
    • Measurement of scale of habitat change (0-1) and probability of event

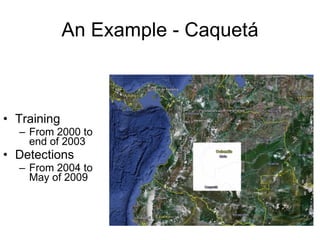

  • 13. An Example - Caquetá
    • Training
      • From 2000 to end of 2003
    • Detections
      • From 2004 to May of 2009
  • 14. Detection results for Caquetá – Meta Analysis 25 May 2009 1.0 0.0 Novelty probabilities

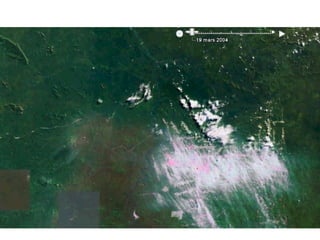

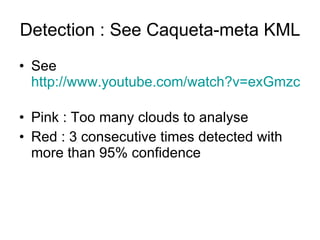

  • 15. Detection : See Caqueta-meta KML
    • See http://www.youtube.com/watch?v=exGmzc70PrQ
    • Pink : Too many clouds to analyse
    • Red : 3 consecutive times detected with more than 95% confidence

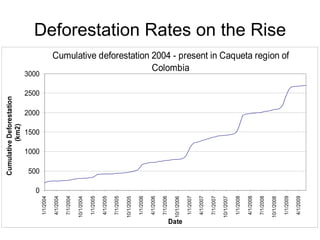

  • 16. Deforestation Rates on the Rise
  • 17. Some statistics

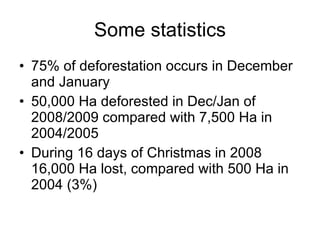

    • 75% of deforestation occurs in December and January
    • 50,000 Ha deforested in Dec/Jan of 2008/2009 compared with 7,500 Ha in 2004/2005
    • During 16 days of Christmas in 2008 16,000 Ha lost, compared with 500 Ha in 2004 (3%)
  • 18.

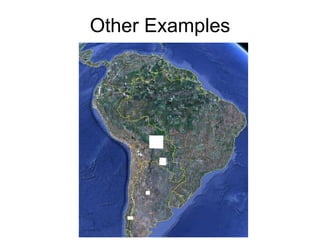

  • 19. Other Examples

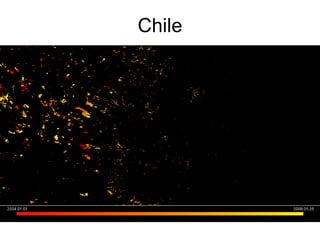

  • 20. Chile

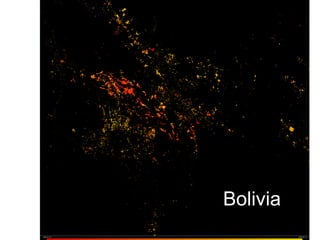

  • 21. Bolivia

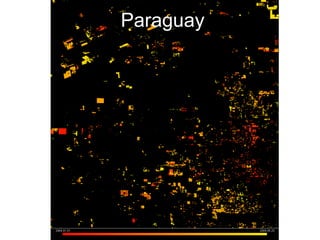

  • 22. Paraguay
  • 23. Argentina

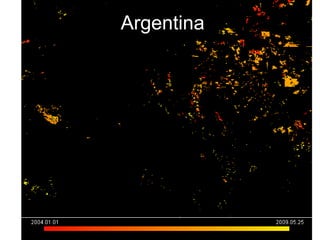

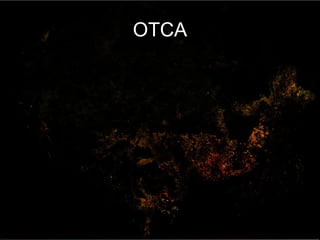

  • 24. OTCA

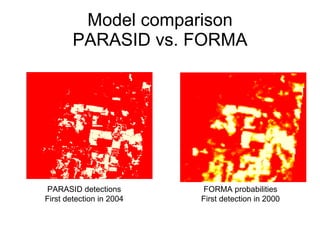

  • 25. Model comparison PARASID vs. FORMA PARASID detections First detection in 2004 FORMA probabilities First detection in 2000
  • 26. PARASID vs DETER It seems Parasid model detects quite small and isolate events which Deter doesn’t detect. 2006 2004

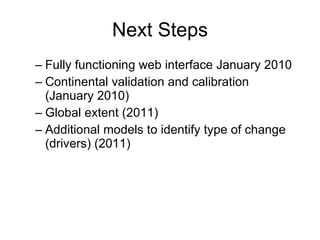

  • 27. Next Steps
      • Fully functioning web interface January 2010
      • Continental validation and calibration (January 2010)
      • Global extent (2011)
      • Additional models to identify type of change (drivers) (2011)

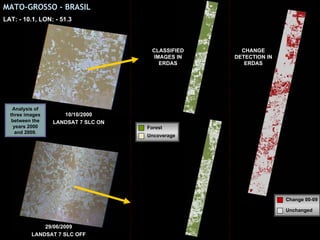

  • 28. Analysis of three images between the years 2000 and 2009. MATO-GROSSO – BRASIL LAT: - 10.1, LON: - 51.3 10/10/2000 LANDSAT 7 SLC ON 29/06/2009 LANDSAT 7 SLC OFF CLASSIFIED IMAGES IN ERDAS Forest Uncoverage Change 00-09 Unchanged CHANGE DETECTION IN ERDAS

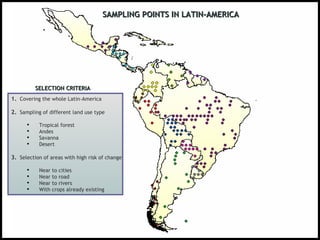

  • 29. SAMPLING POINTS IN LATIN-AMERICA
    • 1. Covering the whole Latin-America
    • 2. Sampling of different land use type
      • Tropical forest
      • Andes
      • Savanna
      • Desert
    • 3. Selection of areas with high risk of change
      • Near to cities
      • Near to road
      • Near to rivers
      • With crops already existing
    SELECTION CRITERIA
  • 30. Conclusions
    • Near-real time global monitoring is possible
    • PARASID now functioning for Latin America
    • Providing first approximations of deforestation rates in over a decade for some parts of Latin America
  • 31. GRACIAS!

×
